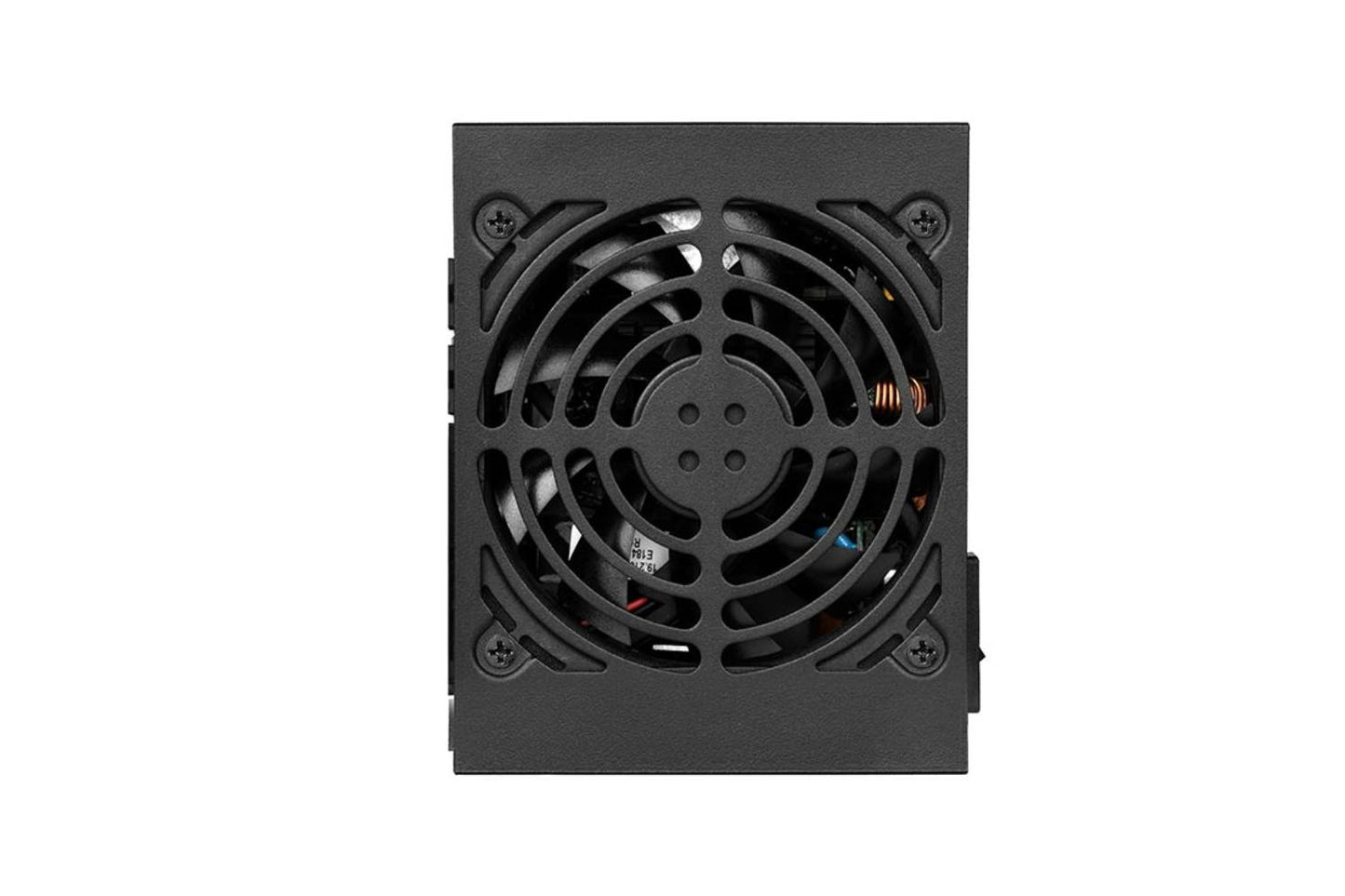

SilverStone SX700-G 700W Modular SFX Power Supply (SST-SX700-G)

Regular price ₹ 12,399.00
Regular price ₹ 19,990.00 Sale price ₹ 12,399.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Model No.
SST-SX700-G
Max. DC Output
700W
Power density
882W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 58.4A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
110W
Combined +12V
700W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
V1.0
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector ("300mm / 200mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)

V1.1
1 x 24 / 20-Pin motherboard connector (300mm)
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector ("300mm / 200mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
Cooling System
Single 92mm FDB fan
Form factor
Noise Level
18 dBA minimum
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight
1.4 Kg
Certification
80 PLUS Gold
Other
GPU Support list
Compatible with ATX12V v2.4
