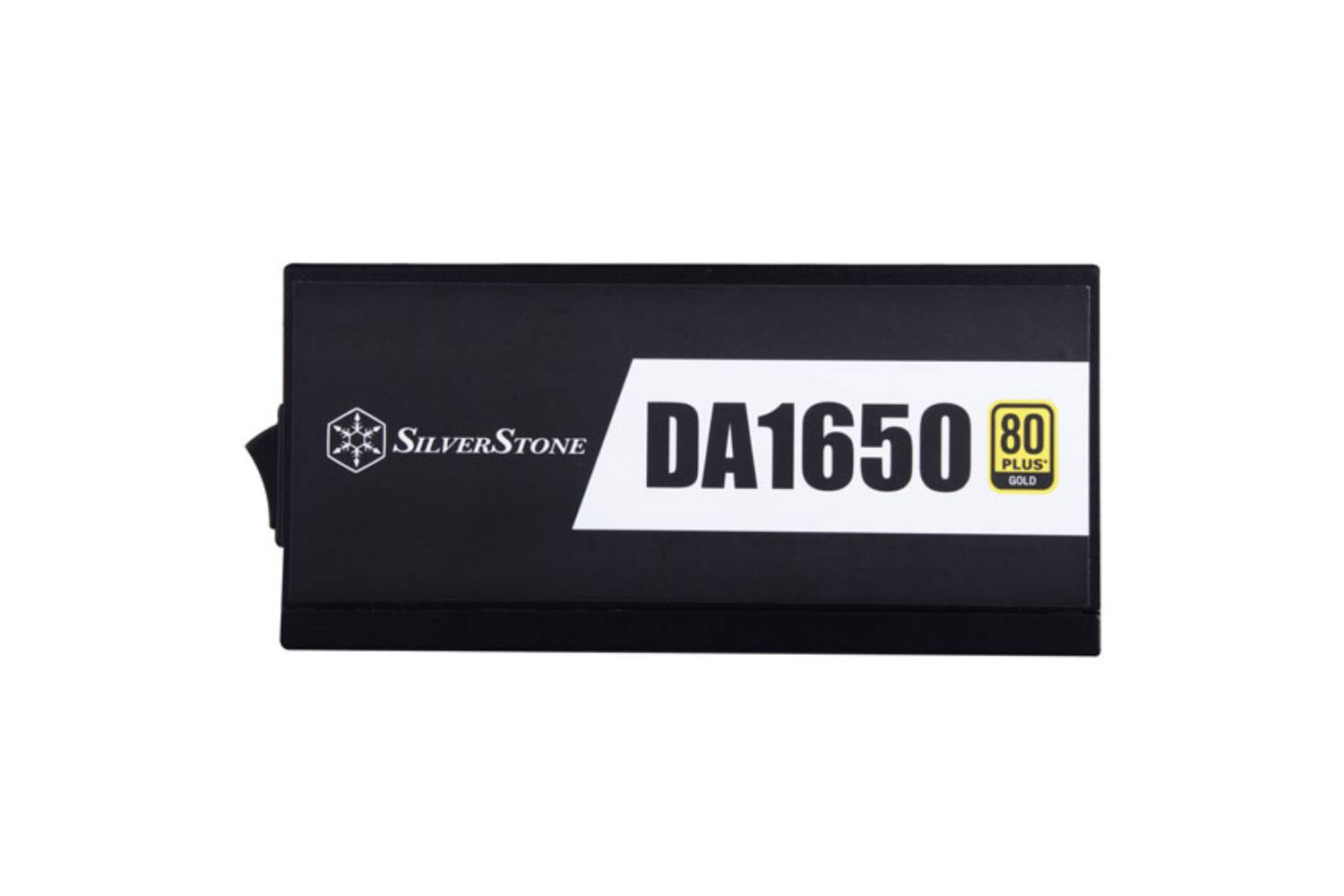

SilverStone DA1650 Gold 80 PLUS Gold 1650W fully modular ATX power supply

Overview

• High efficiency with 80 PLUS Gold certification
• 24/7 continuous power output with 50℃ operating temperature
• 100% modular design with universal EPS / PCIe connector interface for maximum flexibility

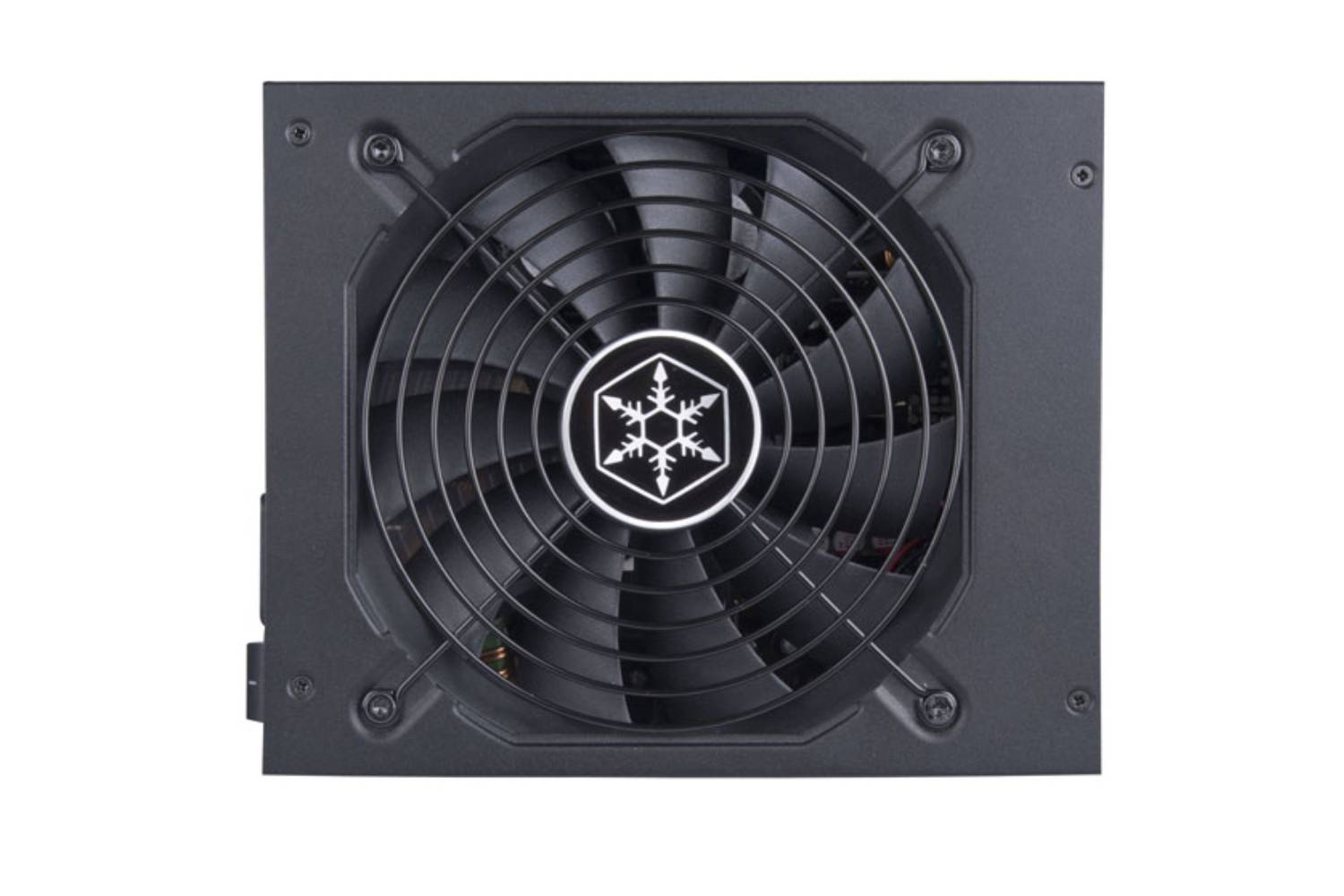

• Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
• Strict ±2% voltage regulation and low ripple & noise
• All Japanese capacitors

Specification

• Model No : SST-DA1650-G
• Max. DC Output : 1650W
• Power density : 711W per liter
• Load Range +3.3V +5V +12V +5VSB -12V Max.(Amps) 25A 25A 137.5A 3.0A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±2% ±2% ±2% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
• Color : Black.（Lead-Free Paint）
• Combined +3.3V & +5V : 130W
• Combined +12V : 1650W
• Input Voltage : 90V~264V
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC（PF>0.9 at Full Load）
• Efficiency : 87% ~ 90% (at 20% ~ 100% loading)
• MTBF : 100,000 hours
• Operating temperature : 0°C ~ 50°C
• Protection Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection

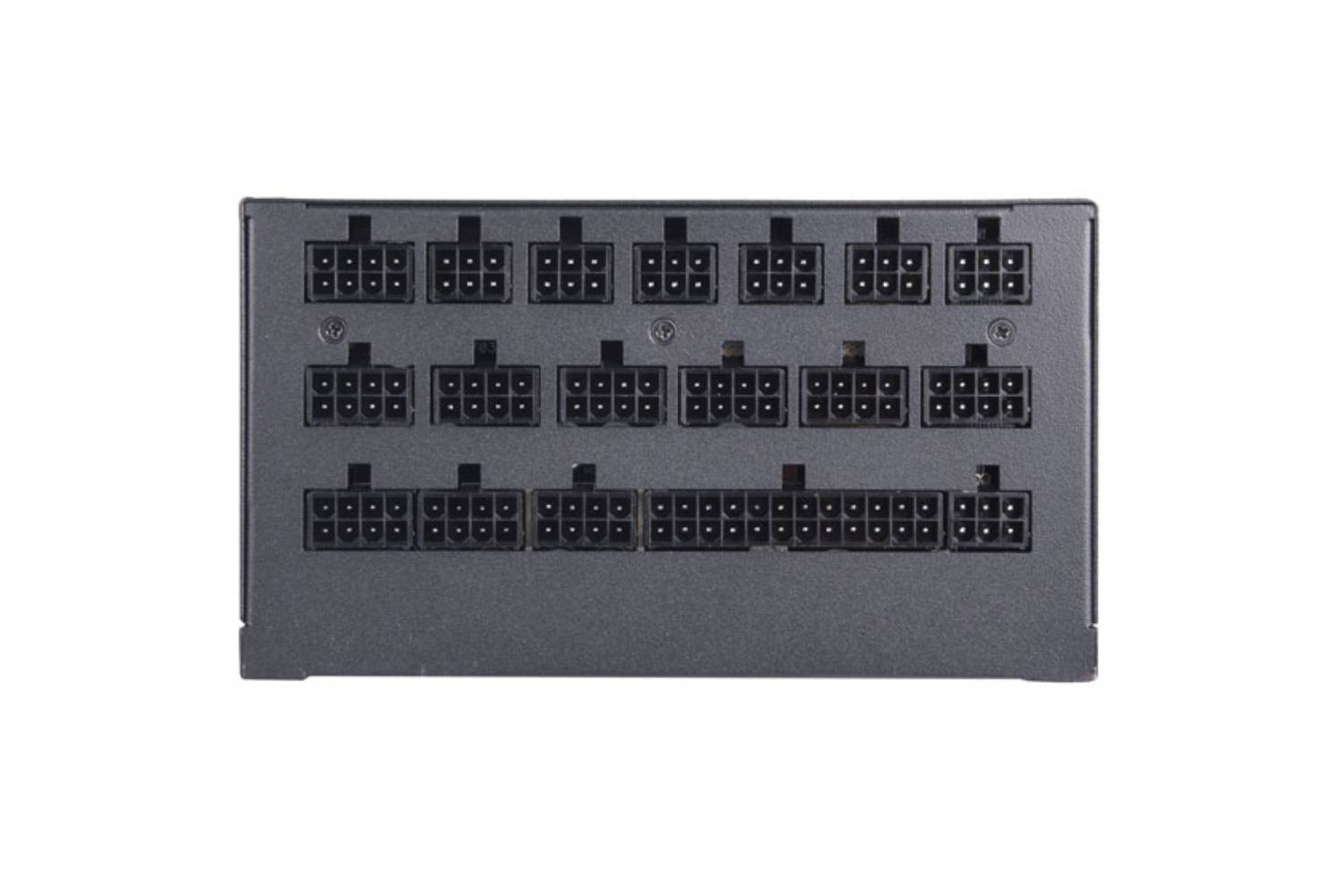

• Connectors 1 x 24 / 20-Pin motherboard connector (600mm) 4 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 4) 8 x 8 / 6-Pin PCIe connector ("600mm / 150mm" x 4) 4 x 8 / 6-Pin PCIe connector ("600mm" x 4) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm)
• Cooling System : Single 135mm FDB fan
• Form factor: ATX / PS/2
• Noise Level 0dBA ~ 36dBA
• Dimension 150 mm (W) x 86 mm (H) x 180 mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D)
• Weight : 2.09 kg
• Certification : 80 PLUS Gold
• Other : GPU Support list Compatible with ATX12V v2.4
