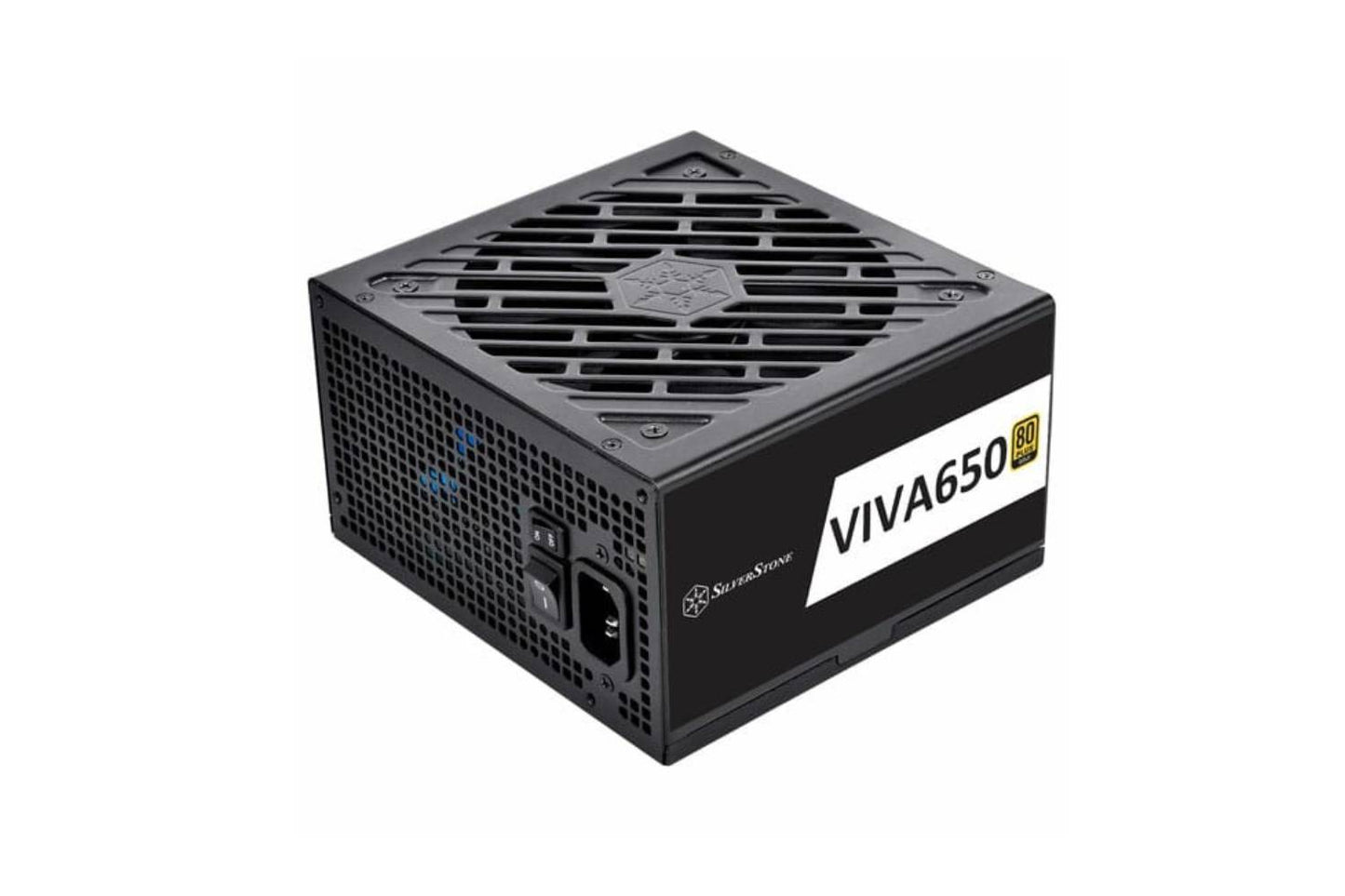

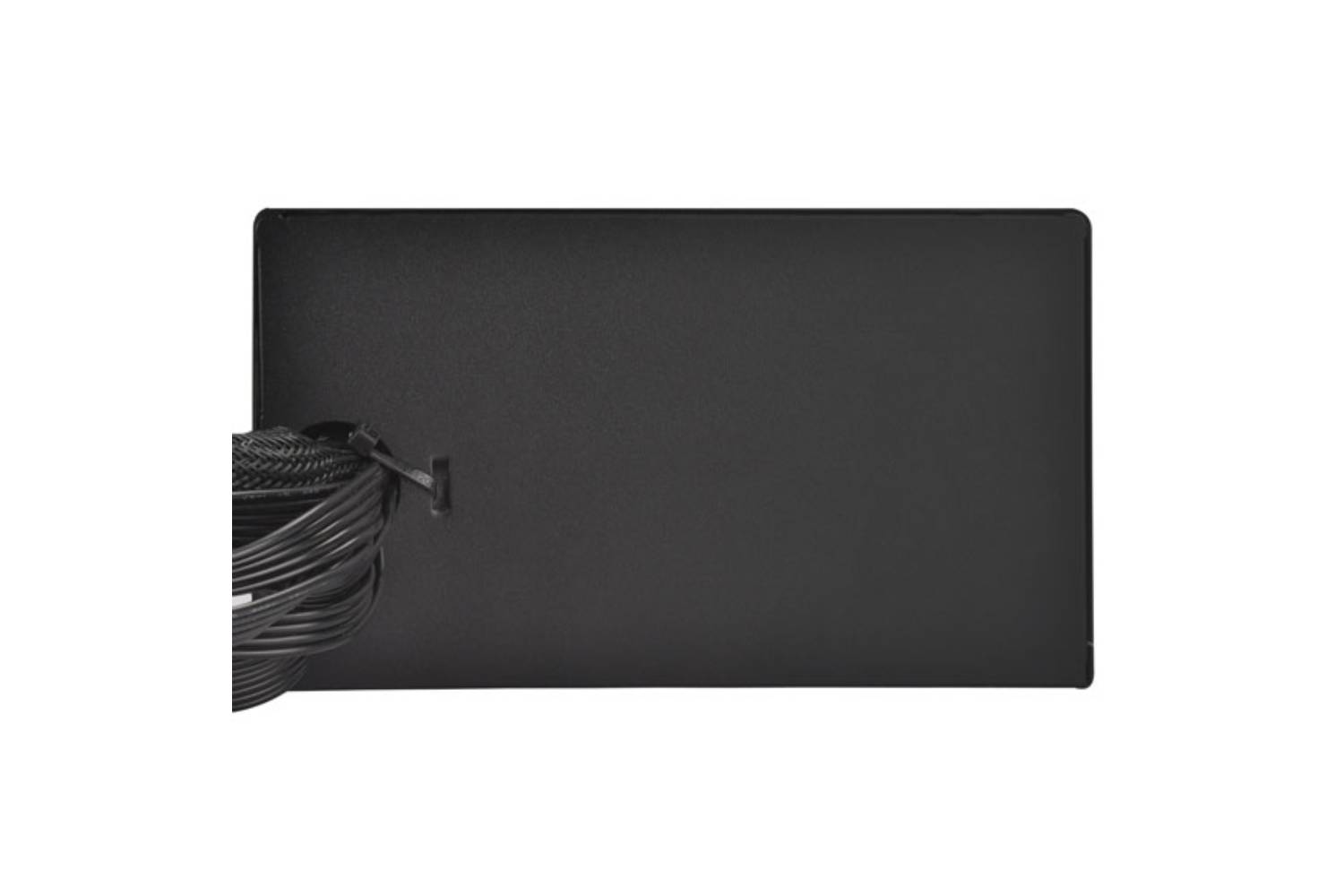

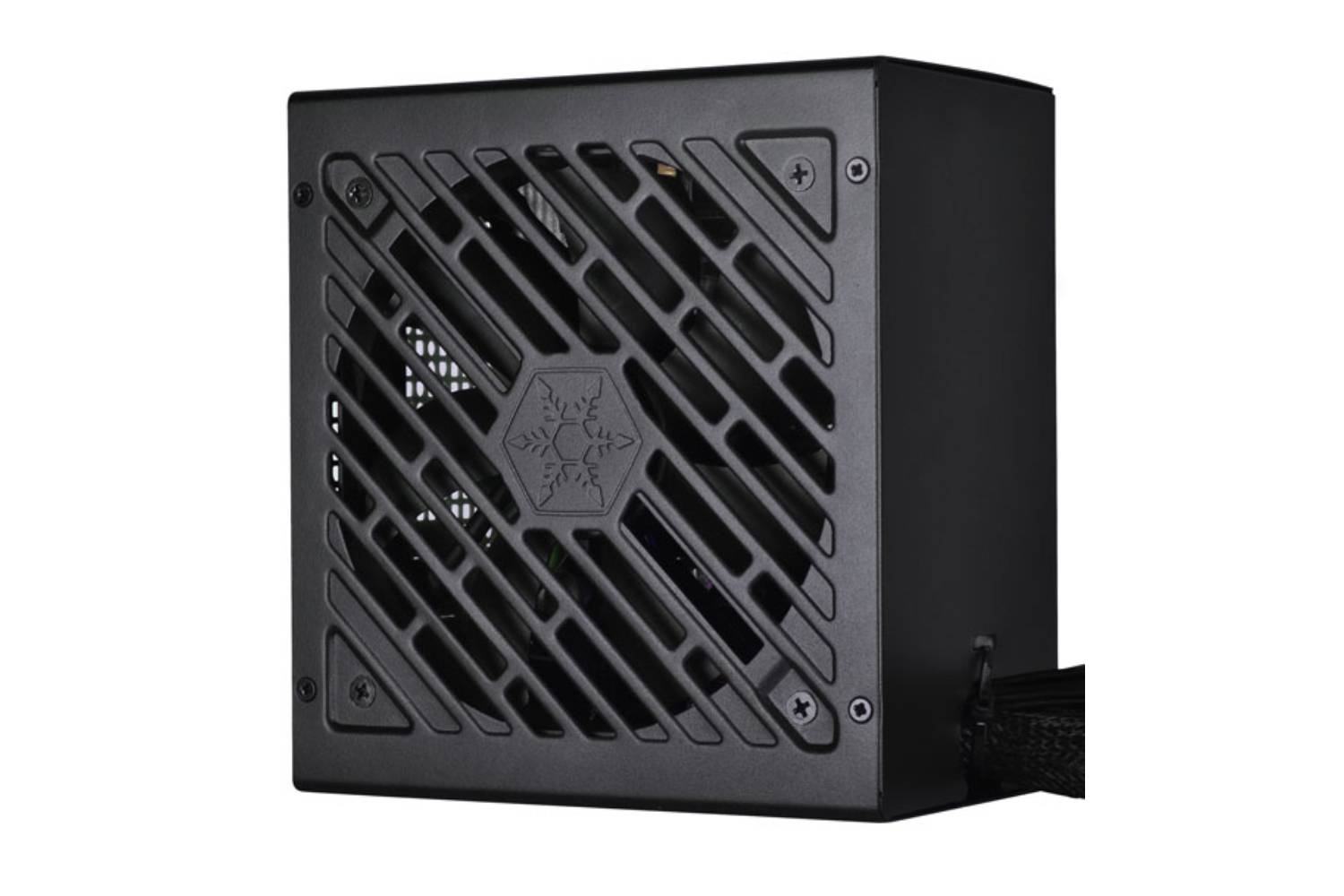

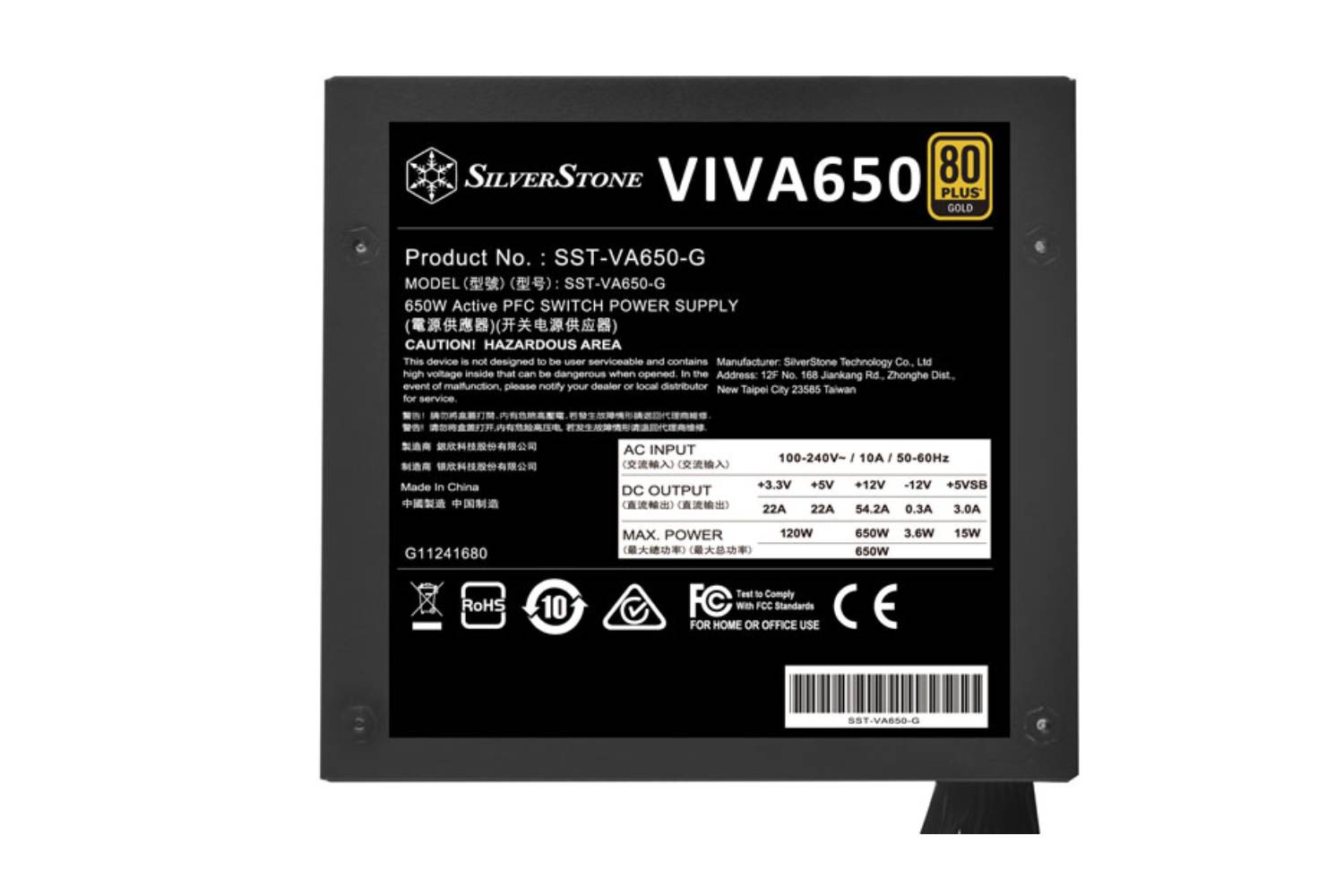

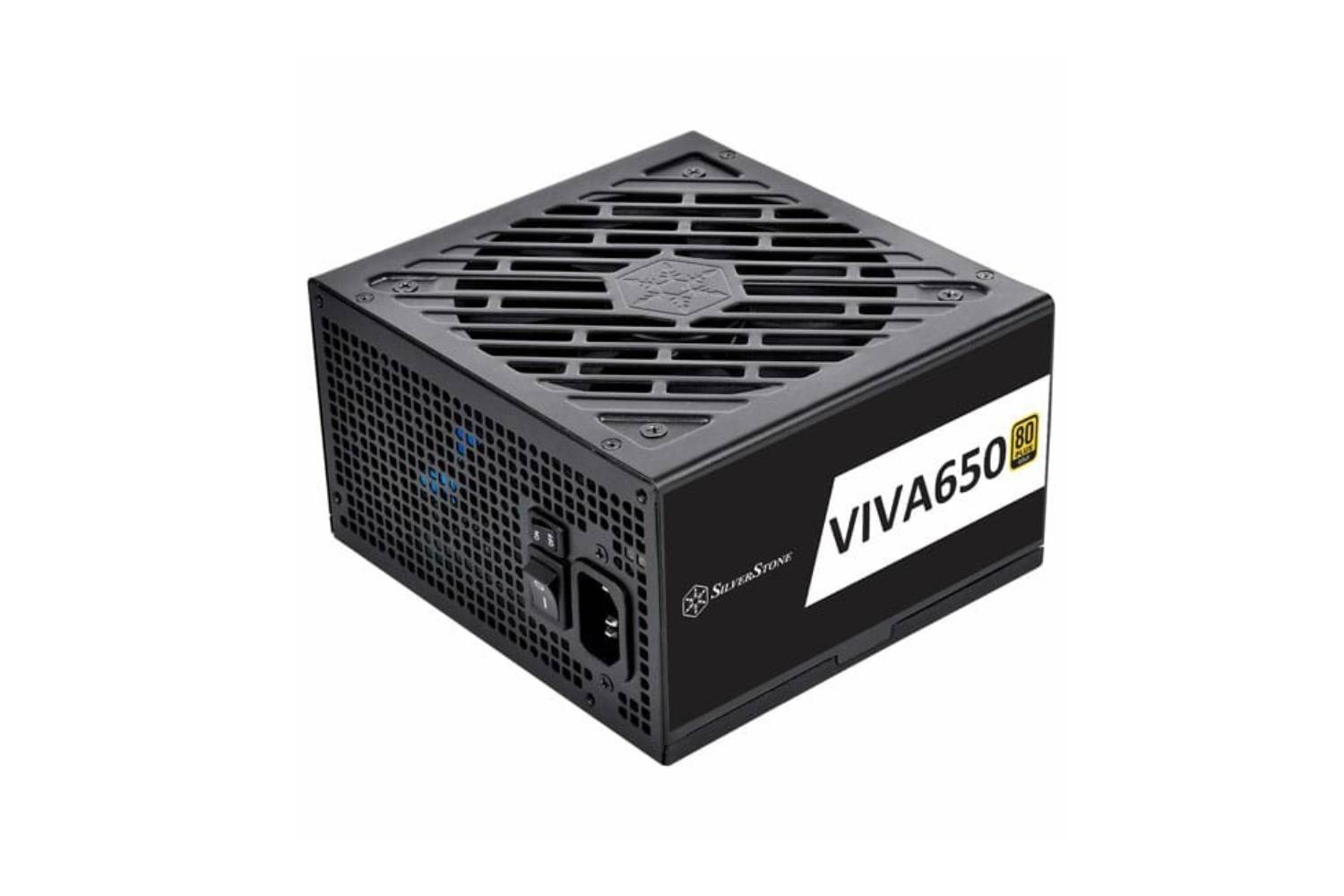

Silverstone VIVA 650w Gold Power Supply

Silverstone VIVA 650w Gold Power Supply

Regular price ₹ 5,830.00
Regular price Sale price ₹ 5,830.00
Sale Sold out
Tax included.

Description

SPECIFICATIONS

Product No.
SST-VA650-G
Max. DC Output
650W
Power density
360W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 54.2A 3.0A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Model (on safety)
SST-VA650-G
Color
Black (lead-free paint)
Combined +3.3V & +5V
120W
Combined +12V
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector (“500mm / 150mm” x 2)
8 x SATA connector ("500mm / 150mm / 150mm / 150mm” x 2)
3 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Silent 120mm fan
Form factor
Noise Level
0 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.72 kg
Certification
80 PLUS Gold


● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
