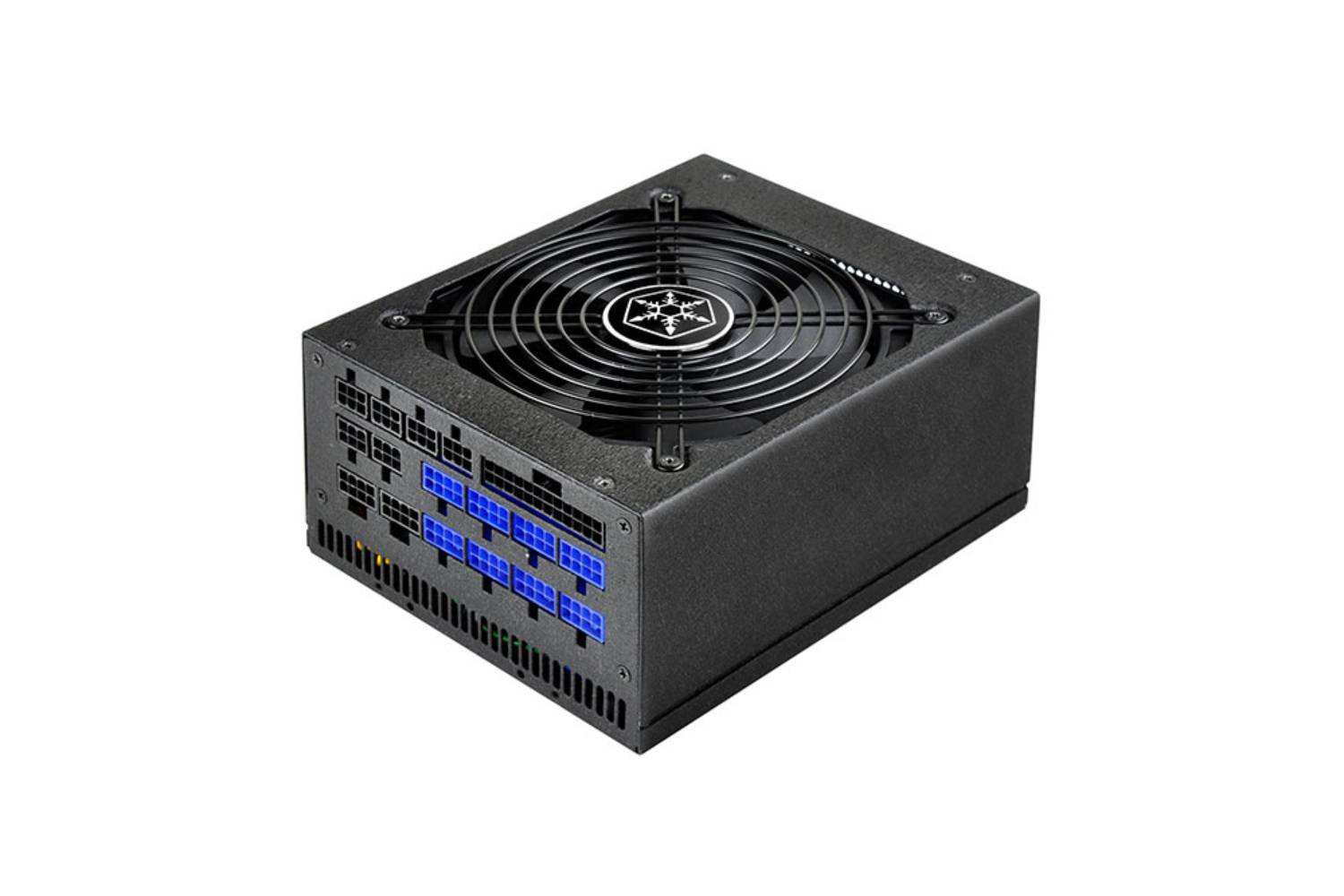

Silverstone 1200W ST1200-PT Platinum Power supply.

Silverstone 1200W ST1200-PT Platinum Power supply.

No reviews
Regular price ₹ 23,575.00
Regular price Sale price ₹ 23,575.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Model No.
SST-ST1200-PT
Max. DC Output
1200W (Peak 1250W)
Power density
517W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
25A 22A 100A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0.1A 0.2A 0.15A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
120W
Combined +12V
1200W
Input Voltage
105V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89%~92% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

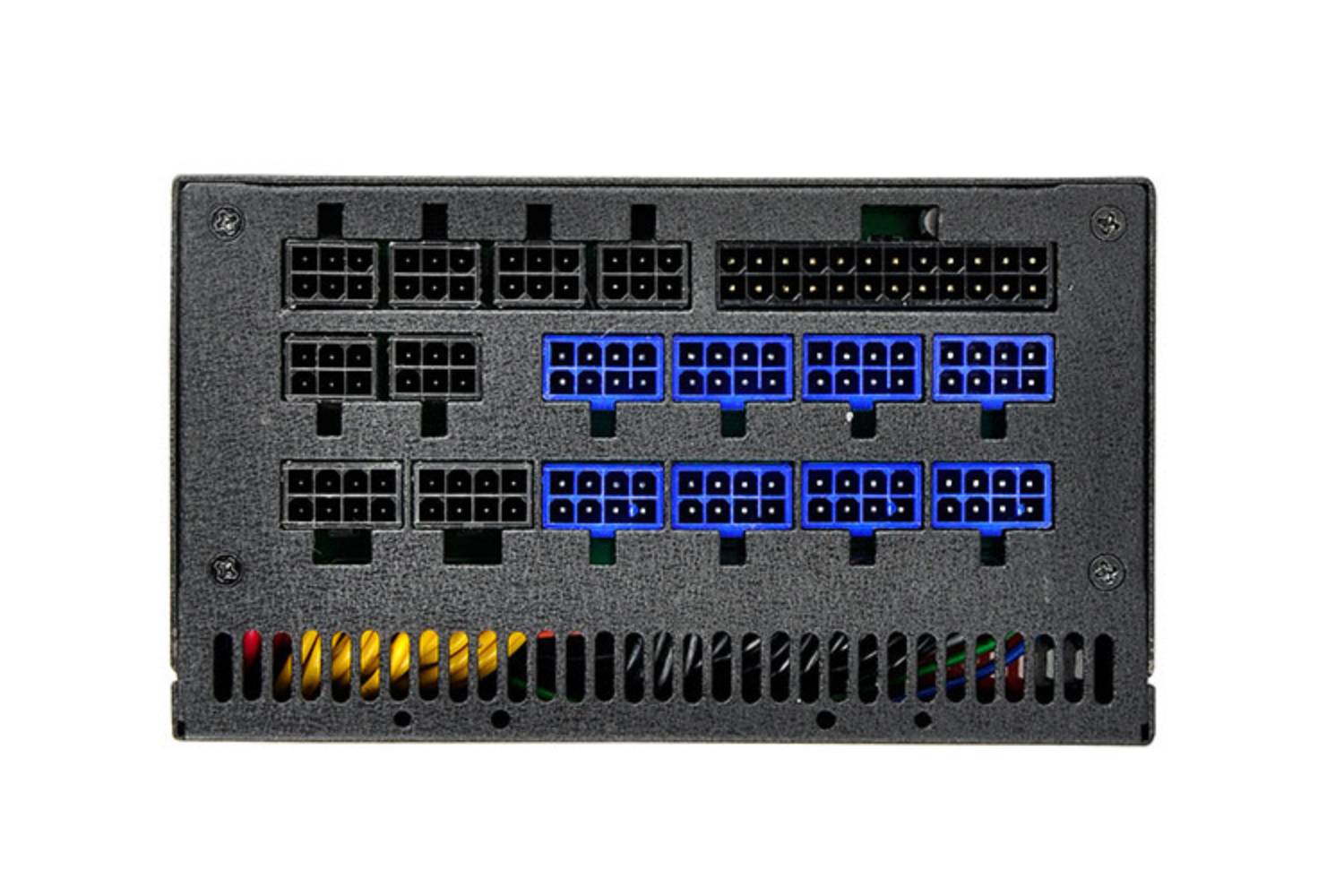

Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
8 x 8 / 6-Pin PCIE connector("550mm" x 8)
16 x SATA connector("600mm / 150mm / 150mm / 150mm" x 4)
6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm" x 2)
2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm" x 2)

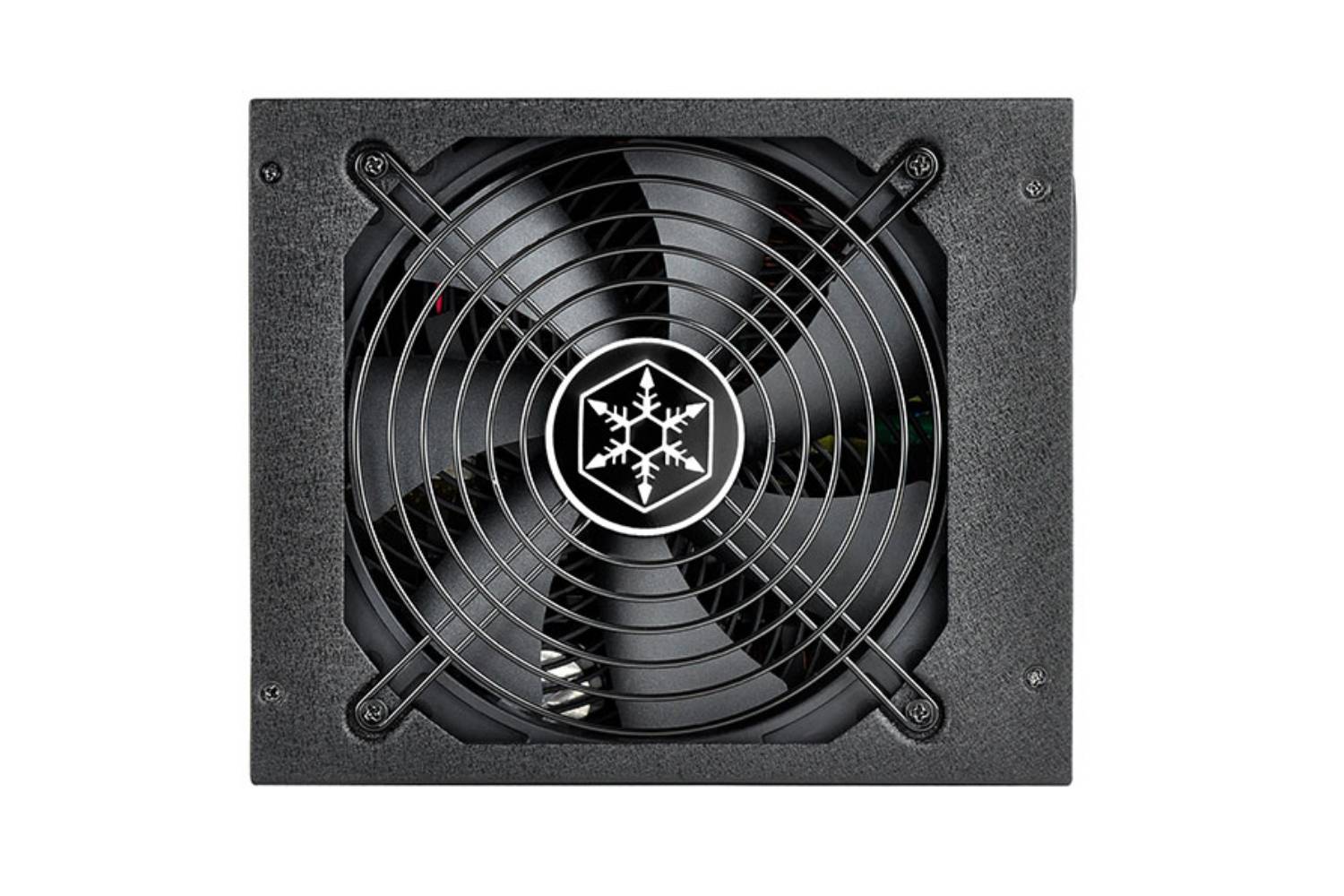

Cooling System
Single 139mm silent fan
Form factor
Noise Level
0 ~ 36 dBA
Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
Weight
3.3 kg
Certification
80 PLUS Platinum
Other
GPU Support list
Compatible with ATX12V v2.4
