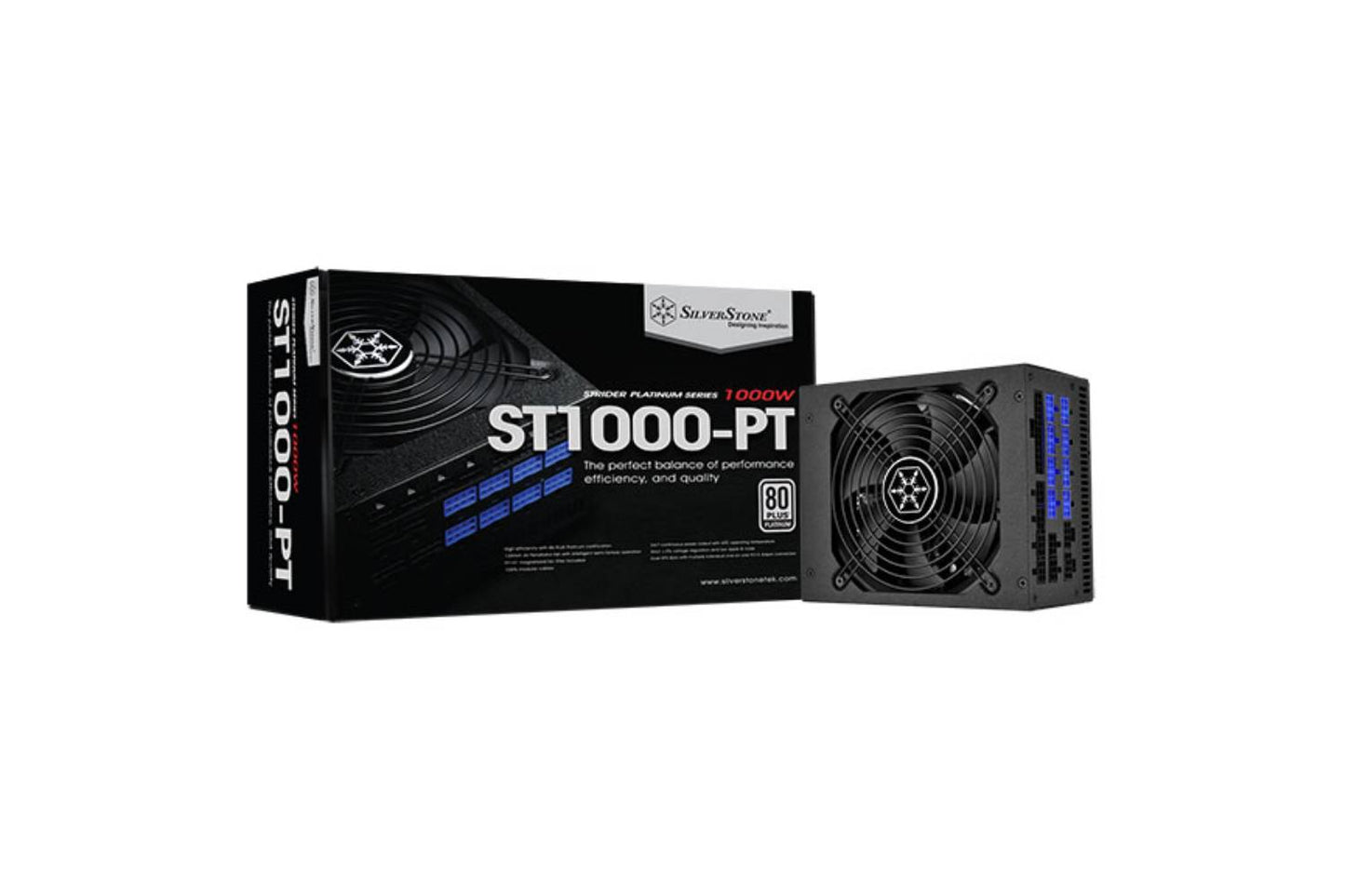

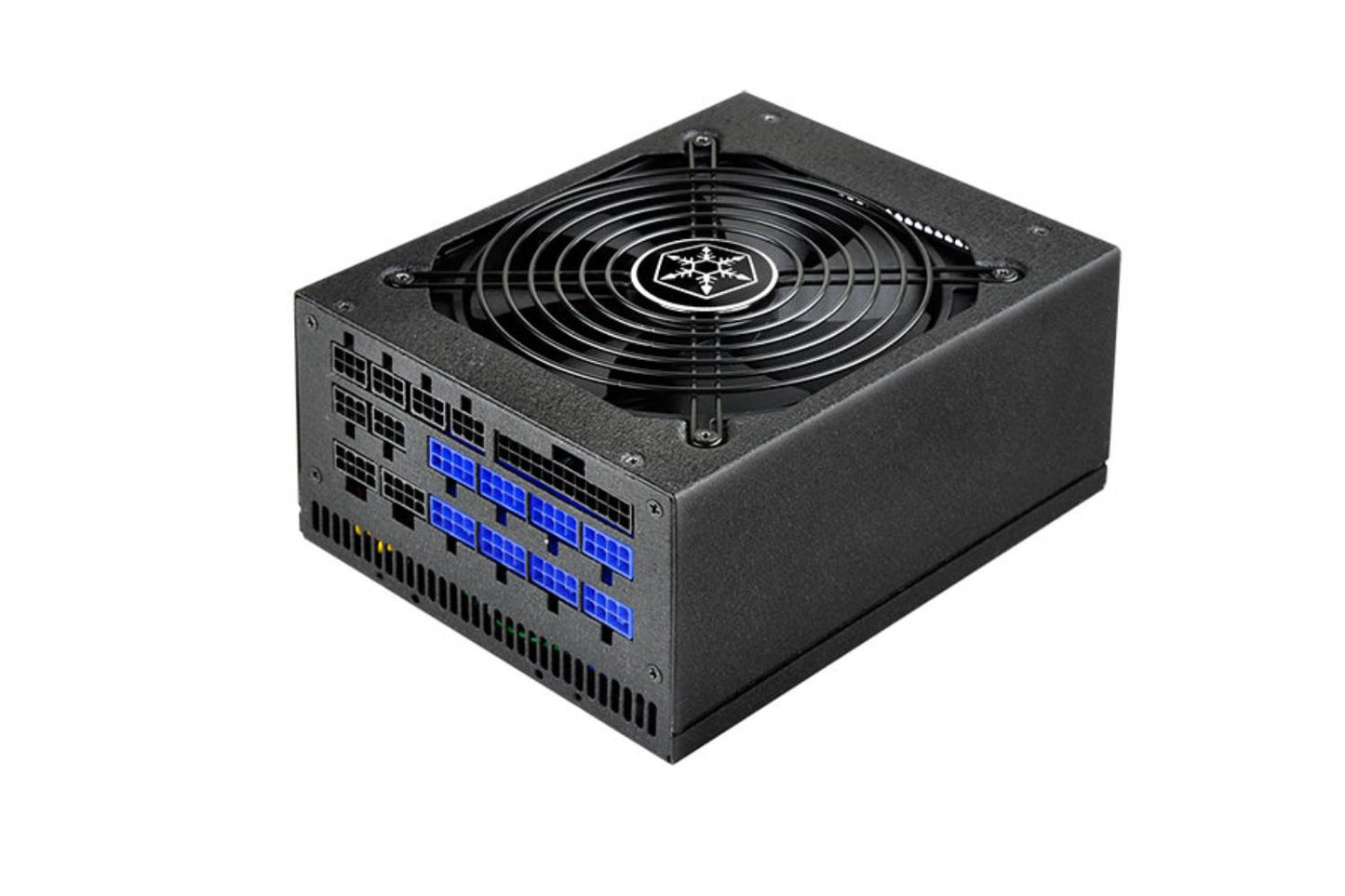

Silverstone ST1000-PT 1000W Platinum 80 Plus Power Supply
Silverstone ST1000-PT 1000W Platinum 80 Plus Power Supply
Description
Description
SPECIFICATIONS
Model No. |
SST-ST1000-PT
|
||||||||||||||||||||||||||||||||||||||||||
Max. DC Output |
1000W (Peak 1050W)
|
||||||||||||||||||||||||||||||||||||||||||
Power density |
431W per liter
|
||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
Color |
Black(Lead-Free Paint)
|
||||||||||||||||||||||||||||||||||||||||||
Combined +3.3V & +5V |
120W
|
||||||||||||||||||||||||||||||||||||||||||
Combined +12V |
996W
|
||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
90V~264V
|
||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz~63Hz
|
||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC(PF>0.9 at full load)
|
||||||||||||||||||||||||||||||||||||||||||
Efficiency |
89%~92% at 20%~100% loading
|
||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||||||||
Protection |
Over current protection
Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
||||||||||||||||||||||||||||||||||||||||||

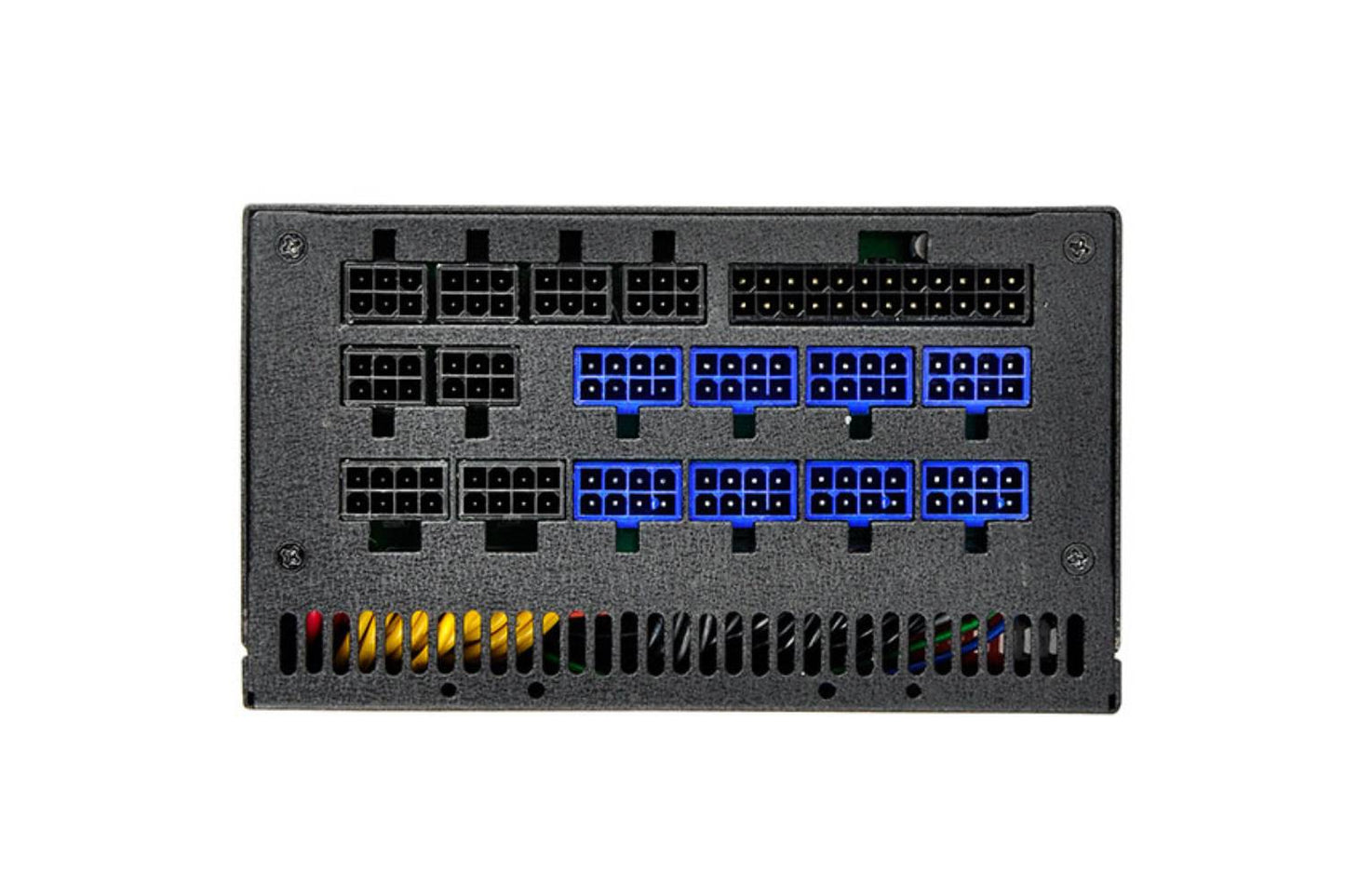

Connectors |
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 6 x 8 / 6-Pin PCIE connector("550mm" x 6) 16 x SATA connector("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm" x 2) 2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm" x 2) |
||||||||||||||||||||||||||||||||||||||||||
Cooling System |

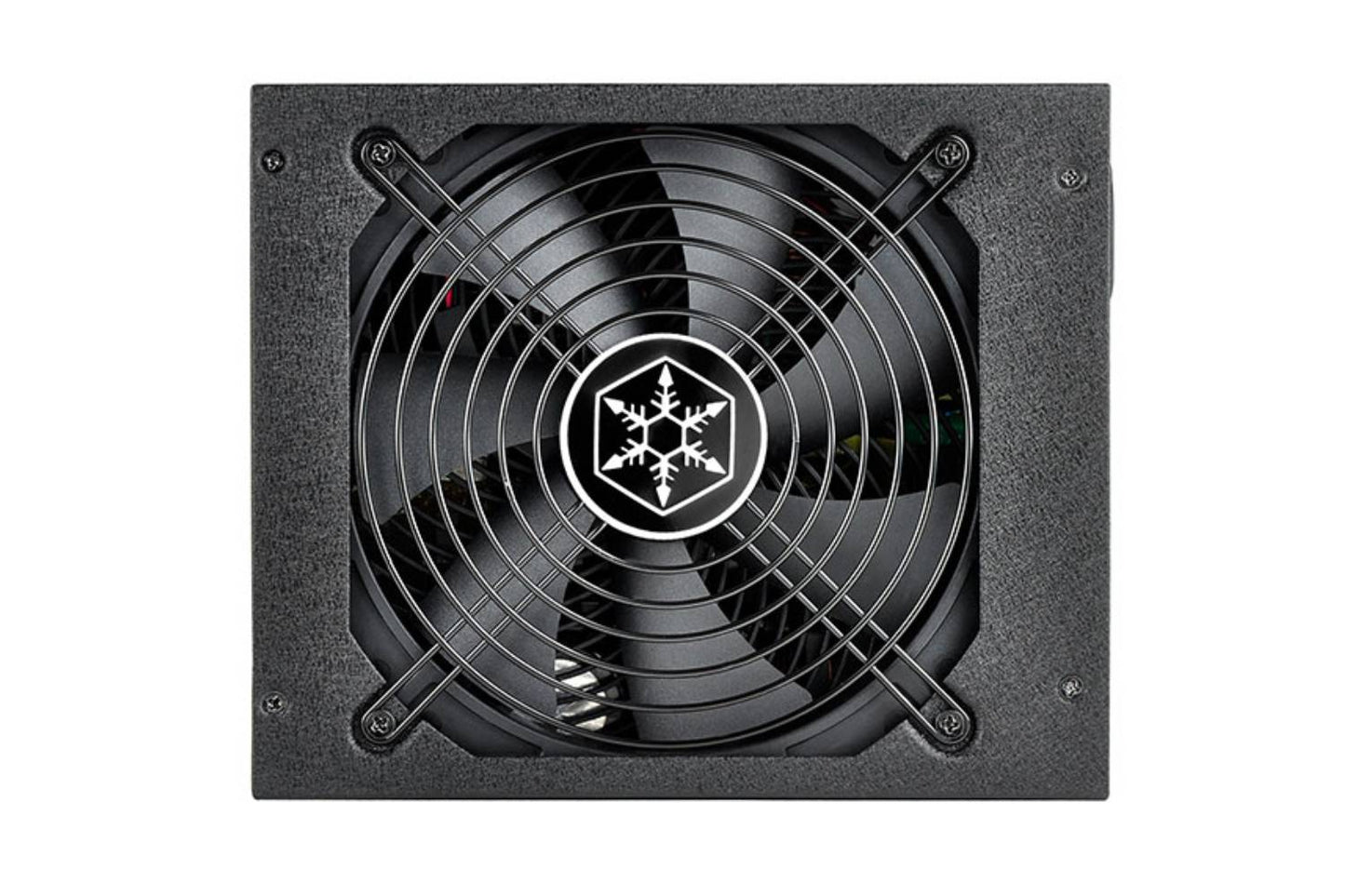

Single 139mm silent fan
|
||||||||||||||||||||||||||||||||||||||||||
Form factor | |||||||||||||||||||||||||||||||||||||||||||
Noise Level |
0 ~ 36 dBA
|
||||||||||||||||||||||||||||||||||||||||||
Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D) |
||||||||||||||||||||||||||||||||||||||||||
Weight |
3.3 kg
|
||||||||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS Platinum
|
||||||||||||||||||||||||||||||||||||||||||
Other |
GPU Support list
Compatible with ATX12V v2.4 |
