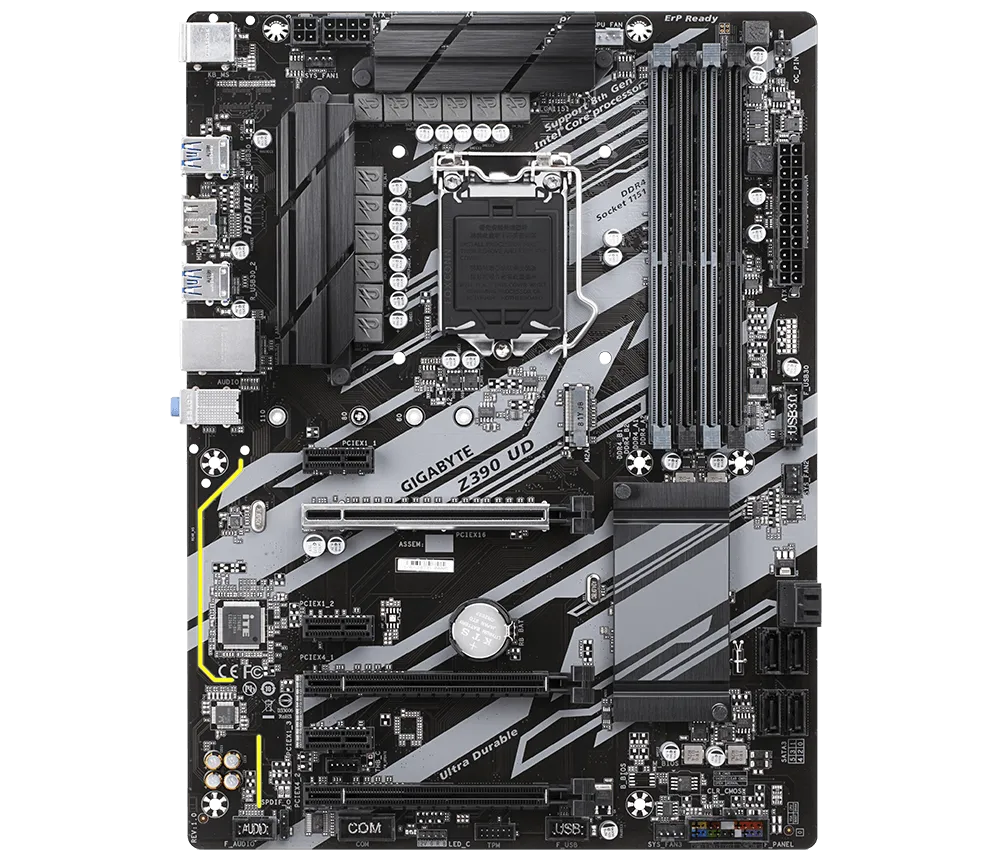

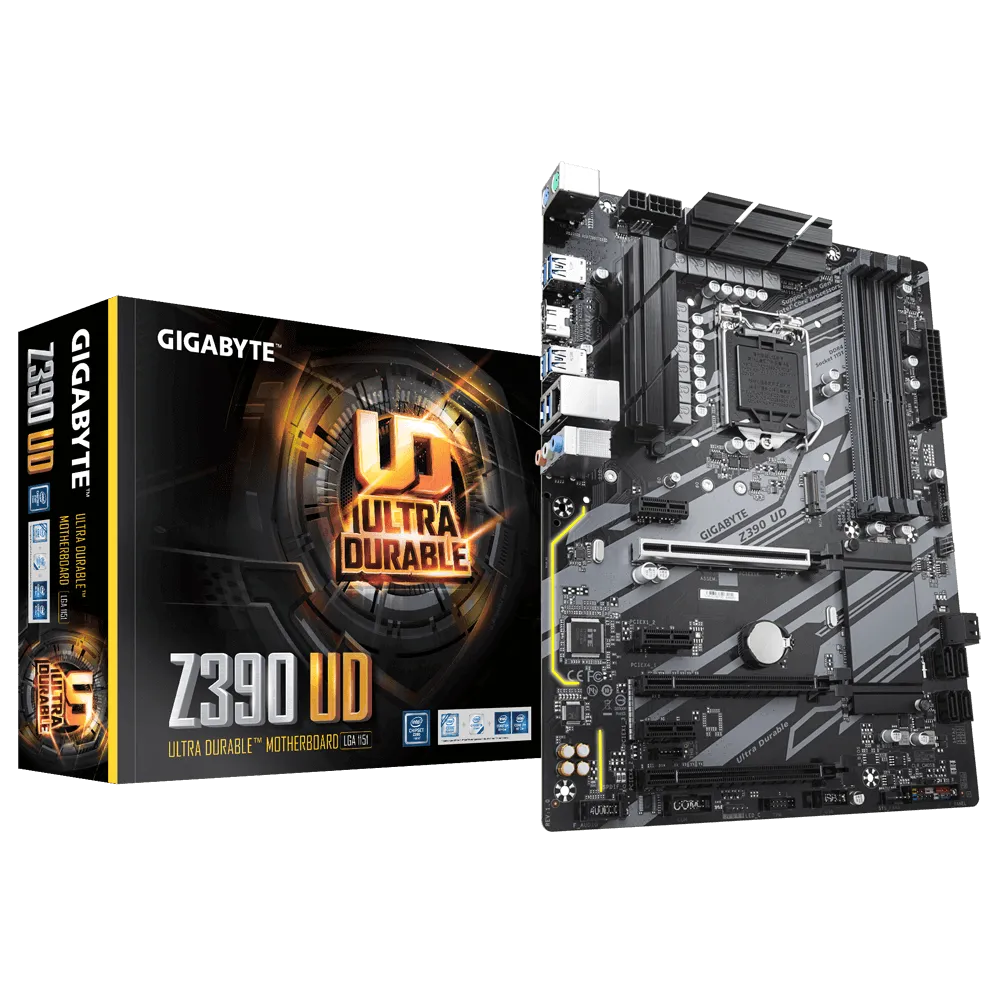

Gigabyte Intel Z390 UD Motherboard with Ultra Durable Design, CEC 2019 Motherboard

Regular price ₹ 16,500.00
Regular price Sale price ₹ 16,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.
CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z390 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
  2. Dual channel memory architecture
  3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB

Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB
Chipset:

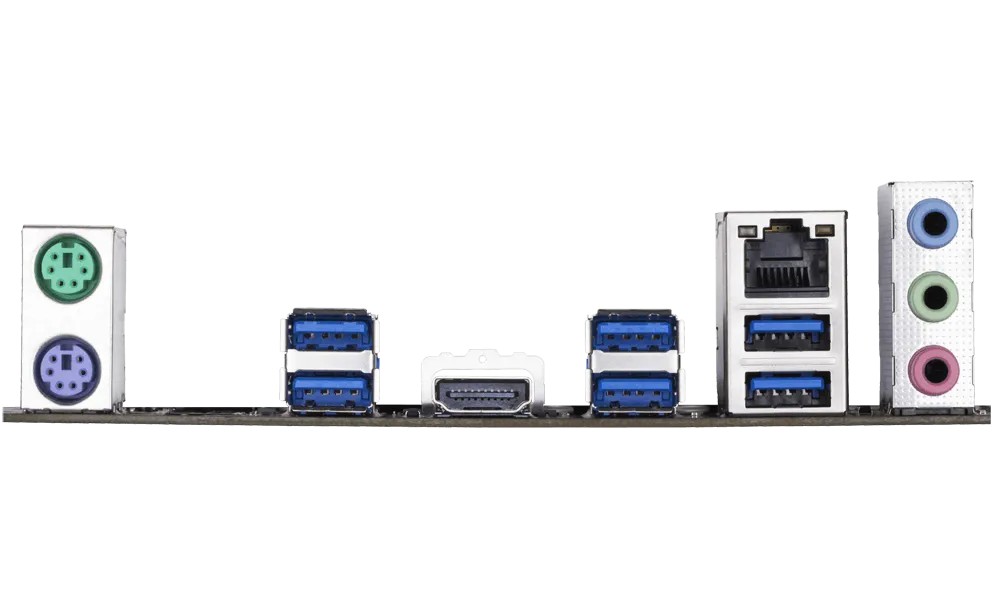

  1. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 6 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 3 x system fan headers
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.1 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x S/PDIF Out header
  13. 1 x Thunderbolt™ add-in card connector
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
Form Factor
  1. ATX Form Factor; 30.5cm x 23.0cm
