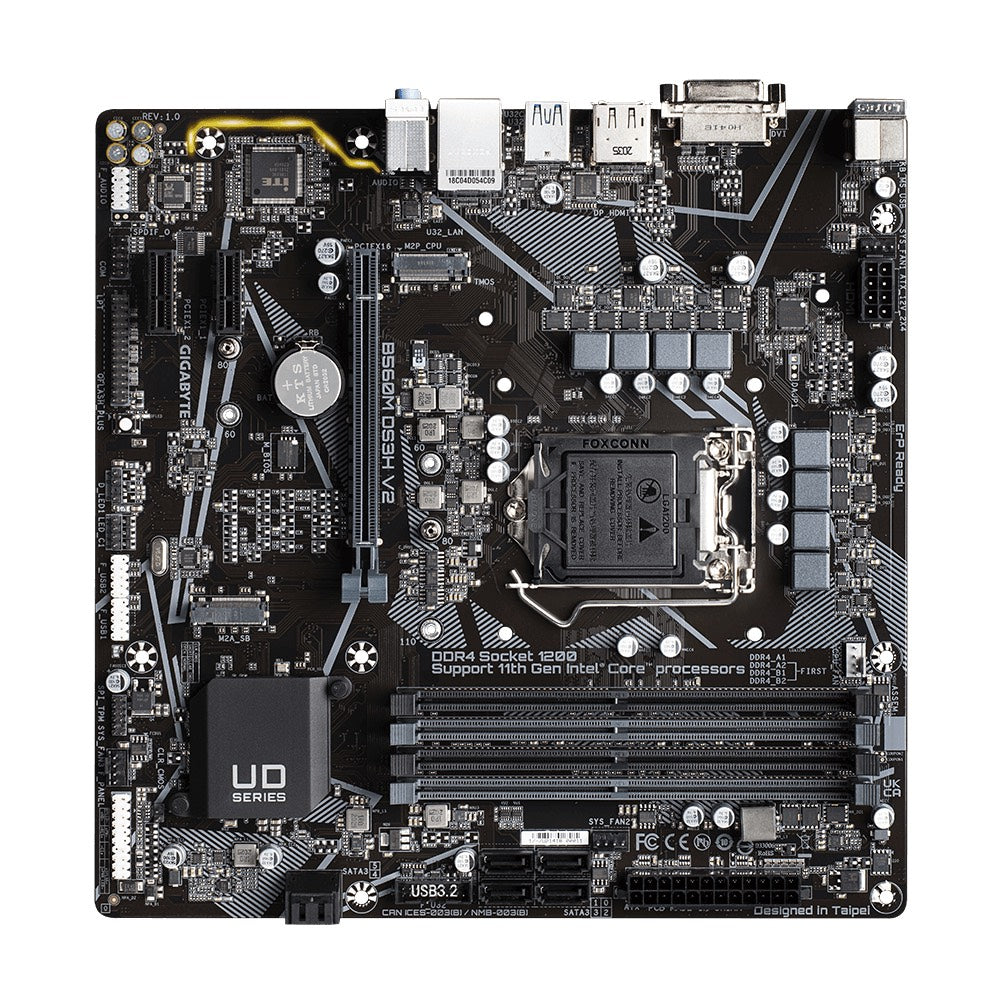

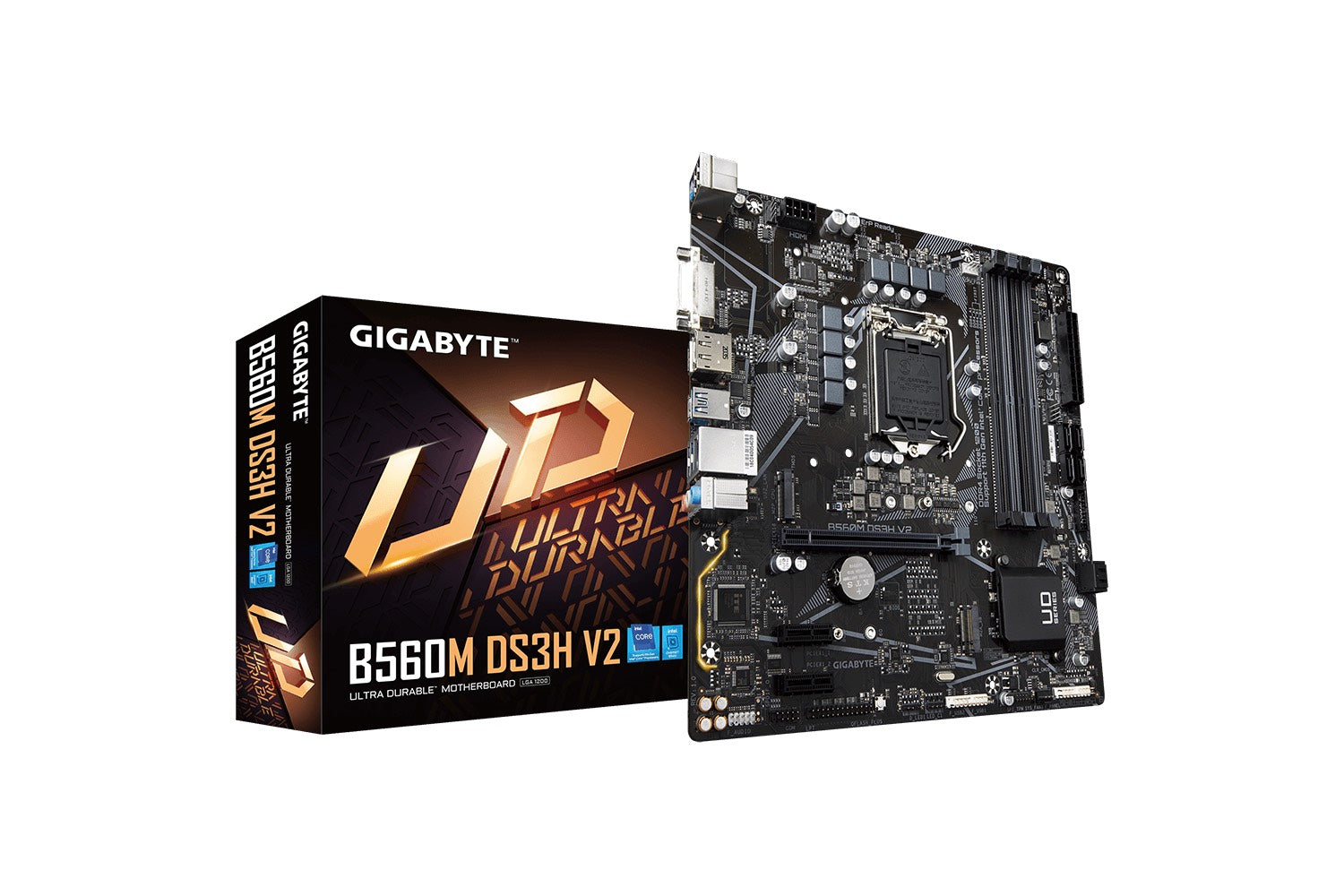

Gigabyte B560M DS3HV2 Motherboard

Gigabyte B560M DS3HV2 Motherboard

Regular price ₹ 10,042.00
Regular price Sale price ₹ 10,042.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications

  • CPU
    LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® B560 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    4. (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
    2. 2 x PCI Express x1 slots
      (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    (Note) Supported by 11th Generation processors only.
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
    2. 6 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.

    (Note) Supported by 11th Generation processors only.
  • USB
    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    1. 2 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 6 x SATA 6Gb/s connectors
    8. 2 x M.2 Socket 3 connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x serial port header
    15. 1 x parallel port header
    16. 1 x Clear CMOS jumper
    17. 1 x Q-Flash Plus button
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

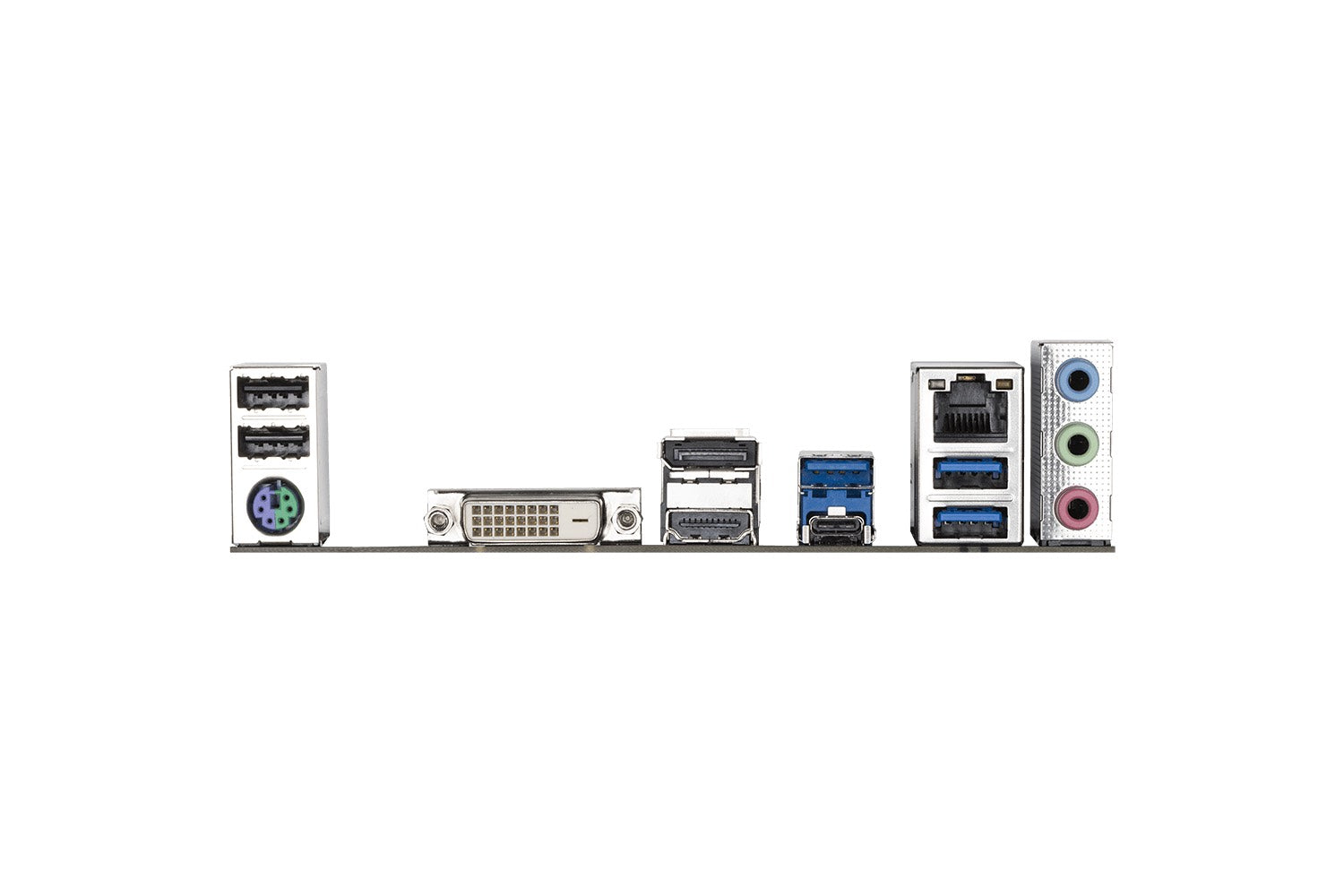

  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x DVI-D port
    4. 1 x DisplayPort
    5. 1 x HDMI port
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
