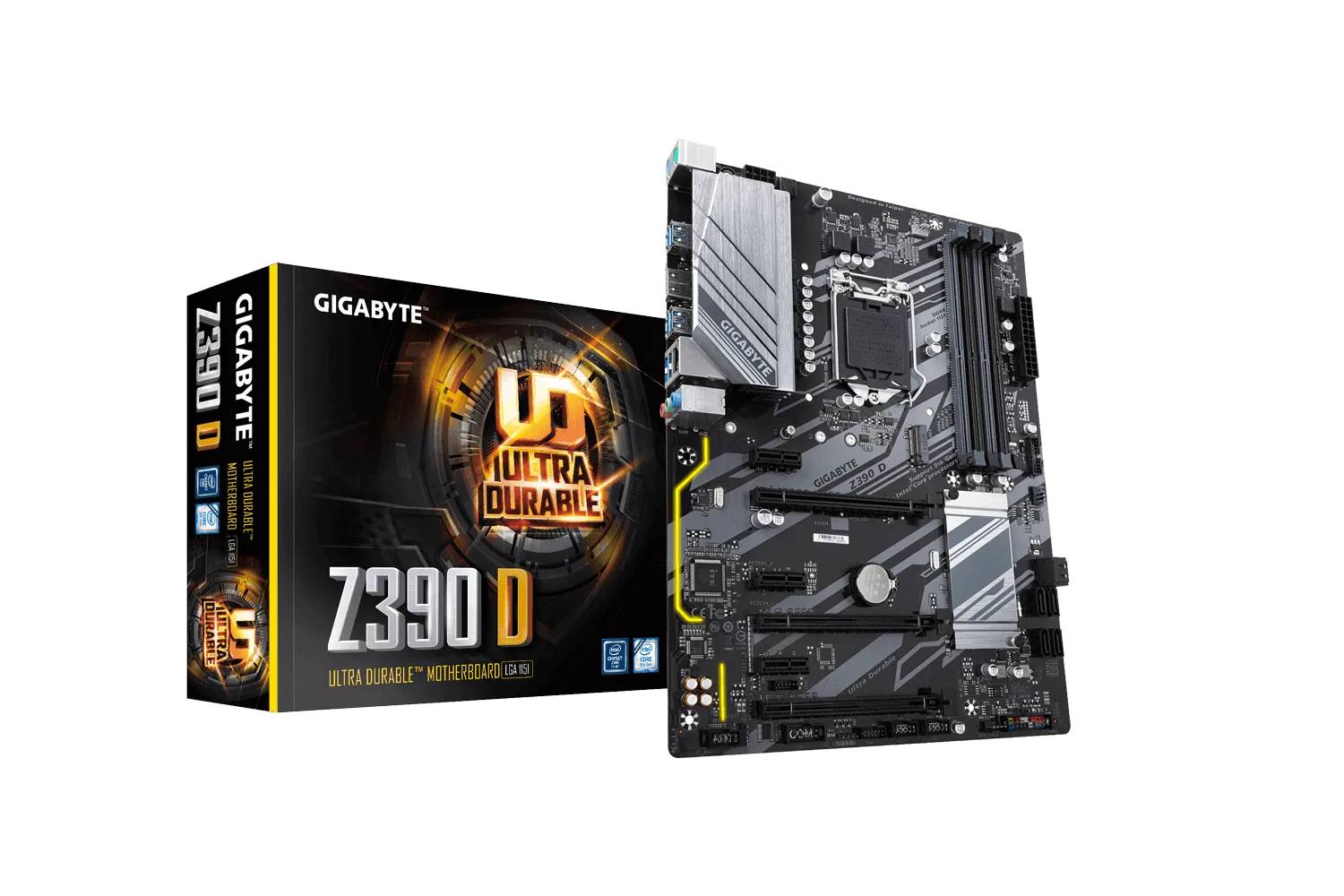

Gigabyte Intel Z390 D Motherboard

• CPU
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® Z390 Express Chipset
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
  2. Dual channel memory architecture
  3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.2.

  Maximum shared memory of 1 GB
• Audio
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
  3. 3 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel^® Optane™ Memory Ready
• USB
  Chipset:

  1. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 6 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 3 x system fan headers
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.1 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x S/PDIF Out header
  13. 1 x Thunderbolt™ add-in card connector
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper

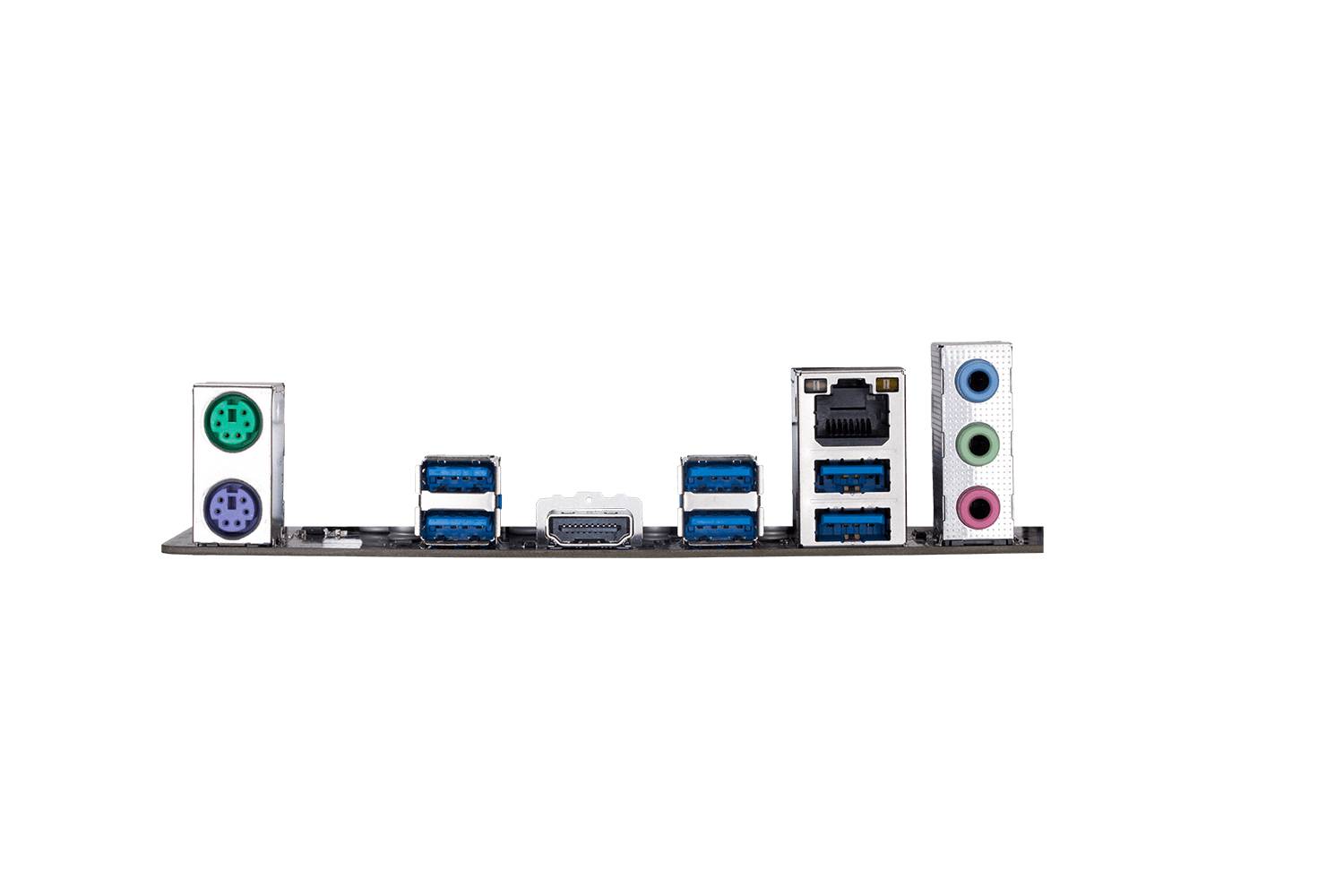

• Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x HDMI port
  4. 6 x USB 3.1 Gen 1 ports
  5. 1 x RJ-45 port
  6. 3 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     AutoGreen
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart Survey
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 23.0cm
