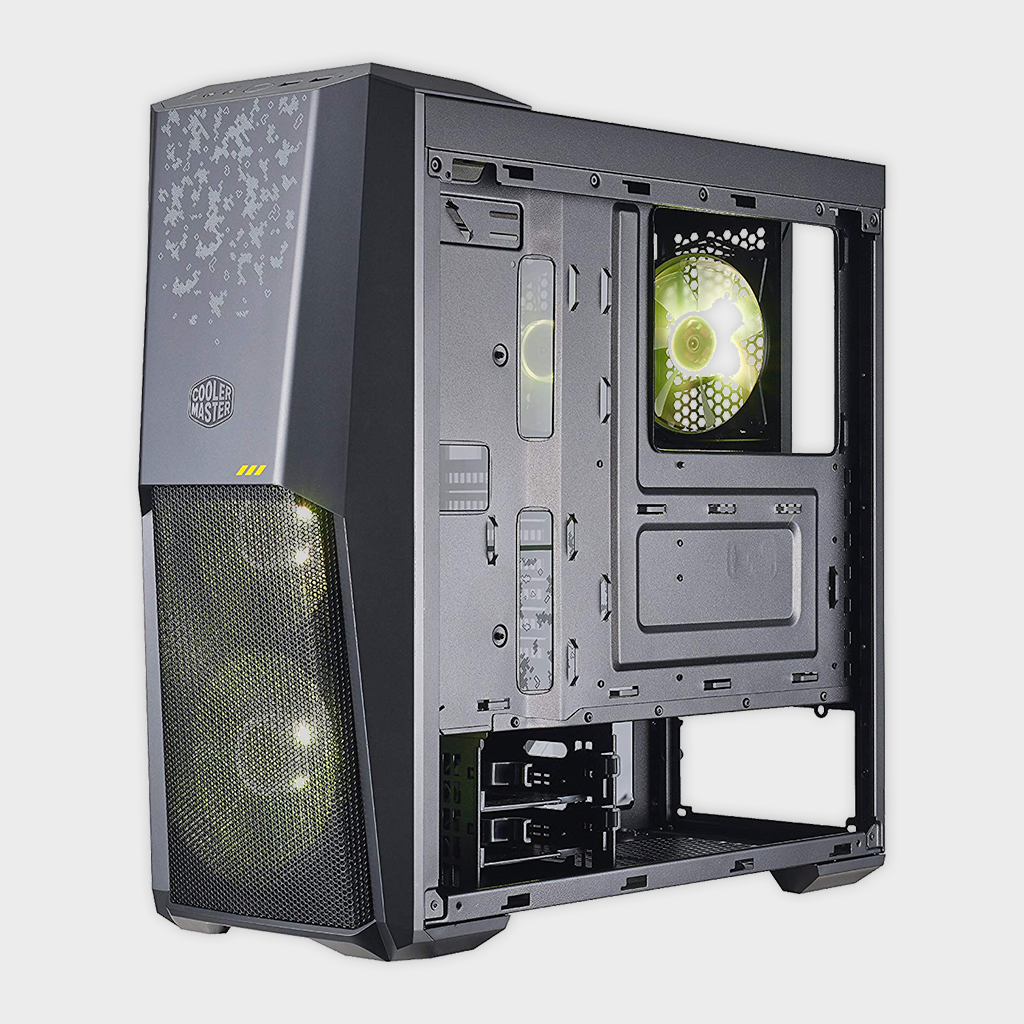

- Masterbox MB500 TUF Gaming Edition TUF Gaming Camouflage Styling
- Full Black Coated Body and PSU Cover
- PSU Shroud Cut Out to show your PSU
- 4mm Thick Edge to Edge Tempered Glass Side Panel
- RGB Controller and 1 to 3 Splitter Cable for RGB LED Fans
Product Name | MasterBox MB500 TUF Edition | |
Model Number | MCB-B500D-KGNN-TUF | |
Available Color | Black | |
Materials | Steel, Plastic, Tempered Glass | |
Dimensions (LxWxH) | 494 x 211 x 475mm | |
Motherboard Support | ATX, Micro-ATX, Mini-ITX | |
Expansion Slots | 7 | |
Drive Bays | 5.25" | N/A |
3.5" HDD | 2 (Max. 2) | |
2.5" SSD | 2 (Max. 4) | |
I/O Panel | USB 3.0 x 2, Audio in / out | |
Pre-installed Fan(s) | Front | 120mm x 2 RGB LED fan |
Rear | 120mm x 1 RGB LED fan | |
Fan Support | Front | 120mm x 3 / 140mm x 2 |
Rear | 120mm x 1 | |
Top | 120mm x 2 | |
Radiator Support | Front | 120 / 140 / 240 / 280 / 360mm radiator (limited) up to 50mm thickness without fan |
Rear | 120mm x 1 | |
Clearance | CPU Cooler | 163mm |
PSU | 180mm | |
GPU | 400mm | |
Cable Routing | Behind MB Tray | 15mm - 23mm / 0.59" - 0.90" |
Dust Filters | Front, Bottom | |
Power Supply Support | Bottom mount, ATX | |
EAN code | 4719512071090 | |
UPC code | 884102043598 |
