About this product

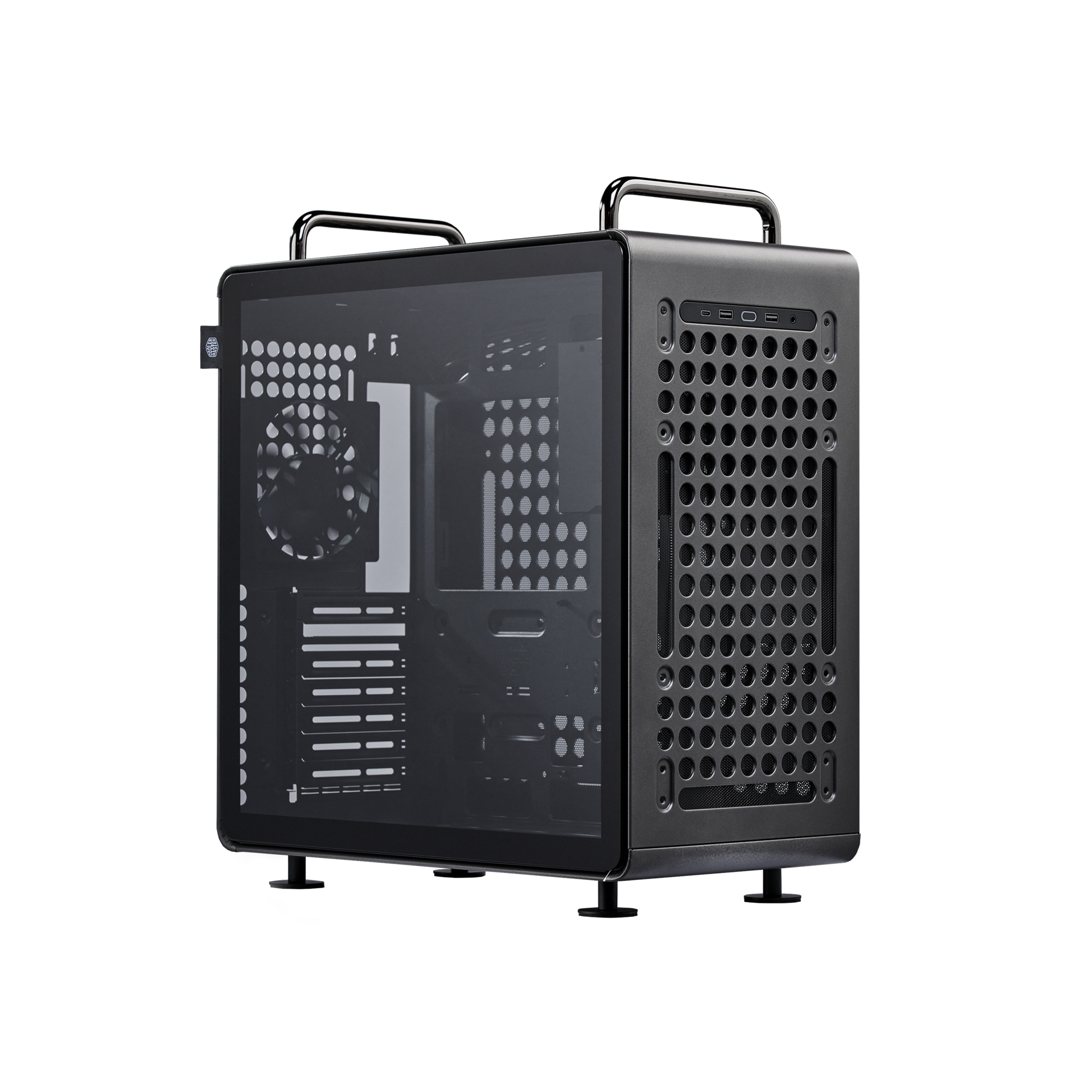

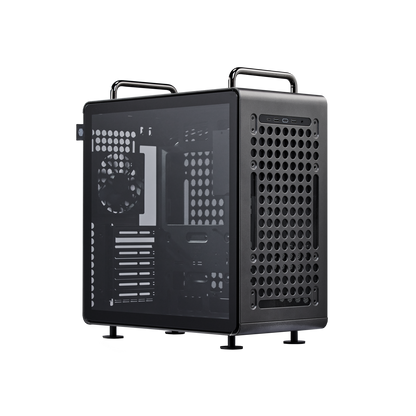

The Cooler Master Qube 540 is a compact 40.6L ATX cabinet built for creators, gamers and DIY builders who want full-size capability without a full-size footprint. It keeps the clean geometric look of the Qube series while adding a fully modular interior, a repositionable I/O panel and movable handles, so the case adapts to your desk instead of the other way around. Despite the small frame it takes graphics cards up to 415 mm, 360 mm radiators on four sides and both ATX and SFX power supplies.
Key Features
- Compact yet capable β 40.64 L chassis supporting ITX, M-ATX, ATX and E-ATX (up to 280 mm) motherboards.
- 415 mm GPU clearance β fits current flagship graphics cards, with vertical GPU mounting supported.
- 360 mm radiator support on front, top and bottom, plus 120 mm at the rear.

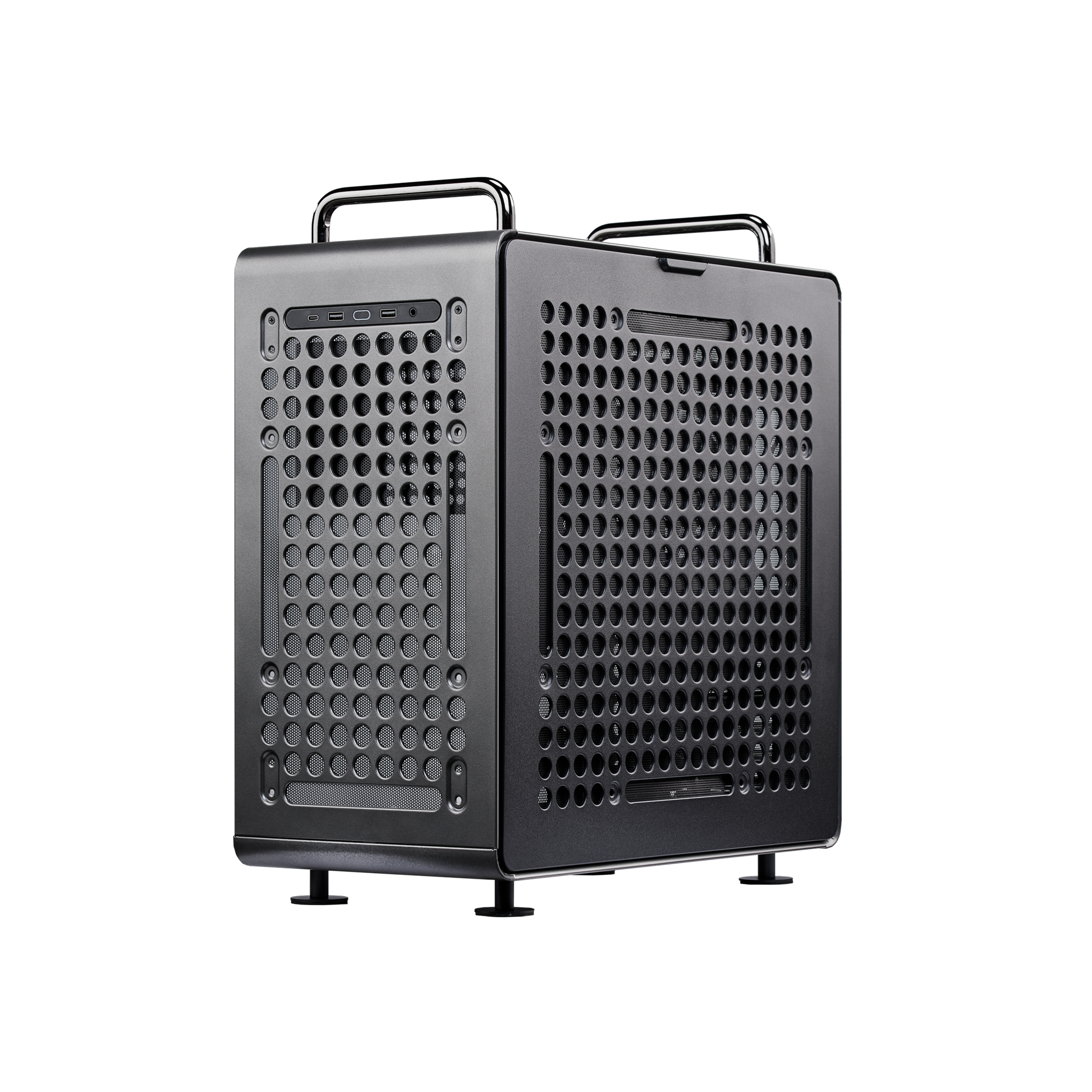

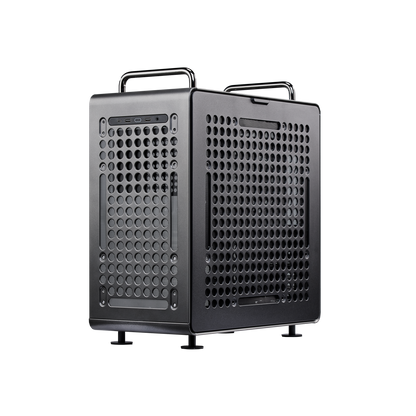

- Repositionable I/O panel and movable handles β mount them top, bottom, left or right to suit your setup.
- Flexible orientation β stands vertically or horizontally to fit your space.

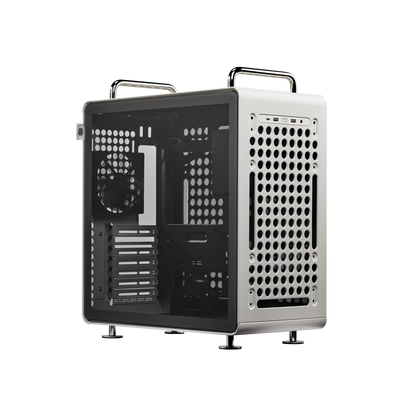

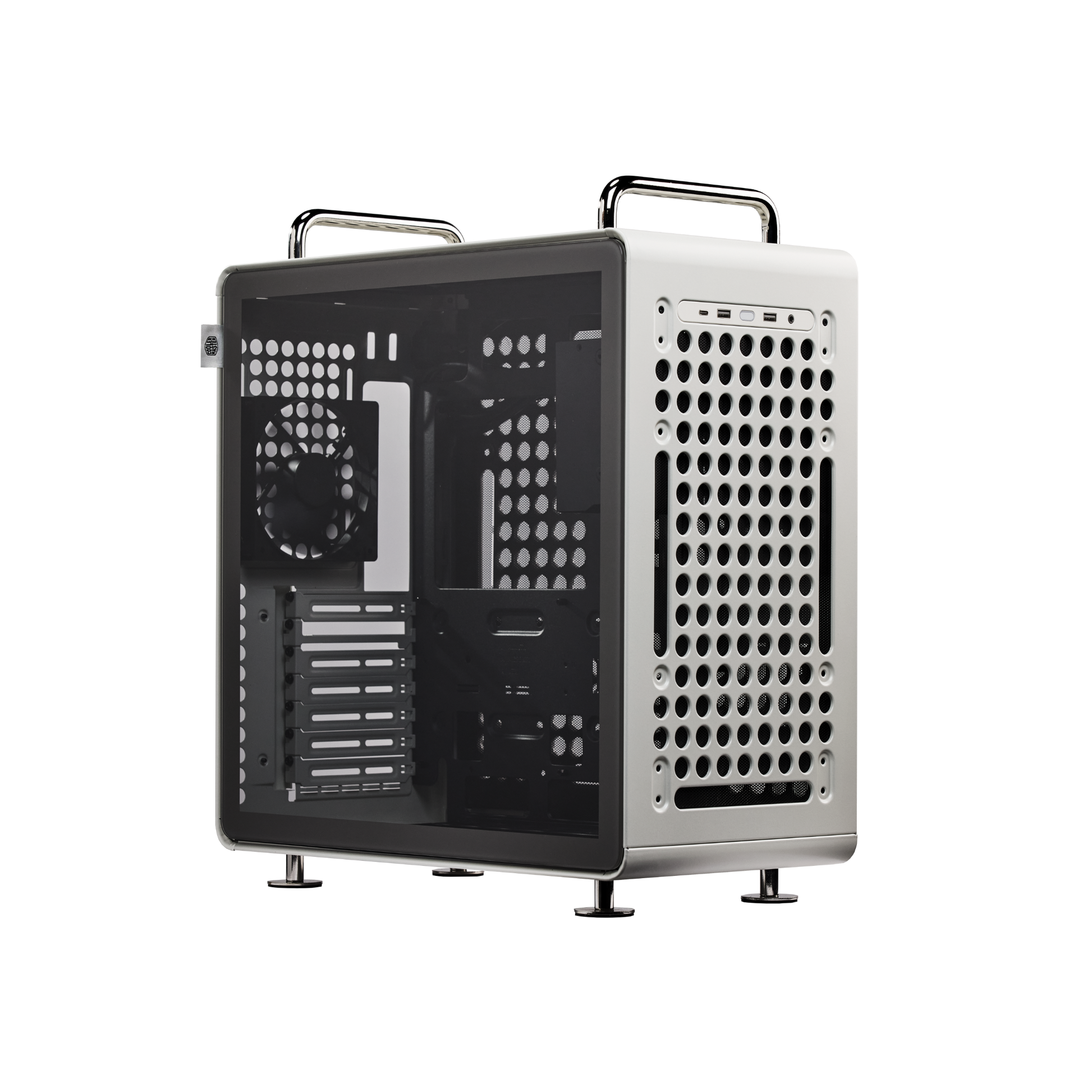

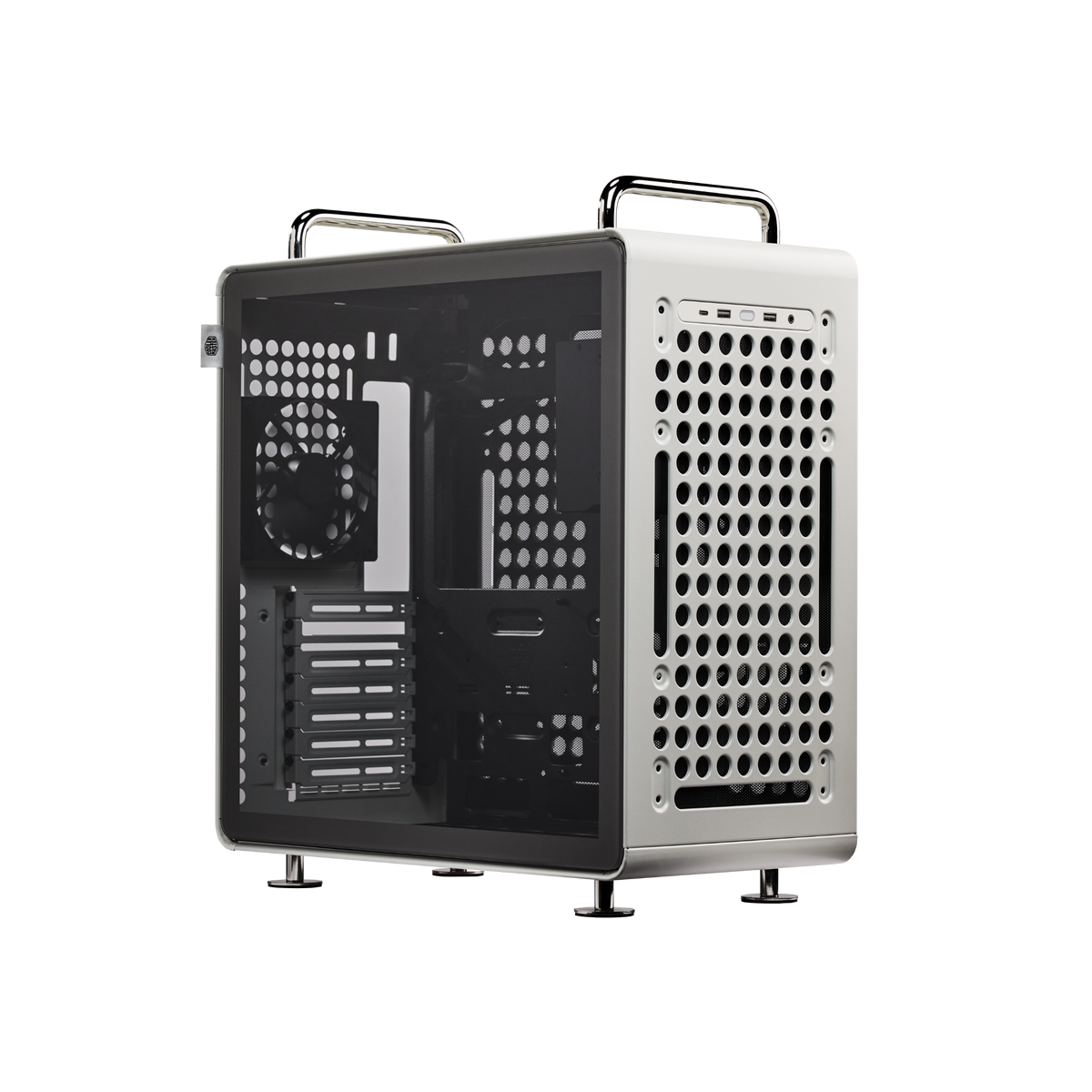

- Tempered glass left side panel with a steel right panel and steel exterior.
- Modern front I/O β 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C and a 3.5 mm combo audio jack.
- 3D-printable accessory ecosystem β official and community STL files let you print your own add-ons.
- Dust filters on top, bottom and front; 1 x 120 mm rear fan pre-installed.
- 2-year warranty.
Specifications
| Model Number | Q540-MGNN-S00 (Stardust Iron) / Q540-LGNN-S00 (Moonstone) |
| Series | Qube Series |
| Size | Mid Tower |
| Materials | Exterior: Steel | Right Panel: Steel | Left Panel: Tempered Glass |
| Dimensions (incl. protrusions) | 438.5 x 225 x 492.1 mm |
| Dimensions (excl. protrusions) | 425 x 225 x 425 mm |
| Volume | 40.64 L (48.55 L with panels, protrusions and feet) |
| Motherboard Support | ITX / M-ATX / ATX / E-ATX (up to 280 mm) |
| Expansion Slots | 7 |
| Drive Bays | 1 x 3.5" HDD (shared 3.5"/2.5" on PSU bracket), 2 x 2.5" SSD (max. 5) |
| I/O Panel | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x 3.5 mm Mic/Audio combo jack |
| Fan Support β Front | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support β Top | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support β Rear | 1 x 120 mm |
| Fan Support β Bottom | 3 x 120 mm / 2 x 140 mm |
| Pre-installed Fans | 1 x 120 mm Black Fan (rear) |
| Radiator Support | Front / Top / Bottom: 140, 280, 360 mm (w/o I/O panel) | Rear: 120 mm |
| CPU Cooler Clearance | 172 mm |
| GPU Clearance | 415 mm (w/o front fan) |
| PSU Clearance | 200 mm |
| Cable Routing | 27 mm behind motherboard tray |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Warranty | 2 Years |
Frequently asked questions
What motherboard sizes does the Qube 540 support?
It supports ITX, M-ATX, ATX and E-ATX motherboards (E-ATX up to 280mm wide).
What is the maximum GPU length?
Up to 415mm without a front fan installed. Vertical GPU mounting is also supported.
Does it support 360mm liquid cooling radiators?
Yes, 360mm radiators fit on the front, top and bottom panels.
Can I change the orientation of the case?
Yes, it stands vertically or horizontally and the handles and I/O panel are repositionable.
What PSU types are compatible?
Both ATX and SFX power supplies are supported, up to 200mm in length.
Are dust filters included?
Yes, magnetic dust filters are included for the top, bottom and front.
Is tempered glass included?
Yes, the left side panel is tempered glass; the right panel and exterior are steel.
What is the warranty period?
2 years from Cooler Master.
