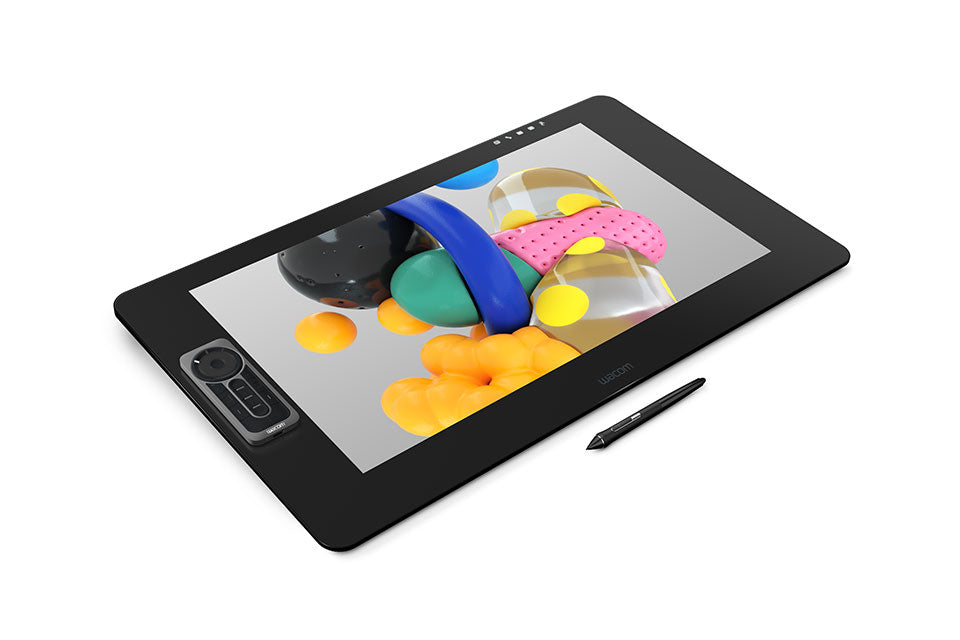

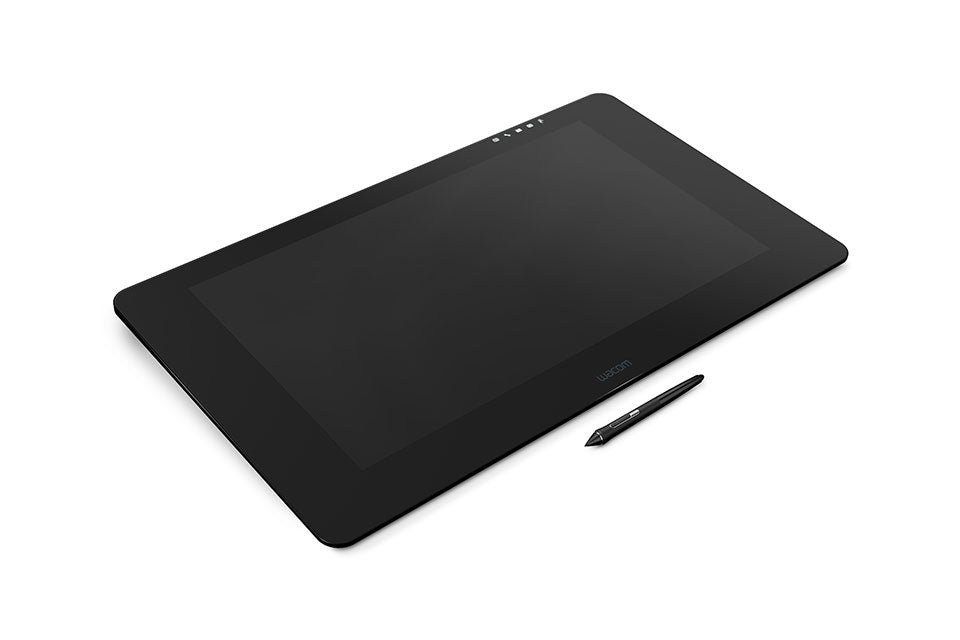

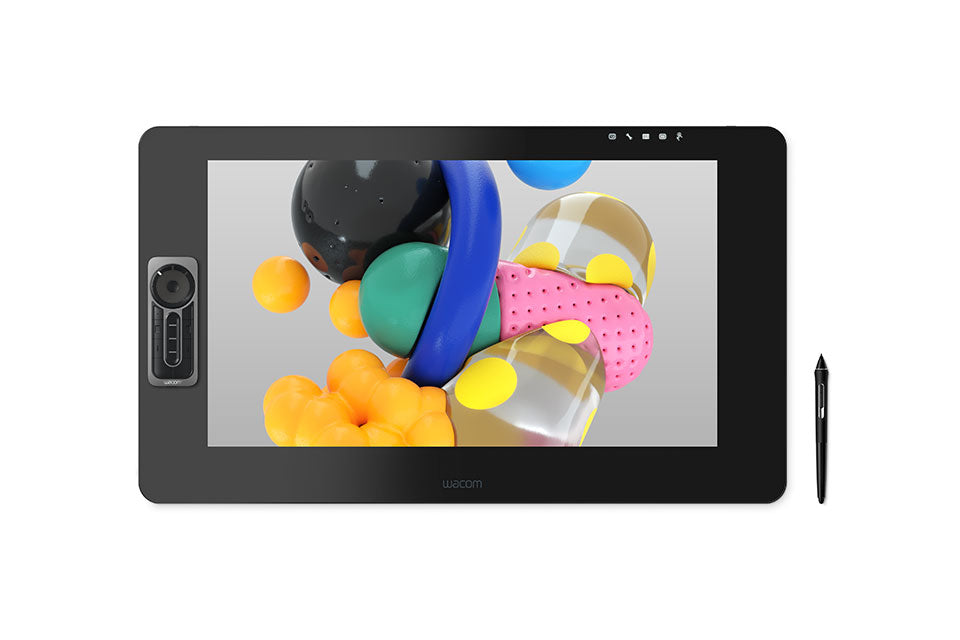

Wacom Cintiq Pro 24 59.94cm (23.6 Inches) 4K Ultra HD Display Digital Pad (8192 Pressure Level, DTH-2420/K0-CX, Black)

Product Type

Creative Pen Display

Model Code

2 models:

• DTK-2420 Creative Pen Display
• DTH-2420 Creative Pen Display Touch

Product Weight

7.2 kg (15.8 lbs)

Product Dimensions

677 x 394 x 47 mm (26.6 x 15.5 x 1.9 in)

Product Color

Black

Stand Adjustability

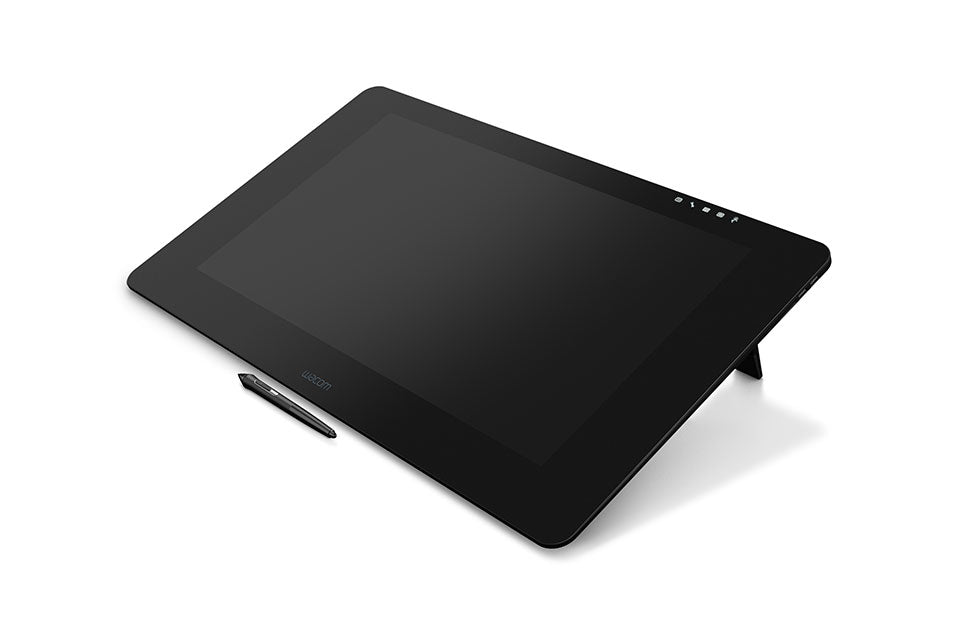

Integrated fold-out legs for 20° angle (5° angle with legs closed)

Productivity Boosters

• ExpressKeys™ (17 customizable, and application-specific keys on included ExpressKey™ Remote)
• Touch Ring (on included ExpressKey™ Remote)
• Rocker Ring and Home Button (on included ExpressKey™ Remote)
• Dedicated pan, scroll, zoom, brush size
• Precision Mode
• Radial Menu
• Display Toggle
• On-screen controls

Power Input Voltage

100 to 240 VAC, 50/60HZ

Power Output Voltage

19.5V / 9.23A

Security

Kensington® Lock Port (lock purchased separately)

Certifications

VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

Operating Temperature and Humidity

Temperature: 5 to 40 degree C Humidity: 30 to 80 %RH (non-condensing)

Downloadable Software / offers

• Adobe Creative Cloud Photography plan(valid until - September 16th, 2022)
• Sculptron by OTOY (valid until - March 1st, 2022)

ExpressKey™ Remote Dimensions

135 x 52 x 10 mm (5.3 x 2.0 x 0.4 in)

ExpressKey™ Remote Continuous Operation

Up to 160 hours, if a key is pressed every 30 seconds

ExpressKey™ Remote Charge Time

Up to 2 hours

Battery

Rechargable Li-ion battery in included ExpressKey™ Remote

Screen Size (measured diagonally)

23.6 in (59.9 cm)

Active Area

522 x 294 mm (20.6 x 11.6 in)

Display Technology

IPS

Multi-touch

Yes - on touch model only (DTH-2420)

Touch Technology

Projected capacitive - on touch model only (DTH-2420)

Display Resolution

3840 x 2160 pixels

Supported Resolution

• 800x600@60Hz (SVGA)
• 1024x768@60Hz (XGA)
• 1280x720@60Hz (HD)
• 1280x1024@60Hz (SXGA)
• 1600x1200@60Hz (UXGA)
• 1920x1080@60Hz (FHD)
• 2560x1440@60Hz (QHD)
• 3840x2160@60Hz (4K UHD)

Uniformity compensation function

Yes

Pixel Pitch

0.136 (H) x 0.136 (V) mm

Surface

Edge-to-edge tempered glass with AG etching

Brightness

235 cd/m2 (typ)

Displayable colors (maximum)

1.07 billion colors

Color Gamut Coverage Ratio

• 99% Adobe RGB (CIE 1931) (typ)
• Calibration is recommended for maximum coverage

Color Depth

True 10 bits

Aspect ratio

16:9

Viewing angle

176° (88°/88°) H, (88°/88°) V(typ)

Response Time

14 ms (typ)

Pen

Wacom Pro Pen 2

Pen Technology

Patented electromagnetic resonance method

Pen Pressure Levels

8192 levels (pen and eraser)

Pen Resolution

5080 lpi

Pen Type

Pressure-sensitive, cordless, battery-free

Switches

2 side switches

Replacement Nibs

10 (6 standard, 4 felt) in pen stand
