Synology DiskStation DS723+ Network Attached Storage Drive (Black)
Synology DiskStation DS723+ Network Attached Storage Drive (Black)
Couldn't load pickup availability
Description
Description
- Hardware Specs
|
CPU
|
CPU Model | AMD Ryzen R1600 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
|
Memory
|
System Memory | 2 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 2 GB (2 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 2 |
| Maximum Drive Bays with Expansion Unit | 7 (DX517 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|

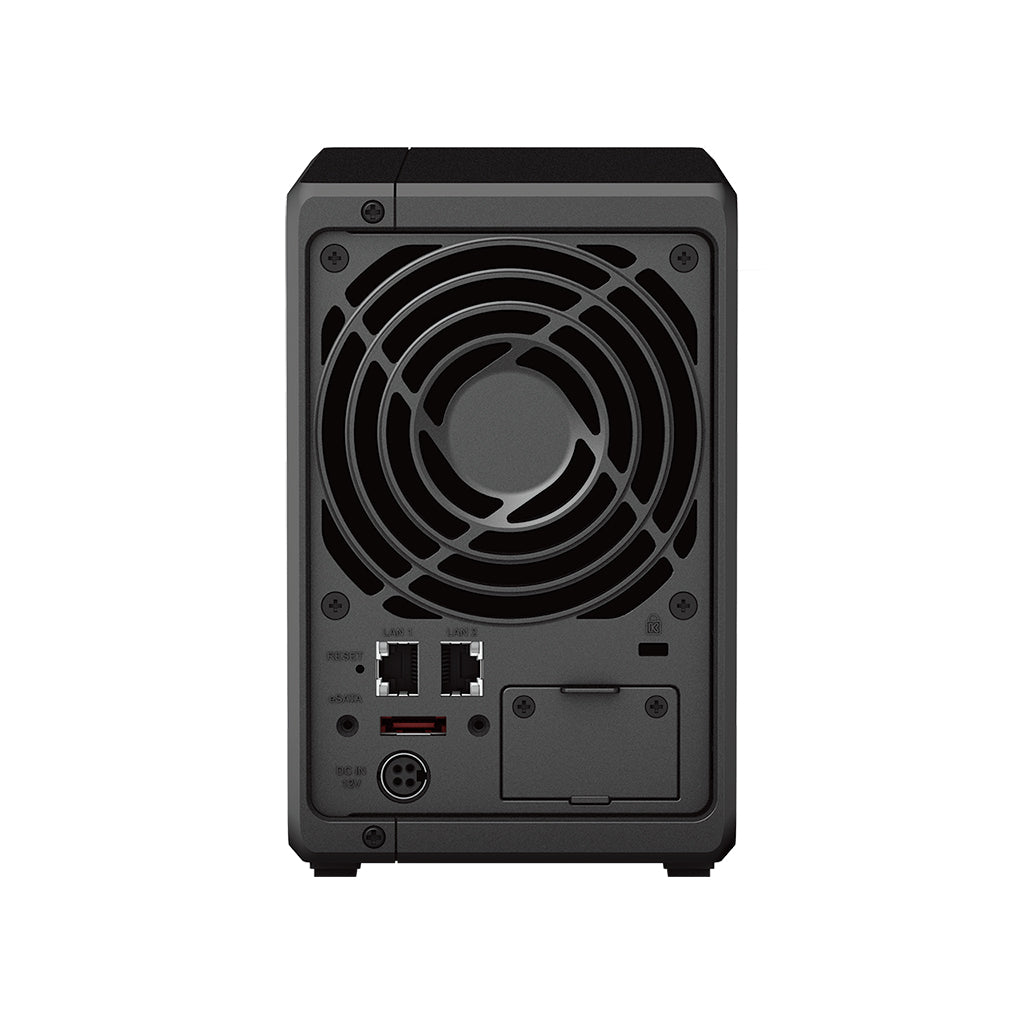

External Ports
|
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 1 | |
| eSATA Port | 1 | |
| Notes |
|
|
|
PCIe
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
|
File System
|
Internal Drives |
|
| External Drives |
|
|
|
Appearance
|
Size (Height x Width x Depth) | 166 mm x 106 mm x 223 mm |
| Weight | 1.51 kg | |
|
Others
|
System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 20.7 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 65 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 21.07 W (Access) 8.62 W (HDD Hibernation) |
|
| British Thermal Unit | 71.85 BTU/hr (Access) 29.39 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus | |
| Notes |
|
|
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
Optional Accessories
|
|
|
Shipping & Returns
Shipping & Returns
Shipping :
Shipping available across India for all pre-paid online orders. All the product will shipped by our Shipping partners. As we have India Post, FedEx, Aramex, Delhivery, Ecom express and Xpress Bess partners. It will take maximum 2-15 days to deliver products. All the transit query can be followed by courier provider. For any query please contact on 9478726397(10AM - 7:00PM). Whatsapp chat line open till 10 PM.
*Next day delivery subject to availability. Some time availability depends on location. It will take time in case of different location availability.
Return :
Our policy lasts 7 days. If 7 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.
Product under Rs 500.00 need to self ship.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
Share
-
-
Software specification.
DSM SpecificationsStorage ManagementMaximum Single Volume Size*108 TBMaximum Internal Volume Number64M.2 SSD Storage Pool Support*SSD Read / Write Cache(White Paper)SSD TRIMSupported RAID Type
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
- RAID 10 (with Expansion Unit)
RAID Migration
- Basic to RAID 1
- Basic to RAID 5 (with Expansion Unit)
- RAID 1 to RAID 5 (with Expansion Unit)
- RAID 5 to RAID 6 (with Expansion Unit)
Volume Expansion with Larger HDDs
- Synology Hybrid RAID
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
- RAID 10 (with Expansion Unit)
Volume Expansion by Adding a HDD
- Synology Hybrid RAID
- JBOD (with Expansion Unit)
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type
- Synology Hybrid RAID
- RAID 1 (with Expansion Unit)
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
- RAID 10 (with Expansion Unit)
Notes
- Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more)
- Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
- Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
- Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File ServicesFile ProtocolSMB/AFP/NFS/FTP/WebDAVMaximum Concurrent SMB/AFP/FTP Connections500Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)2,000Windows Access Control List (ACL) IntegrationNFS Kerberos AuthenticationNotes
- Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
- The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared FolderMaximum Local User Accounts2,048Maximum Local Groups256Maximum Shared Folder512Maximum Shared Folder Sync Tasks8Hybrid ShareMaximum Hybrid Share Folders10Hyper BackupFolder and Package BackupEntire System BackupNotesFull-system backup requires DSM 7.2 or later.High AvailabilitySynology High AvailabilityLog CenterSyslog Events per Second800VirtualizationVMware vSphere with VAAIWindows Server 2022Citrix ReadyOpenStackGeneral SpecificationsNetworking ProtocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAVSupported Browsers
- Google Chrome
- Firefox
- Microsoft Edge
- Safari
Supported LanguageEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文NotesFor an updated list of supported browser versions, check the DSM Technical Specifications.Add-on Packagesview the complete package listAntivirus by McAfee (Trial)Central Management SystemSynology ChatMaximum Number of Concurrent Users100Notes
- Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
- When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document ViewerDownload StationMaximum Concurrent Download Tasks80SAN ManagerMaximum iSCSI Target Number128Maximum LUN256LUN Clone/Snapshot, Windows ODXSynology MailPlus / MailPlus ServerFree Email Accounts5 (Licenses required for additional accounts)Maximum Number of Concurrent Users100Maximum Server Performance1,224,000 emails per day, approx. 37GBNotes
- Models with 2 bays and dual M.2 drive slots were installed with two SSDs for SSD cache.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
- Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media ServerDLNA ComplianceSynology PhotosFacial RecognitionSnapshot ReplicationMaximum Snapshots per Shared Folder1,024Maximum of System Snapshots65,536Surveillance StationMaximum IP cam(Licenses required)40 (including 2 Free License)(see all supported IP cameras)Total FPS (H.264)1200 FPS @ 720p (1280x720)800 FPS @ 1080p (1920x1080)350 FPS @ 3M (2048x1536)280 FPS @ 5M (2591x1944)170 FPS @ 4K (3840x2160)Total FPS (H.265)1200 FPS @ 720p (1280x720)1200 FPS @ 1080p (1920x1080)600 FPS @ 3M (2048x1536)480 FPS @ 5M (2591x1944)200 FPS @ 4K (3840x2160)Notes
- Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
- Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology DriveRecommended Number of Concurrent Sync Clients350 (the number of connections that can be maintained when the recommended number of hosted files was reached)Recommended Number of Hosted Files5,000,000 (applies to files indexed or hosted bySynology Drive. For file access through other standard protocols, refer to the File Services section above)Notes
- Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
- Utilizing SSD cache can significantly improve performance.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology OfficeMaximum Users1,200Notes
- Multiple files were opened for testing and each file was edited by 30 users simultaneously.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video StationVirtual Machine ManagerRecommended Virtual Machine Instances4(Learn more)Recommended Virtual DSM Number(Licenses required)4 (including 1 Free License)NotesThe specifications vary depending on system configuration and memory size.VPN ServerMaximum Connections40
