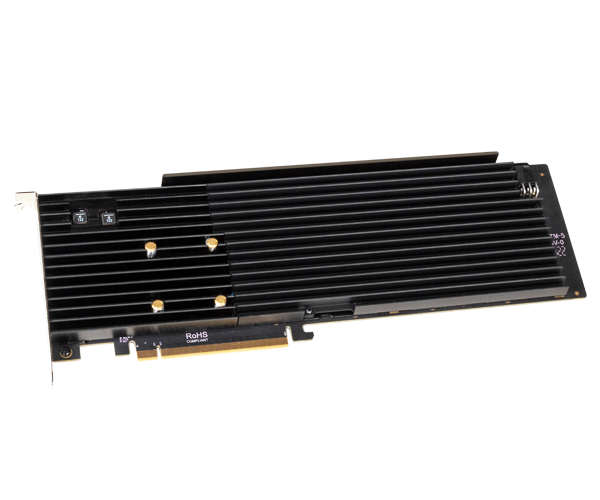

Sonnet M.2 8x4 Silent Gen4 PCIe Card Eight M.2 NVMe SSD Slots on a PCIe 4.0 x16 Card
Sonnet M.2 8x4 Silent Gen4 PCIe Card Eight M.2 NVMe SSD Slots on a PCIe 4.0 x16 Card
Couldn't load pickup availability
Description
Description
Key Features

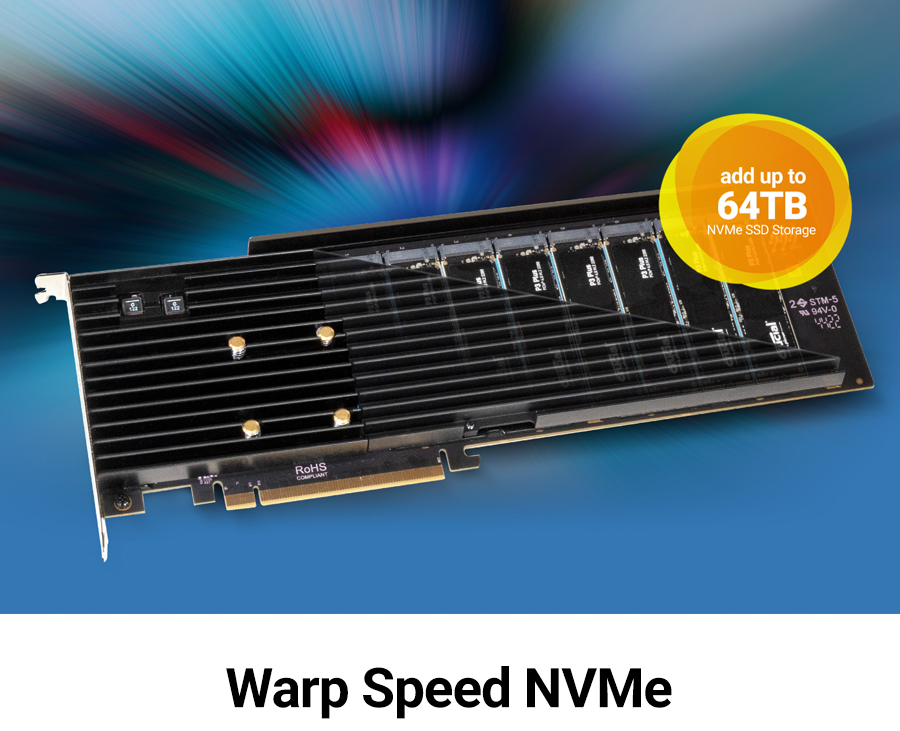

- Eight SSD Slots – Add Up to 64TB Ultra-fast Storage (SSDs Sold Separately)
- High-performance PCIe Interface – PCI Express 4.0 x16 Host Bus Interface Plus x48 PCIe 4.0 Switch; x16 Slot Bandwidth Is Available to All x4-connected SSDs
- Superior Performance – Achieve Sustained SSD RAID 0 Speeds Up to 30,000 MB/s*
- RAID 0, 1, and 10 Support
- macOS Boot Support
- No Thermal Throttling
- Thunderbolt Expansion Systems Compatible
- NVMe Compliant
- Supports S.M.A.R.T. Operation
- Mac, Windows, and Linux Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
Shipping & Returns
Shipping & Returns
Shipping :
Shipping available across India for all pre-paid online orders. All the product will shipped by our Shipping partners. As we have India Post, FedEx, Aramex, Delhivery, Ecom express and Xpress Bess partners. It will take maximum 2-15 days to deliver products. All the transit query can be followed by courier provider. For any query please contact on 9478726397(10AM - 7:00PM). Whatsapp chat line open till 10 PM.
*Next day delivery subject to availability. Some time availability depends on location. It will take time in case of different location availability.
Return :
Our policy lasts 7 days. If 7 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.
Product under Rs 500.00 need to self ship.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
Share
-
-
Compatibility
Mac Compatibility
- Mac Pro 14,8 (2023)
- macOS 13 - macOS 14
- x16 Slot 1 or 2 (recommended slots)
- Mac Pro 7,1 (2019)(1)
- macOS 10.15 - macOS 12(1)
- x16 Slot 3, 4, or 5 (recommended slots)
- Mac Pro 5,1 (2010 & 2012)(2)
- macOS 10.13 - macOS 10.14
- x16 Slot 2 (recommended slot)
- Thunderbolt PCIe Card Expansion System
- macOS 10.13 - macOS 14
- x16 Full-length (recommended slot)
- Some SSDs are not currently compatible with macOS. See M.2 NVMe SSDs Compatibility PDF.
Windows Compatibility
- Windows computer with available full-length, full-height x16 PCIe slot (PCIe 4.0 slot preferred; PCIe bifurcation not required)
- Windows 11 and 10
- Windows Server 2022, 2019
Linux Compatibility
- Linux computer with available full-length, full-height x16 PCIe slot (PCIe 4.0 slot preferred; PCIe bifurcation not required)
- Linux Kernel 5.0+
Thunderbolt Compatibility
- With card installed in a Thunderbolt expansion system with full-length x16 PCIe slot
- Any Mac, Windows, or Linux computer with Thunderbolt
Power Requirements
- When seven or eight SSDs are installed on the M.2 8x4 Silent Gen4 PCIe Card, connecting the included 6-pin PCIe auxiliary power cable between the computer’s and the card’s power connectors is required (optional when up to six SSDs installed).
M.2 NVMe SSDs Compatibility(3)
- For a list of compatible M.2 NVMe SSDs, see the following PDF
Hardware
Part Number
- FUS-SSD-8X4-E4S
Warranty
- 2-year
Form Factor
- Full-length, full-height computer card
Internal Connectors
- Eight M-keyed (NVMe) M.2 sockets
- 6-pin PCIe auxiliary power connector
SSDs Supported(3)
- Single-sided and double-sided M.2 2280 NVMe PCIe SSDs
- For a list of supported SSDs, see M.2 NVMe SSDs Compatibility PDF
Boot Support (From a Single SSD)
- macOS
- Mac Pro 5,1 or Mac Pro 7,1
- Any Thunderbolt Mac
- Windows, Linux
- Computers with UEFI BIOS
RAID Support
- macOS, Windows, Linux
- RAID 0, 1, and 10
NVME Support
- Yes
SSD Power/Activity Indicators
- Yes
S.M.A.R.T. Status Data Reporting Support
- All SSDs
RoHS Compliant
- Yes
Package Contents
- Sonnet M.2 8x4 Silent Gen4 PCIe Card

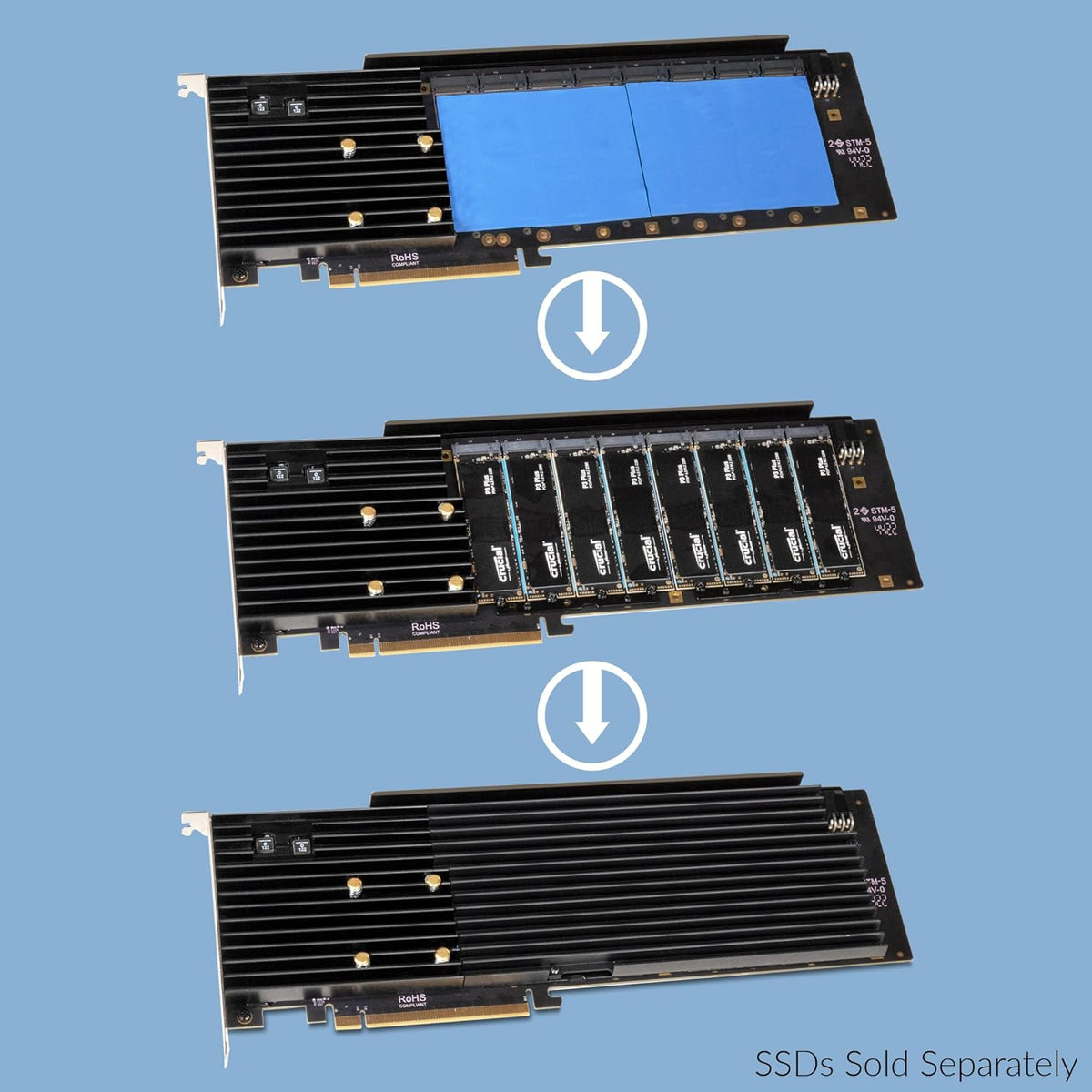

- Thermal transfer pads
- 6-pin to 6-pin auxiliary power cable for Mac Pro
- Documentation
