Silverstone ECM22 Adapter Card With Thermal Pad Convert M.2 ssd to PCIe X 4 and SATA
Silverstone ECM22 Adapter Card With Thermal Pad Convert M.2 ssd to PCIe X 4 and SATA
Couldn't load pickup availability
Description
Description
￭ Exposed gold inlays efficienty cool installed M.2 SSD for consistently high performance
￭ Supports M.2 SSD up to 110mm in length
￭ Converts one M.2 port (M key) into one PCIe x4 interface

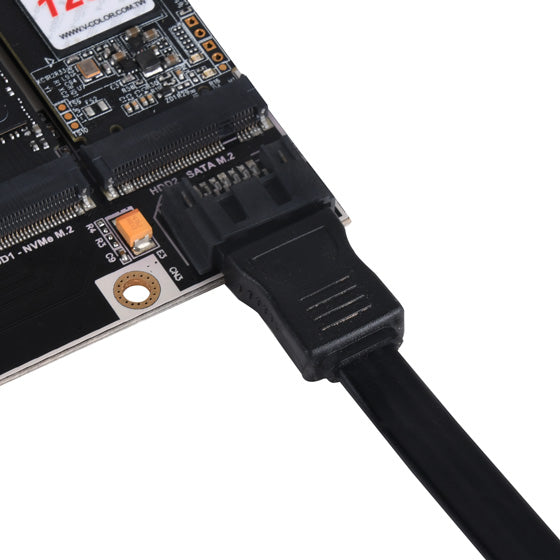

￭ Converts a second M.2 port (B key) into SATA interface

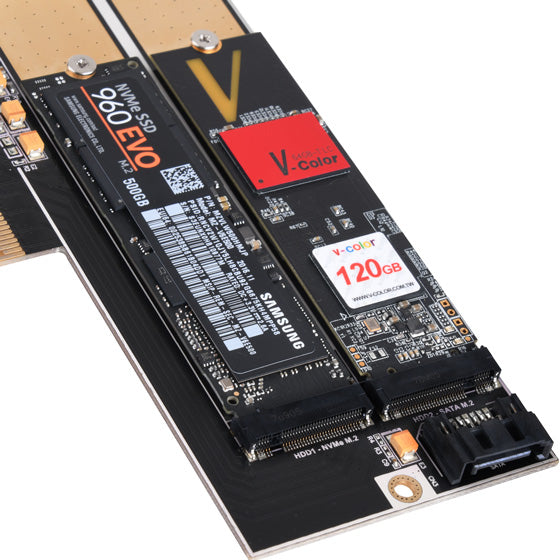

￭ Supports two M.2 SSD simultaneously

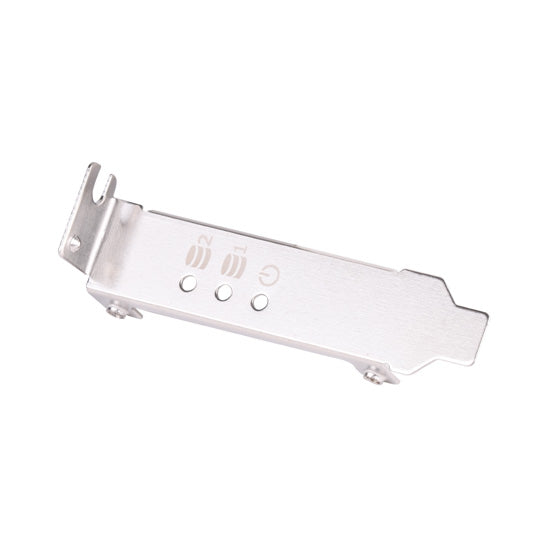

￭ Includes optional Low-profile expansion slot
￭ No driver installation required
The following SSD models have been tested and verified by SilverStone to work optimally with the product presented on this page.
SPECIFICATIONS
| Model No. | SST-ECM22 |
| Interface | PCI Express x4 / SATA 6 Gbps |
| SSD Interface | M.2 (NGFF) |
| Module Key | SATA-based B key PCIe x4 NVMe-based M key |
| Number of Drives | 2 |
| LED indicator | Power LED: Red SATA M.2 SSD Read / Write LED: Orange PCIe M.2 SSD Read / Write LED: Blue |
| Net weight | 60g |
| Dimension | 121mm (W) x 11mm (H) x 157.3mm (D) 4.76" (W) x 0.43" (H) x 6.19" (D) |
| Support Length of M.2 SSD | 30mm, 42mm, 60mm, 80mm, 110mm |
| Thermal Pad | |
| Operating temperature | -20 °C ~ 180 °C |
| Thermal pad thickness | 1.0mm 1.5mm |
| Thermal conductivity | 1.5W/m.k |
| Net Weight and dimension | Gray Pad 1 : 60mm(W) X 1mm(H) X 20mm(D), 2.8g Gray Pad 2 : 60mm(W) X 1.5mm(H) X 20mm(D),3.7g |
