NZXT H510 ATX Computer Case (Black/Red)
NZXT H510 ATX Computer Case (Black/Red)
Description
Description
- We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

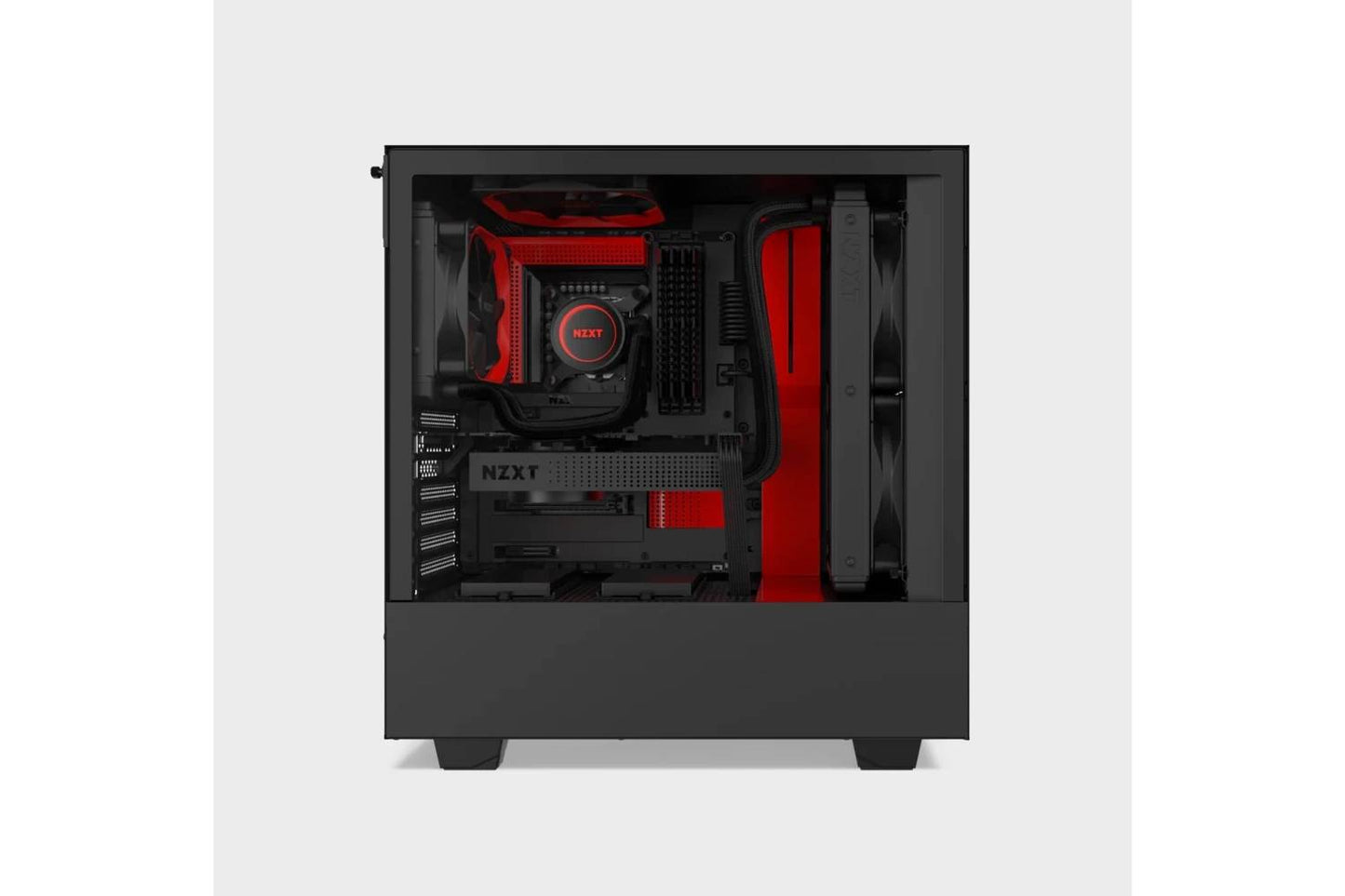

- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

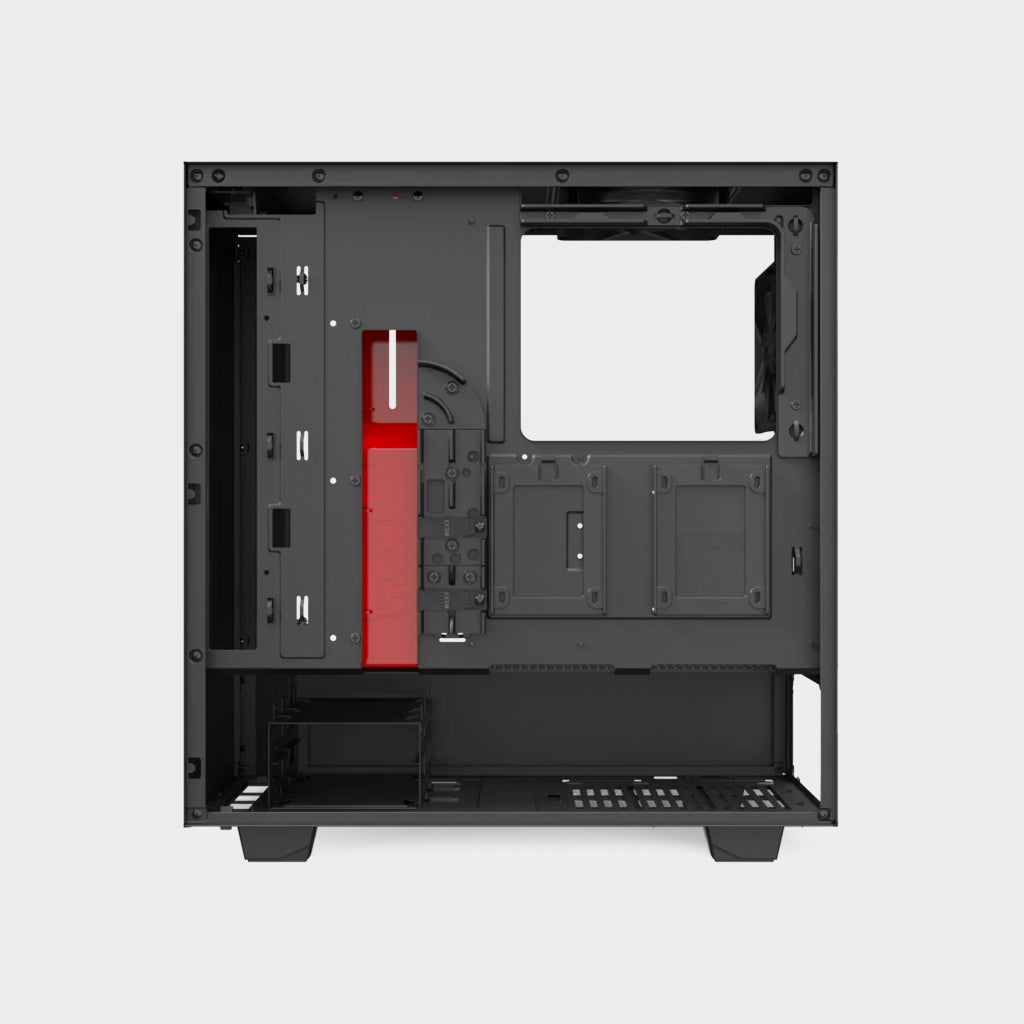

- Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
- Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
Dimensions | W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
Material(s) | SGCC Steel, Tempered Glass |
Weight | 6.6 kg |
Motherboard Support | Mini-ITX, MicroATX, and ATX |
Front I/O Ports | 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
Filters | All Air Intakes |
Included Accessories | Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
Drive Bays | 2.5”: 2+1 3.5”: 2+1 |
Expansion Slots | 7 |
Radiator Support | Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
Fan Support | Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
Fan Specs |
Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
Clearance | Cable Management: 19-23mm GPU Clearance: Up to 381mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
Warranty | 2 Years |
Model Number | CA-H510B-W1 |
EAN | 5060301695065 |
UPC | 815671014764 |
