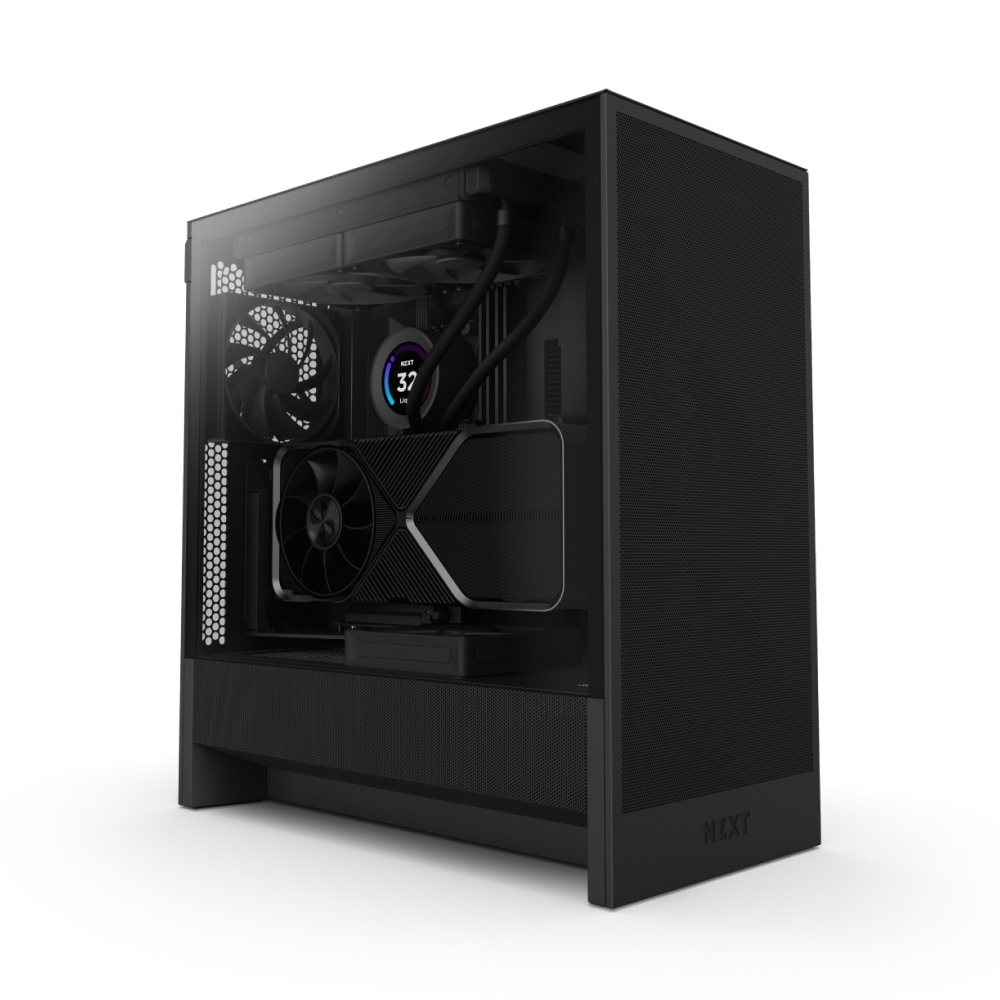

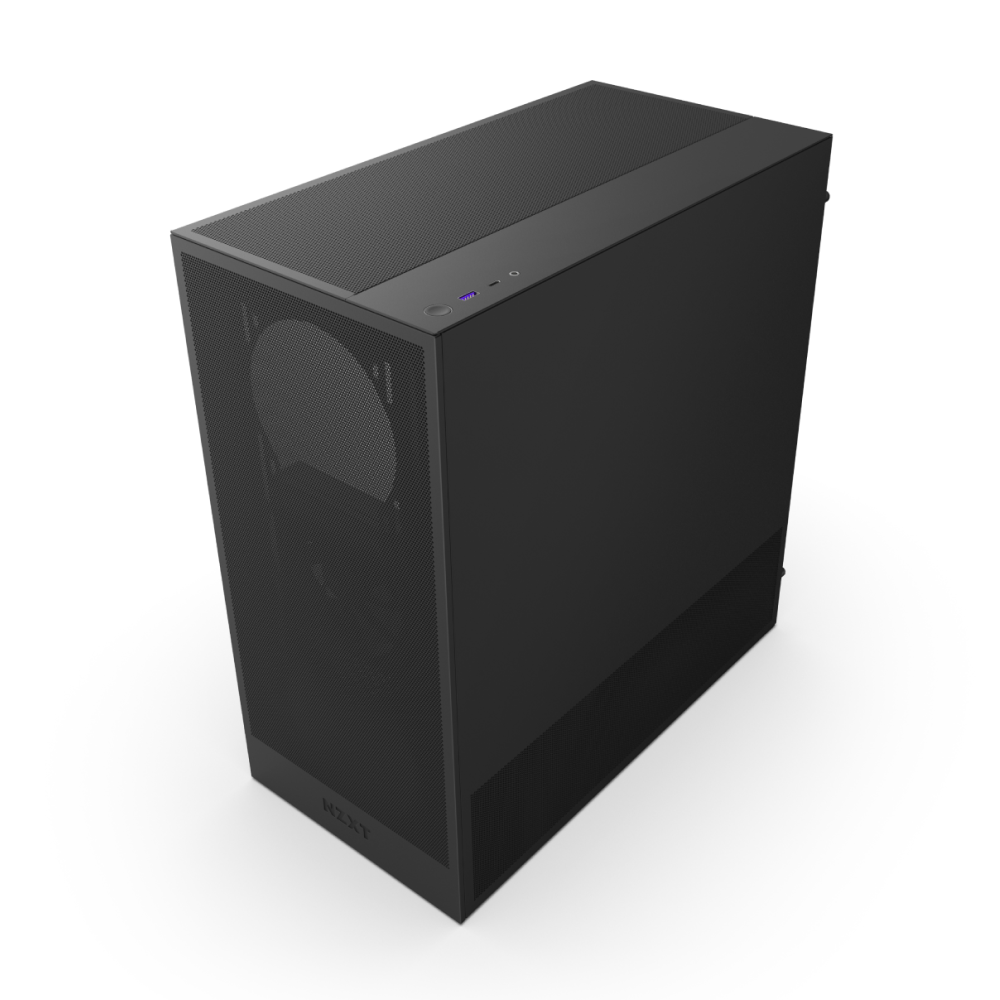

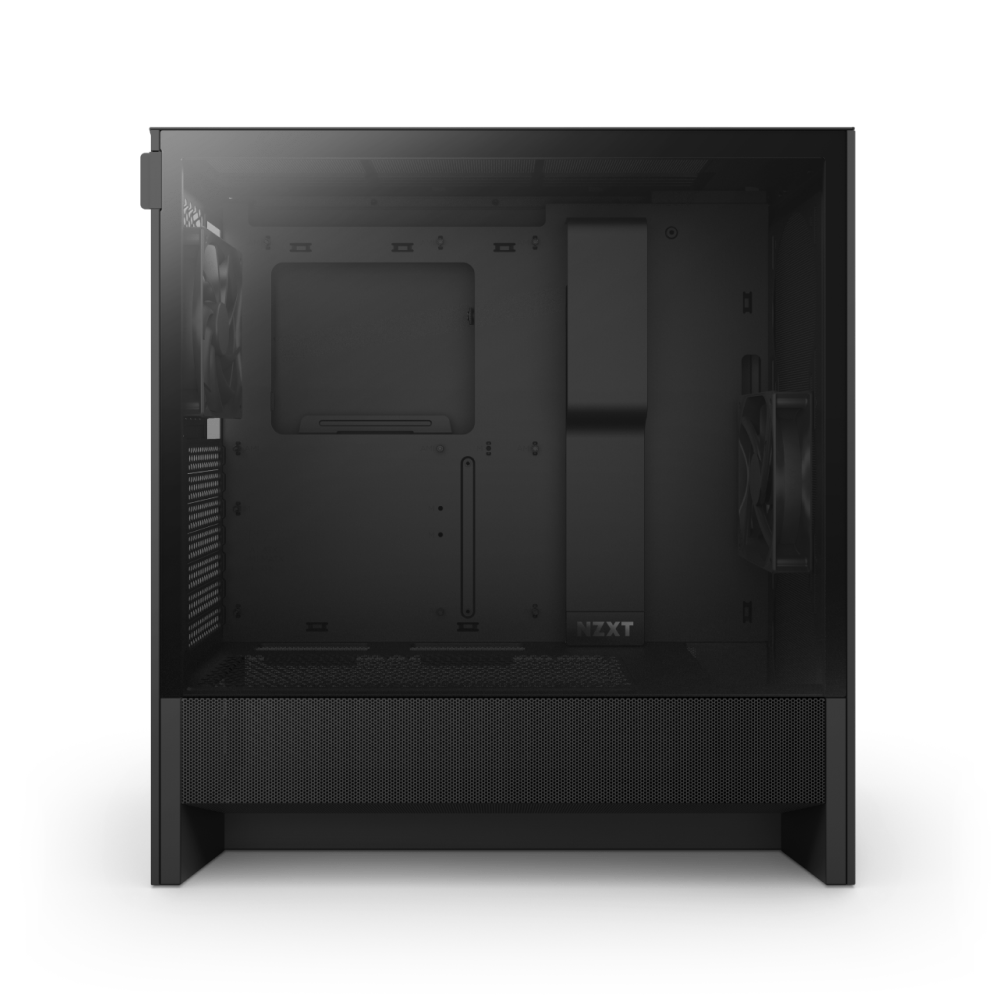

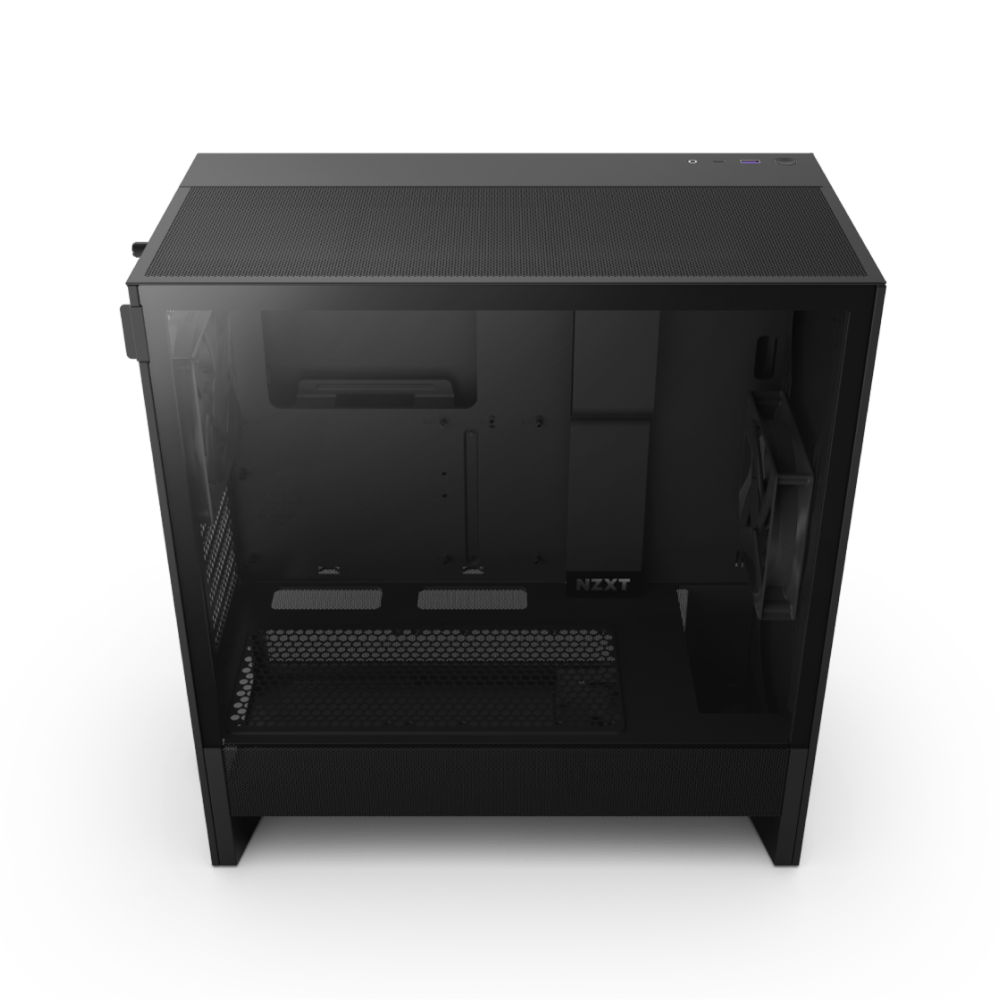

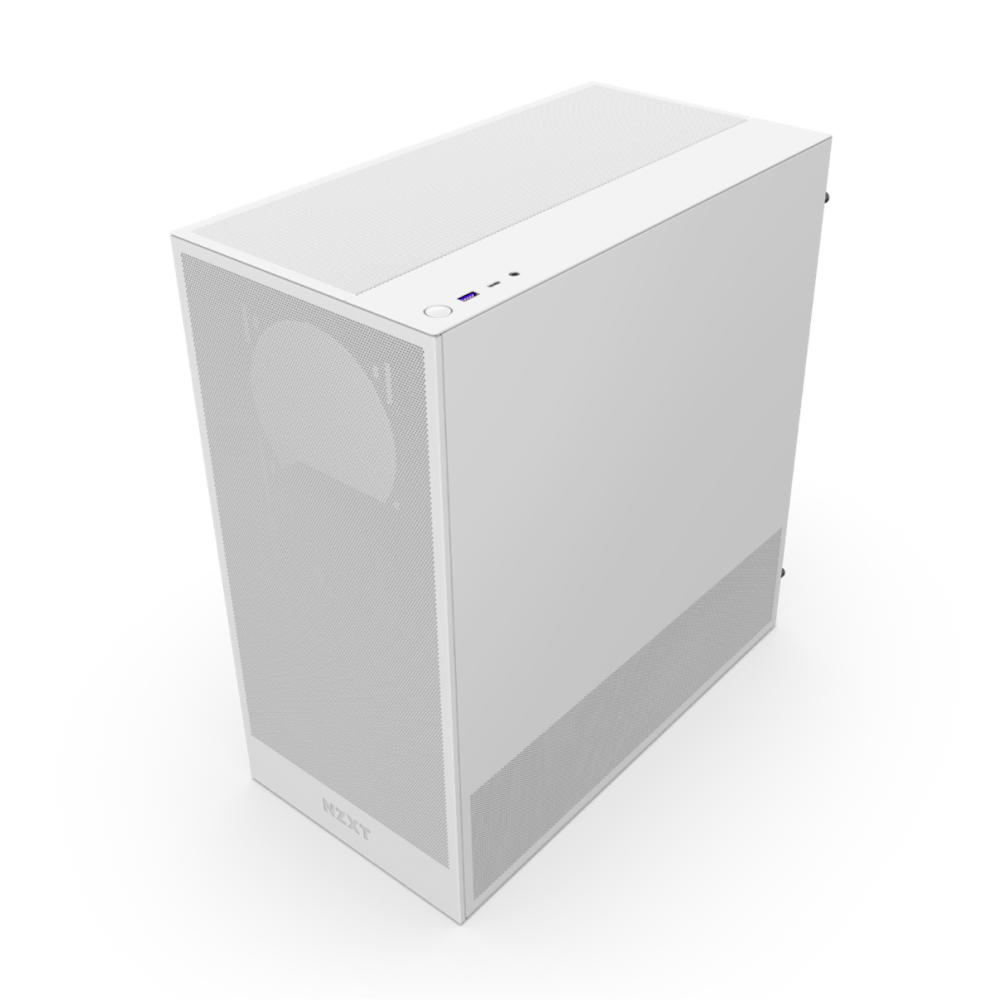

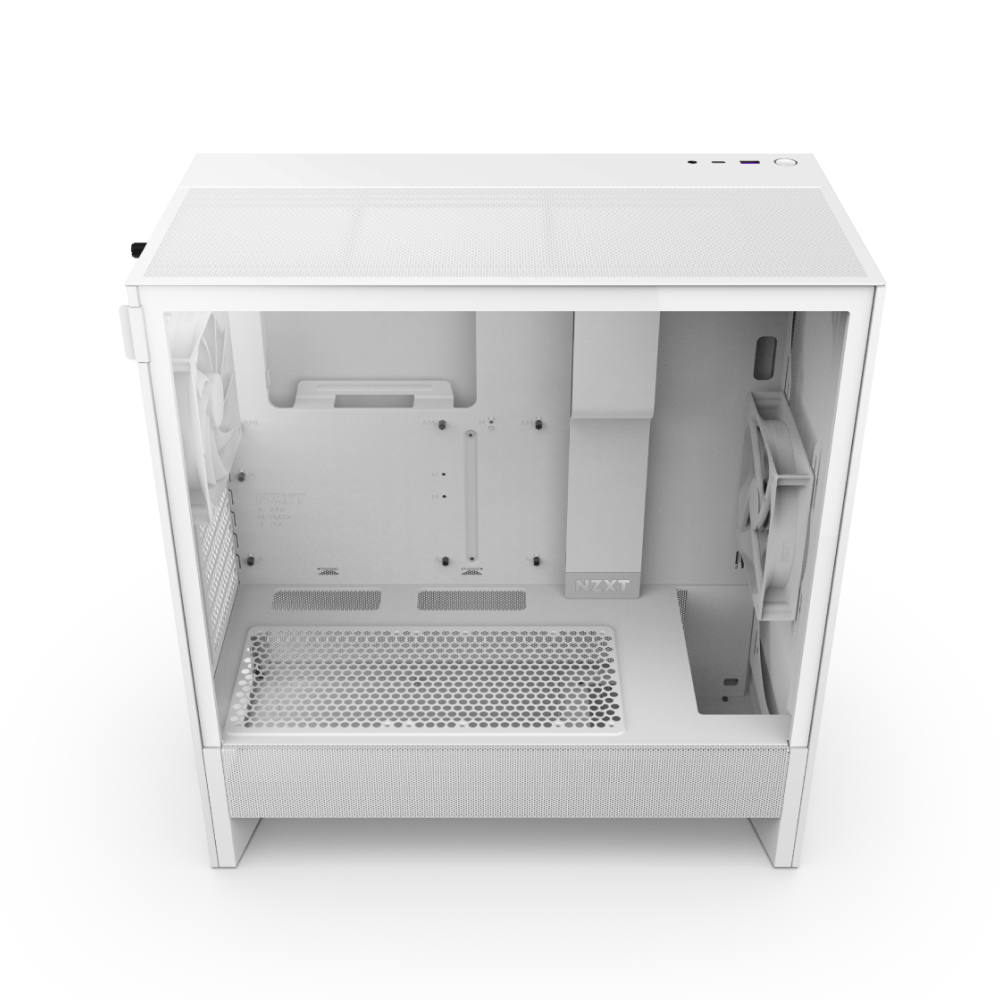

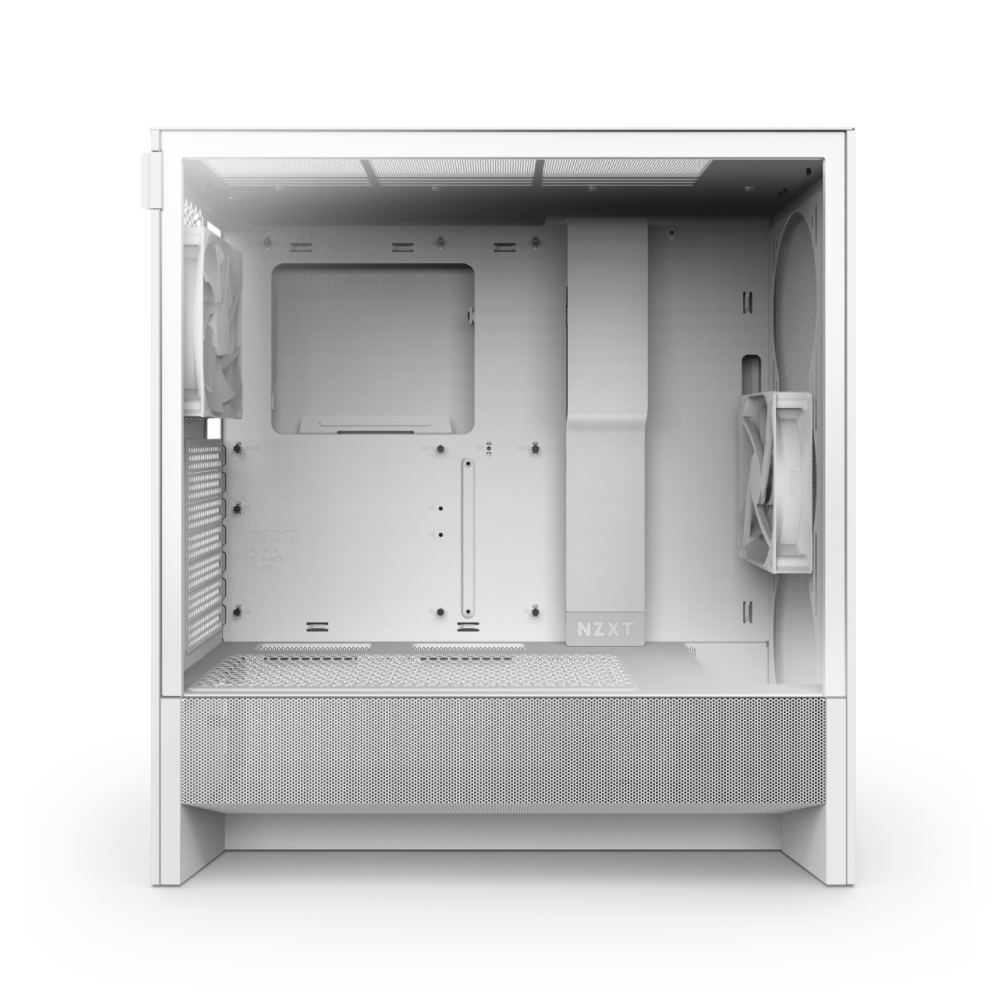

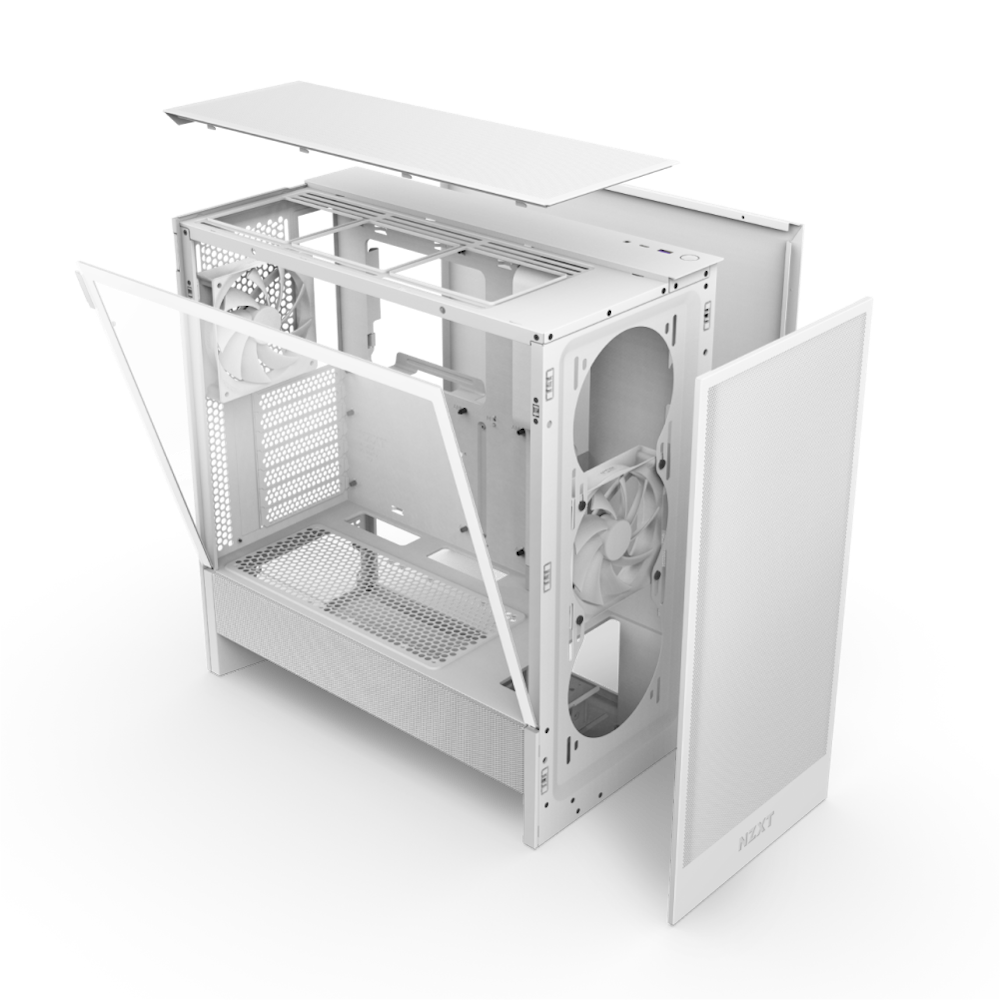

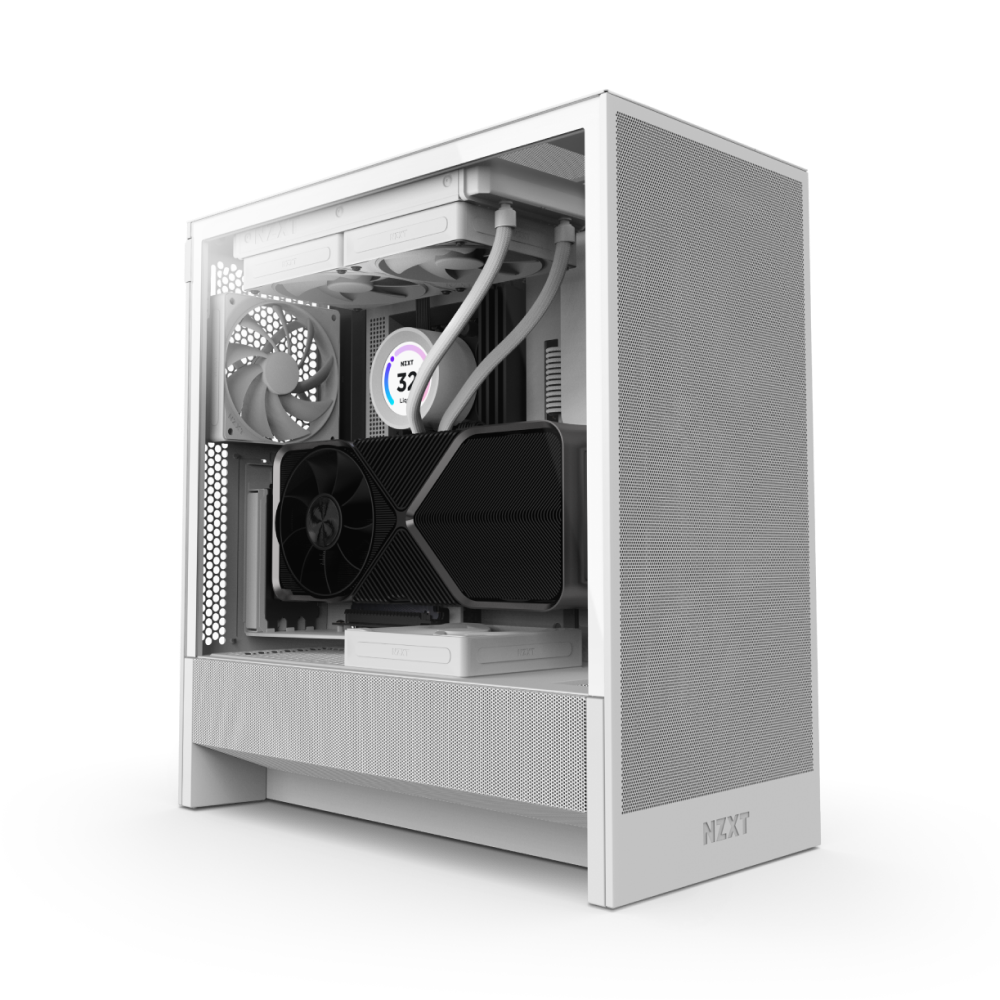

Nzxt H5 Flow 2024 Cabinet ( Chassis )

Nzxt H5 Flow 2024 Cabinet ( Chassis )

₹ 8,692.00
₹ 8,692.00
Sale Sold out
Tax included.

✅ GST Invoice Available: Save an extra upto 18% on your business purchase. Input Tax Credit (ITC) available. Update GST number at the cehckout.

Color

Description

Overview

Details

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
  • Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Shipping & Returns

Shipping :

Shipping available across India for all pre-paid online orders.  All the product will shipped by our Shipping partners. As we have India Post, FedEx, Aramex, Delhivery, Ecom express and Xpress Bess partners. It will take maximum 2-15 days to deliver products. All the transit query can be followed by courier provider. For any query please contact on 9478726397(10AM - 7:00PM). Whatsapp chat line open till 10 PM.
*Next day delivery subject to availability. Some time availability depends on location. It will take time in case of different location availability.

Return :

Our policy lasts 7 days. If 7 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

Product under Rs 500.00 need to self ship.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

View full details

  • Tech Specs

    Key Specs

    • Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
    • Enclosure Type:Mid-Tower
    • Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

    Dimensions

    • Height (with feet):465 mm / 18.31 in
    • Width:225 mm / 8.86 in
    • Depth:430 mm / 16.93 in
    • Weight:7.28 kg / 16.04 lb

    Compatibility & Clearance

    • CPU Cooler Height:Up to 170 mm
    • GPU Length:Up to 410 mm
    • PSU Length:Up to 200 mm
    • Cable Management:Up to 28.7 mm
    • Top Radiator:Up to 240 mm (280 mm with low-profile memory)
    • Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

    Front Ports

    • USB 3.2 Type-A:1
    • USB 3.2 Gen 2x2 Type-C (20 Gbps):1
    • Headset Audio Jack:1

    Expansion Slots

    • Standard:7
    • Vertical:0

    Drive Bays

    • 2.5":2
    • 3.5":1

    Fan Support

    • Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
    • Top:2 x 120 mm / 2 x 140 mm
    • Bottom:2 x 120 mm
    • Rear:1 x 120 mm (1 x F120Q Case Version included)

    Radiator Support

    • Front:Up to 360 mm
    • Top:Up to 240 mm (280mm with low-profile memory only)

    Fan Specs

    • Model:F120Q (Case Version)
    • Speed:1,350 ± 150 RPM
    • Airflow:60.2 CFM
    • Static:1.05 mm-H₂O
    • Noise:24.1 dBA
    • Fan Connector:3-pin

    General

    • Warranty:2 years
    • Model Number:CC-H52FW-01(White) / CC-H52FB-01 (Black)
    • UPC:810074845908 (White) / 810074845915 (Black)
    • EAN:5056547205847 (White) / 5056547205854 (Black)
