About this product
- FAN Specification
- Size : 120x120x25 mm
- Mounting hole spacing : 105x105 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 20cm + 30cm NA-EC1 extension cable
- Bearing : SSO2
- Blade geometry : Heptaperf™
- Frame technology : Focused Flow™
- Rotational speed (+/- 10%) : 1500 RPM
- Rotational speed with L.N.A. (+/- 10%) : 1200 RPM
- Min. rotational speed (PWM, +/-20%) : 300 RPM
- Airflow : 93,4 m³/h
- Airflow with L.N.A. : 74,3 m³/h
- Acoustical noise : 22,4 dB(A)
- Acoustical noise with L.N.A. : 18,6 dB(A)
- Static pressure : 2,61 mm H₂O
- Static pressure with L.N.A. : 1,83 mm H₂O
- Max. input power : 0,6 W
- Max. input current : 0,05 A
- Operating voltage : 12 V
- MTTF : > 150.000 h

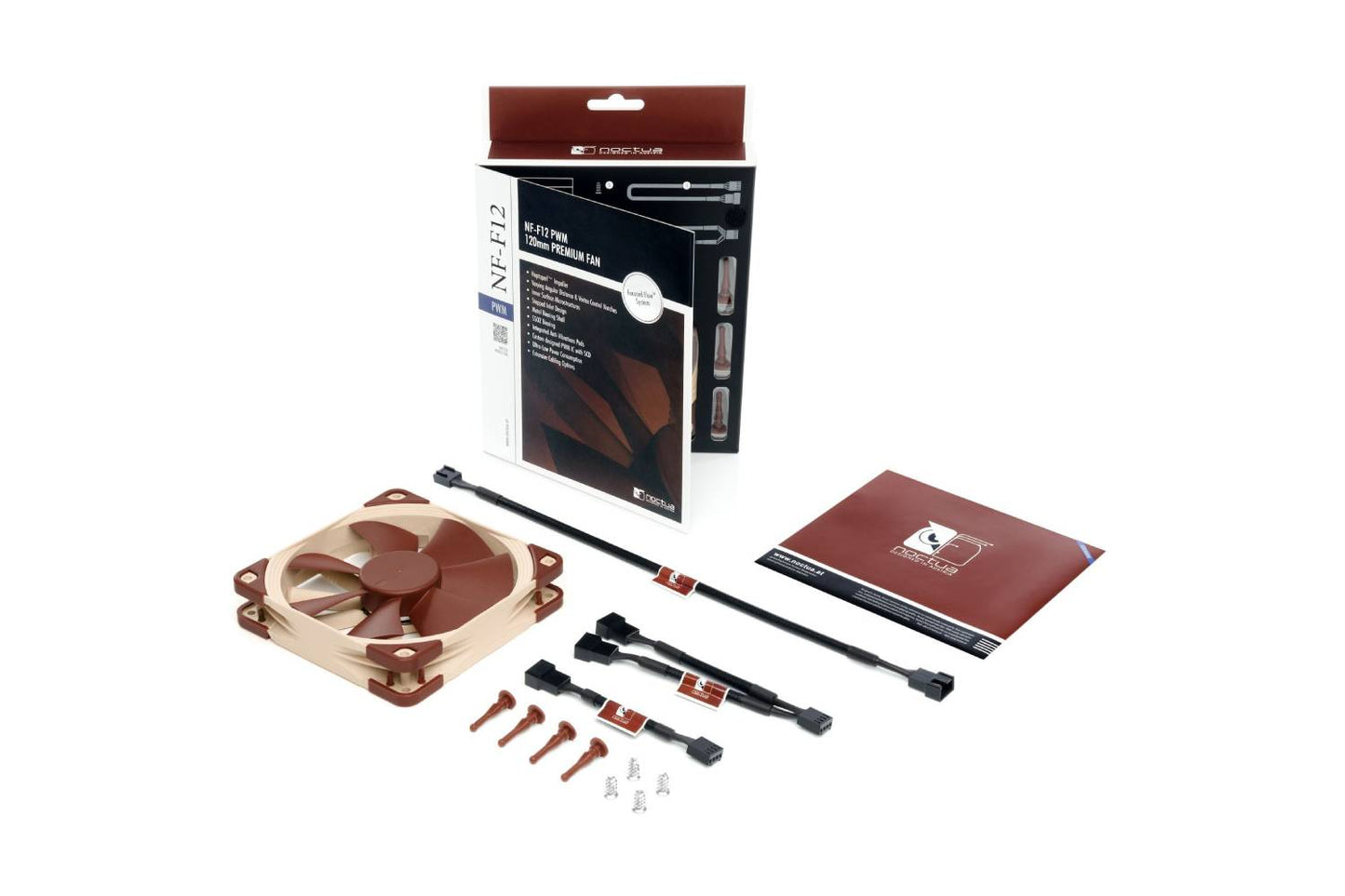

Scope of delivery
- Low-Noise Adapter (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
Warranty : 6 years
Frequently asked questions
How fast will my order be shipped?
Orders are dispatched within 24 hours. Delivery usually takes 2-7 business days depending on your location (remote pincodes can take longer). Tracking details are shared on WhatsApp and SMS.
Do I get a GST invoice?
Yes - every order includes a GST invoice. Businesses can use it to claim input tax credit.
Is this product genuine?
Yes - we sell 100% genuine, brand-authorized stock with the applicable brand warranty.
What is the return policy?
We have a 7-day return policy - the item must be unused and in its original packaging. Defective or damaged items are replaced. See our Shipping and Returns page for full details.
Which courier will deliver my order?
We ship via Xpressbees, India Post, Delhivery, Amazon Shipping and other leading partners - whichever serves your pincode fastest.

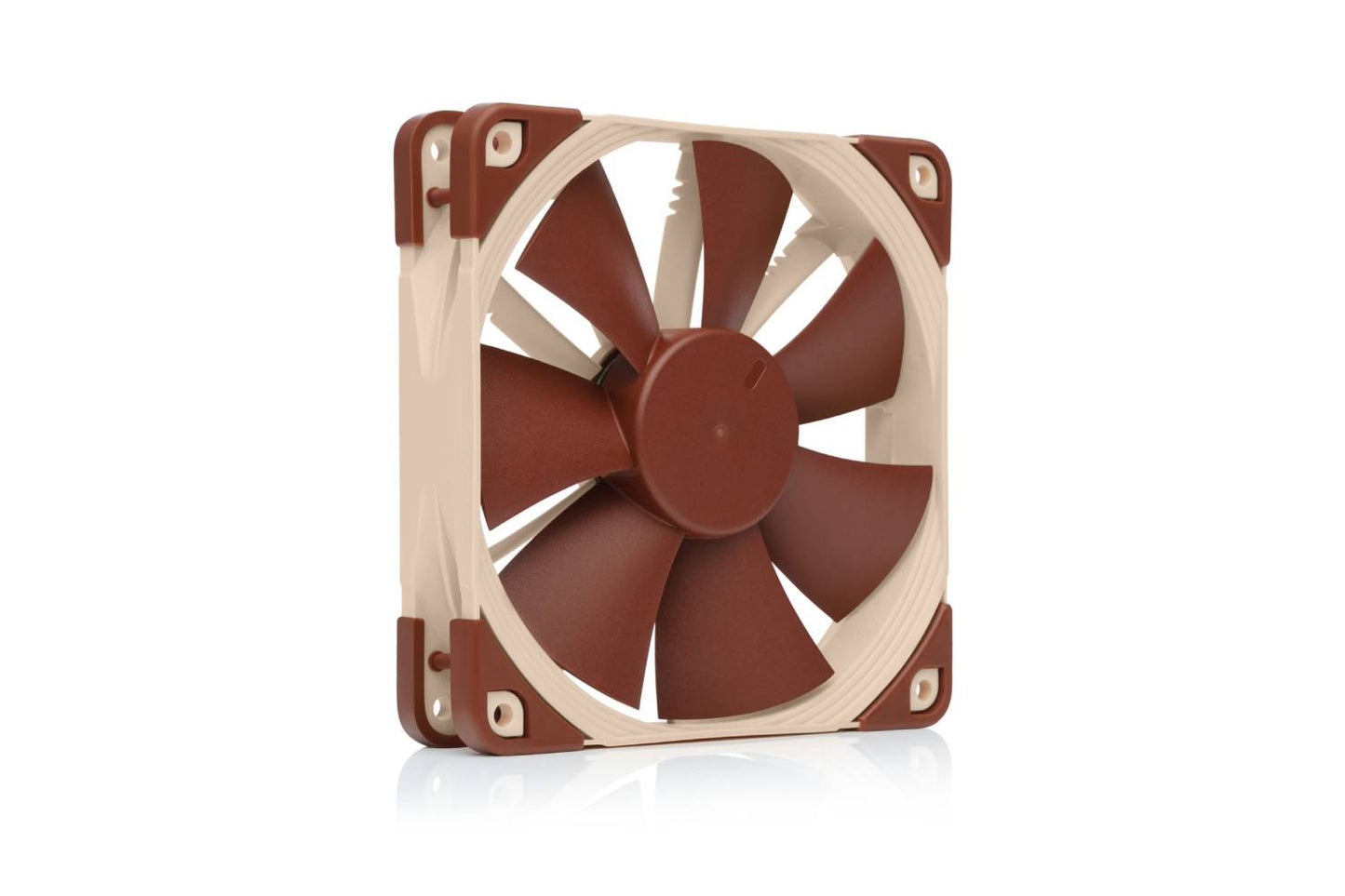

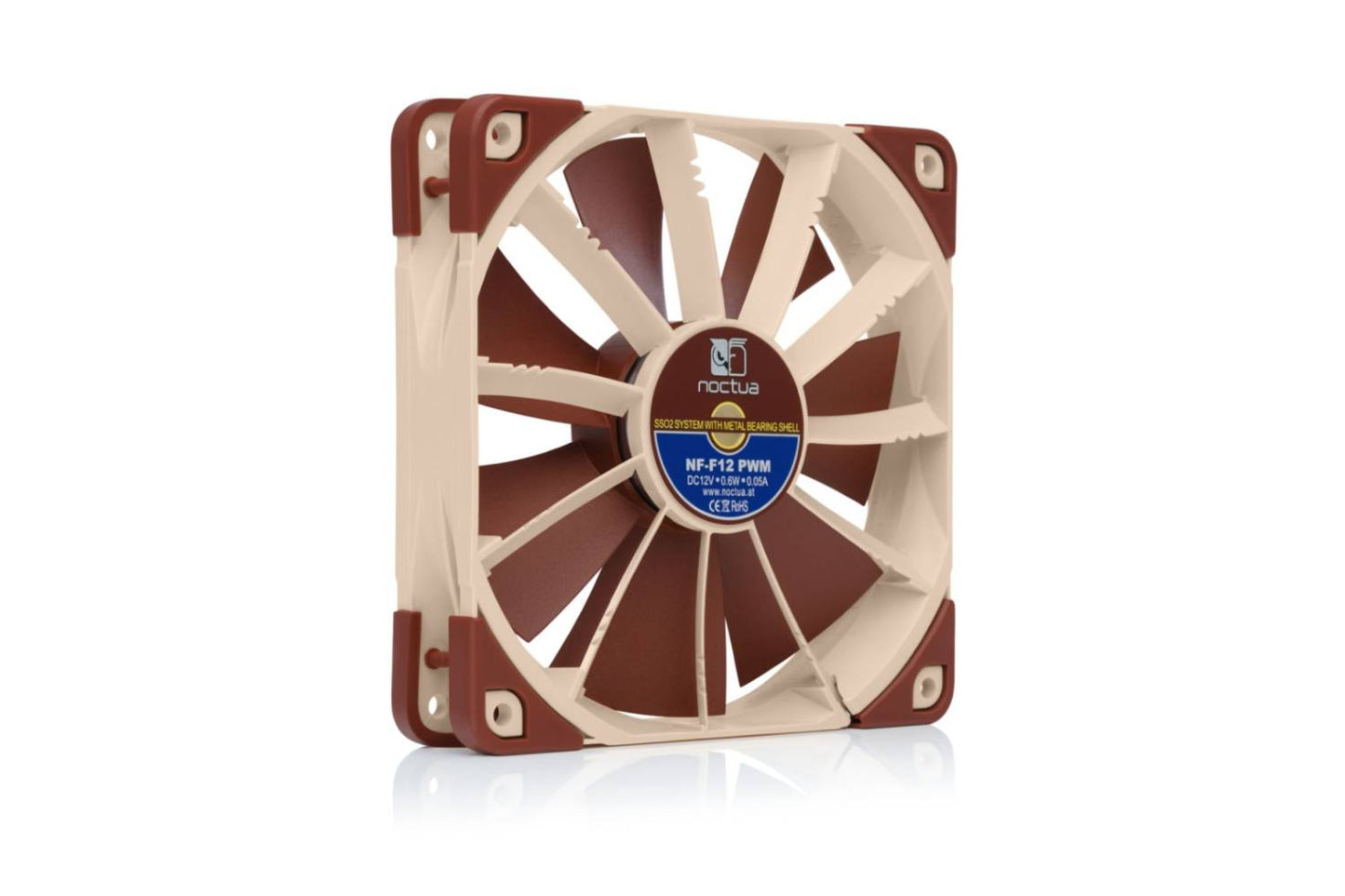

Noctua NF-F12-PWM Fan
