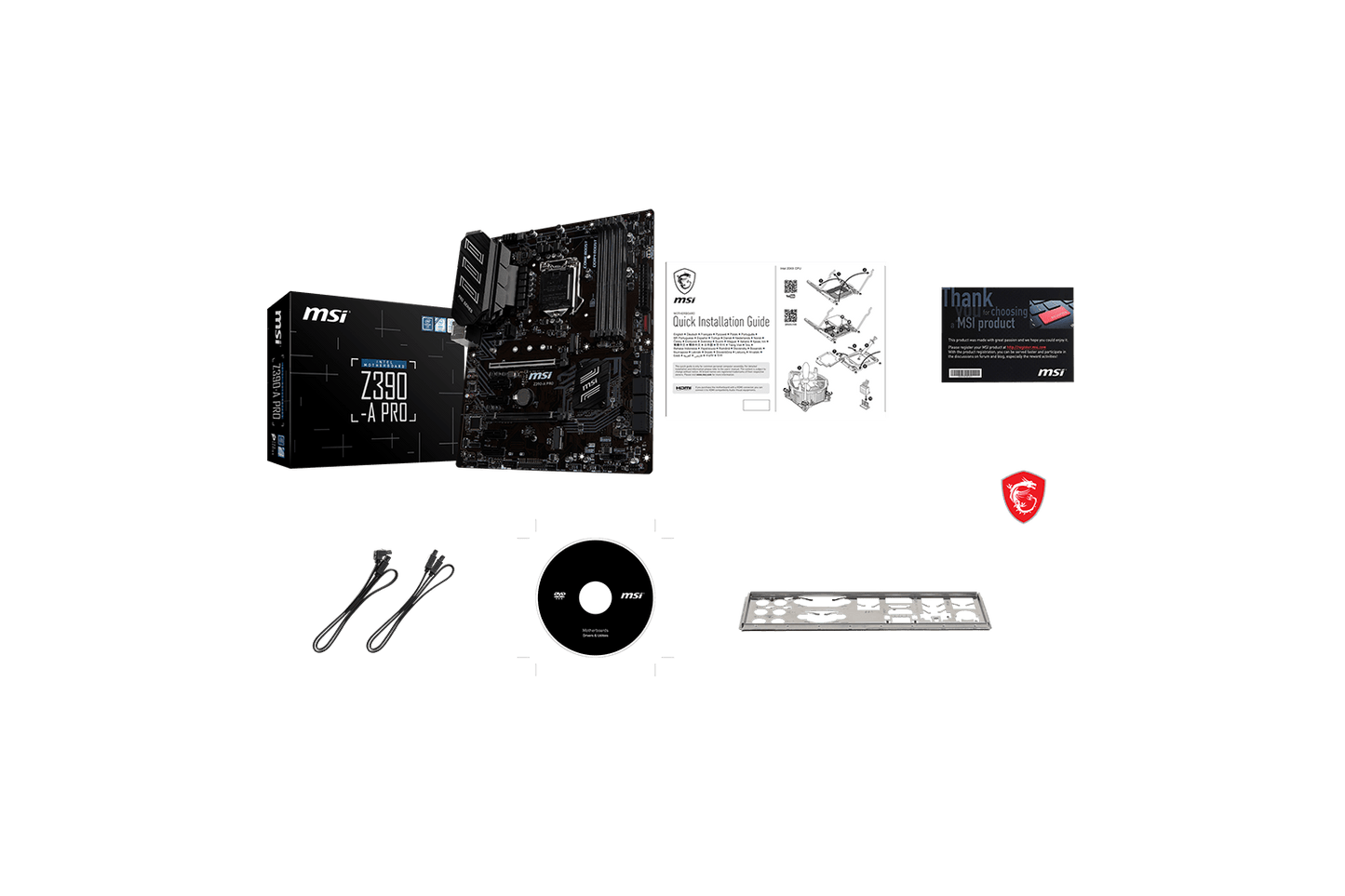

MSI Z390-A PRO LGA1151 Gaming Motherboard

Supports 9th / 8th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality.
Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

SKU:Z390-A PRO

Supports 9th / 8th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality.
Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Intel^® LAN：Premium network solution from Intel^® for professional and multimedia use. Delivers a secure, stable and fast network connection.
Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

SOCKET	1151
CPU (MAX SUPPORT)	i9
CHIPSET	Intel® Z390 Chipset
DDR4 MEMORY	4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	2
PCI-E GEN	Gen3
PCI-E X1	4
SATAIII	6
M.2 SLOT	1
RAID	0/1/5/10
TPM (HEADER)	1
LAN	1x Intel® I219-V
USB 3.1 PORTS (FRONT)	4(Gen1, Type A)
USB 3.1 PORTS (REAR)	1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	2
SERIAL PORTS(FRONT)	1
AUDIO PORTS (REAR)	Realtek® ALC892 Codec
DISPLAYPORT	1
DVI-D	1
VGA	1
DIRECTX	12
FORM FACTOR	ATX
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows® 10 64-bit
