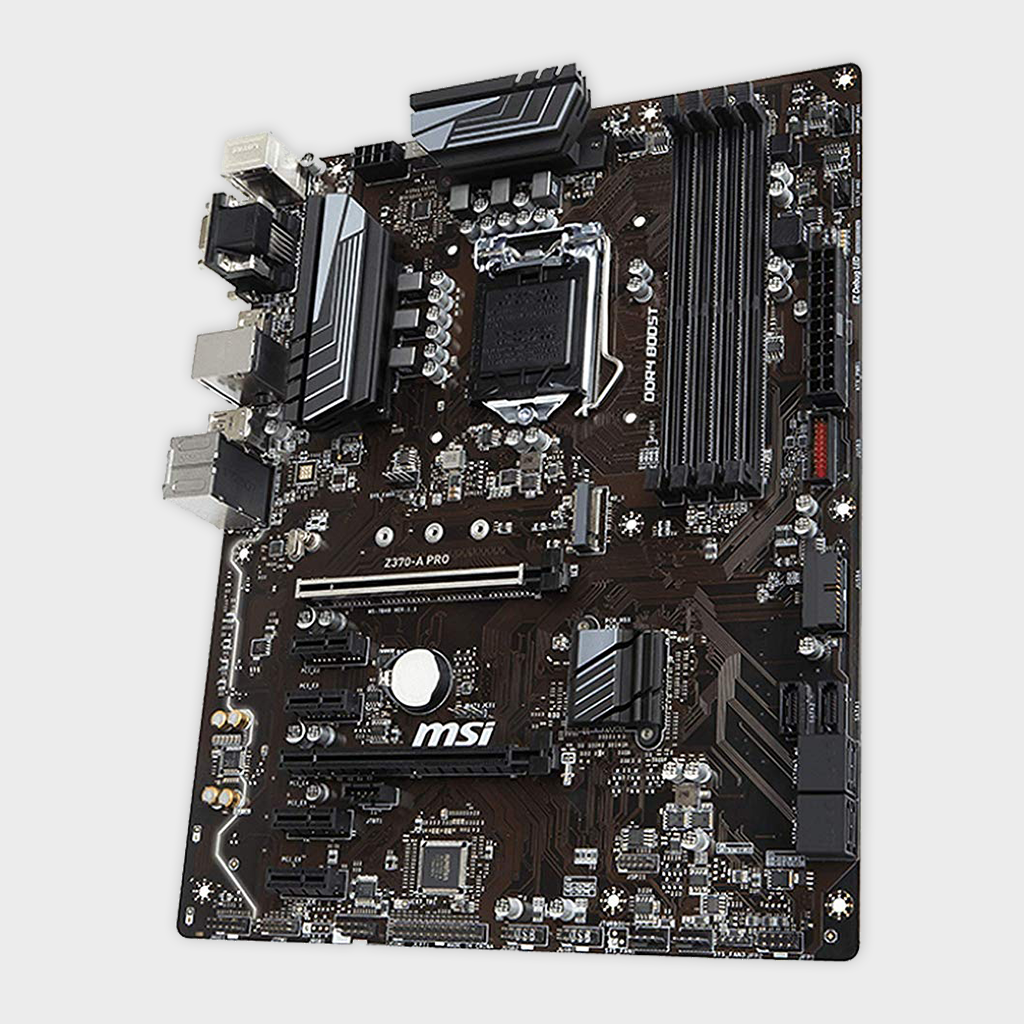

MSI Z370-A PRO Motherboard

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
AUDIO BOOST :Reward your ears with studio grade sound quality for the most immersive audio experience
MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire^™
Heavy plated heatsinks：Leading heatsink design, for maximum cooling
EZ Debug LED: Easiest way...

SKU:Z370-A PRO

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
AUDIO BOOST :Reward your ears with studio grade sound quality for the most immersive audio experience
MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire^™
Heavy plated heatsinks：Leading heatsink design, for maximum cooling
EZ Debug LED: Easiest way to troubleshoot
Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
PCI-E Steel Armor：Protecting VGA cards against bending and EMI
X-Boost: Great tool to boost your USB & Storage performance
Double ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
VR Ready: Best virtual reality game experience without latency, reduces motion sickness

SOCKET : 1151
CPU (MAX SUPPORT) : i9
CHIPSET : Intel® Z370 Chipset
DDR4 MEMORY : 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz
MEMORY CHANNEL : DUAL
DIMM SLOTS : 4
MAX MEMORY (GB) : 64
PCI-E X16 : 2
PCI-E GEN : Gen3
PCI-E X1 : 4
SATAIII : 6
M.2 SLOT : 1
RAID : 0/1/5/10
TPM (HEADER) : 1
LAN : 10/100/1000*
USB 3.1 PORTS (FRONT) : 4(Gen1, Type A)
USB 3.1 PORTS (REAR) : 4(Gen1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR) : Realtek® ALC892 Codec
DISPLAYPORT : 1
DVI-D : 1
VGA : 1
DIRECTX : 12
FORM FACTOR : ATX
CROSSFIRE : Y
OPERATING SYSTEM : Support for Windows® 10 64-bit
