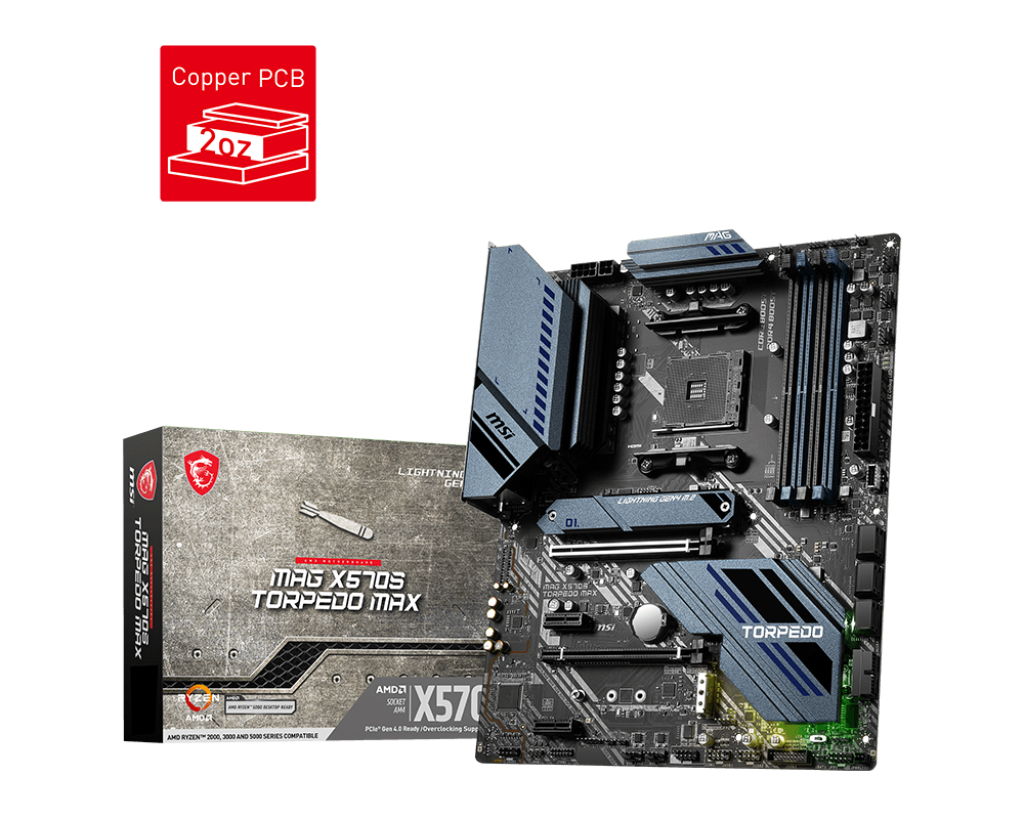

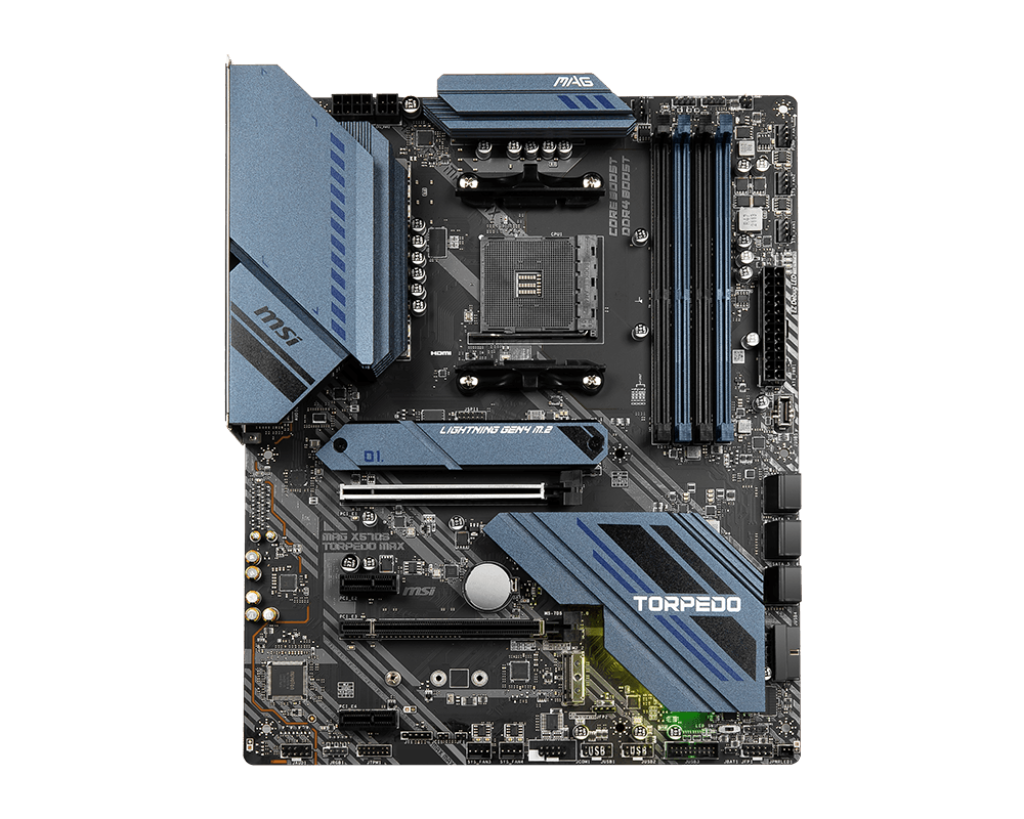

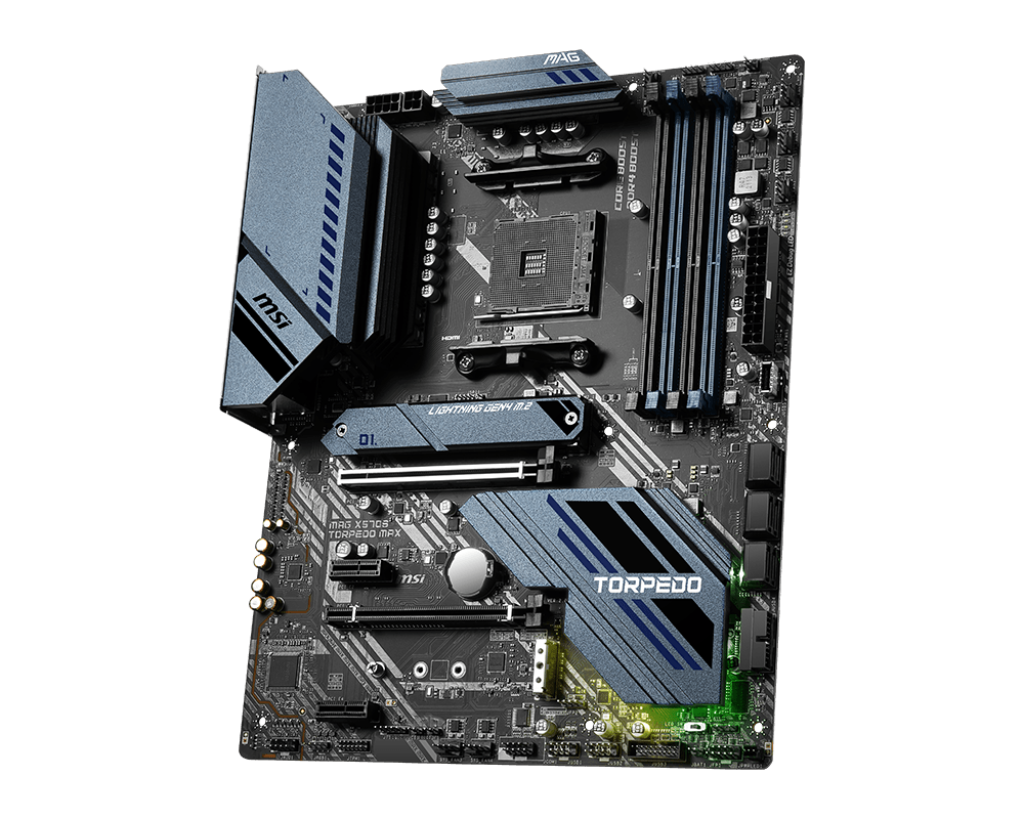

MSI X570 Torpedo Motherboard

MSI X570 Torpedo Motherboard

Regular price ₹ 18,821.00
Regular price Sale price ₹ 18,821.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Shipping & Returns

Shipping :

Shipping available across India for all pre-paid online orders.  All the product will shipped by our Shipping partners. As we have India Post, FedEx, Aramex, Delhivery, Ecom express and Xpress Bess partners. It will take maximum 2-15 days to deliver products. All the transit query can be followed by courier provider. For any query please contact on 9478726397(10AM - 7:00PM). Whatsapp chat line open till 10 PM.
*Next day delivery subject to availability. Some time availability depends on location. It will take time in case of different location availability.

Return :

Our policy lasts 7 days. If 7 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

View full details
  • PROCESSOR

    • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1
    • Supports Socket AM4
    1. Please go to msi.com to get the newest support status as new processors are released.

    See supported processors

    CHIPSET

    AMD X570 Chipset

    MEMORY

    • 4x DDR4 memory slots, support up to 128GB
    • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
    • Max overclocking frequency by A-XMP OC mode:
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    1. Please refer to www.msi.com for more information on compatible memory.

    See supported memory

    EXPANSION SLOT

    • Supports PCIe 4.0 / PCIe 3.0 specification
    • 1x PCIe x16 slot (From processor)
    • 1x PCIe x16 slot (From X570 chipset)
    • 2x PCIe 3.0 x1 slots (From X570 chipset)

    MULTI-GPU

    • Supports AMD CrossFire™ Technology

    ONBOARD GRAPHICS

    • 1x HDMI™ 2.1 port, supports a maximum resolution of 4K 60Hz 1 2
    1. Available only on processors featuring integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.

    STORAGE

    • 6x SATA 6Gb/s ports (from AMD X570 Chipset)
    • 2x M.2 slots (Key M)

    RAID

    • Supports RAID 0, RAID 1 and RAID 10

    USB

    AMD X570 Chipset

    • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
    • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

    AMD Processor

    • 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

    AUDIO

    Realtek® ALC4080 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output

    LAN

    • 1x Realtek® 8125B 2.5Gbps LAN Controller
    • 1x Realtek® RTL8111H 1Gbps LAN Controller

    INTERNAL CONNECTORS

    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 1x 4-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
    • 1x USB 3.2 Gen 2 10Gbps Type-C port
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump connector
    • 4x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x TPM module connector
    • 1x Serial port connector
    • 1x Chassis Intrusion connector

    LED FEATURE

    • 2x 4-pin RGB LED connectors
    • 2x 3-pin RAINBOW LED connectors
    • 4x EZ Debug LED
    • 1X EZ LED Control switch

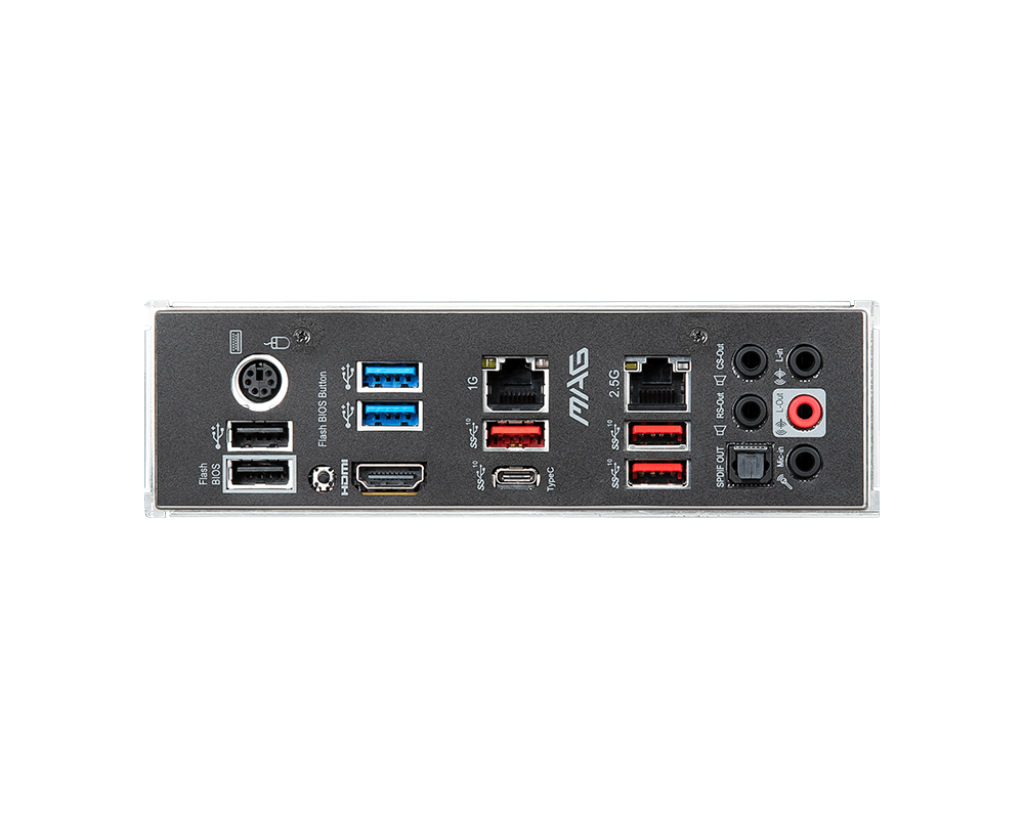

    BACK PANEL PORTS

    1. PS/2 Mouse / Keyboard
    2. USB 3.2 Gen 1 5Gbps (Type-A)
    3. Gigabit LAN Port
    4. 2.5G LAN Port
    5. HD Audio Connectors
    6. USB 2.0 Port
    7. Flash BIOS Button
    8. HDMI™ 2.1 Port
    9. USB 3.2 Gen 2 10Gbps (Type-C)
    10. USB 3.2 Gen 2 10Gbps (Type-A)
    11. Optical S/PDIF OUT

    DIMENSIONS

    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

    OPERATING SYSTEM

    Support for Windows® 10 64-bit

    BOX CONTENT

    1. MSI® does not guarantee the risks or damages caused by changing the cover.
    2. These pictures are for reference only and may vary without notice.
