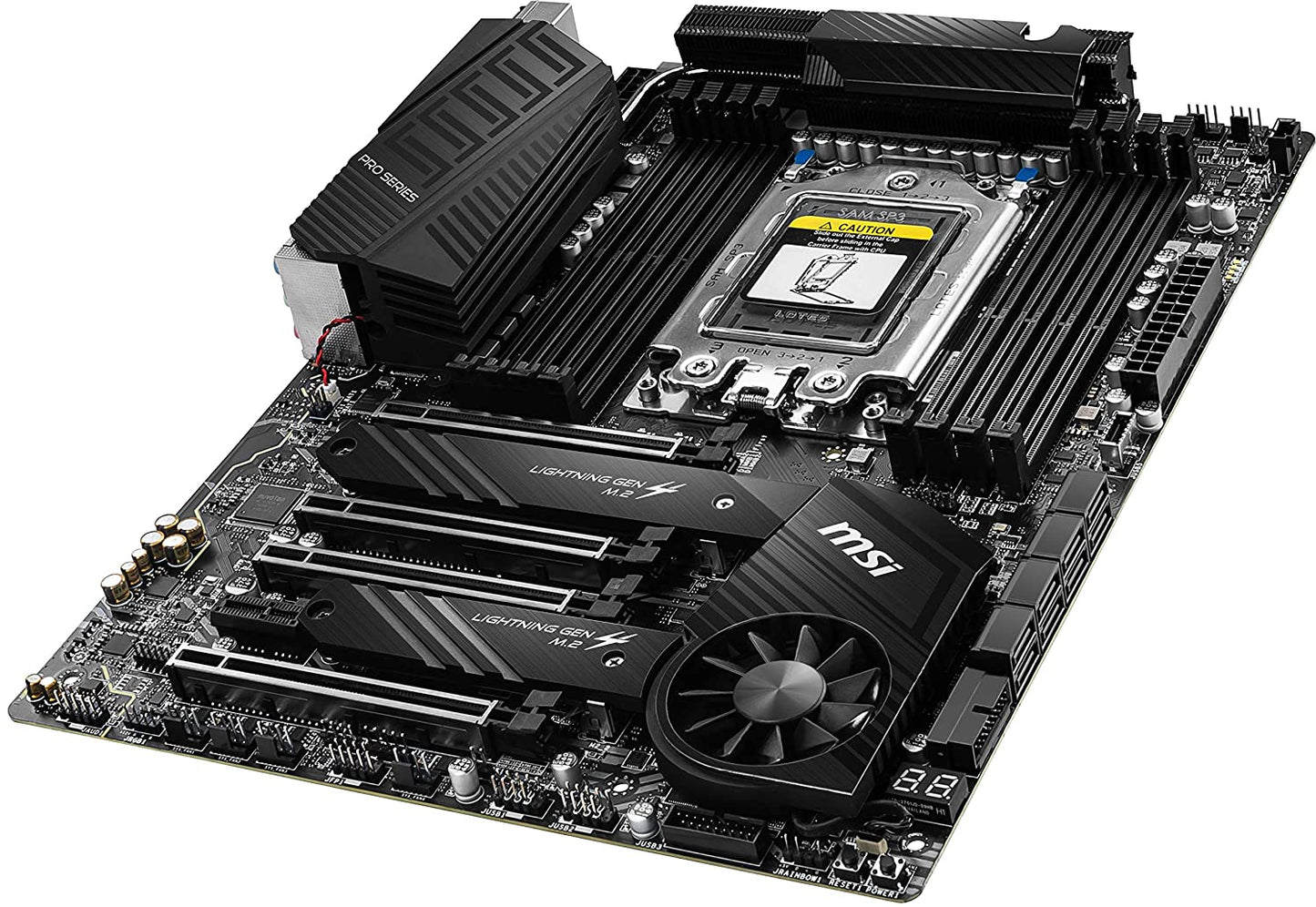

MSI TRX40 PRO WIFI Motherboard

MSI TRX40 PRO WIFI Motherboard

Regular price ₹ 55,000.00
Regular price ₹ 70,000.00 Sale price ₹ 55,000.00
Sale Sold out
Tax included.

Description

SPECIFICATIONS

PROCESSOR 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
CHIPSET AMD® TRX40 Chipset
MEMORY 8 x DDR4 memory slots, support up to 256GB1
Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Quad channel memory architecture2
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
SLOTS 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1 slot
MULTI-GPU Supports 3-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
STORAGE AMD® TRX40 Chipset
8 x SATA 6Gb/s ports
AMD® Processor
2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
RAID AMD® TRX40 Chipset
Supports RAID 0, RAID 1 and RAID 10
USB AMD® TRX40 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
AMD® Processor
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
ASMedia® ASM3242 Chipset
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
AUDIO Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 2 x Intel® I211AT Gigabit LAN controller
WIFI & BLUETOOTH Intel® Wi-Fi 6 AX200
The Wireless module is pre-install in the M2_4 (Key-E)slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button

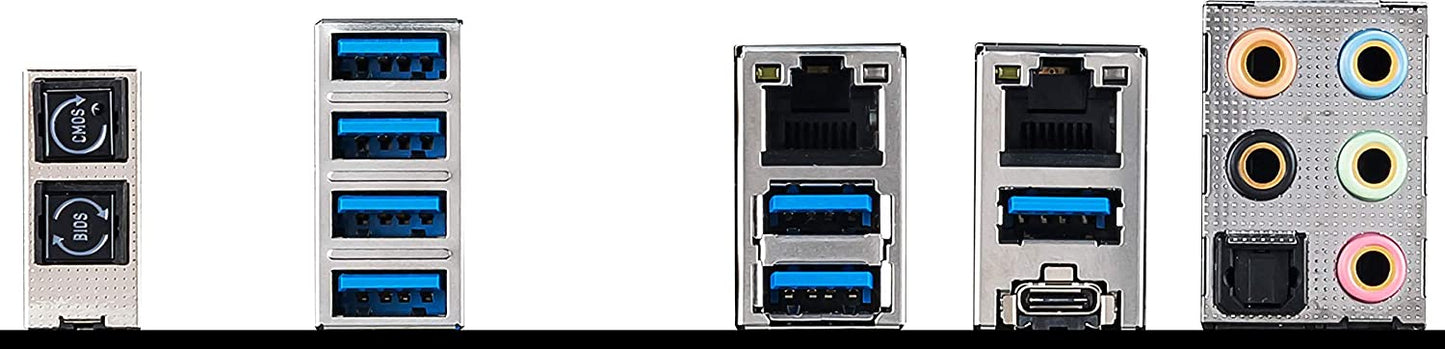

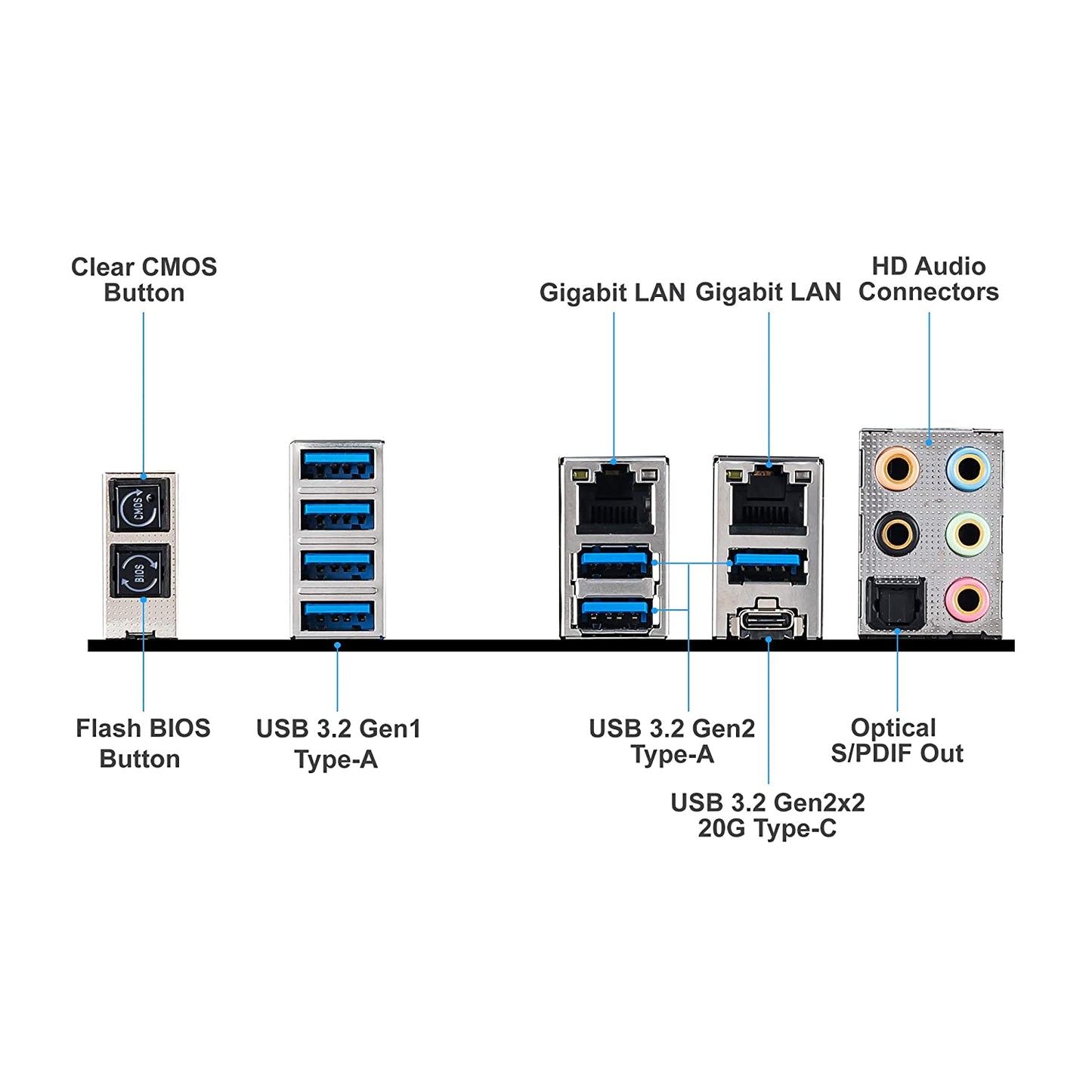

BACK PANEL PORTS
MSI TRX40 PRO WIFI back panel ports
1.Clear CMOS Button
2.Wireless / Bluetooth
3.Gigabit LAN
4.Gigabit LAN
5.Audio Connectors
6.Flash BIOS Button
7.USB 3.2 Gen1 Type-A
8.USB 3.2 Gen2 Type-A
9.USB 3.2 Gen2x2 20G Type-C
10.Optical S/PDIF out
DIMENSIONS 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit

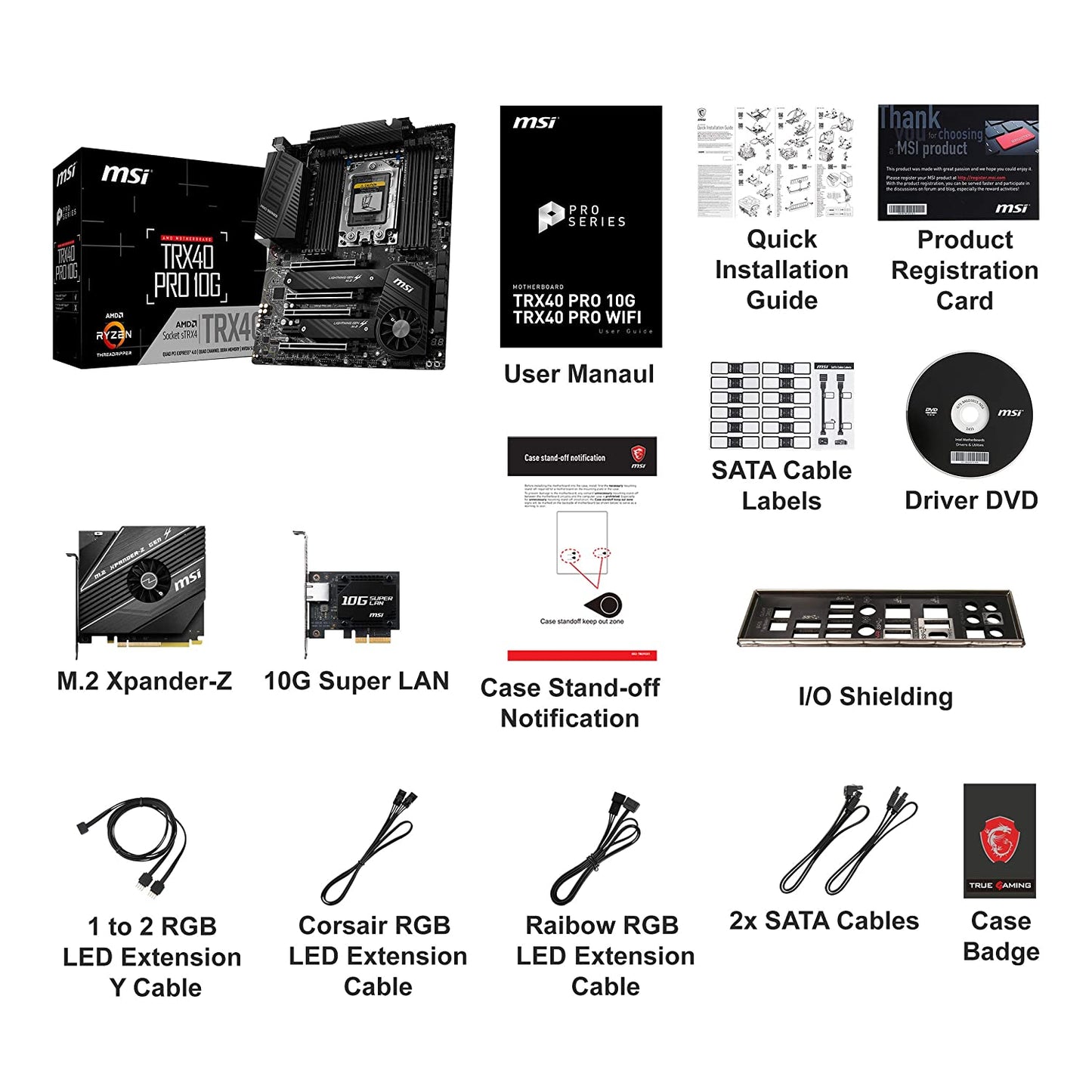

BOX CONTENT
MSI TRX40 PRO WIFI box content

*MSI® does not guarantee the risks or damages caused by changing the cover.

**These contents are for reference only and may vary without notice.

WARRANTY  3 Years
