About this product
Core/Memory
- Boost Clock / Memory Frequency
up to 1340MHz / 8000 MHz - 8GB GDDR5
Armor 2X Thermal Design
- TORX Fan:
- Dispersion: fan blade Steep curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below. - Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
- Advanced Airflow Control technology: Improves cooling efficiency by using advanced aerodynamics to focus airflow.
Afterburner Overclocking Utility
- Wireless control through Android/iOS devices.
- Predator: In-game video recording.
- Kombustor: DirectX12 benchmark.
- Supports multi-GPU setups.
Military Class 4 Components
- Certified to MIL-STD-810G standards for top stability and quality.
- Built with Hi-c CAP, Solid CAP, and New SFC components.

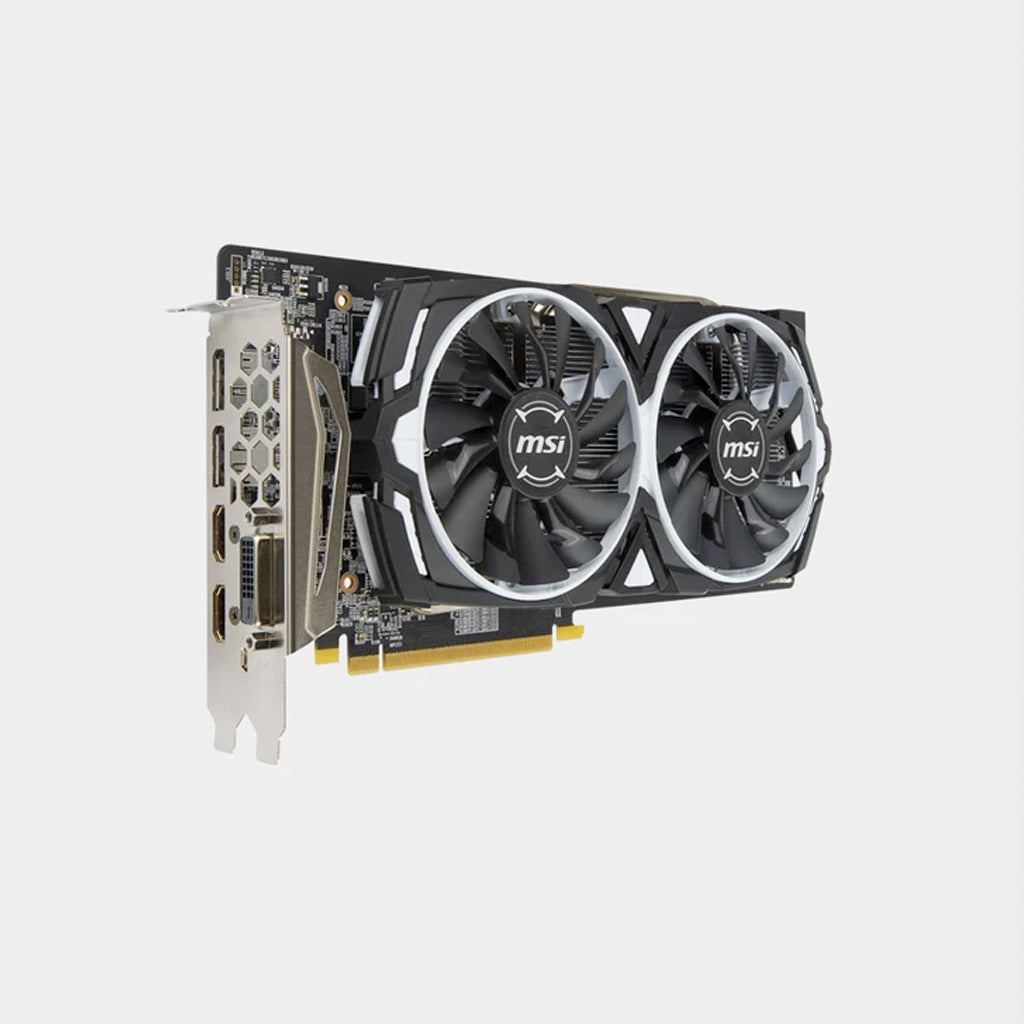

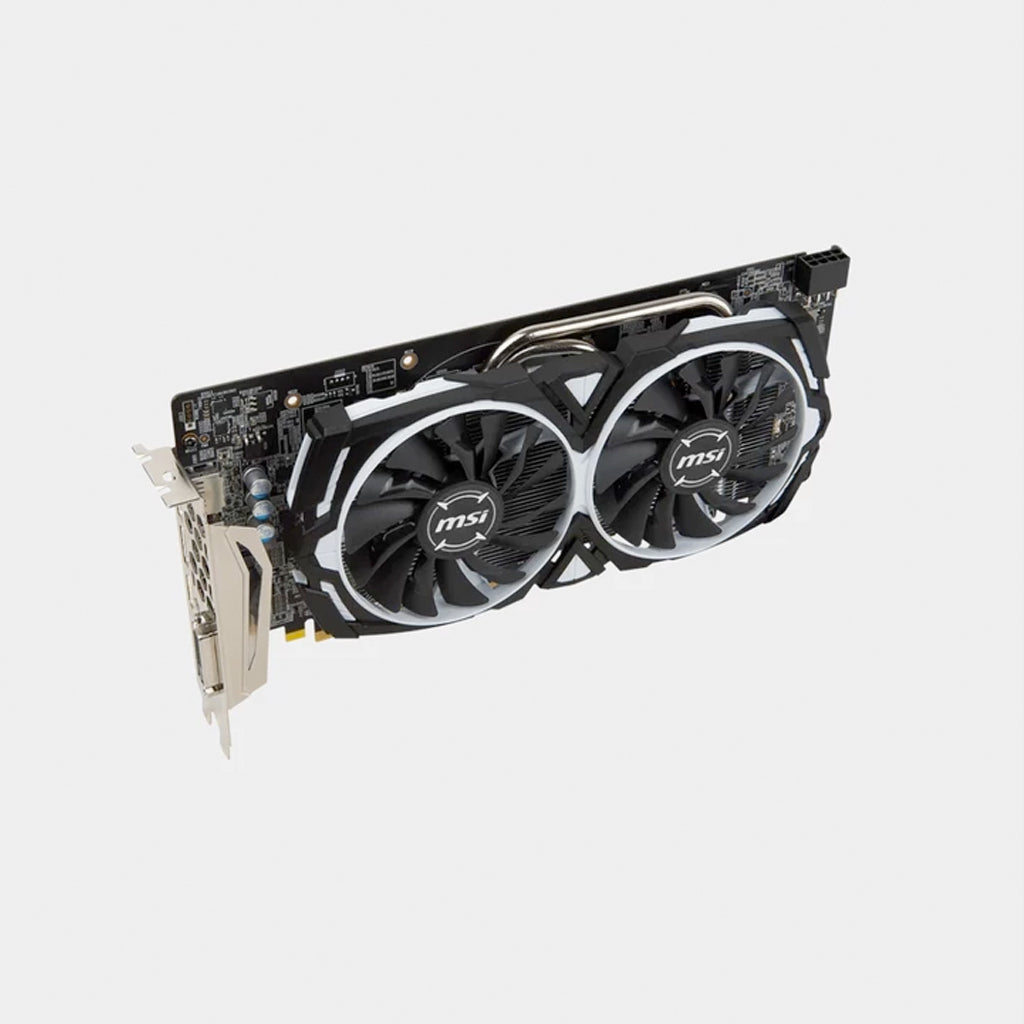

MODEL NAME - Radeon™ RX 580 ARMOR 8G
GRAPHICS PROCESSING UNIT - Radeon™ RX 580
INTERFACE - PCI Express x16
CORE NAME - Polaris 20 XTX
CORES - 2304 Units
CORE CLOCKS - up to 1340 MHz
MEMORY SPEED - 8000 MHz
MEMORY - 8GB GDDR5
MEMORY BUS - 256-bit
OUTPUT - DisplayPort x 2 / HDMI x 2 / DL-DVI-D
HDCP SUPPORT - Y
POWER CONSUMPTION - 185 W
POWER CONNECTORS - 8-pin x 1
RECOMMENDED PSU - 500 W
CARD DIMENSION(MM) - 269 x 125 x 38 mm
WEIGHT (CARD / PACKAGE) - 653 g / 1152 g
AFTERBURNER OC - Y
DIRECTX VERSION SUPPORT - 12
OPENGL VERSION SUPPORT - 4.5
MULTI-GPU TECHNOLOGY - Crossfire™, 2-Way (Bridgeless)
MAXIMUM DISPLAYS - 5
VR READY - Y
