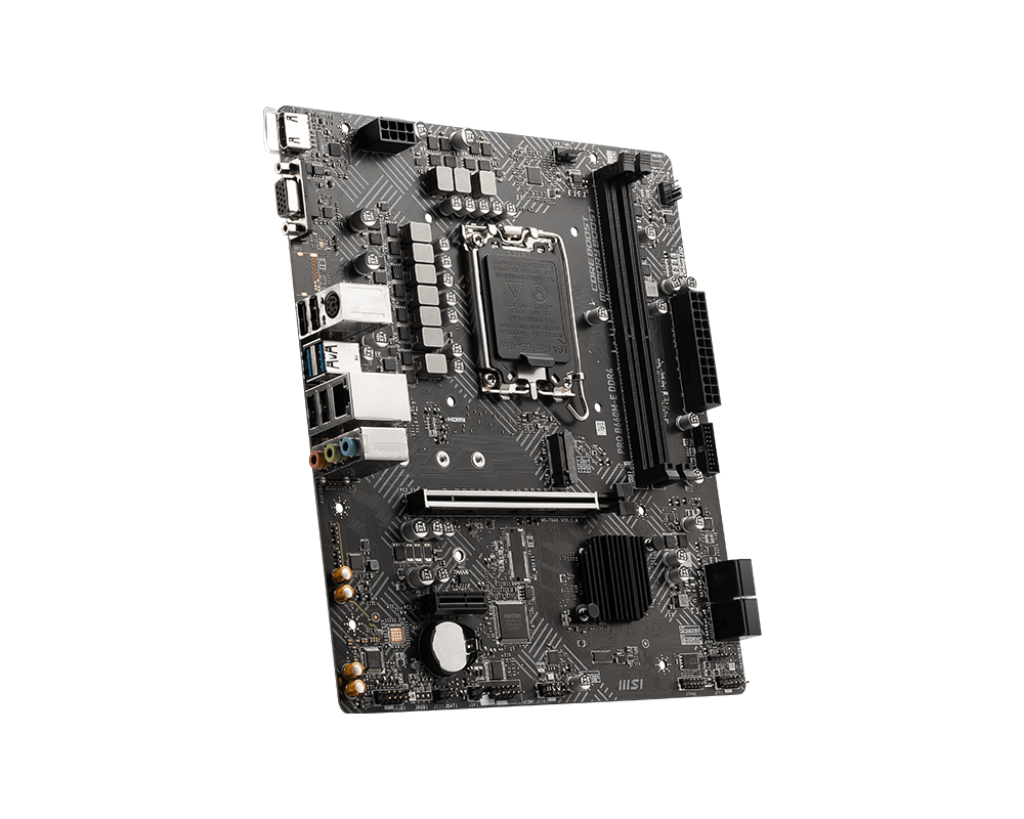

MSI PRO B760M-E DDR4 Motherboard

MSI PRO B760M-E DDR4 Motherboard

₹ 15,999.00
₹ 19,999.00 ₹ 15,999.00
Sale Sold out
Tax included.

Description

PROCESSOR

  • Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel® B660 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4600+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe x16 slot (From CPU)
    • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From B660 chipset)
    • Supports PCIe 3.0 x1

ONBOARD GRAPHICS

  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
  1. Available only on processors featuring integrated graphics
  2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

  • 4x SATA 6Gb/s ports (From B660chipset) 1
  1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT

  • 1x M.2 slot (Key M, from B660 chipset) 1
    • Supports up to PCIe 3.0 x4
    • Supports up to SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Support Intel® Optane™ Memory
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

AUDIO

Realtek® ALC892/ ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Intel® I219V 1Gbps LAN controller

POWER CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector

USB

Intel® B660 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

FAN CONNECTORS

  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector

SYSTEM CONNECTORS

  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector

JUMPERS

  • 1x Clear CMOS jumper

LED FEATURES

  • 4x EZ Debug LED

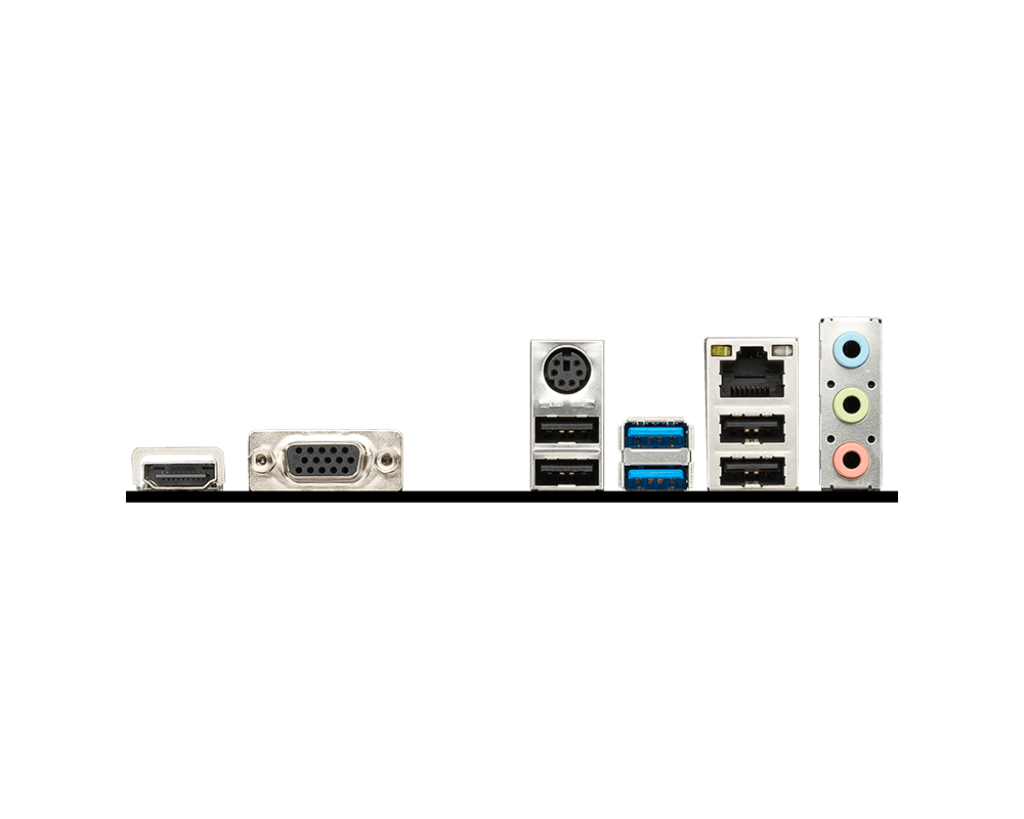

BACK PANEL PORTS

  1. HDMI
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps Type-A
  5. LAN port
  6. Audio connector
  7. USB 2.0
MSI PRO B660M-E DDR4 back panel ports

DIMENSIONS

  • M-ATX Form Factor
  • 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

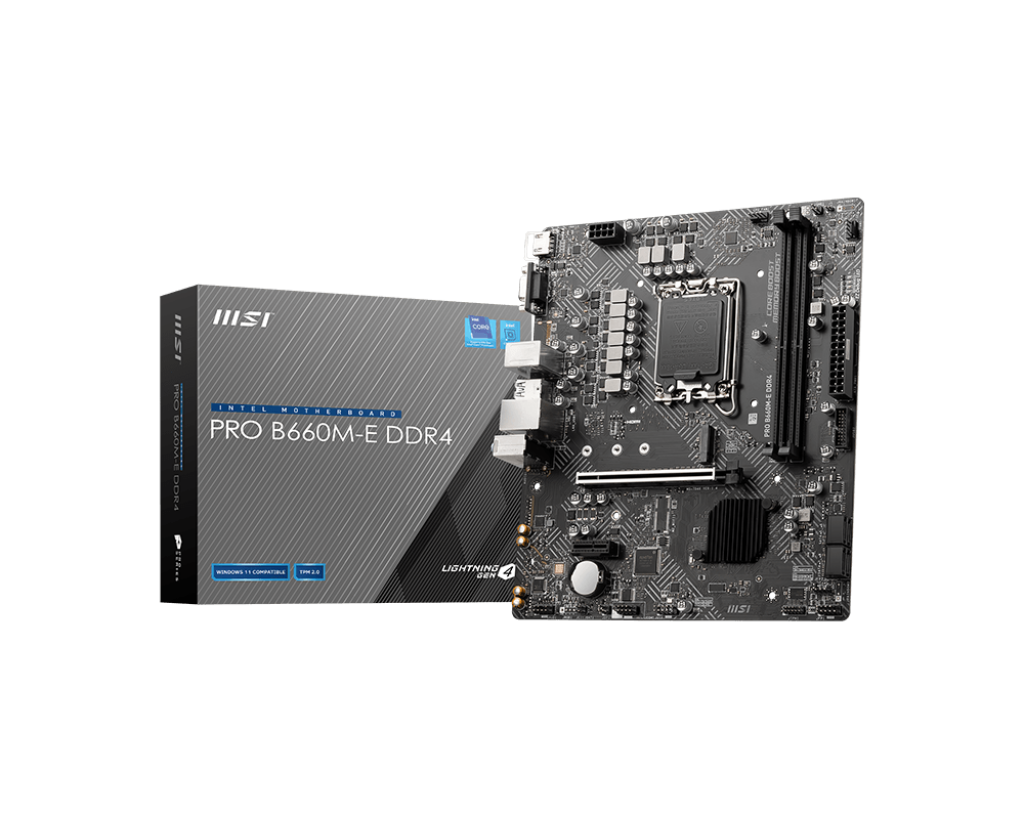

BOX CONTENT

MSI PRO B660M-E DDR4 box content
