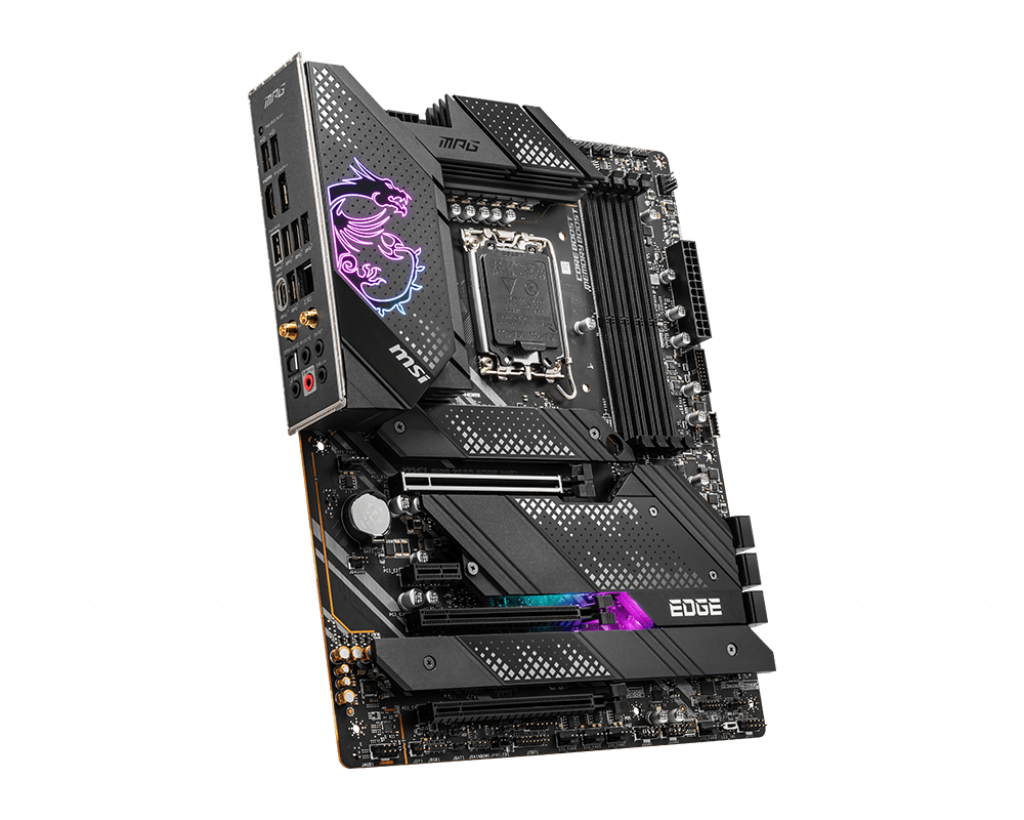

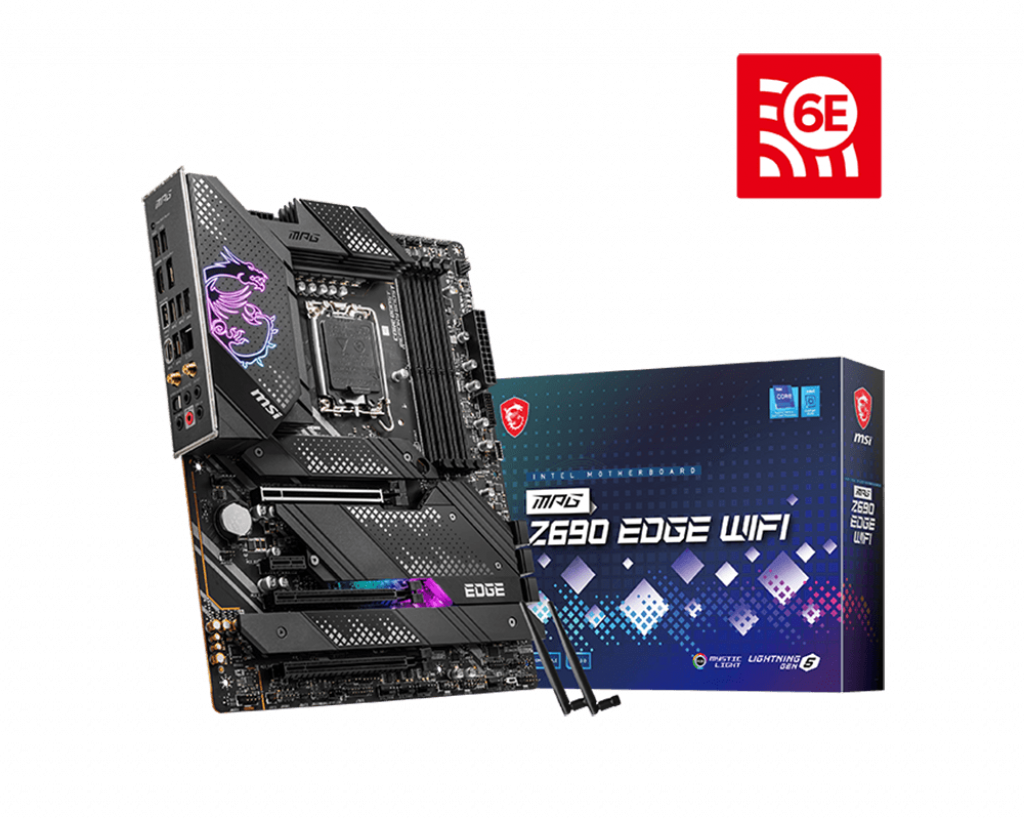

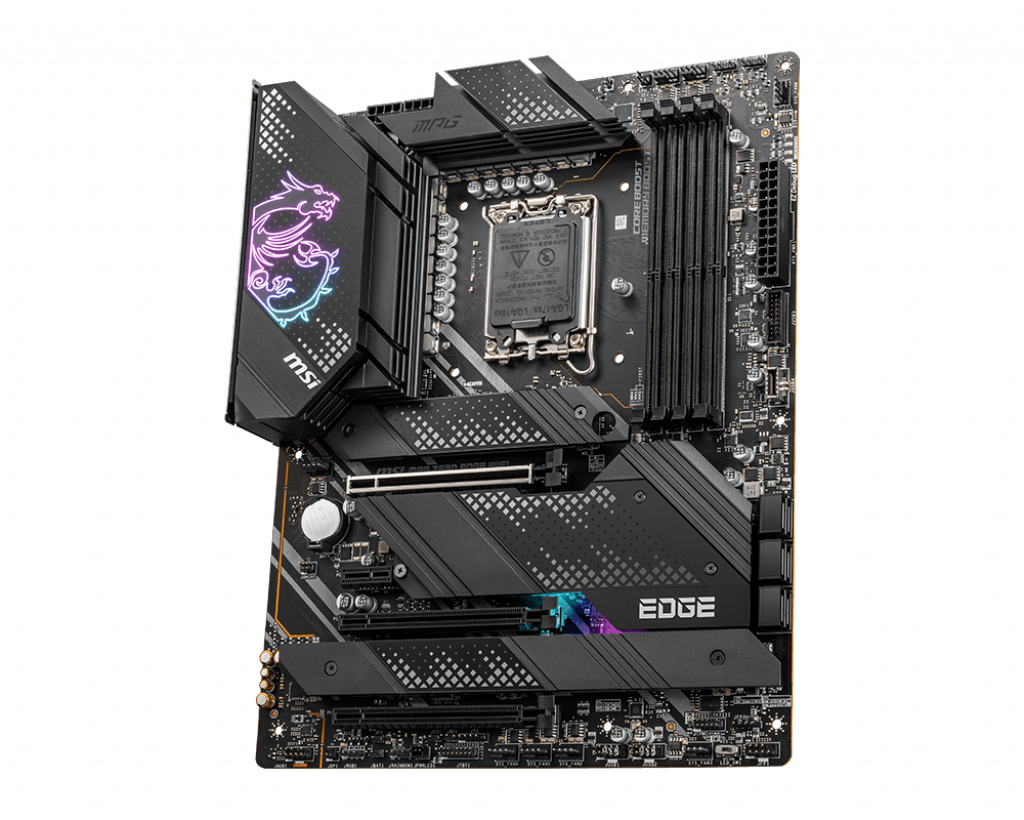

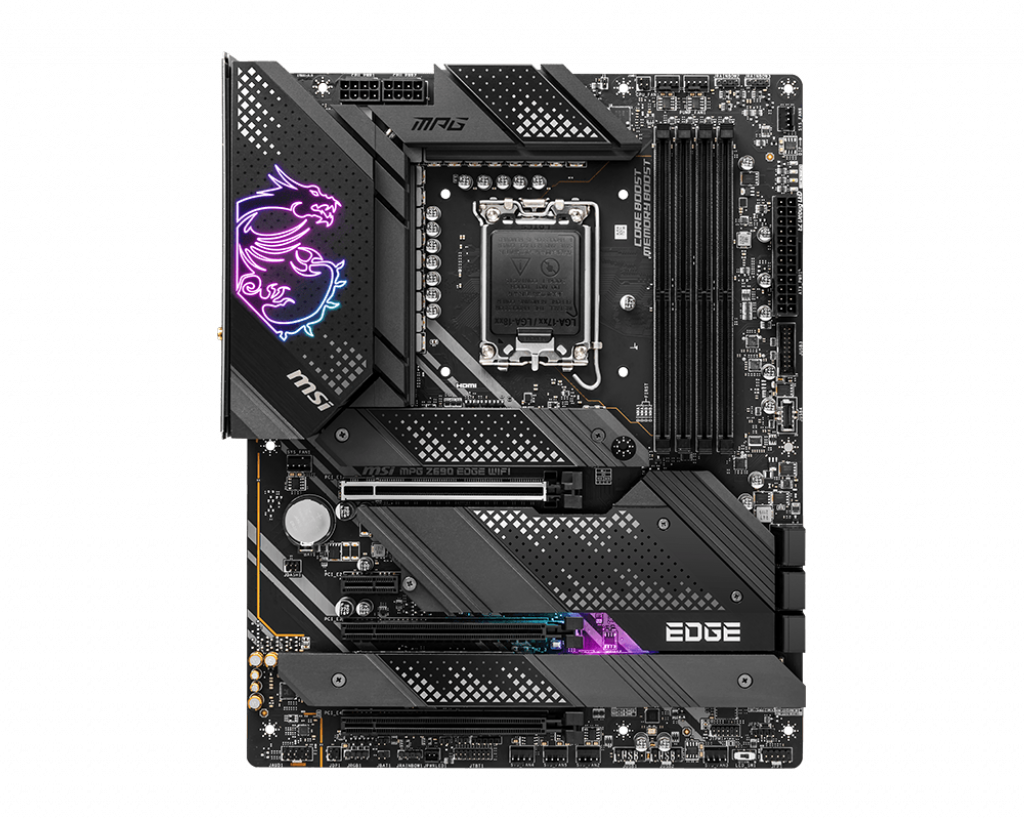

MSI MPG Z690 EDGE WIFI Motherboard

PROCESSOR

• Supports 12th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1700

1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel^® Z690 Chipset

MEMORY

• 4x DDR5 memory slots, support up to 128GB¹
• Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)¹
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

EXPANSION SLOTS

• 3x PCIe x16 slots
  • PCI_E1 slot (From CPU)
    • Supports PCIe 5.0 x16
  • PCI_E3 & PCI_E4 slots (From Z690 chipset)
    • Supports PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (From Z690 chipset

ONBOARD GRAPHICS

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹/ ²
• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz¹/ ²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports AMD^® CrossFire^™ Technology

STORAGE

• 6x SATA 6Gb/s ports
  • SATA5~8 (From Z690 Chipset)
  • SATAA~B (From ASMedia ASM1061)
• 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia
ASM1061)
• 4x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports PCIe 4.0 x4
    • Supports 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 Chipset)
    • Supports PCIe 4.0 x4
    • Supports 2260/ 2280 storage devices
  • M2_3 slot (From Z690 Chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (From Z690 Chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
• M2_2~4 support Intel^® Optane™ Memory
• Supports Intel^® Smart Response Technology for Intel^® Core™ processors

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices¹
• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

1.  SATAA & SATAB do not support RAID function.

USB

AUDIO

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

1x Intel^® I225V 2.5Gbps LAN controller

WIFI & BLUETOOTH

Intel^® Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz ¹(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
2. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1xTPM module connector
• 1x Clear CMOS jumper
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

LED FEATURE

• 1x 4-pin RGB LED connector
• 3x 3-pin RAINBOW LED connectors
• 1x EZ LED Control switch
• 4x EZ Debug LED

BACK PANEL PORTS

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 11 64-bit, Windows^® 10 64-bit
