MSI MPG B550I Gaming Edge WIFI Motherboard

MSI MPG B550I Gaming Edge WIFI Motherboard

₹ 21,877.00
₹ 21,877.00
Sale Sold out
Tax included.

Description

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
  • Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • HDMI 2.1: Support 4K display with up to 4096x2160@60Hz
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHZ
      • 1DPC 2R max speed 4000 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOTS

  • 1x PCIe 4.0/ 3.0 x16 slot 1
  1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

  • 1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 2048 MB
  1. Available for the processor with integrated graphics.

STORAGE

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & 8LUETOOTH®

Intel® AX200

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.1

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x 3-pin RAINBOW LED connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

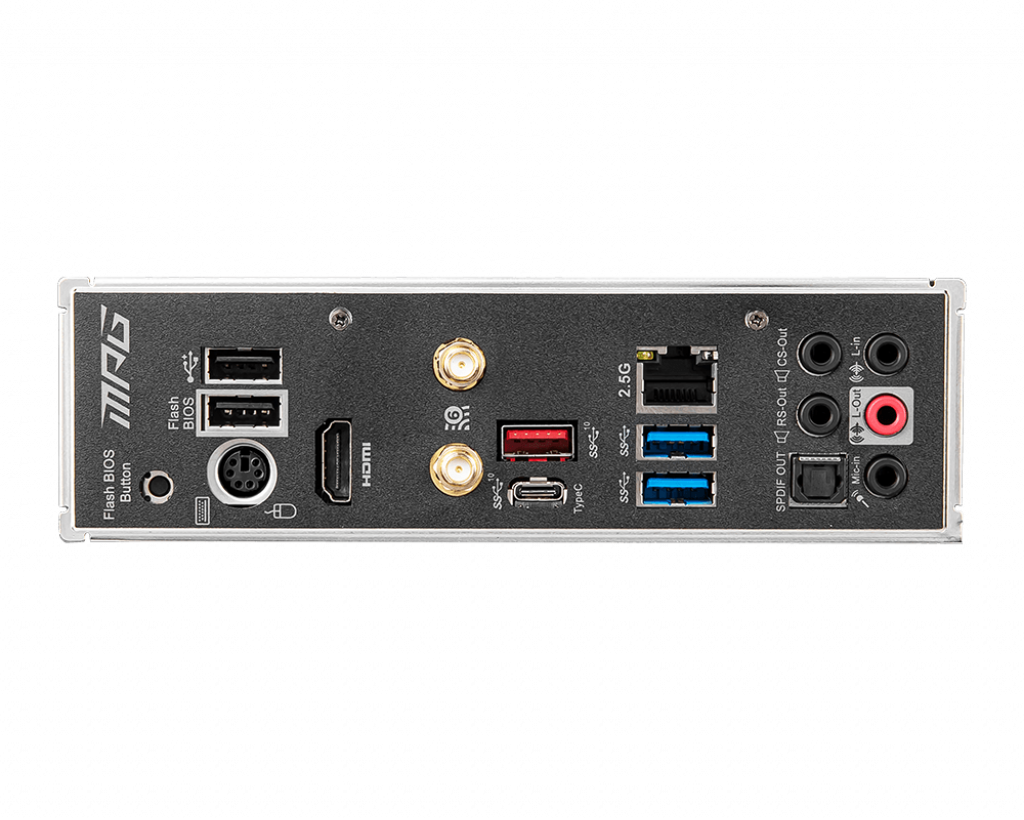

BACK PANEL PORTS

  1. USB 2.0
  2. Wi-Fi / Bluetooth
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. LAN Port
  5. HD Audio Connectors
  6. BIOS Flashback Button
  7. PS/2 Combo Port
  8. HDMI Port
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. Optical S/PDIF OUT
MPG B550I GAMING EDGE WIFI

I/O CONTROLLER

  • NUVOTON NCT6687-R Controller Chip

DIMENSIONS

  • Mini-ITX Form Factor
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

BOX CONTENT

MPG B550I GAMING EDGE WIFI
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
