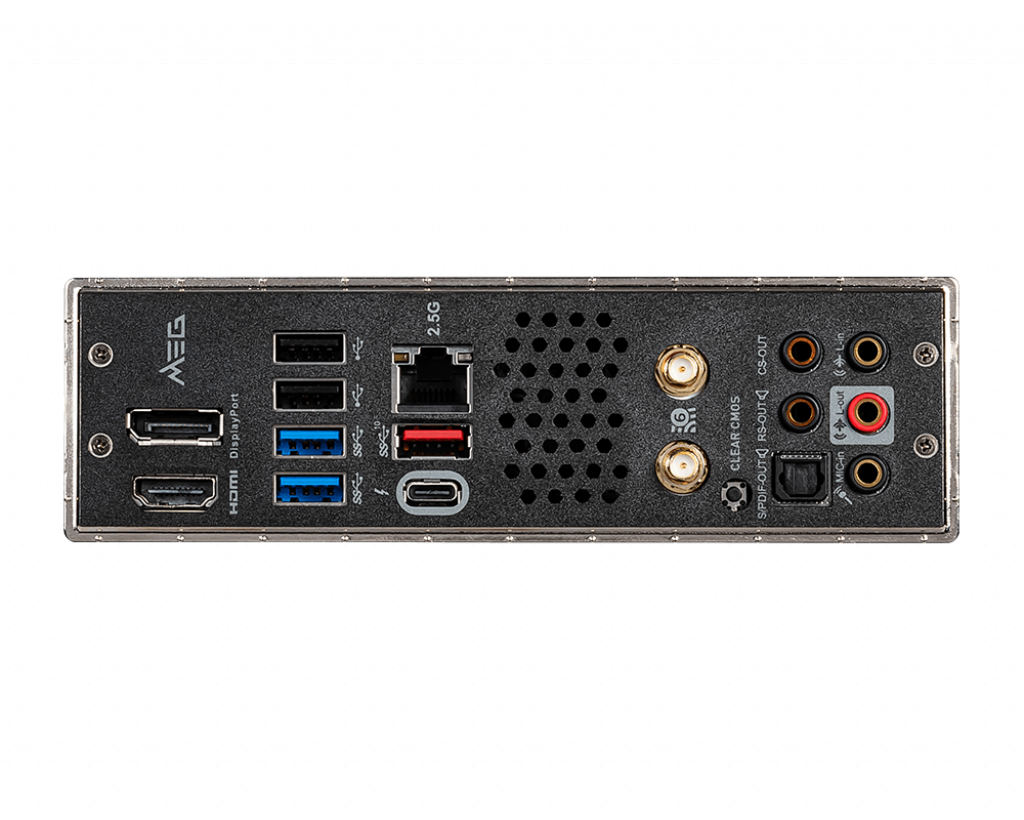

MSI MEG Z490i UNIFY Motherboard

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.

SKU:

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

SOCKET : 1200
CPU (MAX SUPPORT) : i9
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
CHIPSET : Intel® Z490 Chipset
DDR4 MEMORY : 5000(OC)/4800(OC)/4600(OC)/4533(OC)/4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL : Dual
DIMM SLOTS : 2
MAX MEMORY (GB) : 64
PCI-E X16 : 1
SATAIII : 4
M.2 SLOT : 2
RAID : 0/1/5/10
LAN : 1x Realtek® 8125B 2.5G LAN controller LAN controller
USB 3.2 PORTS (FRONT) : 1(Gen2, Type C), 2(Gen1, Type A)
USB 3.2 PORTS (REAR) : 1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT) : 2
USB 2.0 PORTS (REAR) : 2
AUDIO PORTS (REAR) : Realtek® ALC1220 Codec
DISPLAYPORT : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR :Mini iATX
OPERATING SYSTEM : Support for Windows® 10 64-bit
