Msi Mag z490 tomahawk

Msi Mag z490 tomahawk

Regular price ₹ 20,172.00
Regular price Sale price ₹ 20,172.00
Sale Sold out
Tax included.

Description

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

PROCESSOR

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

  1. Please go to intel.com for compatibility information.
  2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

CHIPSET

Intel® Z490 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/2666/2933 MHz 1
      • 1DPC 1R Max speed up to 4800+ MHz
      • 1DPC 2R Max speed up to 4266+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
  • 2x PCIe x1 slots (from PCH)
  1. Please refer to page 29 for PCIe 3.0 bandwidth table.

ONBOARD GRAPHICS

  • 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

MULTI-GPU

  • Supports 2-Way AMD® CrossFire Technology

STORAGE

Intel® Z490 Chipset

  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
    • Intel® Optane Memory Ready 3
    • Supports Intel® Smart Response Technology for Intel Core processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
  3. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z490 Chipset

  • 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
  • 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
  • 2x USB 2.0 ports on the back panel
  • 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G

ASMedia® ASM3241

  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

AUDIO

Realtek® ALC1200-VD1 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B-CG 2.5G LAN Controller + 1x Intel I219V 1G LAN

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connectors (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x serial port connector
  • 1x TPM module connector
  • 1x TBT connector 1
  1. Thunderbolt card need support RTD3

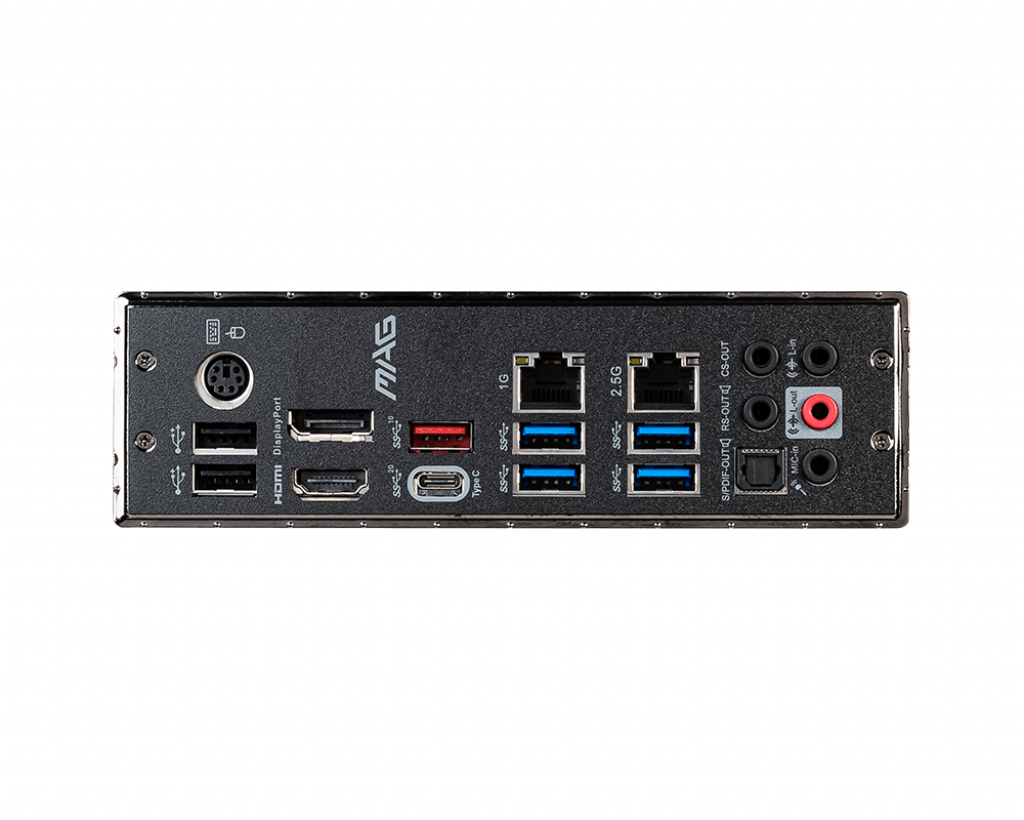

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. DisplayPort
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. 1G LAN Port
  5. 2.5G LAN
  6. HD Audio Connectors
  7. USB 2.0 Ports
  8. HDMI Port
  9. USB 3.2 Gen 2x2 20Gbps (Type-C)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 1 5Gbps (Type-A)
  12. Optical S/PDIF OUT
MAG Z490 TOMAHAWK back panel ports

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MAG Z490 TOMAHAWK box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
