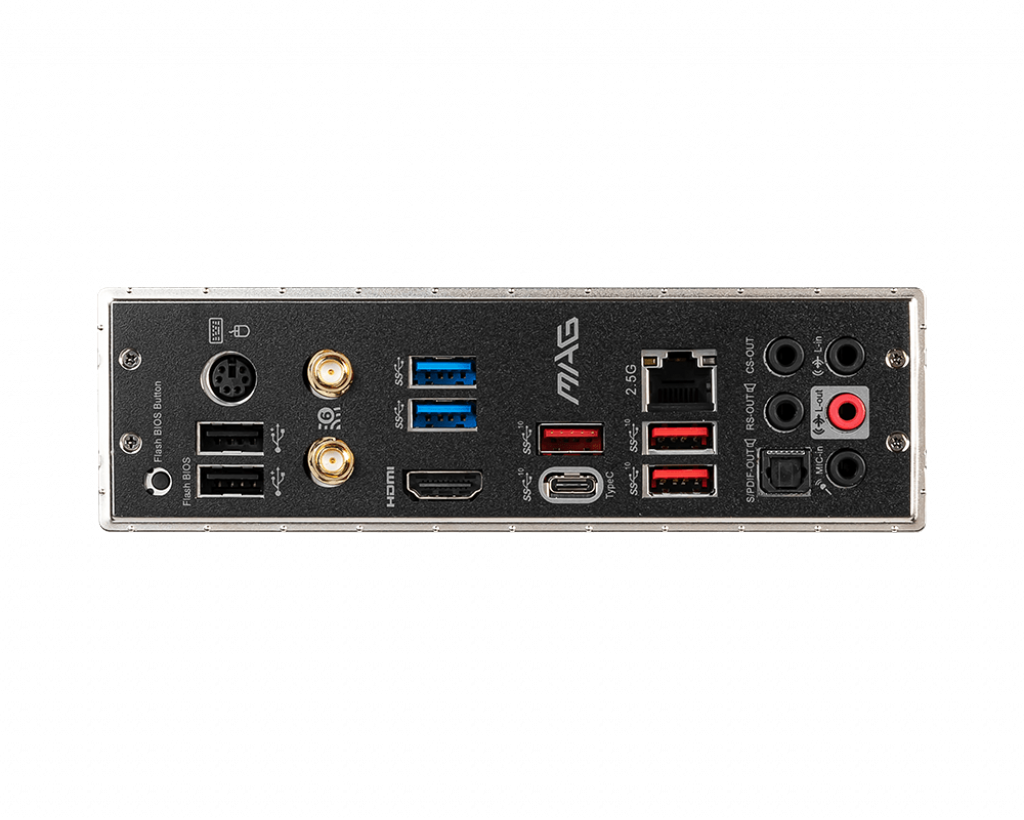

MSI MAG X570 Tomahawk Wifi Motherboard

• Free Delivery
• Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4600 MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
• Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK  with user friendly user interface.

• PROCESSOR

  Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

  See supported processors

  CHIPSET

  AMD® X570 Chipset

  MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

  1. Please refer www.msi.com for more information on compatible memory.

  See supported memory

  EXPANSION SLOTS

  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
  • 2x PCIe 3.0 x1 slots

  1. The speeds may vary for different devices

  ONBOARD GRAPHICS

  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2

  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  2. Maximum shared memory of 2048 MB

  MULTI-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

  LAN

  • 1x Realtek® 8125B 2.5Gbps LAN Controller

  WIRELESS LAN & BLUETOOTH®

  Intel® Wi-Fi 6 AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5.1
  • The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

  STORAGE

  • 6x SATA 6Gb/s ports (from AMD® X570 Chipset)
  • 2x M.2 slots (Key M) 1
    • M2_1 slot (from AMD® Processor)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices

  1. The speeds may vary for different devices

  RAID

  • Supports RAID 0, RAID 1 and RAID 10

  AUDIO

  Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output









  BOX CONTENT



  1. These pictures are for reference only and may vary without notice.
