MSI MAG B550M Mortar WIFI Motherboard

MSI MAG B550M Mortar WIFI Motherboard

No reviews
Regular price ₹ 16,407.00
Regular price Sale price ₹ 16,407.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description


PROCESSOR

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHZ
      • 1DPC 2R max speed 3733 MHZ
      • 2DPC 1R max speed 3866 MHZ
      • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.

MULTI-GPU

  • Supports 2-Way AMD CrossFire™ Technology

ONBOARD GRAPHICS

  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 2048 MB
  1. Available for the processor with integrated graphics.

STORAGE

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

AMD B550 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.1

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

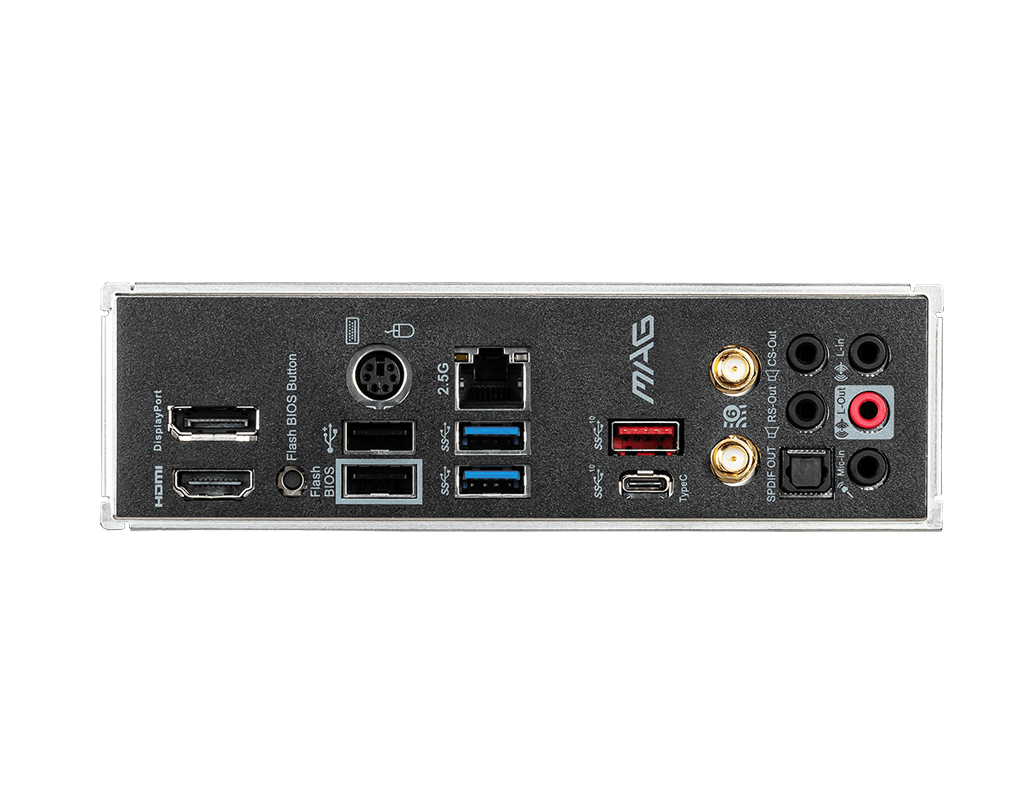

BACK PANEL PORTS

  1. DisplayPort
  2. PS/2 Combo Port
  3. 2.5G LAN Port
  4. USB 3.2 Gen 2 10Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. HD Audio Connectors
  7. HDMI Port
  8. Flash BIOS Button
  9. USB 2.0 port
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 2 10Gbps (Type-C)
  12. Optical S/PDIF OUT
MAG B550 TOMAHAWK back panel ports

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MAG B550M MORTAR box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
