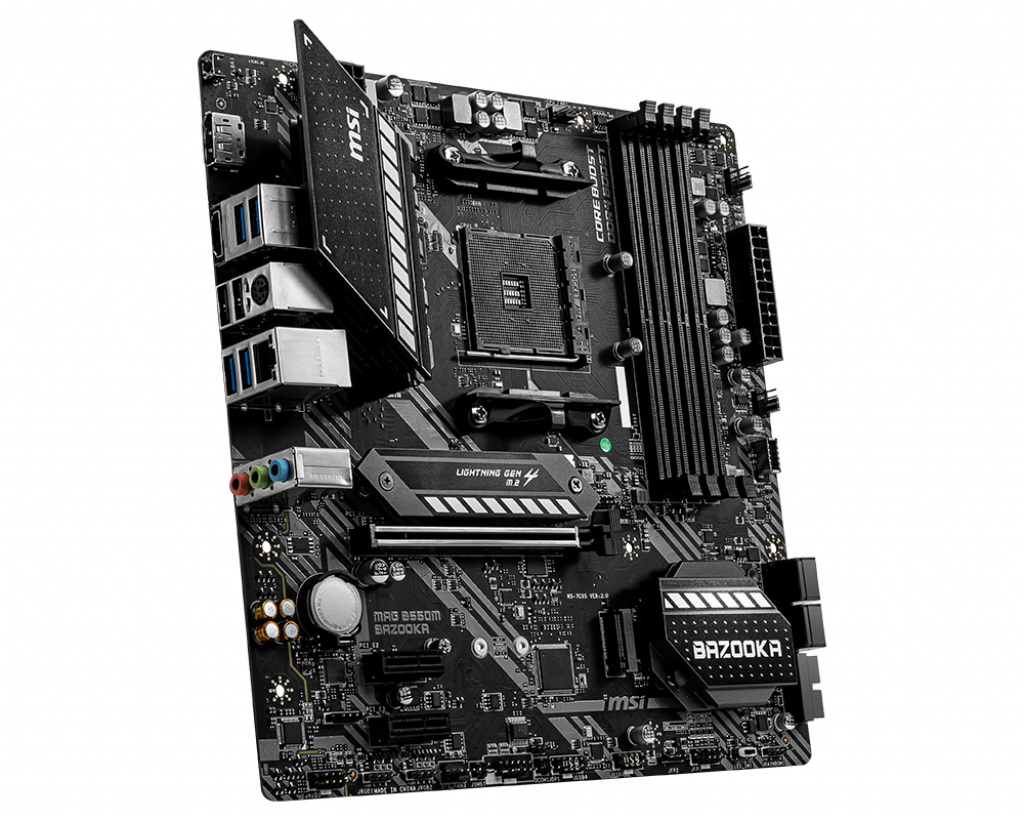

MSI MAG B550M BAZOOKA Motherboard
MSI MAG B550M BAZOOKA Motherboard
Description
Description
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Gigabit LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Enhanced Power Design: 4+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
CPU
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
CHIPSET
AMD B550 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
ONBOARD GRAPHICS
STORAGE
AMD B550 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD processor)
- Supports PCIe 4.0/ 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD processor)
- The supported specification depends on installed processor.
RAID
AMD B550 Chipset
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports (4 Type-A ports on the back panel)
AUDIO
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111HN 1Gbps LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- USB 3.2 Gen 1 5Gbps Type A
- PS/2 Combo Port
- Gigabit LAN Port
- Flash BIOS Button
- DisplayPort
- HDMI
- USB 2.0 port
- USB 3.2 Gen 1 5Gbps Type A
- HD Audio Connectors
I/O CONTROLLER
NUVOTON NCT6687-R Controller Chip
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
