• MSI H310M PRO-VDH Plus Motherboard
  • MSI H310M PRO-VDH Plus Motherboard
1 2

MSI H310M PRO-VDH Plus Motherboard

MSI H310M PRO-VDH Plus Motherboard

₹ 5,150.00
₹ 5,150.00
Sale Sold out
Tax included.

Description

PROCESSOR

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET1

  1. This chipset is ME11 firmware based and doesn't feature SDA3.0.

Intel® H310 Chipset

This chipset is ME11 firmware based and doesn’t feature SDA3.0.

MEMORY

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
  • Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)1
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. 2666 MHz for I7 and I5 processors only.

See supported memory

SLOTS

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H

*No Display support when using the Processor model with suffix “F”

  1. Supports up to 2 displays simultaneously.

STORAGE

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports Intel® Rapid Storage Technology

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887/ ALC892/ ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x Clear CMOS jumper
  • 2 x Front panel connectors
  • 1 x Serial port connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Front panel audio connector
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector

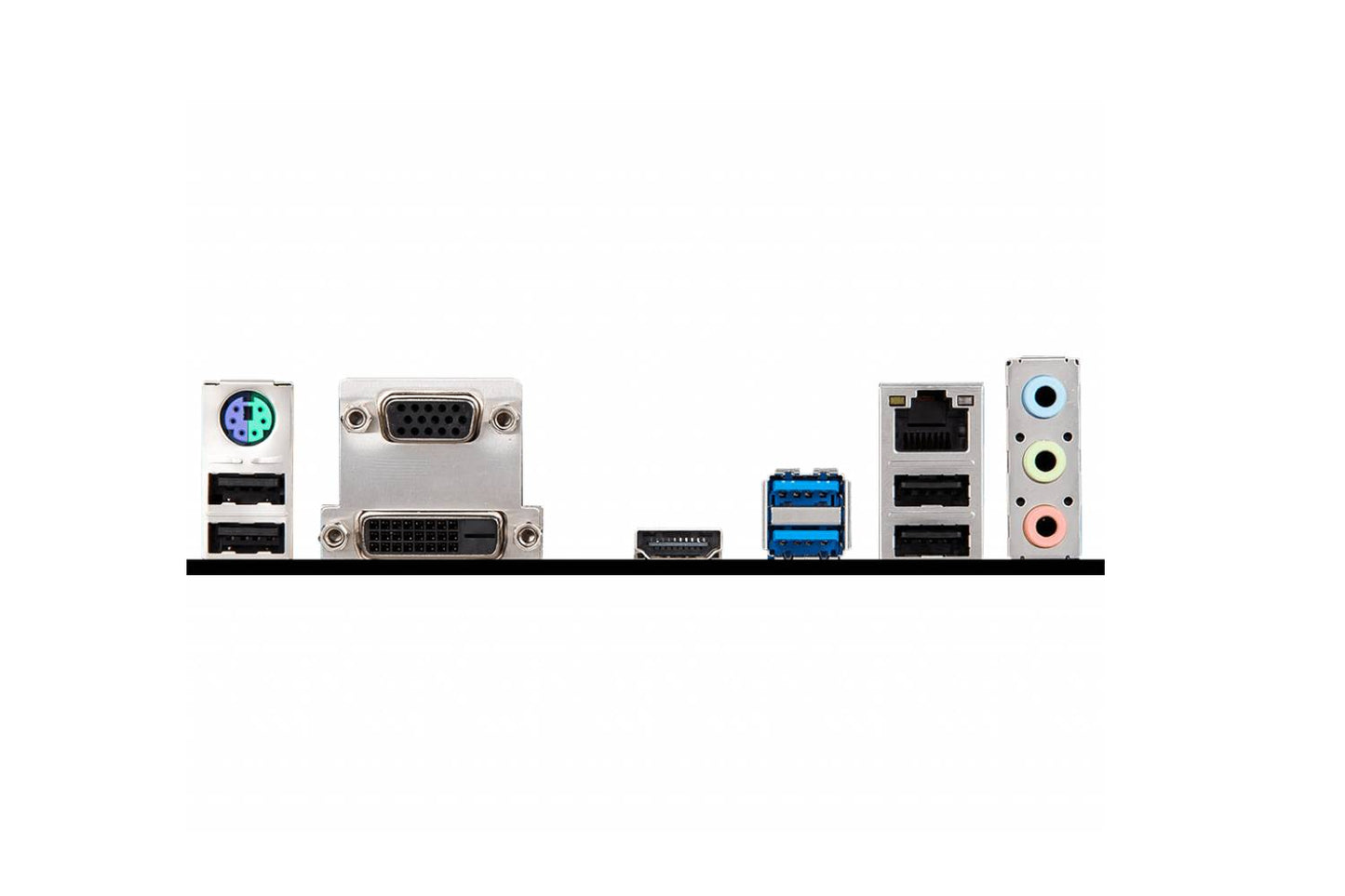

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. VGA Port
  3. HDMI Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. DVI-D Port
  9. USB 2.0 Port
MSI H310M PRO-VDH PLUS back panel ports

DIMENSIONS

  • 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
  • m-ATX Form Factor

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MSI H310M PRO-VDH PLUS box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
