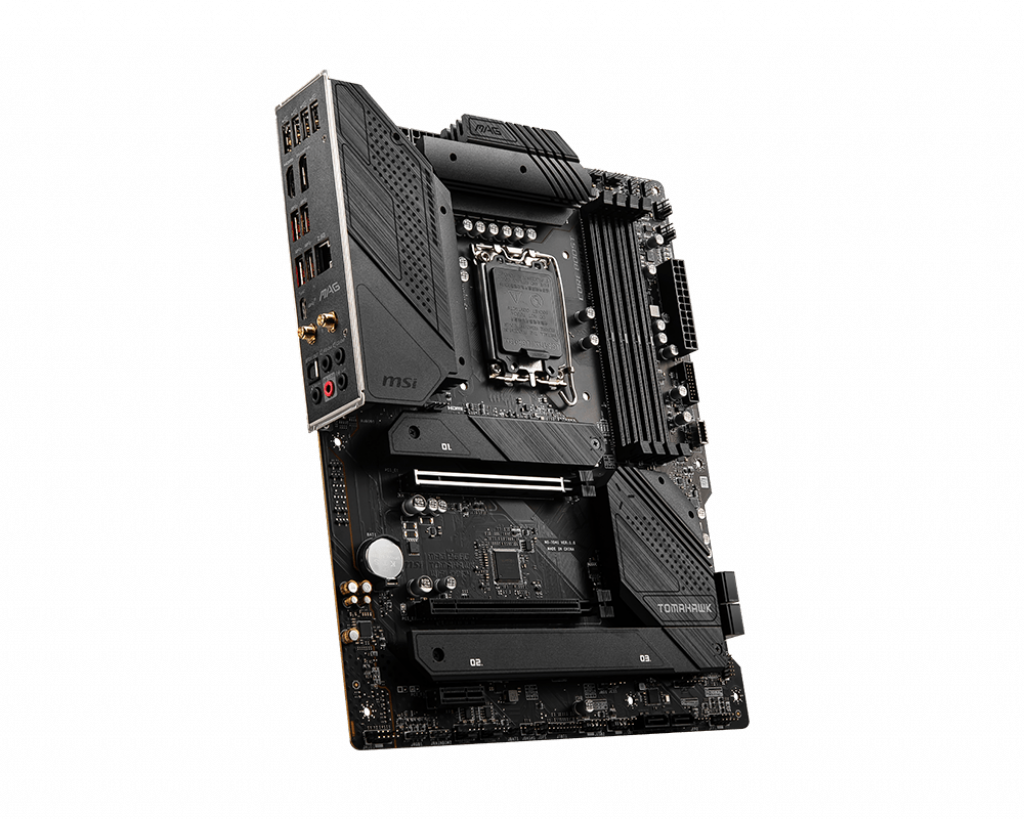

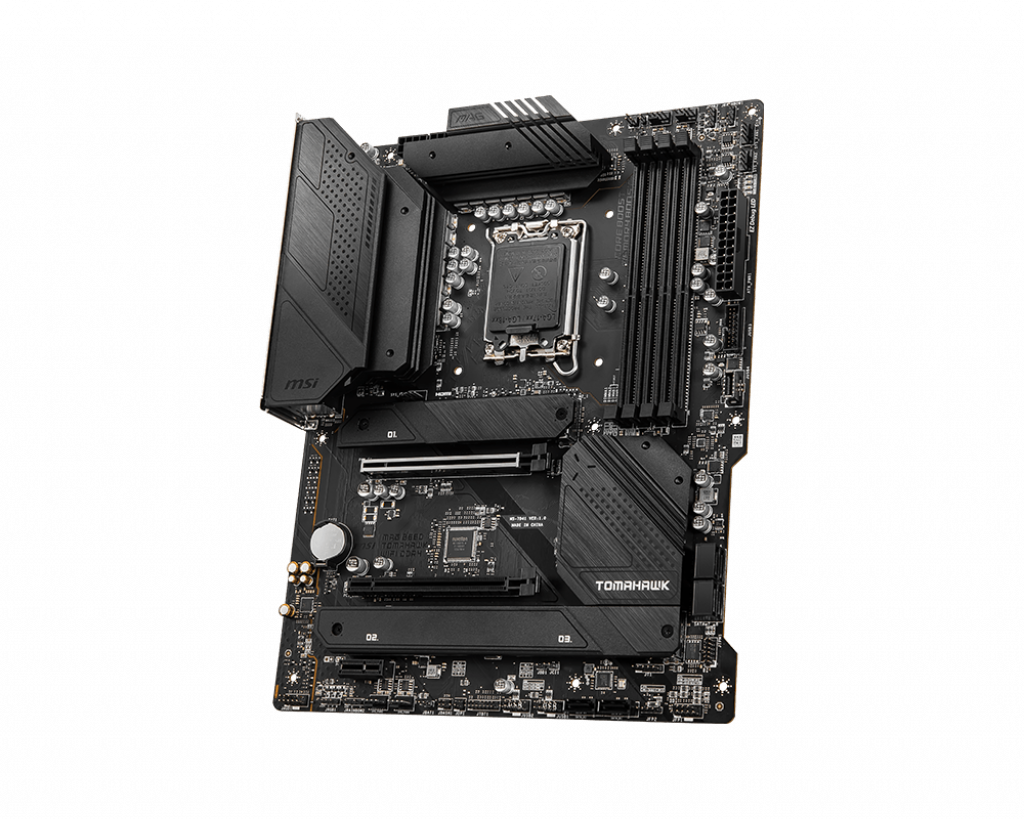

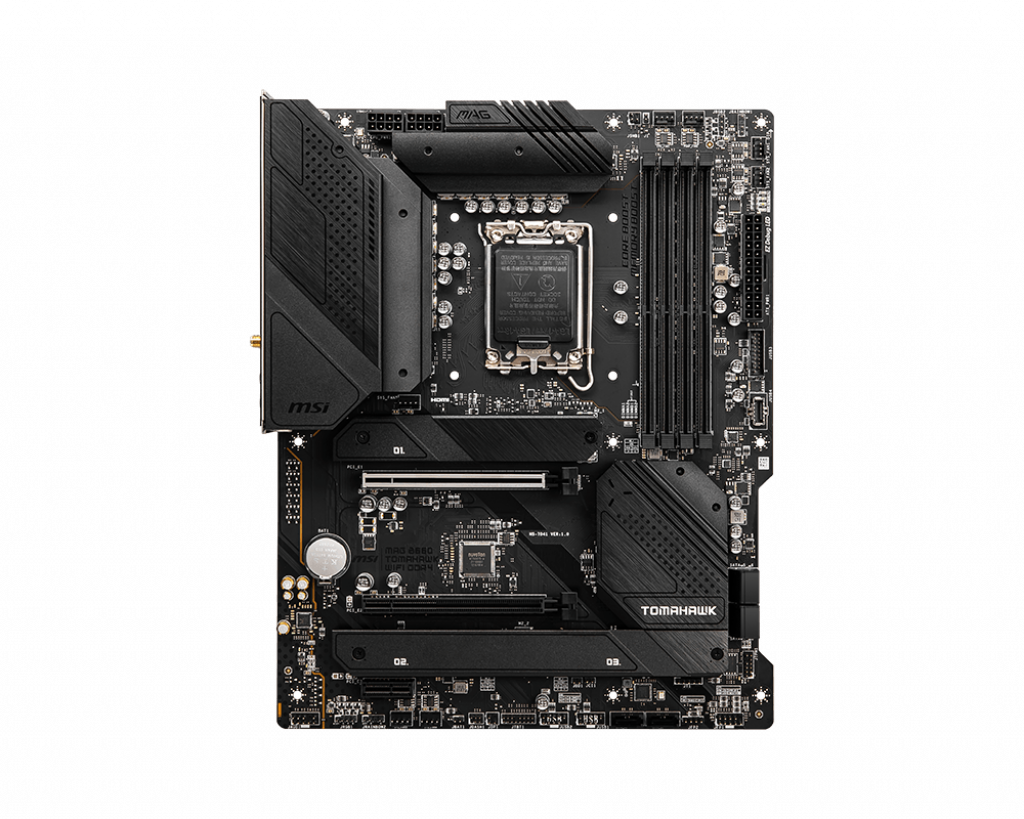

MSI B660 Tomahawk wifi DDR4 Motherboard

MSI B660 Tomahawk wifi DDR4 Motherboard

Regular price ₹ 22,066.00
Regular price Sale price ₹ 22,066.00
Sale Sold out
Tax included.

Description

PROCESSOR

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1700
  1. Please go to msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel® B660 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 2x PCIe x16 slots
    • PCI_E1 (From CPU)
      • Support up to PCIe 4.0
    • PCI_E2 (From B660 chipset)
      • Support up to PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From B660 chipset)

MULTI-GPU

  • Supports AMD® CrossFire Technology

ONBOARD GRAPHICS

  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

  • 6x SATA 6Gb/s ports
    • SATA5~8 (From B660 chipset)
    • SATAA~B (From ASM1061)
  • 3x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 & M2_3 slots (From B660 chipset)
      • M2_2 supports up to PCIe 4.0 x4
      • M2_3 supports up to PCIe 4.0 x2 1
      • Supports SATA up to 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
  1. SATAA & SATAB do not support RAID function.

USB

Intel® B660 Chipset

  • 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
  • 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

AUDIO

Realtek® ALC1220P Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B-CG 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 5x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector

LED FEATURE

  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

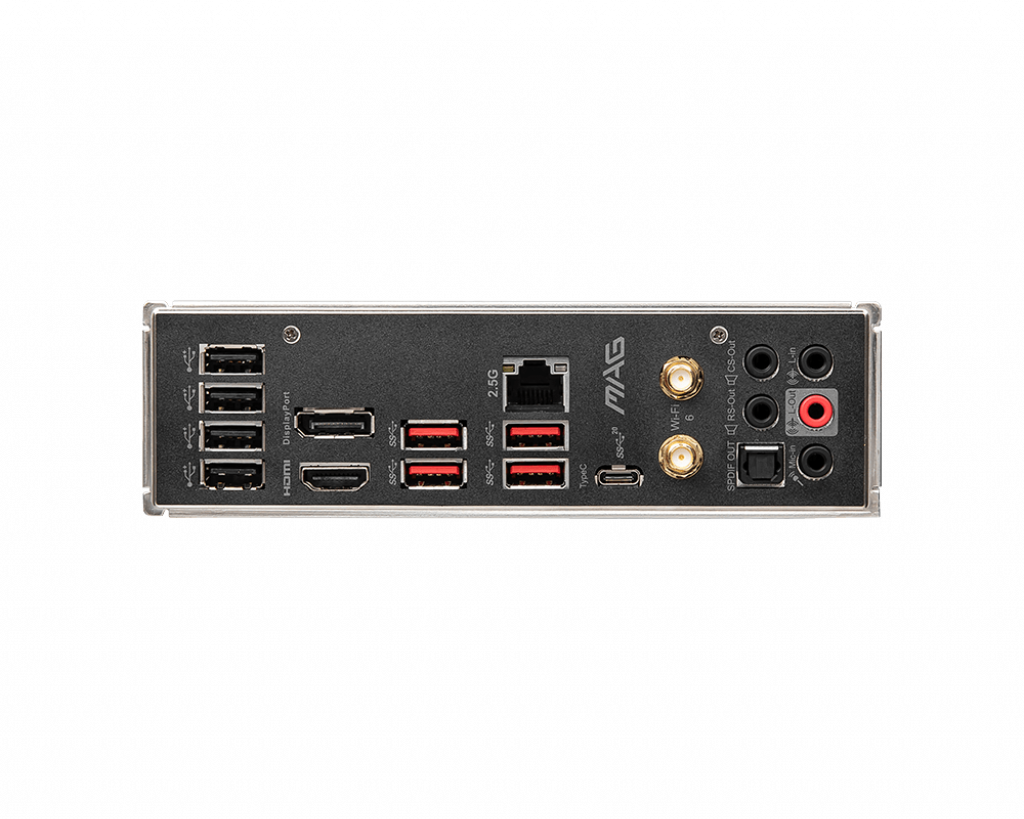

BACK PANEL PORTS

  1. USB 2.0 Port
  2. DisplayPort 1.4
  3. 2.5G LAN Por
  4. Wi-Fi / Bluetooth Antenna
  5. HD Audio Connectors
  6. HDMI 2.1 Port
  7. USB 3.2 Gen 2 10Gbps Type-A
  8. USB 3.2 Gen 2x2 20Gbps Type-C
  9. Optical S/PDIF OUT
MAG B660 TOMAHAWK WIFI DDR4 back panel ports

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

BOX CONTENT

MAG B660 TOMAHAWK WIFI DDR4 ​box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
