MSI B560M PRO-E Motherboards

MSI B560M PRO-E Motherboards

No reviews
Regular price ₹ 7,917.00
Regular price Sale price ₹ 7,917.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Specifications

CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
Chipset Intel® B560 chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Audio Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Intel® I219V 1Gbps LAN controller
Storage
Intel® B560 Chipset
  • 4x SATA 6Gb/s ports (From B560 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From B560 Chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® B560 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)
Form Factor
  • mATX Form Factor
  • 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
BIOS Features
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector

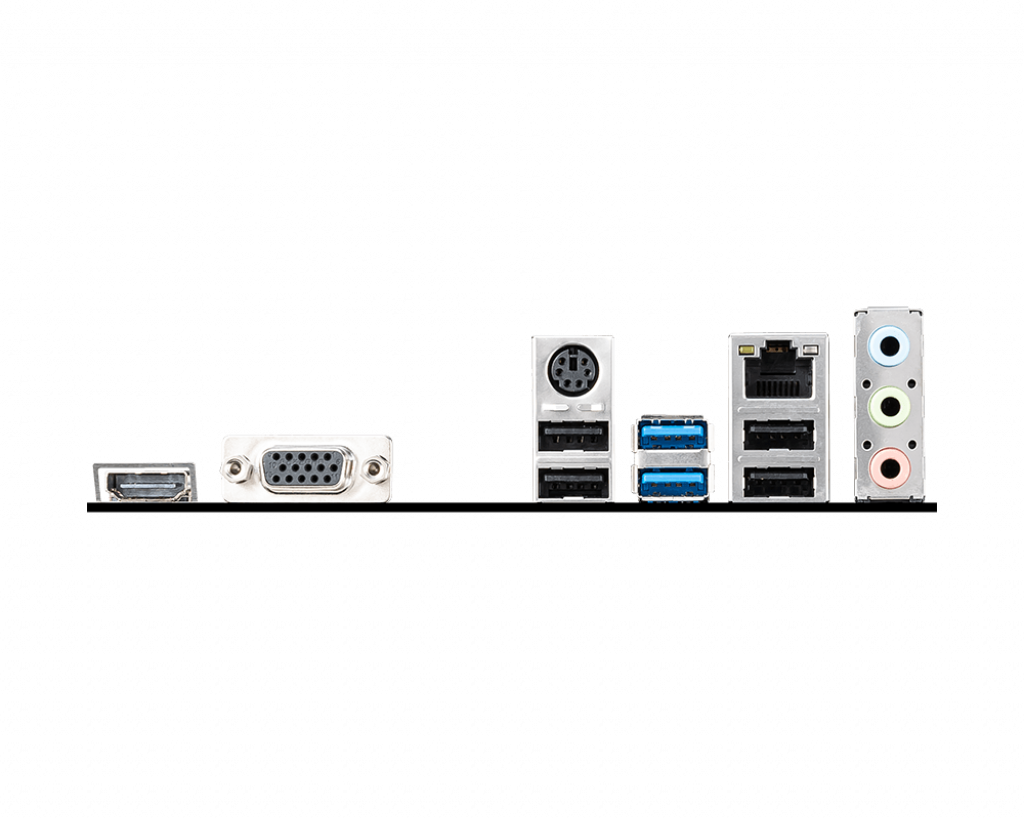

Back panel Connectors
  1. HDMI
  2. VGA
  3. Mouse / Keyboard
  4. LAN port
  5. Audio connector
  6. USB 2.0
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 2.0
Warranty 3 Years
