Logitech LOGI DOCK

Logi Dock

• Height: 84.8 mm
• Width: 160 mm
• Depth: 131.5 mm
• Cable length: 1 m
• Weight: 0.942 kg

Compatible with

• Windows® 10 or later, macOS 11 or later, or Chrome™ based computer with Alt Mode
• iOS or Android™ Bluetooth enabled devices
• Available USB-C port
• AC Power

Software Downloads

• Download Logi Tune for convenient calendar integration, one-touch-to-join meeting experience and customization. ⁵Logi Tune desktop app required for calendar integration, which supports Office 365 and Google Calendar. Support may vary by video conferencing service provider. See pro support compatibility page for latest information.

Certifications

• Microsoft Teams, Google Meet, Google Voice and Zoom

Speaker

• Frequency Response: 60Hz-20KHz
• Driver size: 55 mm
• Support automatic audio switching ⁶Works with Zone Wireless (Plus) or Zone True Wireless

Microphones

• Beamforming mic array with six mics
• Frequency Response: 65Hz-8KHz

Docking Station

• Docking interface: USB-C with DisplayPort or Alt Mode
• Power to system: Up to 100 Watt charging

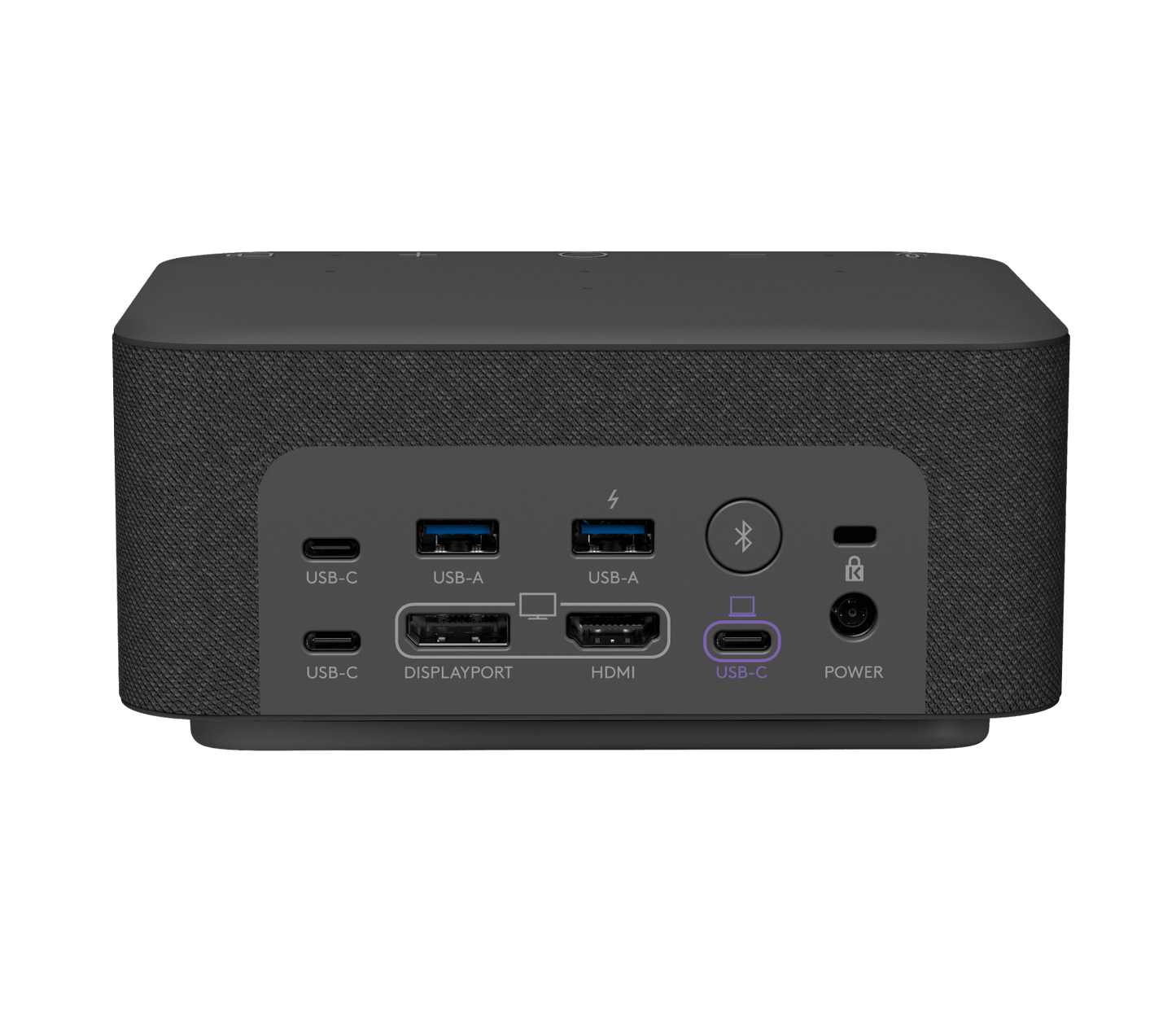

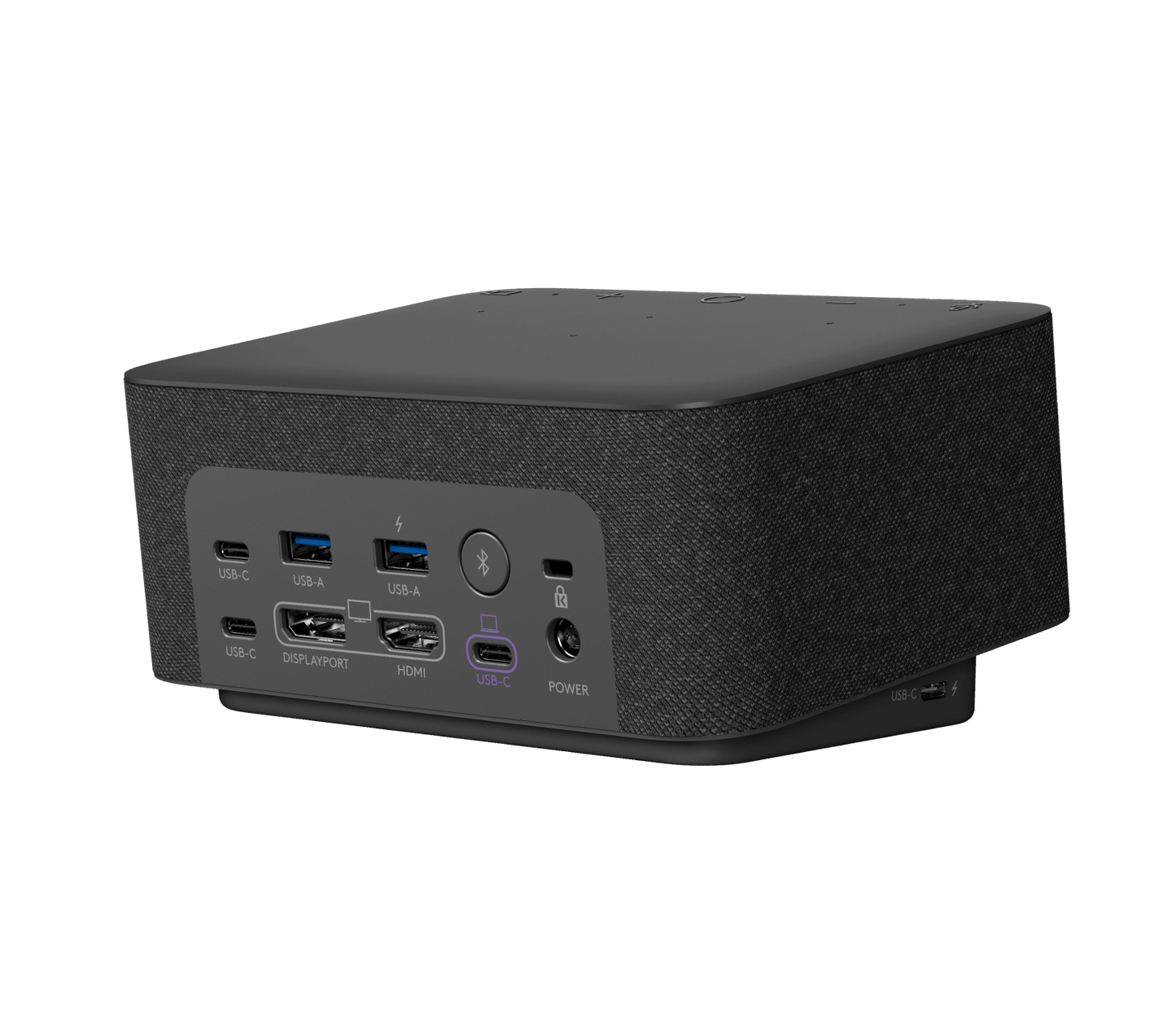

• Monitor ports
  • 1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR) ⁷See support page for compatibility updates
  • 1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR) ⁸See support page for compatibility updates.
• Peripheral ports
  • 2 x USB-A
    • 1 x USB 3.1 Gen 1 (5Gbps) with 4.5W charging ⁹See support page for compatibility updates.
    • 1 x USB 3.1 Gen 1 (5Gbps) with 7.5W fast charging
  • 3 x USB-C
    • 2 x USB 3.1 Gen 1 (5 Gbps) with 4.5W charging ¹⁰See support page for compatibility updates.
    • 1 x USB 3.1 Gen 1 (5 Gbps) with 7.5W fast charging
  • 1 x USB-C Upstream
• Others
  • 1 x Bluetooth Sync button
  • 1 x AC power (230W, 19.5V)
  • Security slot type: Kensington security slot

• Logi Dock
• Power supply cable (1.6 m)
• AC power cord (1.7 m)
• USB-C to USB-C cable (1 m)
• User documentation

• Graphite UC Logi Dock: 986-000052
• Graphite MSFT Teams Logi Dock: 986-000053
