Intel NUC i7 10th Gen - BXNUC10I7FNHN
Intel NUC i7 10th Gen - BXNUC10I7FNHN
Couldn't load pickup availability
Description
Description
| SPECIFICATIONS | |
| Brand | Intel |
| Series | NUC Kits |
| Model | BXNUC10i7FNH |
| Essential Specifications | |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-Down BGA |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| Number of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 25 W |
| DC Input Voltage Supported | 19 VDC |
| Processor Included | Intel Core i7-10710U Processor (12M Cache, Up to 4.7 GHz) |
| Memory Specifications | |
| Max Memory Size (Dependent on Memory Type) | 64 GB |
| Memory Types | DDR4-2666 1.2V SO-DIMM |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 42.6 GB/s |
| Number of DIMMs | 2 |
| ECC Memory Supported | No |
| Graphics Specifications | |
| Integrated Processor Graphics | Intel UHD Graphics |

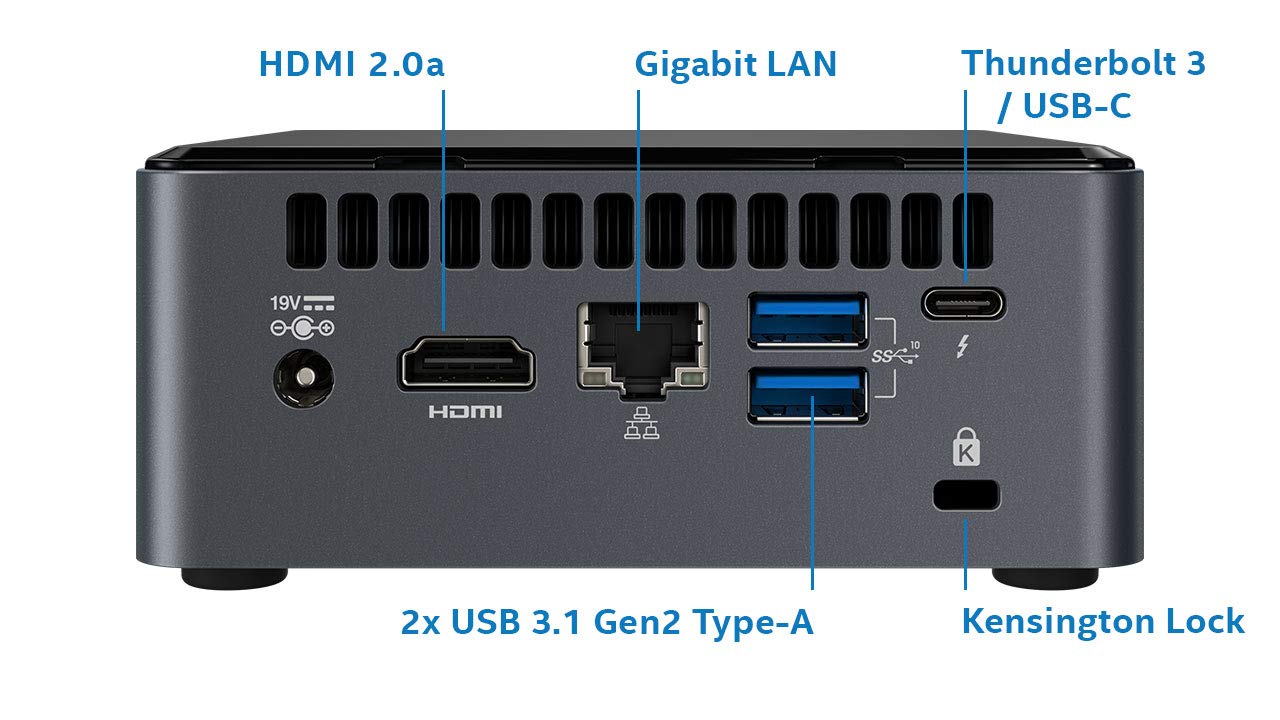

| Graphics Output | HDMI 2.0a; USB-C (DP1.2) |
| Number of Displays Supported | 3 |
| Expansion Options | |
| PCI Express Revision | Gen 3 |
| PCI Express Configurations | M.2 Slot with PCIe X4 Lanes |
| Removable Memory Card Slot | SDXC with UHS-II Support |
| M.2 Card Slot (Storage) | 22x42/80 |
| I/O Specifications | |
| Number of USB Ports | 7 |
| USB Configuration | 2x Front (Type-A, Type-C) and 3x Rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via Internal Headers |
| USB Revision | 2.0, 3.1 Gen 2 |
| USB 2.0 Configuration (External Internal) | 0 2 |
| USB 3.0 Configuration (External Internal) | 2B 2F 0 |
| Total/Max Number of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5" HDD/SSD M.2 SATA SSD (RAID-0 RAID-1) |
| Audio (Back Front Channels) | 7.1 Digital (HDMI mDP); L R mic (F) |
| Integrated LAN | Intel Ethernet Connection I219-V |
| Integrated Wireless | Intel Wireless-AX MAC |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0, FRONT_PANEL |
| Number of Thunderbolt 3 Ports | 1 |
| Advanced Technologies | |
| Intel Optane Memory Supported | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| TPM | No |
| Intel HD Audio Technology | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Security & Reliability | |
| Intel AES New Instructions | Yes |
| Warranty Information | |
| Warranty | 3 Year Carry-In Warranty |
