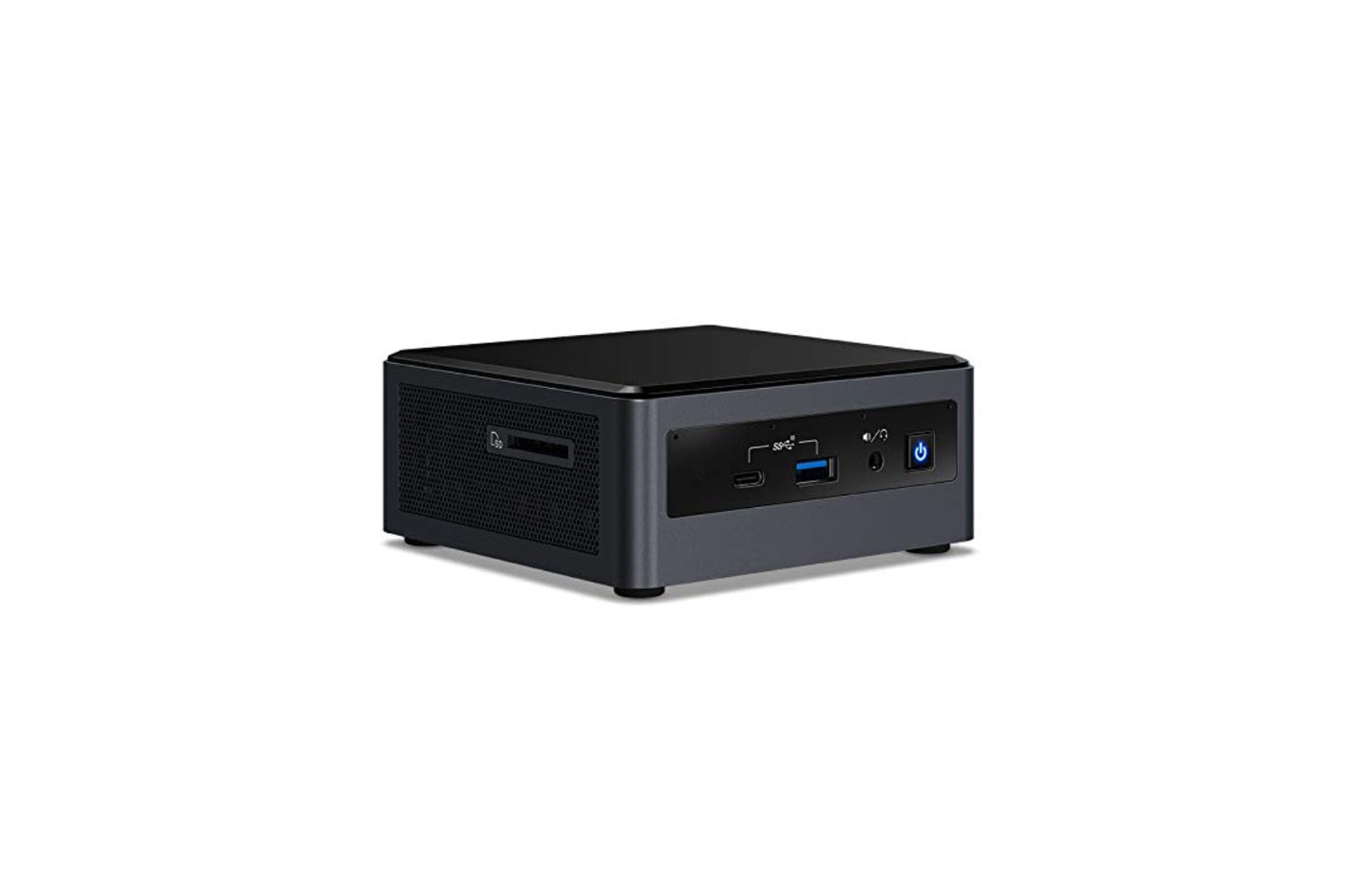

Intel NUC i5 10th Generation BXNUC10i5FNH Barebone Kit

• Supported Operating Systems : Windows 11, 64-bit*, Windows 10, 64-bit*

• Board Number : NUC10i5FNB

• Board Form FactorUCFF (4" x 4")

• SocketSoldered-down BGA

• Internal Drive Form Factor : M.2 and 2.5" Drive

• # of Internal Drives Supported : 2

• Lithography : 14 nm

• TDP : 25 W

• DC Input Voltage Supported : 19 VDC

• Processor Included Intel® Core™ i5-10210U Processor (6M Cache, up to 4.20 GHz)

• Intel vPro® Platform Eligibility ^‡No

• Total Cores : 4

• Total Threads : 8

• Processor Base Frequency : 1.60 GHz

• Max Turbo Frequency : 4.20 GHz

• Warranty Period : 3 yrs

Memory & Storage

• Max Memory Size (dependent on memory type )64 GB

• Memory Types DDR4-2666 1.2V SO-DIMM

• Max # of Memory Channels 2

• Max Memory Bandwidth 42.6 GB/s

• Max # of DIMMs 2

• ECC Memory Supported ^‡No


Processor Graphics

• Integrated Graphics ^‡Yes

• Graphics OutputHDMI 2.0b; USB-C (DP1.2)

• # of Displays Supported ^‡3


Expansion Options

• PCI Express RevisionGen3

• PCI Express Configurations ^‡M.2 slot with PCIe X4 lanes

• Removable Memory Card SlotSDXC with UHS-II support

• M.2 Card Slot (storage)22x42/80


I/O Specifications

• # of USB Ports7

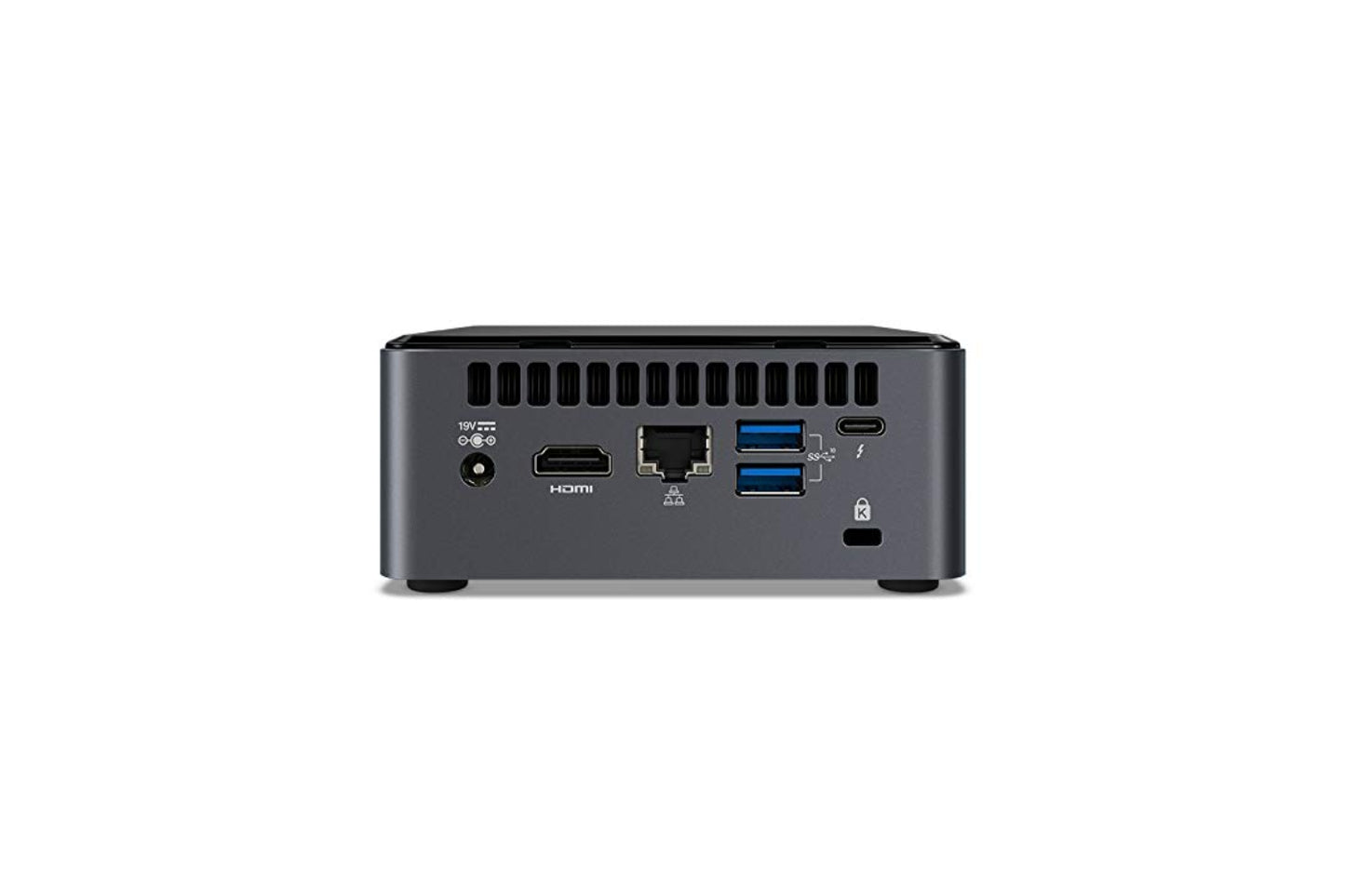

• USB Configuration2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers

• USB Revision2.0, 3.1 Gen2

• USB 2.0 Configuration (External + Internal)0 + 2

• USB 3.0 Configuration (External + Internal)2B 2F + 0

• Total # of SATA Ports2

• Max # of SATA 6.0 Gb/s Ports2

• RAID Configuration2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

• Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R mic (F)

• Integrated LAN Intel® Ethernet Connection I219-V

• Integrated Wireless^‡ Intel® Wi-Fi 6 AX201 Band (160Hz)

• Integrated Bluetooth Yes (Version 5.2)

• Consumer Infrared Rx Sensor Yes

• Additional Headers CEC, 2x USB2.0, FRONT_PANEL, RGB

• # of Thunderbolt™ Ports 1x Thunderbolt™ 3


Package Specifications

• Chassis Dimensions 117 x 112 x 51mm


Advanced Technologies

• Intel® Optane™ Memory Supported ^‡Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes

• Intel vPro® Platform Eligibility ^‡No

• TPMNo

• Intel® HD Audio TechnologyYes

• Intel® Rapid Storage TechnologyYes

• Intel® Virtualization Technology (VT-x) ^‡Yes

• Intel® Platform Trust Technology (Intel® PTT)Yes


Security & Reliability

• Intel® AES New InstructionsYes
