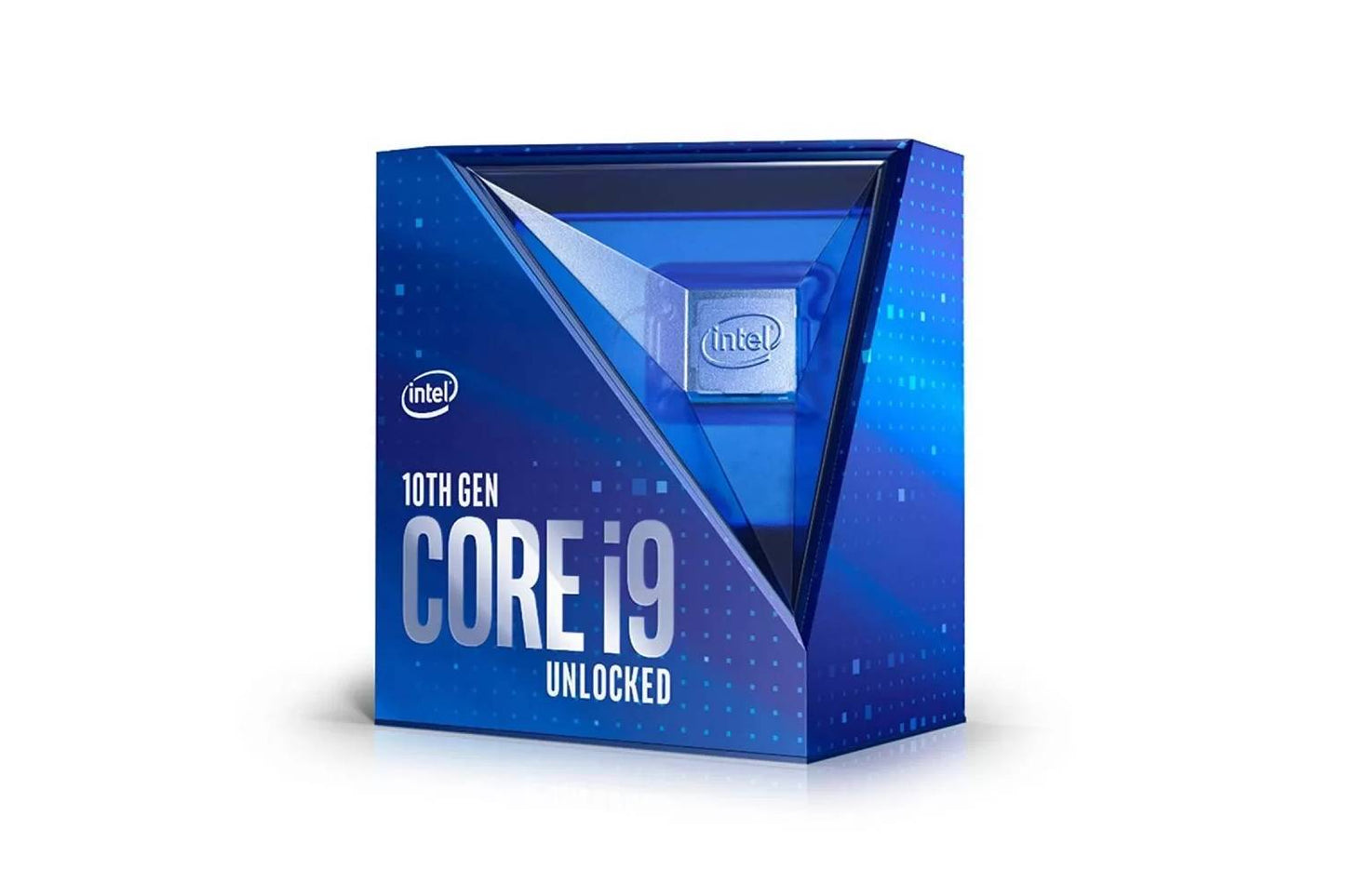

- Product Collection10th Generation Intel® Core™ i9 Processors
- Code NameProducts formerly Comet Lake
- Vertical SegmentDesktop
- Processor Numberi9-10900K
CPU Specifications
-
# of Cores10
-
# of Threads20
-
Processor Base Frequency3.70 GHz
-
Max Turbo Frequency5.30 GHz
-
Intel® Thermal Velocity Boost Frequency5.30 GHz
-
Cache20 MB Intel® Smart Cache
-
Bus Speed8 GT/s
-
Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.20 GHz
-
Intel® Turbo Boost Technology 2.0 Frequency‡5.10 GHz
-
TDP125 W
-
Configurable TDP-down Frequency3.30 GHz
-
Configurable TDP-down95 W
Supplemental Information
-
Embedded Options AvailableNo
- DatasheetView now
Memory Specifications
-
Max Memory Size (dependent on memory type)128 GB
-
Memory TypesDDR4-2933
-
Max # of Memory Channels2
-
Max Memory Bandwidth45.8 GB/s
-
ECC Memory Supported ‡No
Processor Graphics
-
Processor Graphics ‡Intel® UHD Graphics 630
-
Graphics Base Frequency350 MHz
-
Graphics Max Dynamic Frequency1.20 GHz
-
Graphics Video Max Memory64 GB
-
4K SupportYes, at 60Hz
-
Max Resolution (HDMI)‡4096 x 2160@30Hz
-
Max Resolution (DP)‡4096 x 2304@60Hz
-
Max Resolution (eDP - Integrated Flat Panel)‡4096 x 2304@60Hz
-
DirectX* Support12
-
OpenGL* Support4.5
-
Intel® Quick Sync VideoYes
-
Intel® InTru™ 3D TechnologyYes
-
Intel® Clear Video HD TechnologyYes
-
Intel® Clear Video TechnologyYes
- # of Displays Supported ‡3
- Device ID0x9BC5
Expansion Options
- Scalability1S Only
-
PCI Express Revision3.0
-
PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
-
Max # of PCI Express Lanes16
Package Specifications
-
Sockets SupportedFCLGA1200
- Max CPU Configuration1
-
Thermal Solution SpecificationPCG 2015D
-
Intel® Thermal Velocity Boost Temperature70 °C
-
TJUNCTION100°C
- Package Size37.5mm x 37.5mm
