Gigabyte X570 Gaming X (rev. 1.0) Motherboard

Gigabyte X570 Gaming X (rev. 1.0) Motherboard

₹ 17,000.00
₹ 17,000.00
Sale Sold out
Tax included.

Description



  • Free Delivery
  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Integrated I/O Shield Armor & HDMI 2.0 support
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card



    • CPU
      1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD X570
    • Memory
      1. 3rd Generation AMD Ryzen™ processors:
        Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
        Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
        * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
      Maximum shared memory of 16 GB

      Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
    • Audio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1-channel
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      Integrated in the CPU (PCIEX16):
      · 3rd Generation AMD Ryzen™ processors:
      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
      · 2nd Generation AMD Ryzen™ processors:
      1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
      2. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
        * For 3rd Generation AMD Ryzen™ processors only.
      3. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
        * For 3rd Generation AMD Ryzen™ processors only.
    • Multi-Graphics Technology
      1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
      Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
    • Storage Interface
      Integrated in the CPU (M2A_SOCKET):
      · 3rd Generation AMD Ryzen™ processors:
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
      · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
      Integrated in the Chipset (M2B_SOCKET):
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
        * For 3rd Generation AMD Ryzen™ processors only.
      2. 6 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, and RAID 10
    • USB
      Integrated in the CPU:
      1. 4 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x water cooling CPU fan header
      5. 2 x system fan headers
      6. 1 x CPU cooler LED strip/RGB LED strip header
      7. 2 x addressable LED strip headers
      8. 2 x RGB LED strip headers
      9. 6 x SATA 6Gb/s connectors
      10. 2 x M.2 Socket 3 connectors
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 2 x USB 3.2 Gen 1 headers
      14. 2 x USB 2.0/1.1 headers
      15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      16. 1 x Clear CMOS jumper
      17. 1 x Q-Flash Plus button

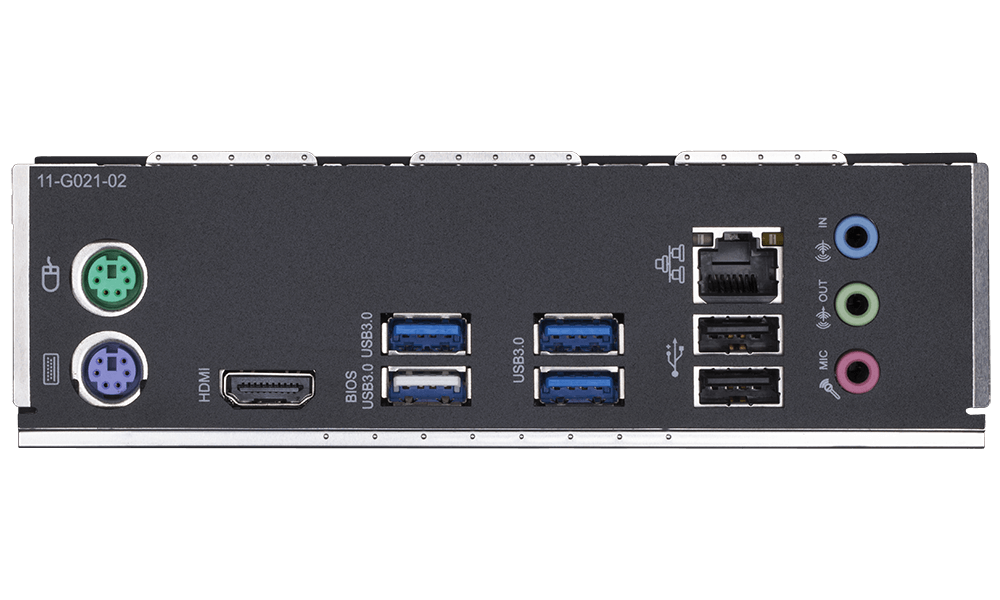

    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x HDMI port
      4. 4 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Overheating warning
      6. Fan fail warning
      7. Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Bundle Software

      1. Norton® Internet Security (OEM version)
      2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
