About this product
Powered by AMD Radeon™ RX 5700
Integrated with 8GB GDDR6 256-bit memory interface

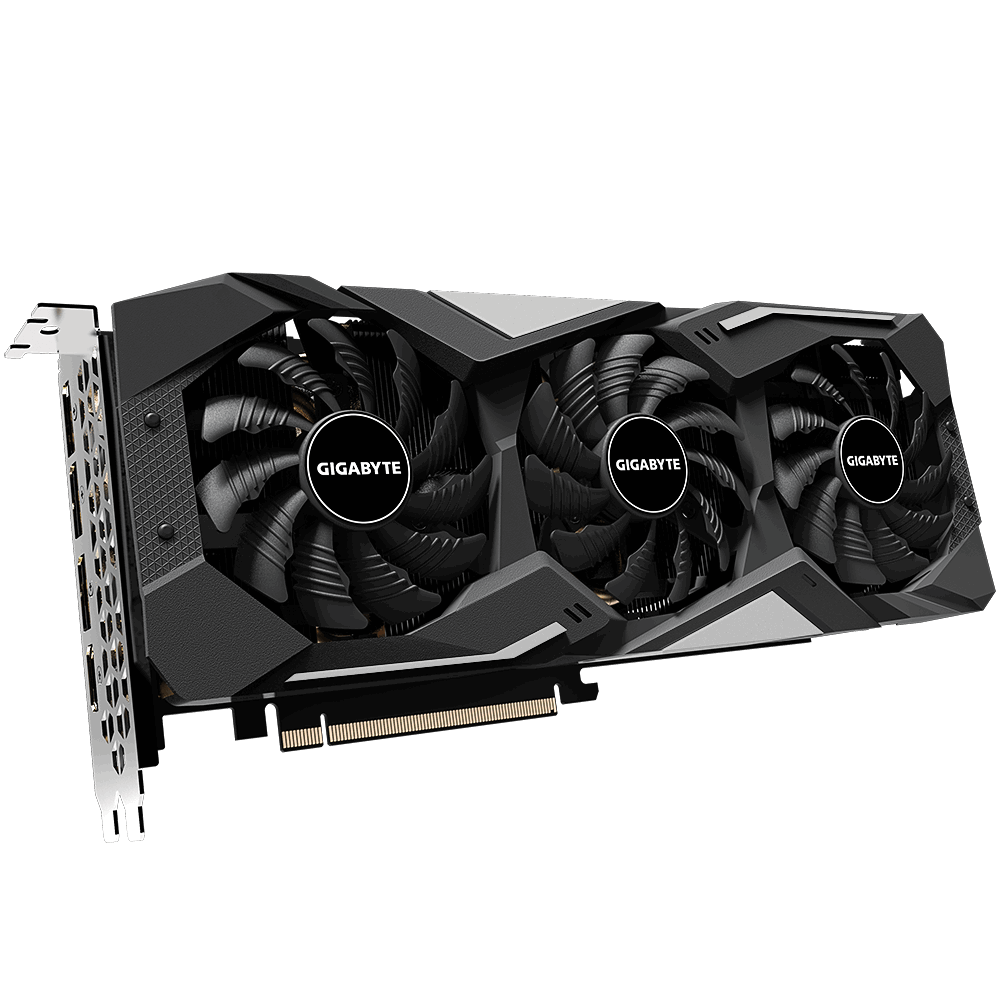

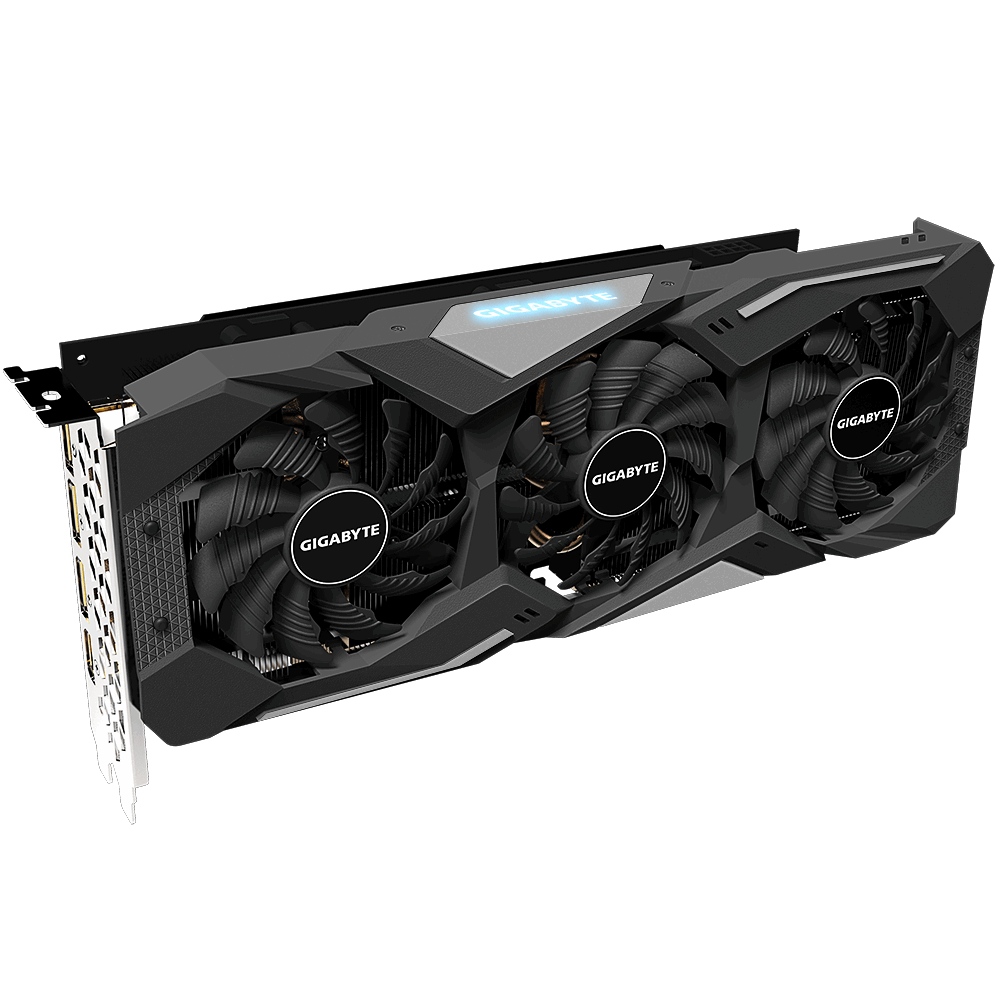

WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – synchronize with other AORUS devices
Metal Back Plate
PCI-Express 4.0 Support
Core Clock
Boost Clock : up to 1750 MHz (Reference card is 1725 MHz)
Game Clock* : 1720 MHz (Reference card is 1625 MHz)
Base Clock : 1565 MHz (Reference card is 1465 MHz)
-
Chipset Radeon™ RX 5700
-
Core Clock Boost Clock : up to 1750 MHz (Reference card: 1725 MHz)Game Clock* : 1720 MHz (Reference card: 1625 MHz)
Base Clock : 1565 MHz (Reference card: 1465 MHz) -
Stream Processors 2304
-
Process Technology 7 nm
-
Memory Clock 14000 MHz
-
Memory Size 8 GB
-
Memory Type GDDR6
-
Memory Bus 256 bit
-
Memory Bandwidth (GB/sec) 448 GB/s
-
Card Bus PCI-E 4.0 x 16
-
Digital max resolution 7680x4320@60Hz
-
Multi-view 4Card size L=279.85 W=114.35 H=49.55 mm
-
PCB Form ATX
-
DirectX 12
-
OpenGL 4.6
-
Power requirement 600W
-
Power Connectors 8 Pin*1
-

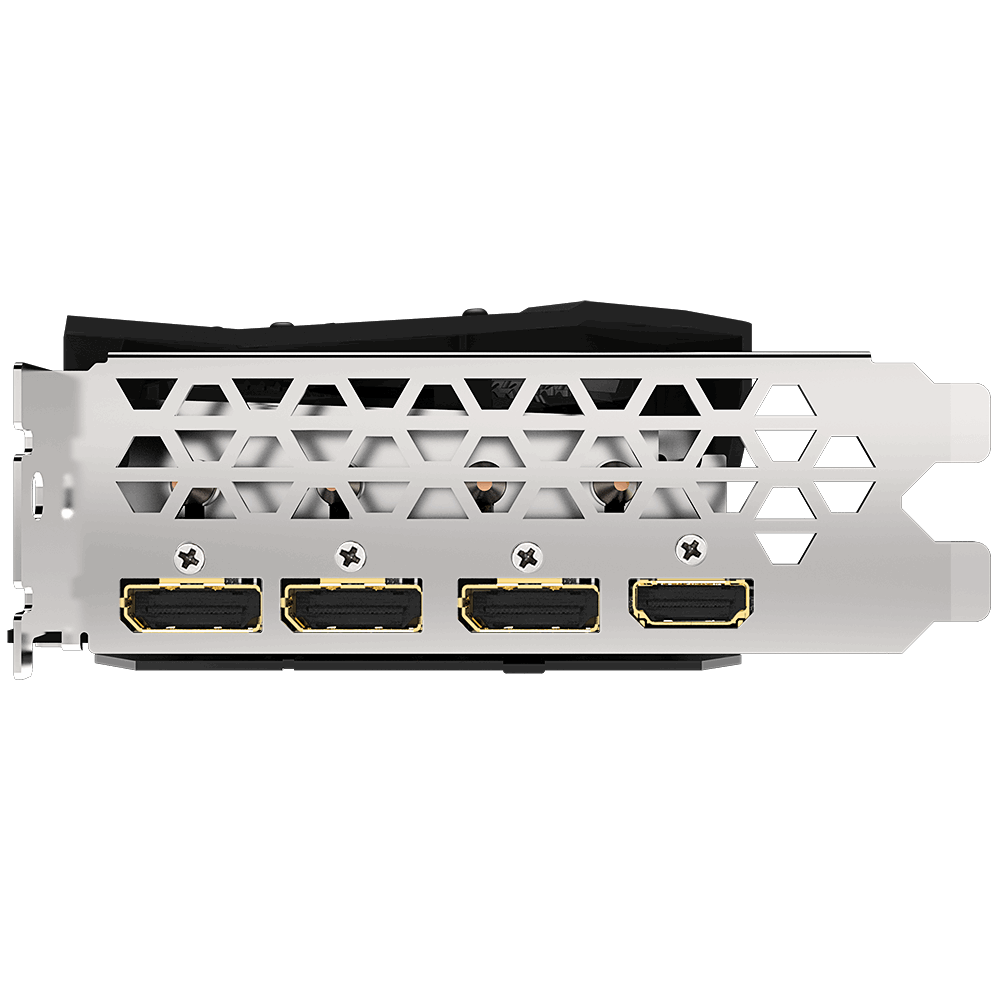

Output DisplayPort 1.4 *3HDMI 2.0b *1
-
Accessories Quick Guide
