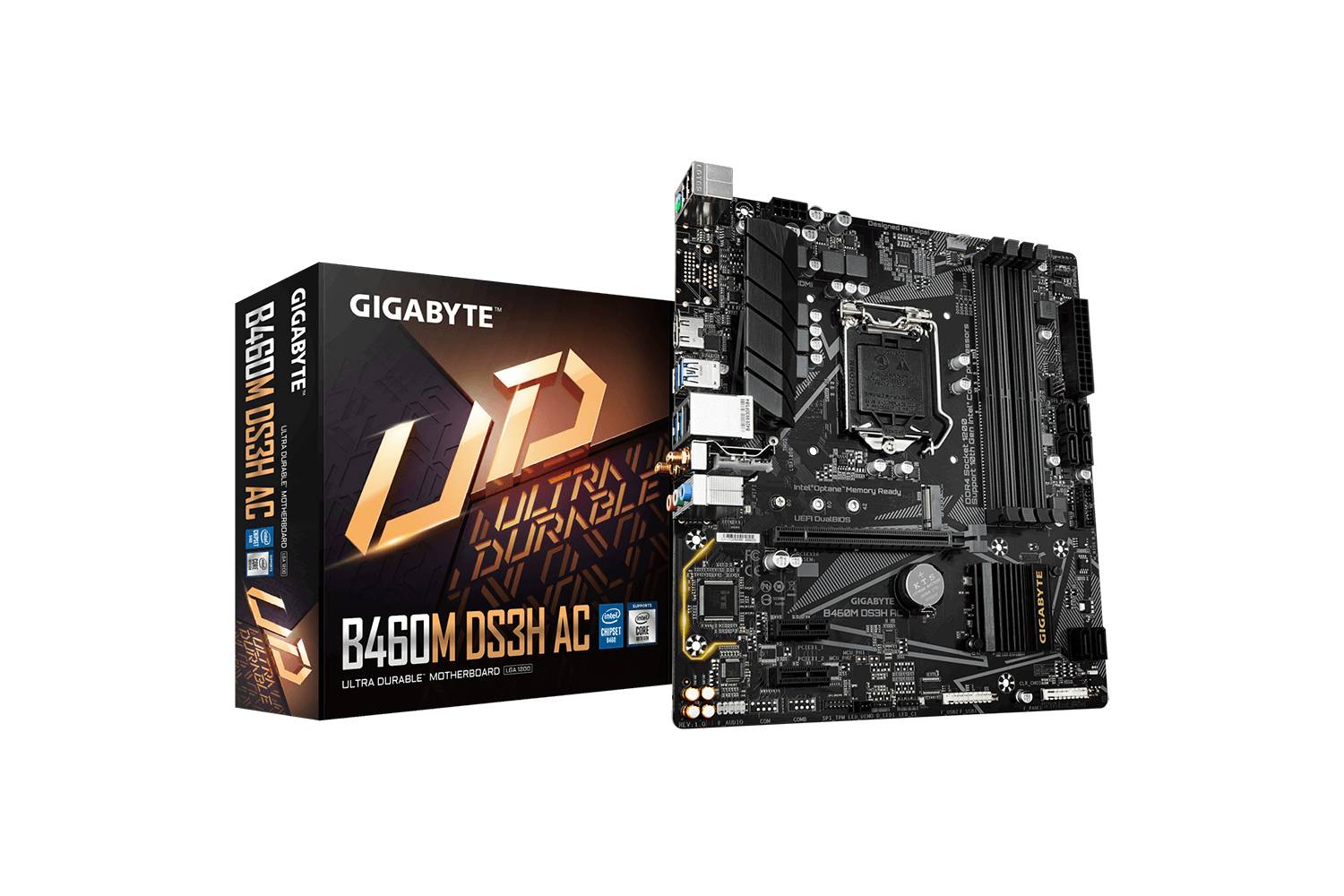

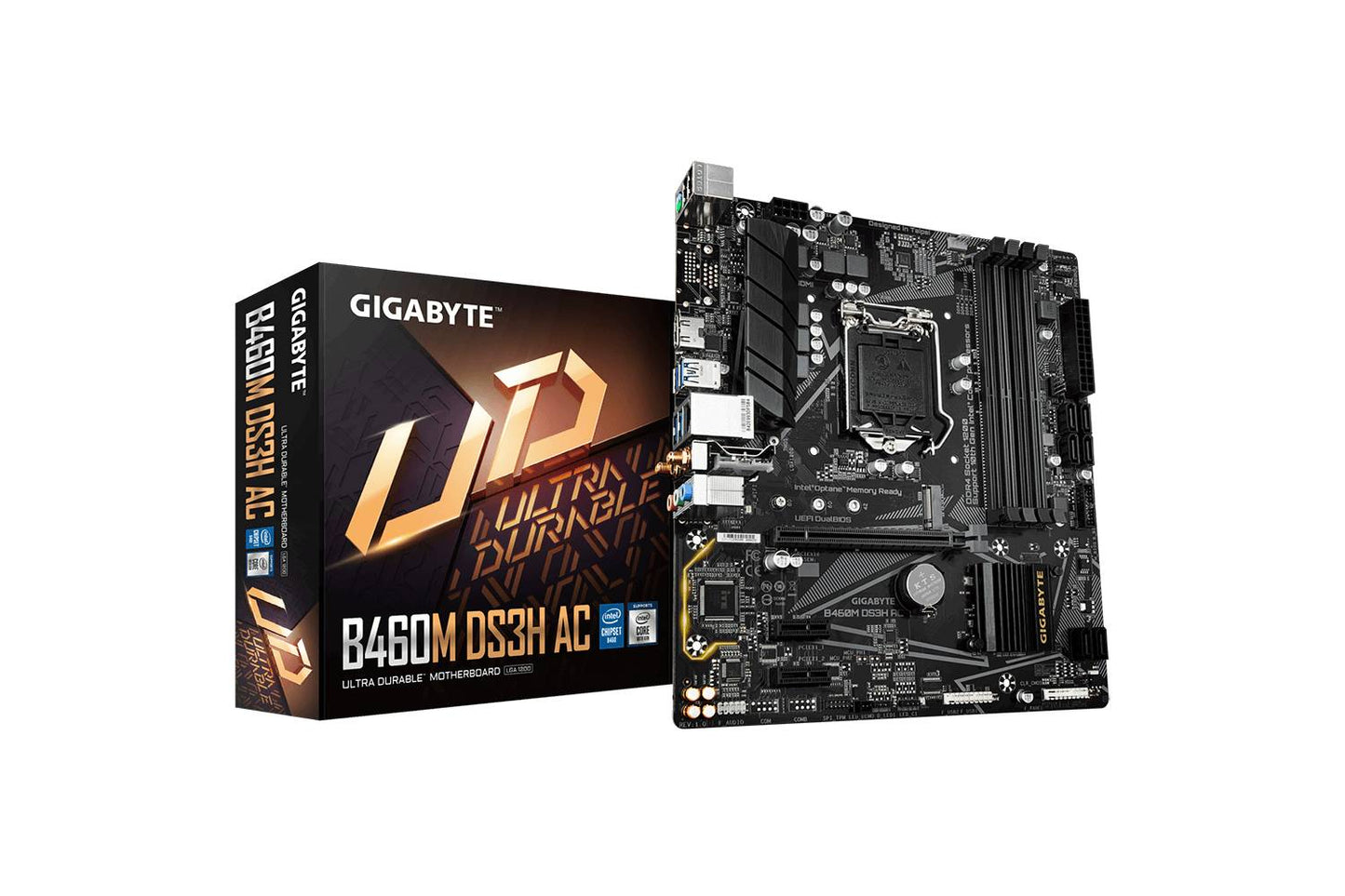

Gigabyte B460M DS3H AC Wifi Motherboard

• Supports 10th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
• Intel® Dual Band 802.11ac WIFI & BT 4.2
• RGB FUSION supports RGB LED Strips in 7 Colors
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• GIGABYTE UEFI DualBIOS™
• Intel® Optane™ Memory Ready

Chipset

1. Intel® B460 Express Chipset

Memory

1. Intel® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

Audio

1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Wireless Communication module

Intel® Wi-Fi 3168

1. Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 4.2
3. Support for 11ac wireless standard and up to 433 Mbps data rate
   * Actual data rate may vary depending on environment and equipment.

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 2 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB

Chipset:

1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 2 x addressable LED strip headers
6. 2 x RGB LED strip headers
7. 6 x SATA 6Gb/s connectors
8. 1 x M.2 Socket 3 connector
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 2 x SMA antenna connectors (1T1R)
7. 3 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundle Software

1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

1. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 24.4cm x 22.5cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
