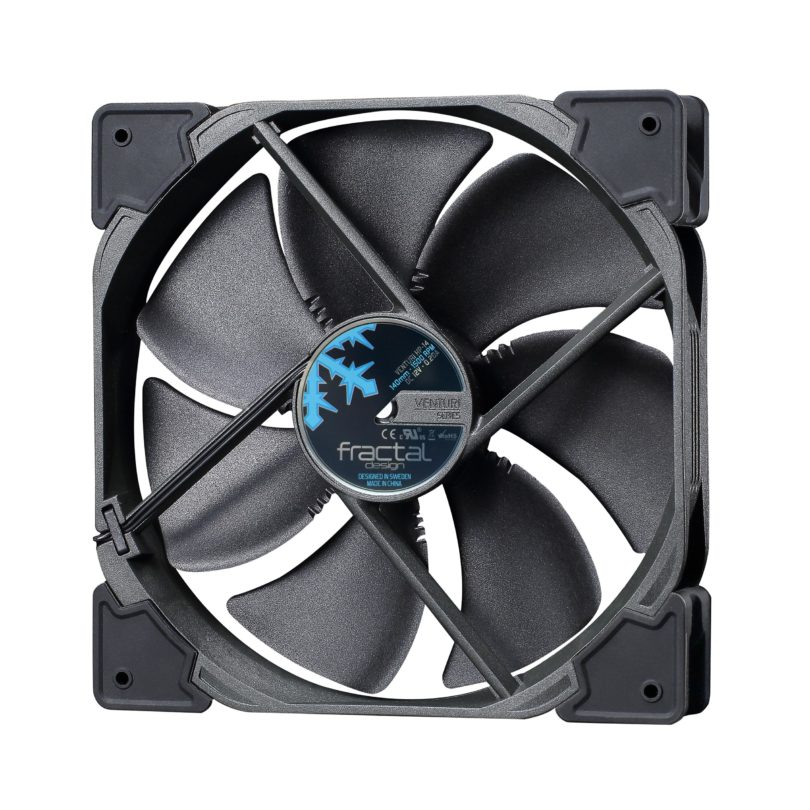

Fractal Venturi HP-14 PWM Fan

Specifications

• Size
  140 x 140 x 25 mm
• Screw hole pattern
  125 x 125 mm / 105 x 105 mm
• Fan Connector
  4-pin
• Bearing
  FDB
• Number of blades
  7
• Rotational speed
  1500 RPM
• Noise level
  30.1 dB (A)
• Airflow (CFM)
  78.1
• Airflow (m3/h)
  132.7
• Static pressure
  1.94 mm H2O
• Fan input power
  1.4 W
• Fan max input current
  0.2 A
• Fan input voltage
  12 V
• Fan starting voltage
  7 V
• Low (0-20%) PWM speed
  400 RPM
• Low PWM noise level
  < 10 dB (A)
• Low PWM airflow (CFM)
  24.0
• Low PWM airflow (m3/h)
  40.8
• Low PWM static pressure
  0.54 mm H2O
• MTBF
  150,000 hours
• Fan weight
  210 g
• Cable length
  500 mm
• Cable type
  Braided all-black ribbon wire

Other

• Package contents

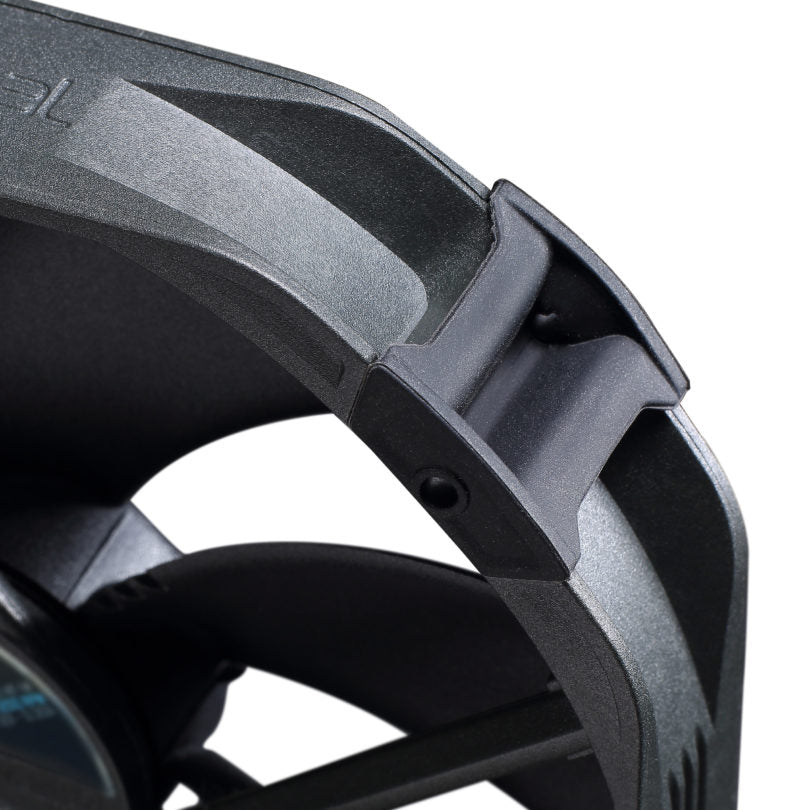

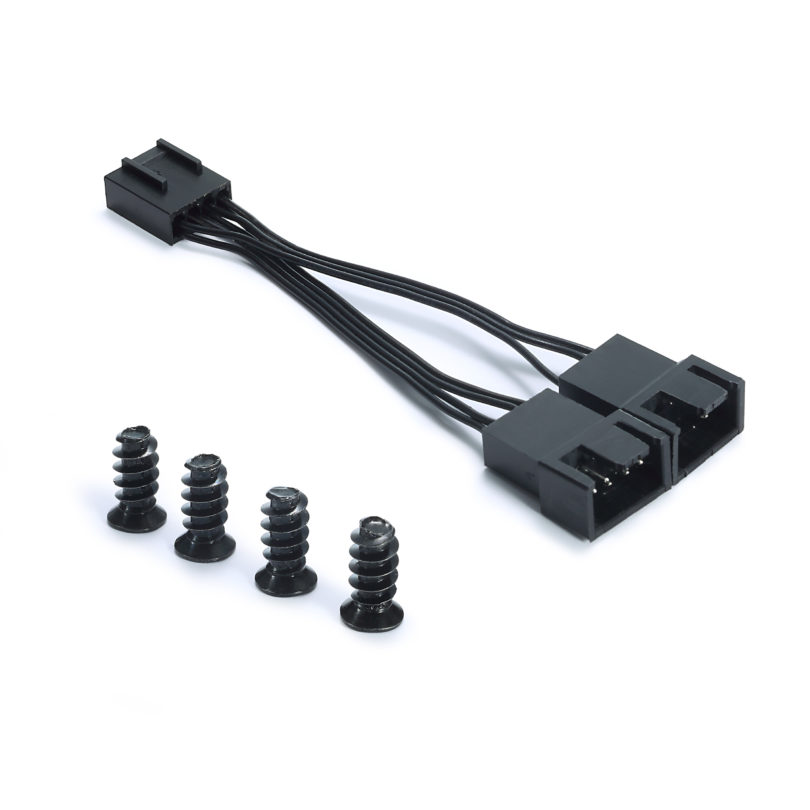

  Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable, 4 additional rubber corners, with 105 mm hole pattern
• Package weight
  210 g
• Package dimensions (Including hanging tab)
  200 x 142 x 30 mm
• Package dimensions (Excluding hanging tab)
  167 x 142 x 30 mm
