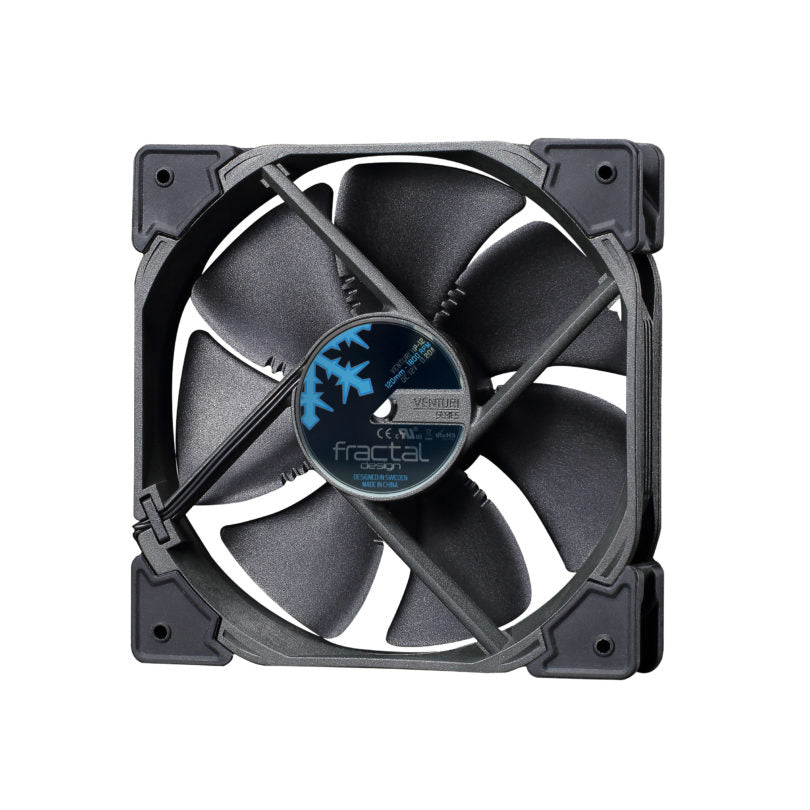

Fractal Venturi HP-12 PWM Fan

Fractal Venturi HP-12 PWM Fan

Regular price ₹ 1,799.00
Regular price ₹ 2,833.00 Sale price ₹ 1,799.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Specifications

  • Size
    120 x 120 x 25 mm
  • Screw hole pattern
    105 x 105 mm
  • Fan Connector
    4-pin
  • Bearing
    FDB
  • Number of blades
    7
  • Rotational speed
    1800 RPM
  • Noise level
    31.7 dB (A)
  • Airflow (CFM)
    61.4
  • Airflow (m3/h)
    104.3
  • Static pressure
    2.3 mm H2O
  • Fan input power
    1.0 W
  • Fan max input current
    0.2 A
  • Fan input voltage
    12 V
  • Fan starting voltage
    6 V
  • Low (0-20%) PWM speed
    400 RPM
  • Low PWM noise level
    < 10 dB (A)
  • Low PWM airflow (CMF)
    15.4
  • Low PWM airflow (m3/h)
    26.2
  • Low PWM static pressure
    0.45 mm H2O
  • MTBF
    150,000 hours
  • Fan weight
    179 g
  • Cable length
    500 mm
  • Cable type
    Braided all-black ribbon wire

Other

  • Package contents

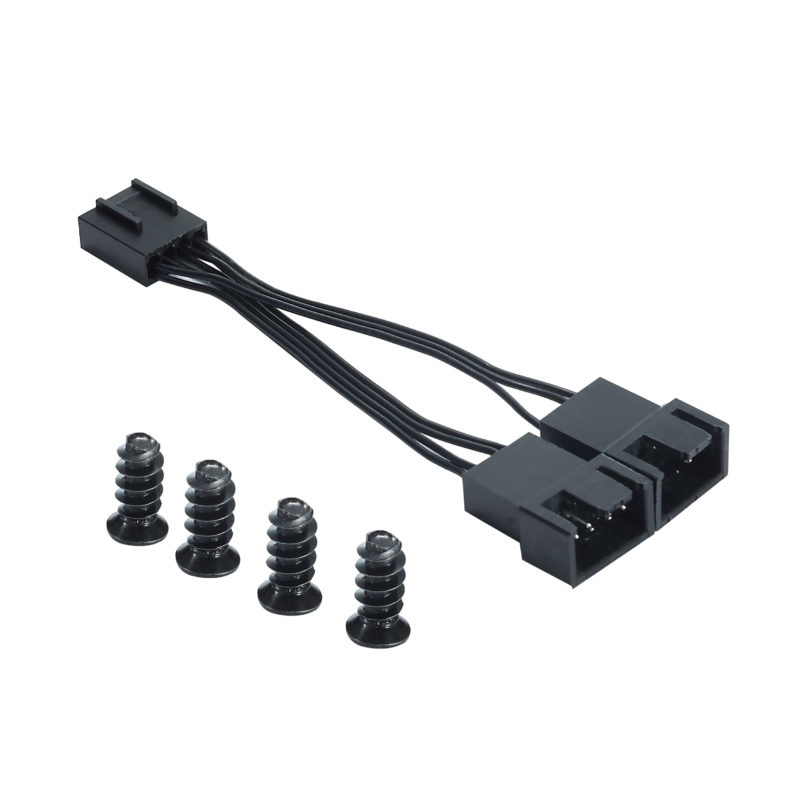

    Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable
  • Package weight
    225 g
  • Package dimensions (Including hanging tab)
    180 x 122 x 30 mm
  • Package dimensions (Excluding hanging tab)
    147 x 122 x 30 mm
