Fractal Design ION+ 760P 760W Platinum Fully Modular PSU

Specifications

• 80 PLUS® Certification : Platinum
• Modular cables : Fully modular
• Cable type : Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire

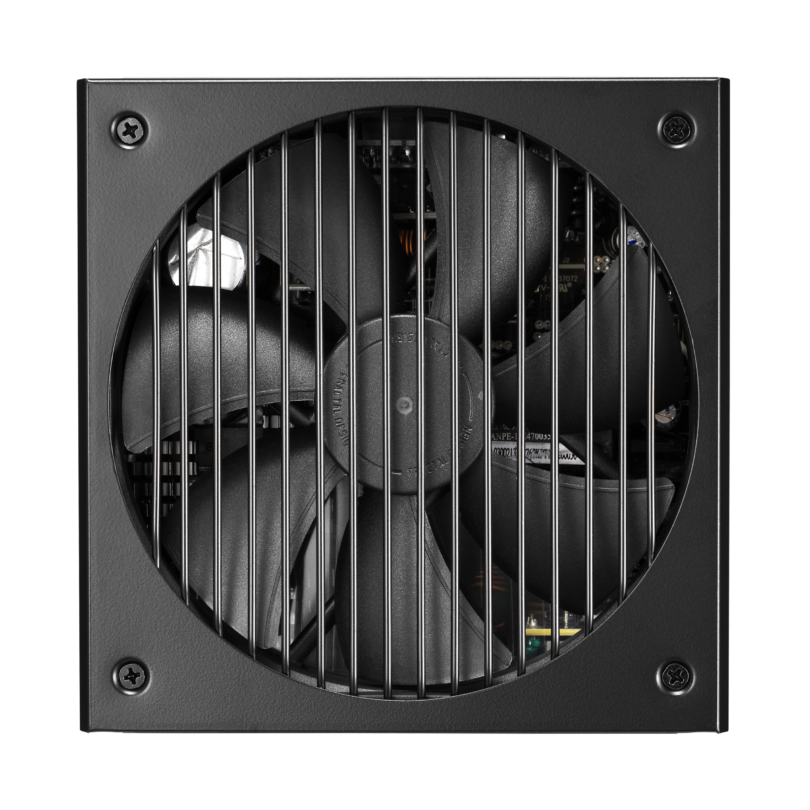

• Fan type : Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
• Maximum operating temperature at full load : 50° C
• Semi-passive operation : Yes, user selectable (Zero RPM)
• Sleep State Compliance : C6/C7
• Warranty : 10 years
• Capacitors : Japanese
• Protection features : Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
• Approvals & Certifications : CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
• Life expectancy (MTBF) at max output load : 100,000 hours
• Input voltage : 100-240V AC
• Input frequency : 50-60 Hz
• Input current : 10A/5A
• Number of 12V rails : 1
• PSU specification compliance : ATX12V 2.4 / EPS12V 2.92
• Standby efficiency : ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
• Unit measurements : 150 x 150 x 86 mm
• Unit weight (unit only) : 1.665 kg

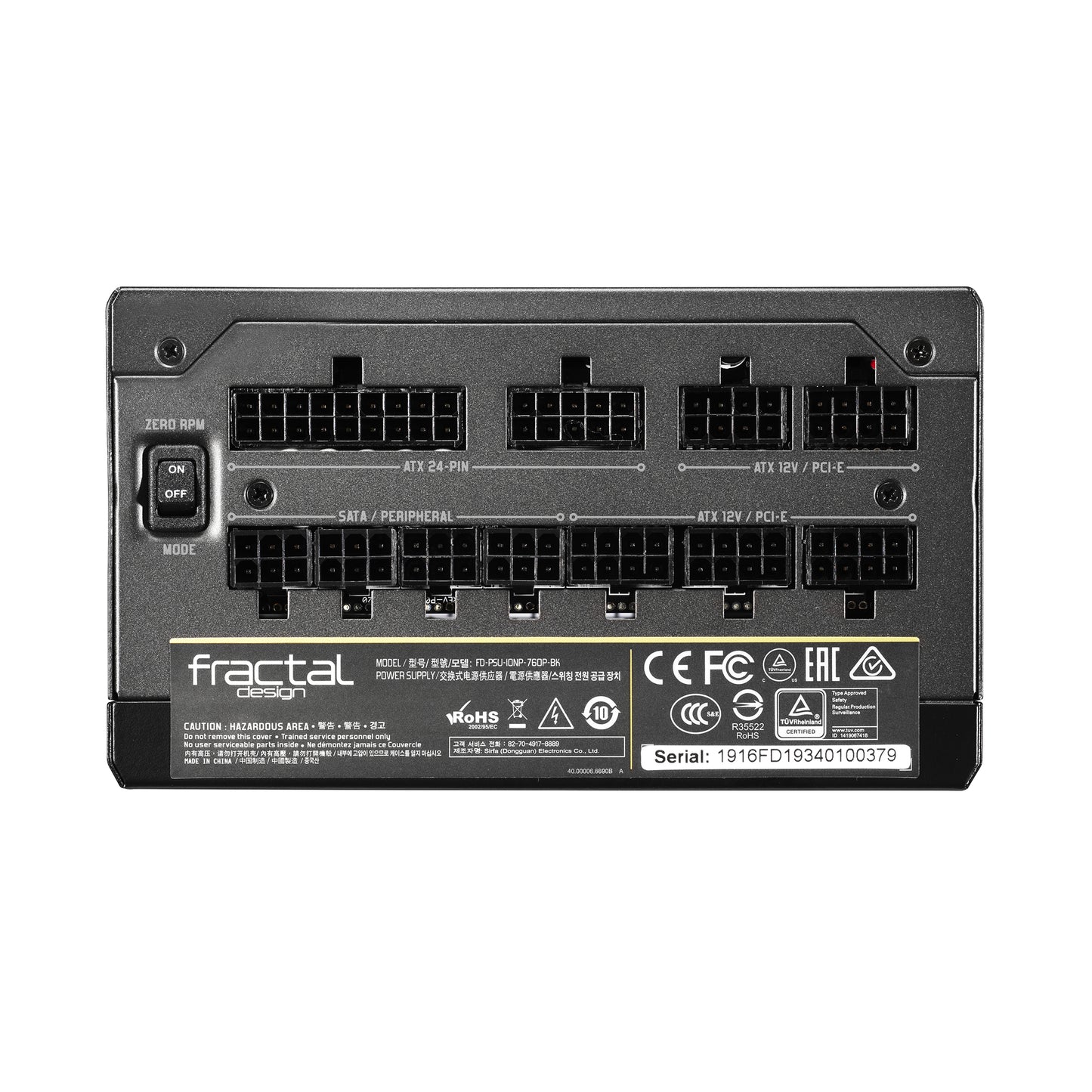

Connectors

• ATX 24-pin : 1
• ATX12V 4+4 pin / EPS12V 8-pin : 2
• PCIe 6+2 pin : 6
• SATA : 10
• Peripheral : 4

Cable configuration (length between connectors)

• ATX 24-pin : 600
• ATX12V 4+4 pin : 700
• EPS12V 8-pin : 600
• PCIe 6+2 pin : 550+120
• SATA : 400+120+120+120, 650+120
• Peripheral : 400+120+120+120

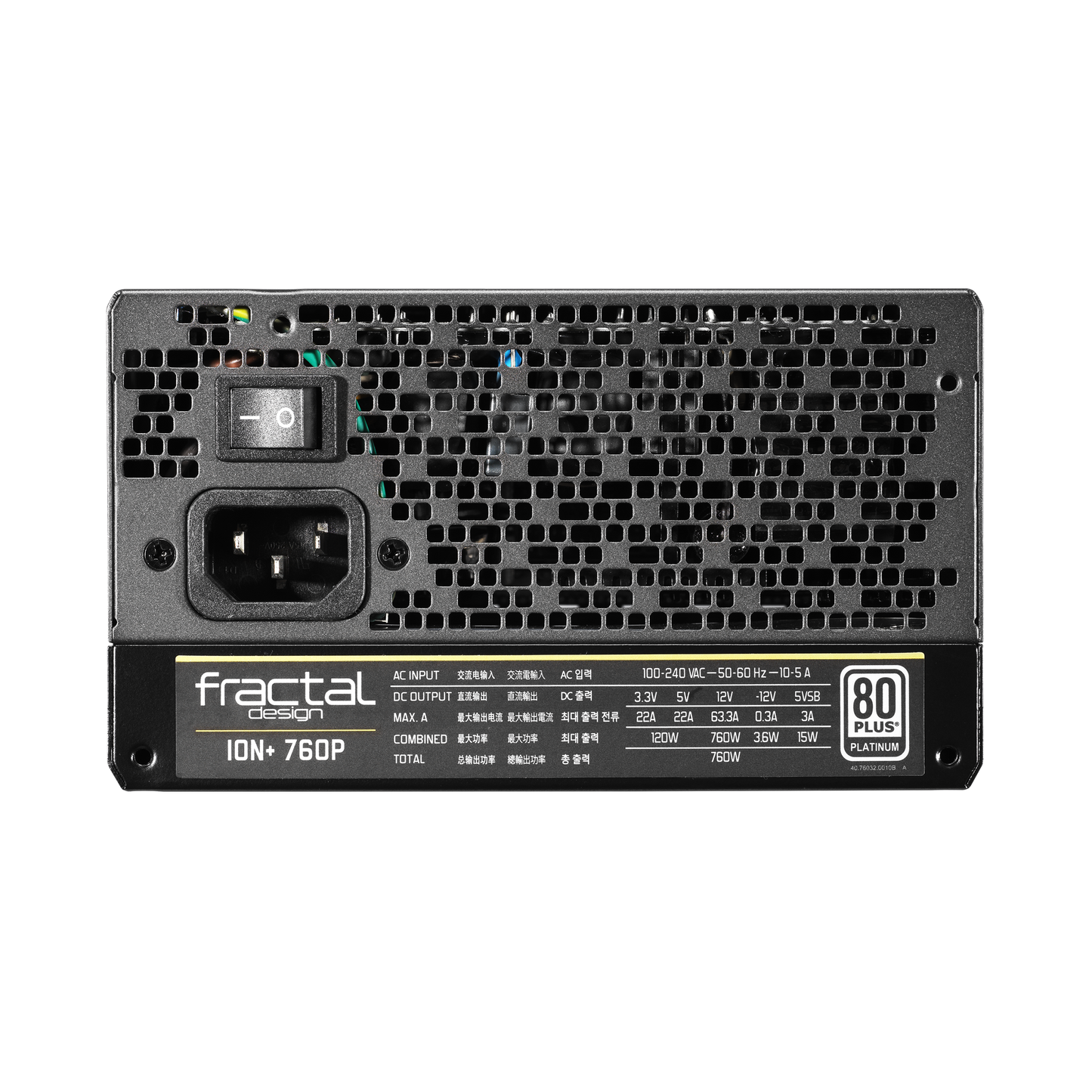

DC output

• 3.3 V : 22A
• 5 V : 22A
• 3.3 V and 5 V combined : 120W
• 12 V : 63.3A
• -12 V : 0.3A
• 5 V Standby (+5 Vsb) : 3A
• Total Power : 760W

Other

• Package content
  Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
• Package dimensions (W x H x D) : 325 x 110 x 210 mm
• Package weight : 2.975 kg
