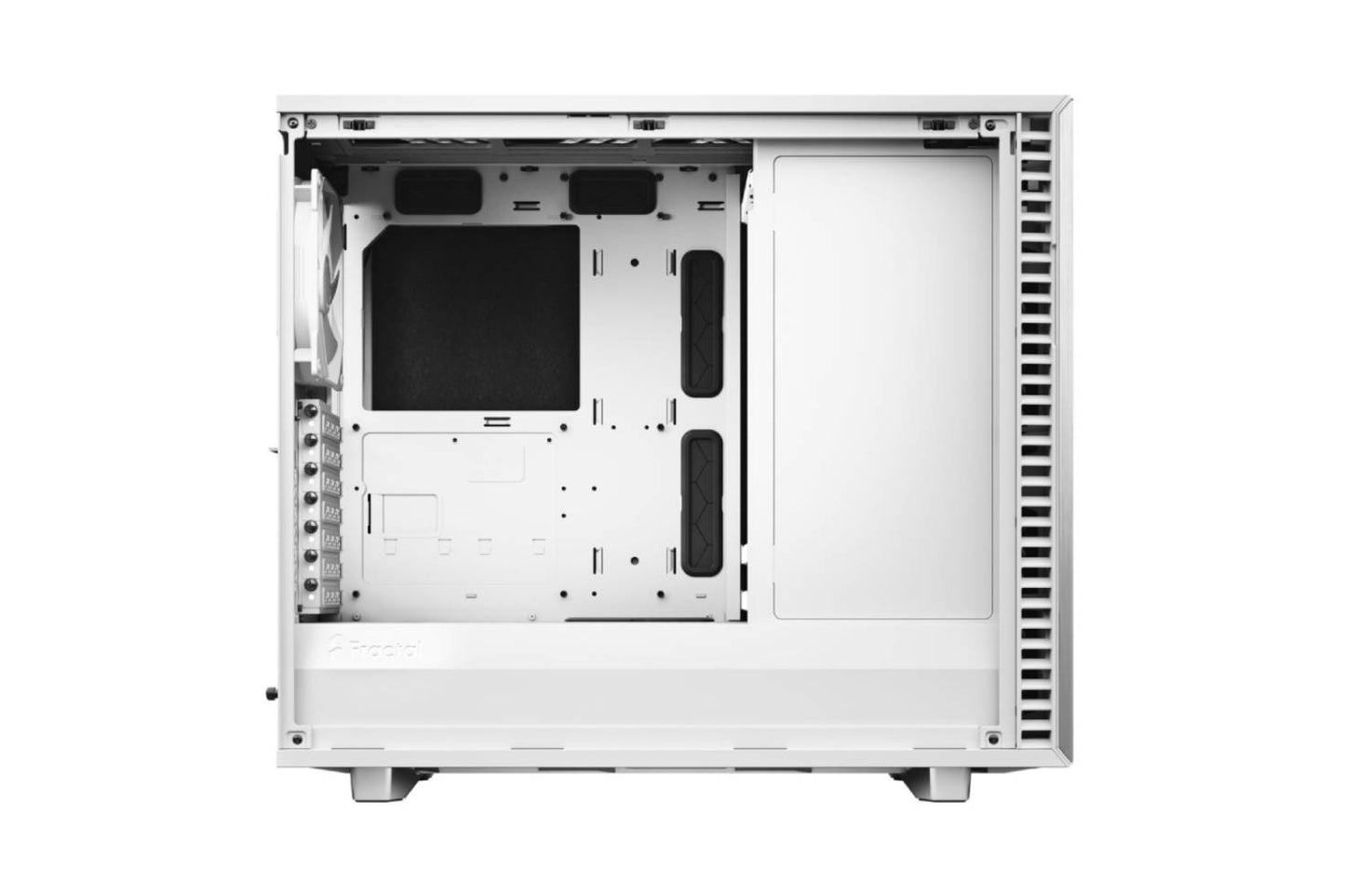

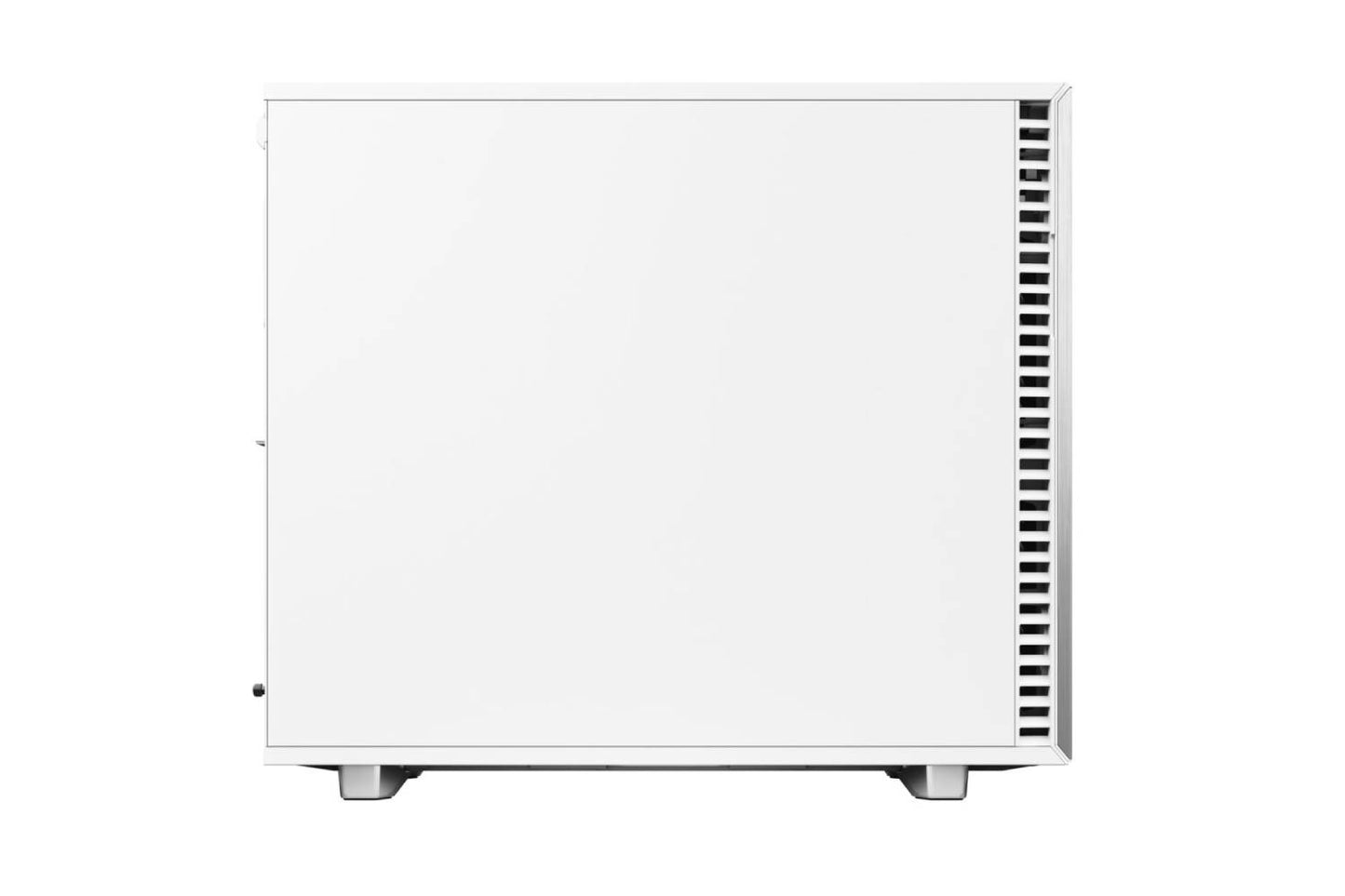

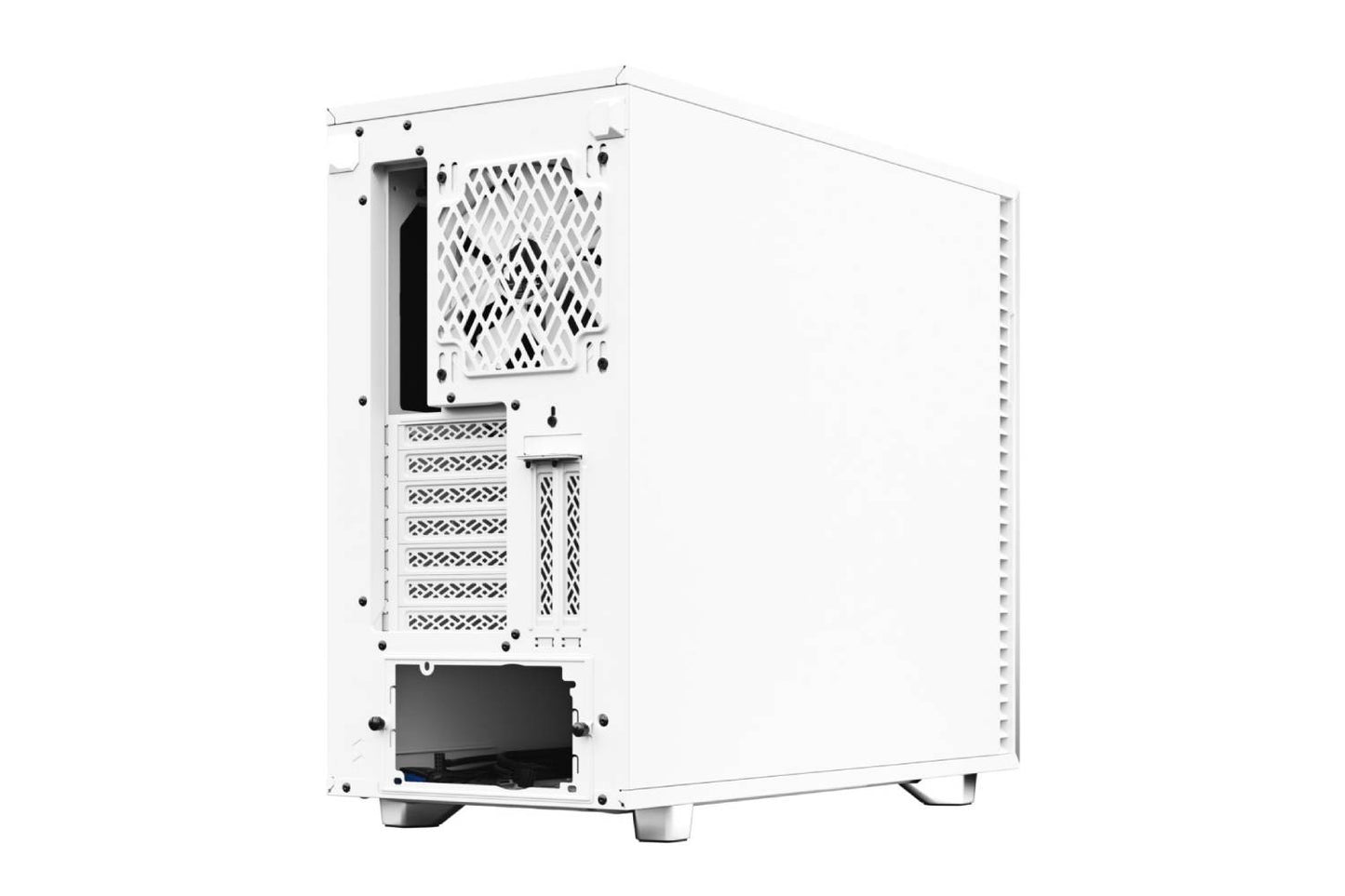

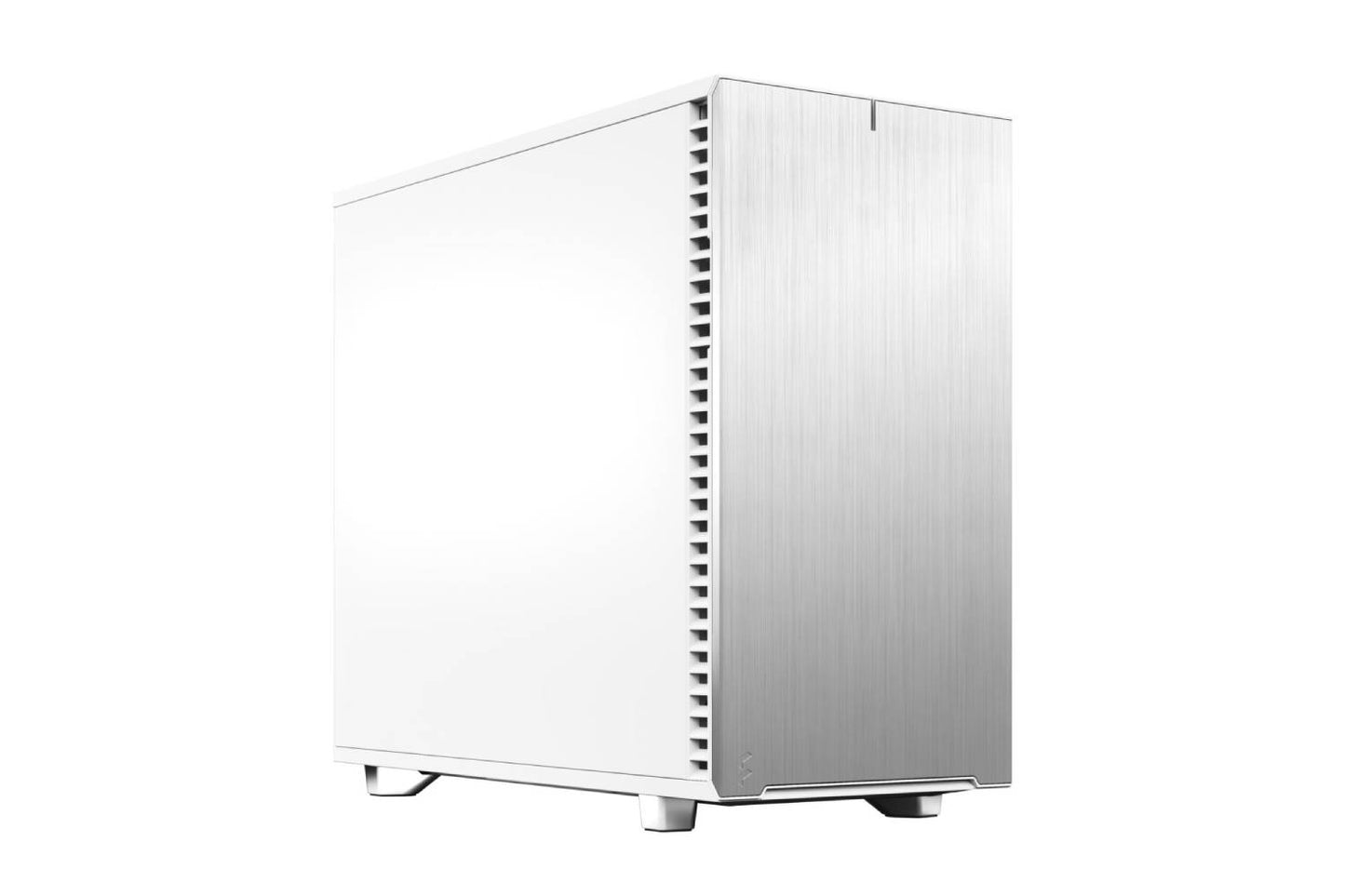

Fractal Define 7 Solid White Cabinet
Fractal Define 7 Solid White Cabinet
Couldn't load pickup availability
Description
Description
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
- • New chassis design opens up to fully expose the case interior
- • Anodized aluminum front panel with reversible dual-handed hinges
- • Multibracket converts unused fan positions to HDD, SSD or pump mounts
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
![](https://www.fractal-design.com/wp-content/uploads/2020/10/D7_Airflow.png)
![](https://www.fractal-design.com/wp-content/uploads/2020/10/Fractal_Design_Define_7_Define_7_Feature_Visuals_DualLayoutWaterCooling.0012-2160x1527.jpg)
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
- Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included
Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
![](https://www.fractal-design.com/wp-content/uploads/2020/10/Fractal_Design_Define_7_Define_7_Feature_Visuals_StorageLayout.0008-2160x1527.jpg)
Specifications
-
3.5"/2.5" Universal drive brackets6 included, 14 positions total
-
Dedicated 2.5" drive brackets2 trays included, 4 positions total
-
5.25” drive mounts1
-
Expansion slots7 + 2
-
Front ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
-
Total fan mounts9 x 120/140 mm
-
Front fan3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
-
Top fan3 x 120/140 mm
-
Rear fan1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
-
Bottom fan2 x 120/140 mm
-
Dust filtersTop, 2 x front, full length bottom
-
Fixed velcro strapsYes
-
Cable routing grommetsYes
-
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
-
Left side panelIndustrial sound-damped steel
-
Right side panelIndustrial sound-damped steel
Compatibility
-
Motherboard compatibilityE-ATX (max 285 mm) / ATX / mATX / mITX
-
Power supply typeATX
-
PSU max length250 mm (with HDD cage installed)
-
GPU max lengthStorage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)
-
CPU cooler max height185 mm
-
Front radiatorUp to 360/280 mm
-
Top radiatorUp to 360/420 mm
-
Rear radiator120 mm
-
Bottom radiatorUp to 240/280 mm
-
Cable routing space30 mm
-
Vertical GPU Support (with Flex VRC-25)65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Dimensions
-
Case dimensions (LxWxH)547 x 240 x 475 mm
-
Case dimensions w/o feet/protrusions/screws533 x 240 x 451 mm
-
Package dimensions (LxWxH)558 x 363 x 641 mm
-
Net weight13.49 kg
-
Package weight15.98 kg
-
Volume57.7 liters
