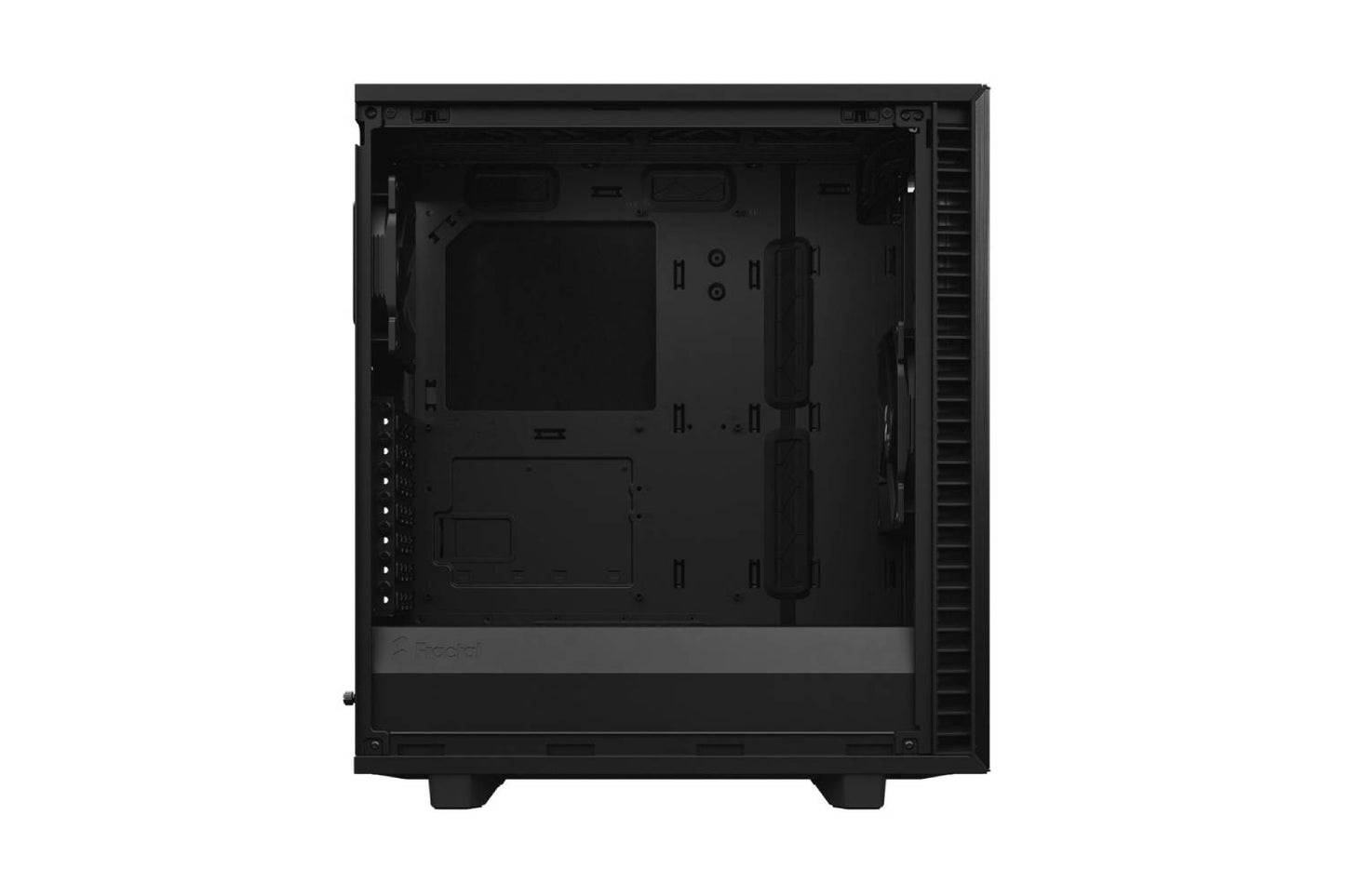

Fractal Define 7 Compact Black
Fractal Define 7 Compact Black
Couldn't load pickup availability
Description
Description
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
- Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
- Fits GPUs up to 360 mm with a 240 mm radiator in the top
- Top panel effortlessly swaps from solid steel to filtered ventilation
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Specifications
-
3.5"/2.5" drive mounts2
-
Dedicated 2.5" drive mounts2 trays included, 4 positions total
-
Expansion slots7
-
Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
-
Total fan mounts7x 120 or 4x 140 mm and 2x 120 mm
-
Front fan3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)
-
Top fan2x 120 or 2x 140 mm
-
Rear fan1x 120 mm, (1x Dynamic X2 GP-12 included)
-
Bottom fan1x 120 mm (requires removal of HDD cage)
-
Dust filtersTop, 2x front, full length bottom
-
Fixed velcro strapsYes
-
Cable routing grommetsYes
-
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
-
Left side panelIndustrial sound-damped steel
-
Right side panelIndustrial sound-damped steel
Compatibility
-
Motherboard compatibilityATX / mATX / Mini-ITX
-
Power supply typeATX
-
PSU max length200 mm (with HDD cage and front fan)
-
GPU max length341 mm (360 mm without front fan)
-
CPU cooler max height169 mm
-
Front radiatorUp to 360/280 mm (max 145 mm width)
-
Top radiatorUp to 240 mm
-
Rear radiator120 mm
-
Bottom radiator120 mm (requires removal of HDD cage)
-
Cable routing space17-28 mm
Dimensions
-
Case dimensions (LxWxH)427 x 210 x 474 mm
-
Case dimensions w/o feet/protrusions/screws415 x 210 x 451 mm
-
Package dimensions (LxWxH)536 x 310 x 521 mm
-
Net weight8.61 kg
-
Package weight10.87 kg
-
Volume39.3 liters
Other
-
Package contentsDefine 7 Compact, Accessory box, User manual, Ventilated top panel
