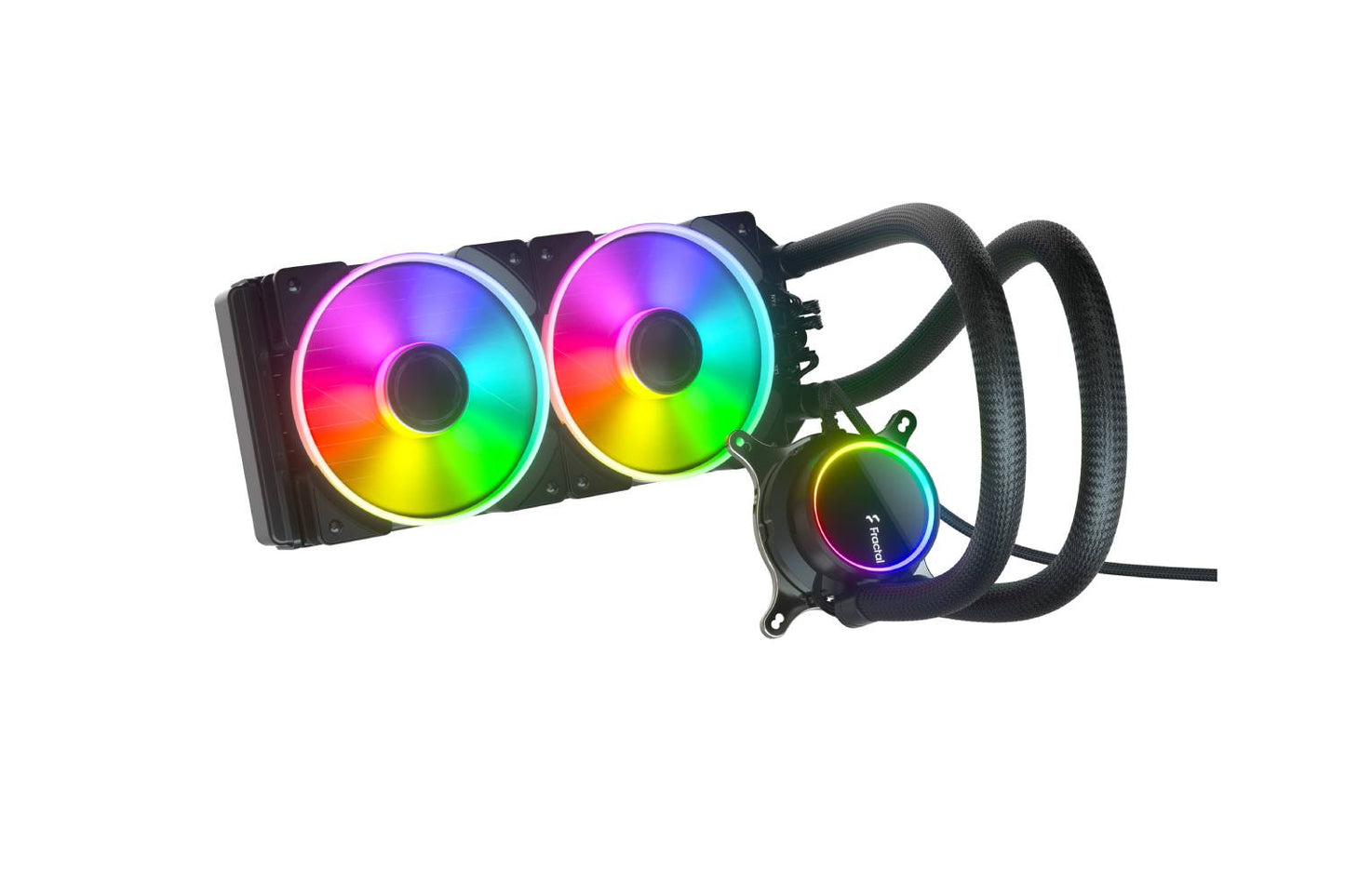

Fractal Celsius+ S28 Prisma Liquid Cooler
Fractal Celsius+ S28 Prisma Liquid Cooler
Description
Description
Overview
Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.

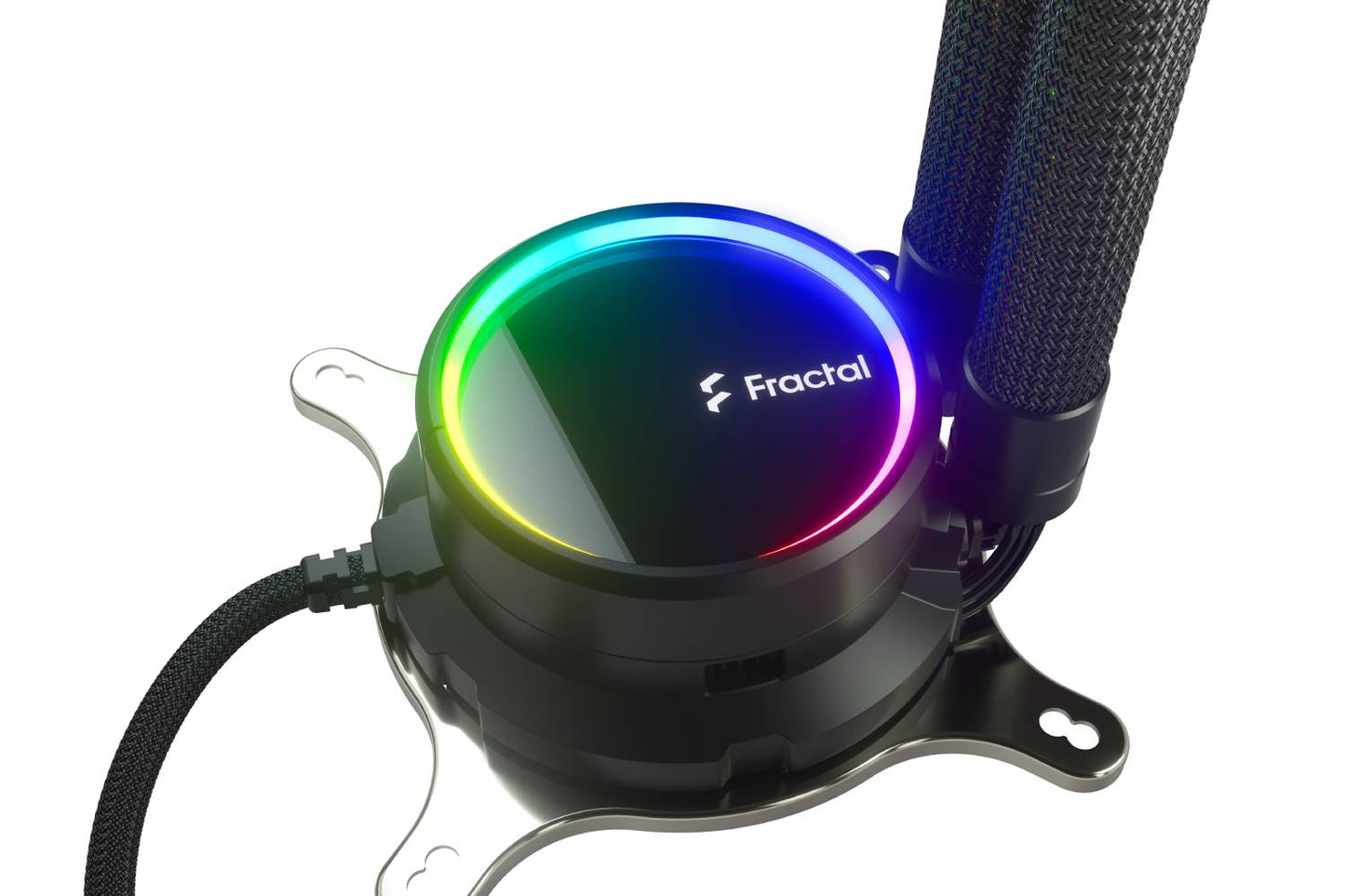

- • Tinted glass pump face with backlit logo and ARGB LED effects
- • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- • Backed by a 5-year warranty for extended peace of mind
General specifications
-
Sockets supported (Intel)1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
-
Sockets supported (AMD)AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
-
Coldplate materialCopper
-
Thermal pastePre-applied
-
Tube length400 mm
-
Tube materialLow-permeability rubber with braided nylon sleeve
-
Fittings, block sideArticulating 90-degree elbow
-
Fittings, radiator sideStraight rotary
-
Fan controlDual mode (Auto/PWM)
-
Note:The Celsius+ is NOT compatible with the Adjust R1

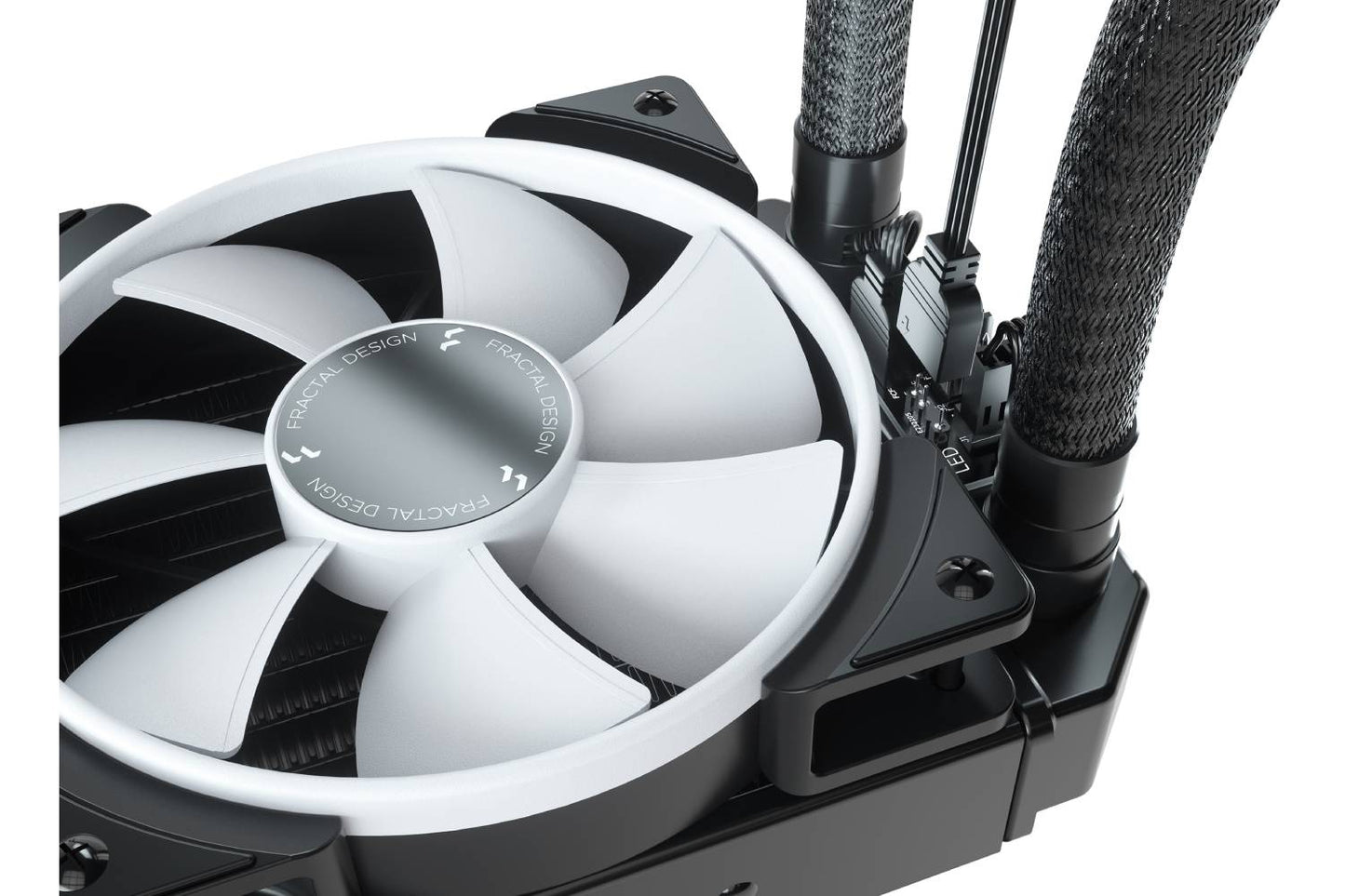

Fan specifications
-
Fan typePrisma AL-14 PWM ARGB
-
Rotational speed500 – 1700 RPM
-
BearingLLS
-
PWM controlYes
-
Acoustical noise (full speed)34.1 dBA
-
Maximum air flow103.9 CFM
-
Maximum static pressure2.38 mm H2O
-
Input voltage12V DC
-
Maximum input current0.18A
-
MTBF100,000 hours
Pump specifications
-
Rotational speed800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
-
Bearing typeCeramic bearing and shaft
-
PWM controlYes
-
Acoustical noise (full speed)20 dBA
-
Maximum pressure14.4 kPa / 1.46 mm H2O /2.0 PSI
-
Input voltage12V DC
-
Input current (without fans)0.36A
-
MTTF50,000 hours
-
Block height45 mm
-
Block measurements (with fittings)86 x 75 mm
-
Block diameter (main block body)62 mm
Radiator specifications
-
Dimensions143 x 30 x 324 mm
-
Housing materialAluminum
-
Fin materialAluminum
-
Fan screw threads6-32
Other
-
Package contentsCelsius+ S28 unit, 2 x 140 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
-
Package Dimensions411 x 187 x 160 mm
-
EAN7340172702115
-
UPC843276102111
-
JAN4537694275552
-
Product codeFD-W-2-S2802
-
Warranty5 years
