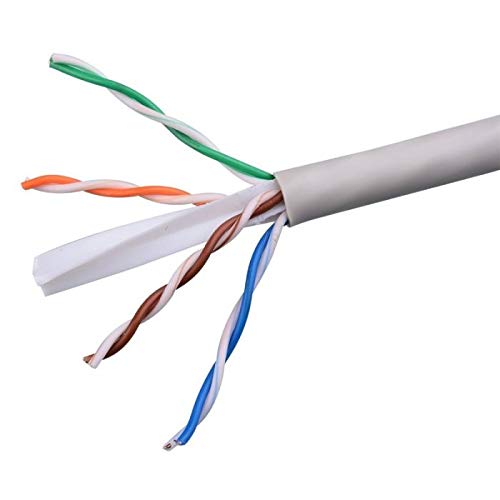

D-link CAT6 UTP CAT6 UTP 23AWG Solid : 305M

CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz.  This cable well exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E

Download datasheet here

Features

• Comply with Cat6 specifications
• 4-pair unshielded twisted pair (UTP) cable
• Pairs are braided in aluminum foil with drain wire
• 23 AWG solid copper conductor for superior conductivity
• HDPE insulation
• FR PVC Jacket
• Verified compliant with EIA/TIA standards by ETL
• UL-listed
• Packaged in an easy-to-pull box for easier installation

Specifications

• Category : 6 UTP Solid cable
• Conductor : Conductor :  23 AWG (Solid)
• Conductor Meta : Conductor Meta :  Bare Copper
• Insulation Material : HD-PE
• OD : 6.1mm ±0.2
• Resistance Unbalance : 5% Max
• Capacitance Unbalance : 330pF/100m
• Delay Skew : <45nS
