About this product

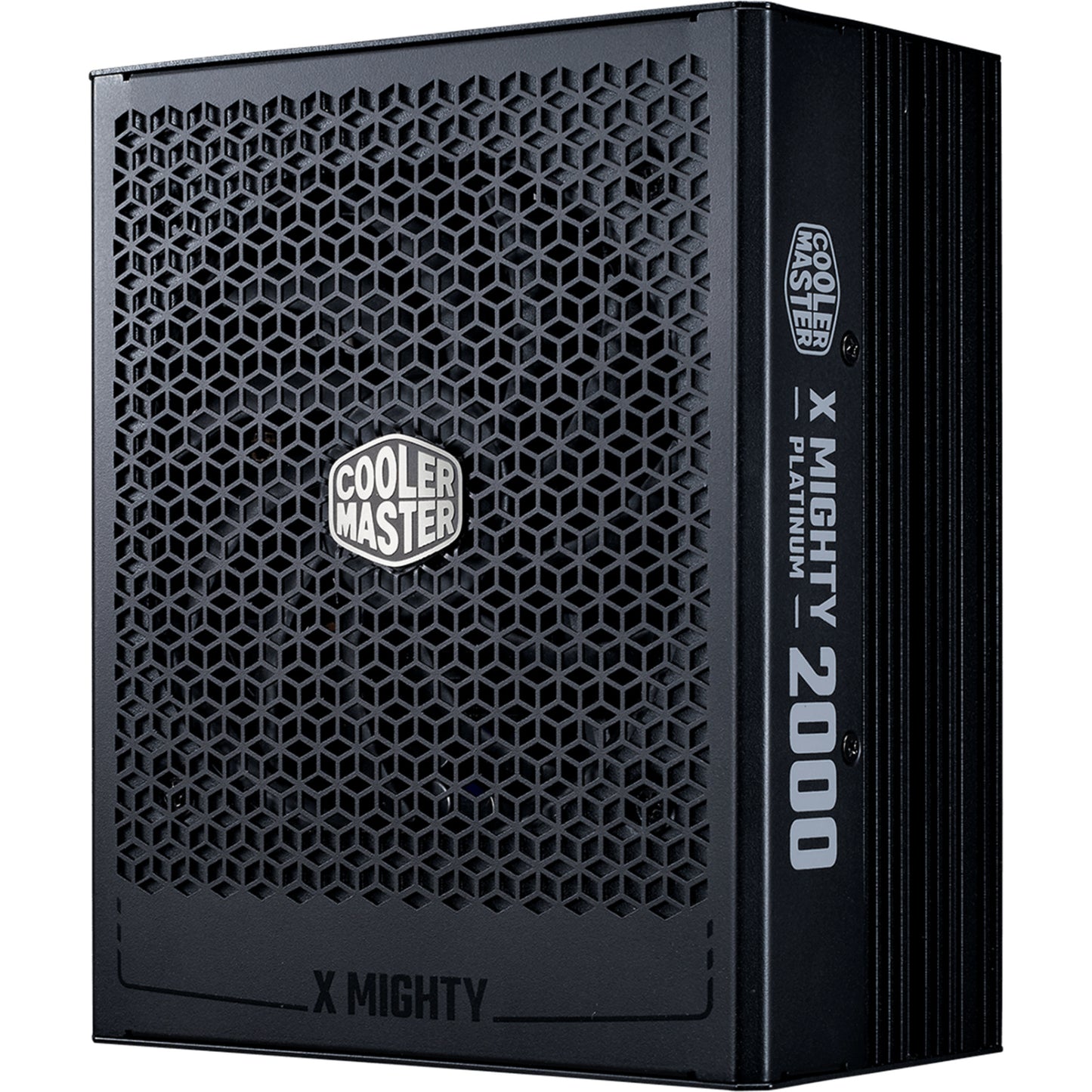

Product Name X Mighty Platinum 2000 230V
Item Code MPS-K001-AFBP
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 200 - 240V
Input Current 12A(max)
Input Frequency 50 - 60Hz
Dimensions (L x W x H) 180 x 150 x 86mm

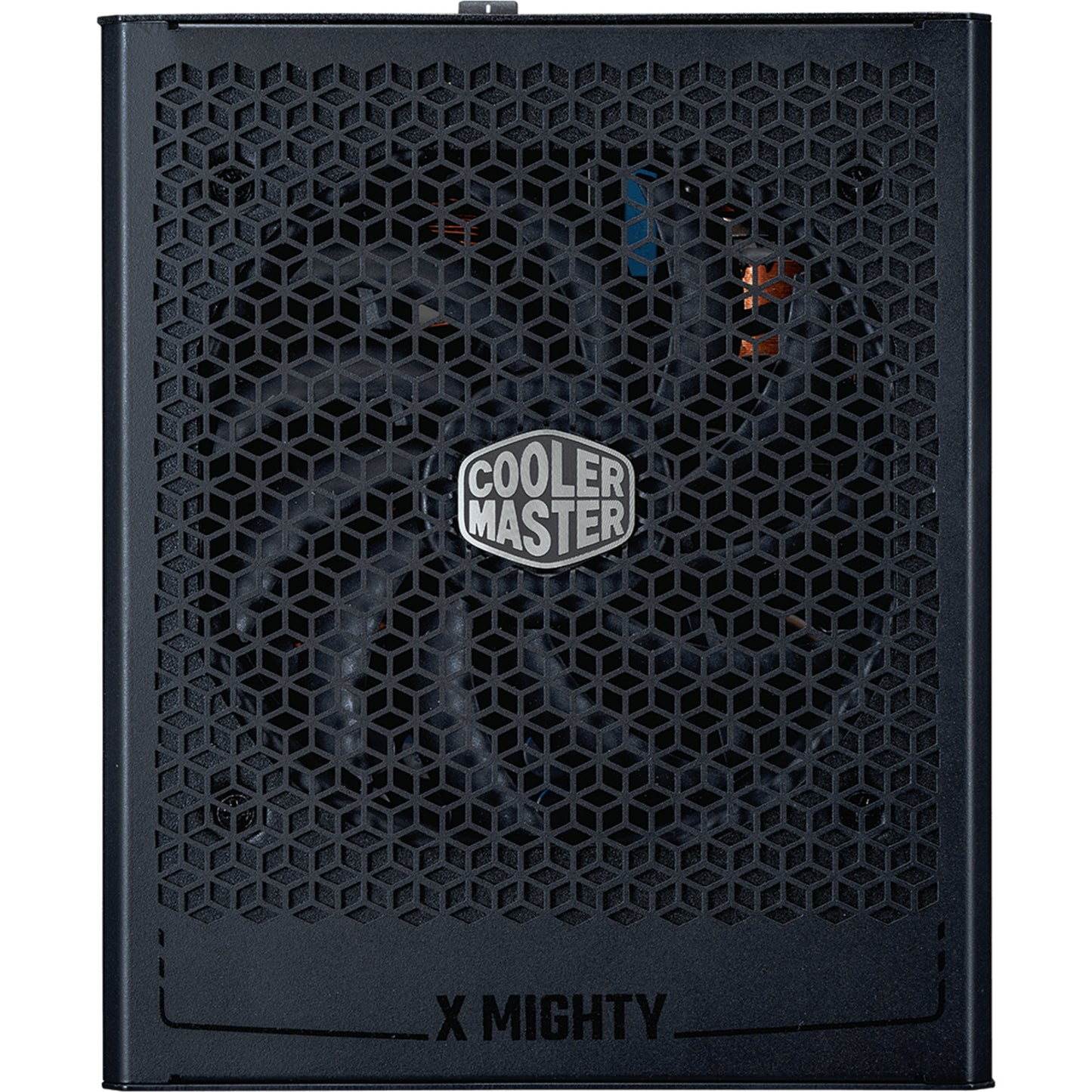

Fan Size 120 mm
Fan Bearing FDB
Fan Speed 2500 rpm
Efficiency ≥ 94% @ Typical Load
80 PLUS Rating 80 PLUS Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0 ~ 50℃
Power Good Signal 100 - 150ms
Hold Up Time ≥ 16ms
MTBF >100,000 hours
Protections OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush
Protection
Regulatory TUV, CE, CCC, EAC, RCM, UKCA
/ BIS, KC (based on region's request.)

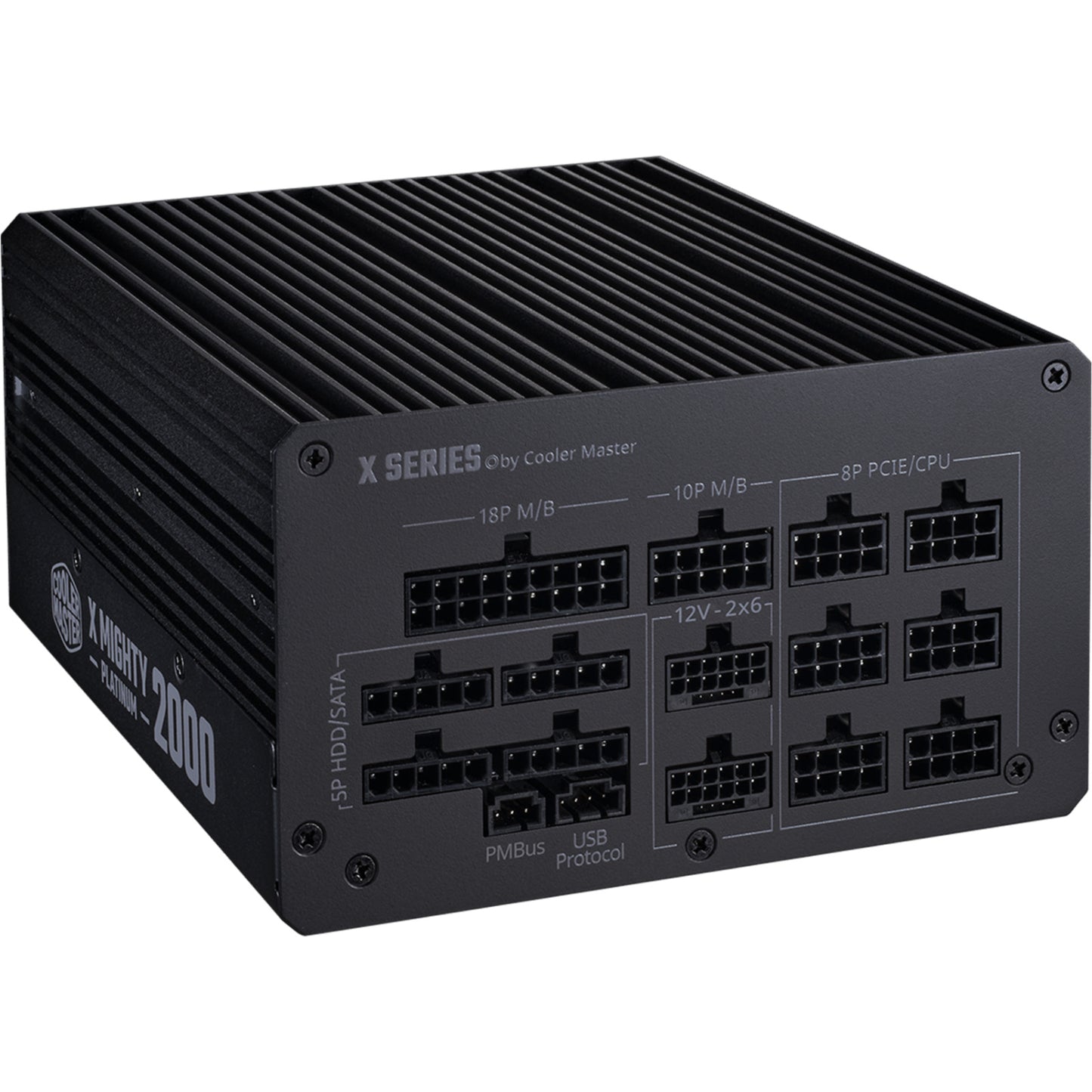

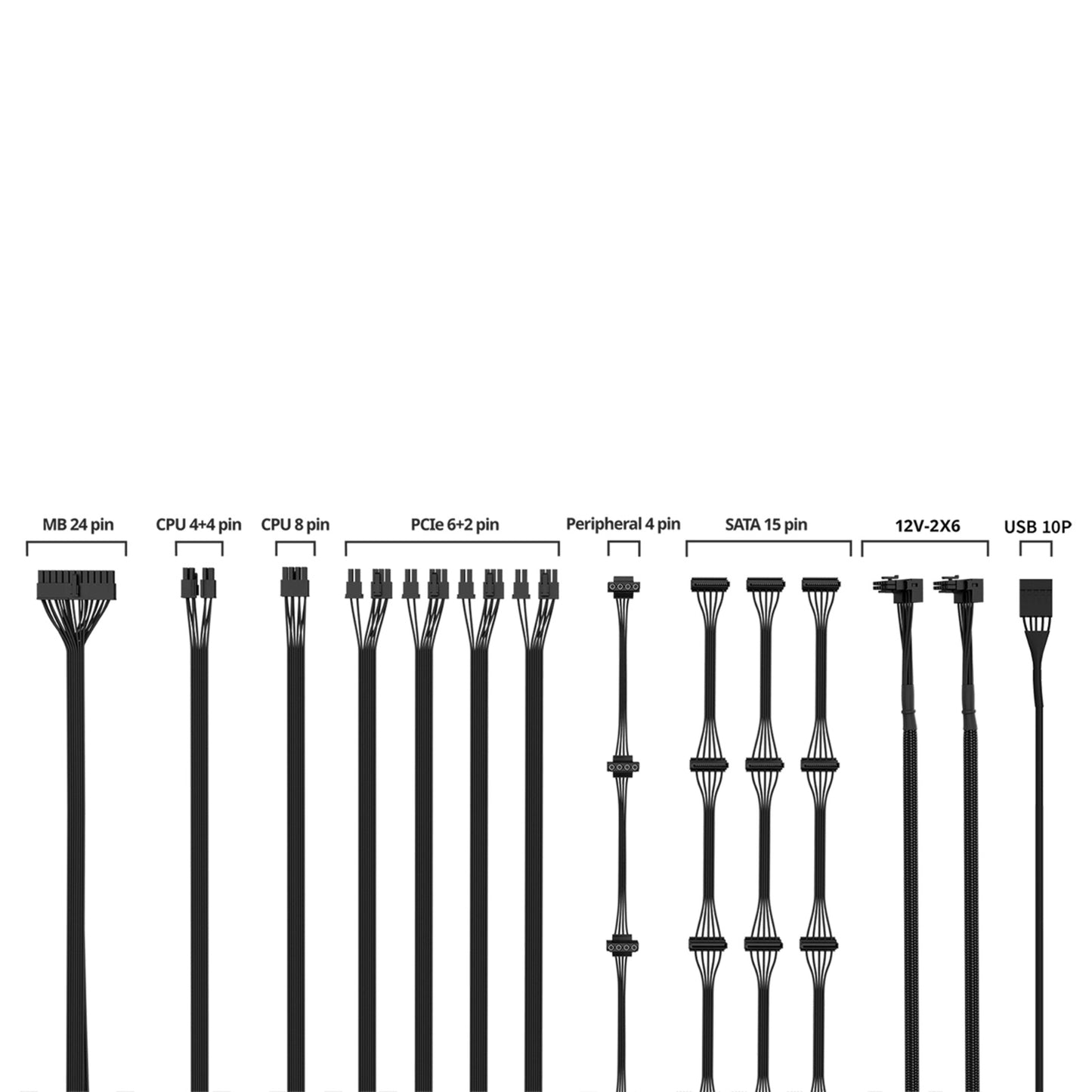

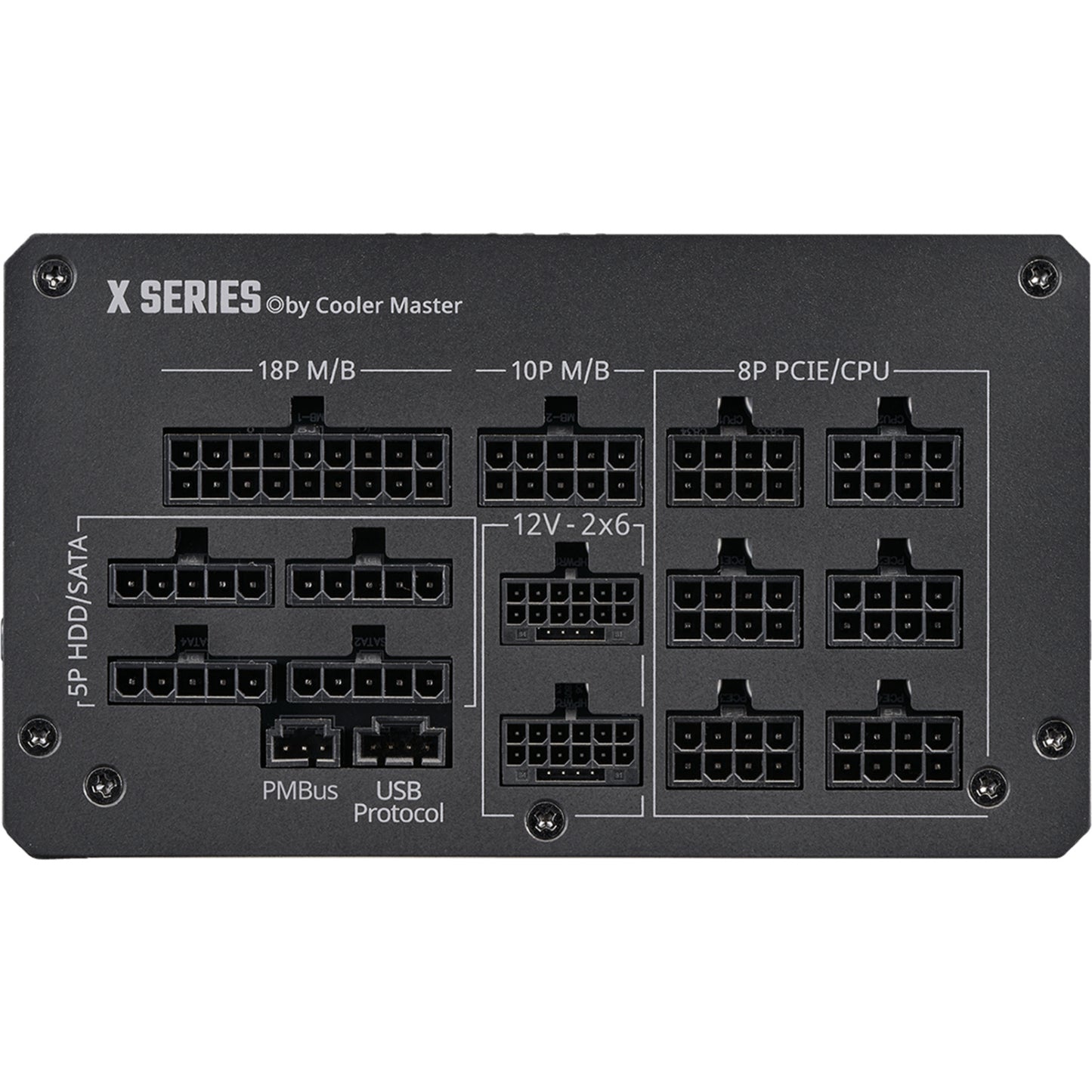

Connectors
ATX 24 Pin x1 = 1x (650mm)
EPS 4+4 Pin x1 = 1x (650mm)
EPS 8 Pin x1 = 1x (650mm)
SATA x12 = 3x (500+150+150+150mm)
Peripheral 4 Pin x4 = 1x (500+120+120+120mm)
PCI-e 6+2 Pin x4 = 4x (550mm)
12V-2x6 x2 = 2x (650mm)
USB 10P x1 = 1x (800mm)

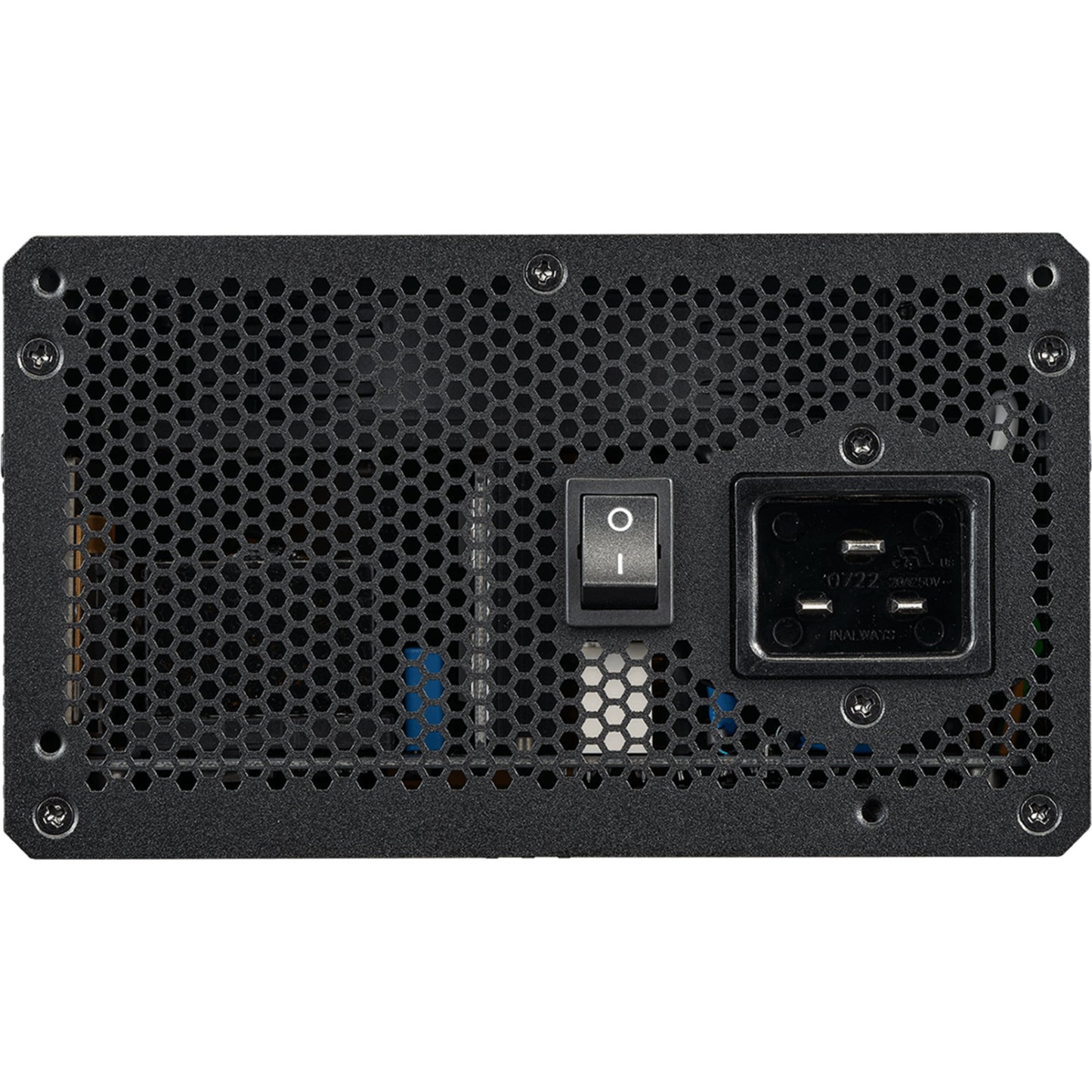

AC INPUT 200-240V~, 12A max, 50 - 60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vstb
20A 20A 166.6A 0.3A 3A
TOTAL POWER 120W 1999.2W 3.6W 15W
