  • Cooler Master VANGUARD V750W Power Supply
  • Cooler Master VANGUARD V750W Power Supply
1 of 2

Cooler Master

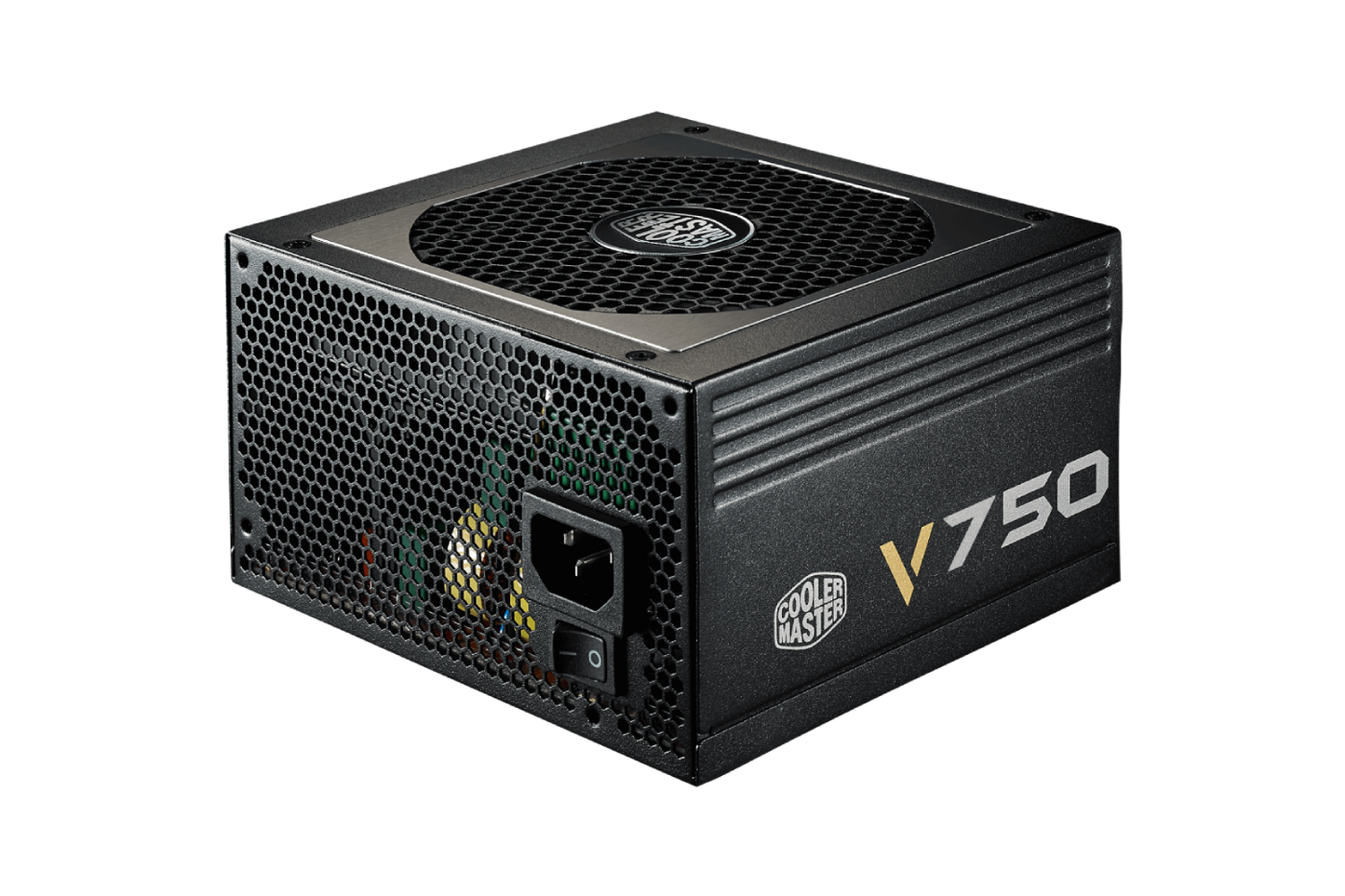

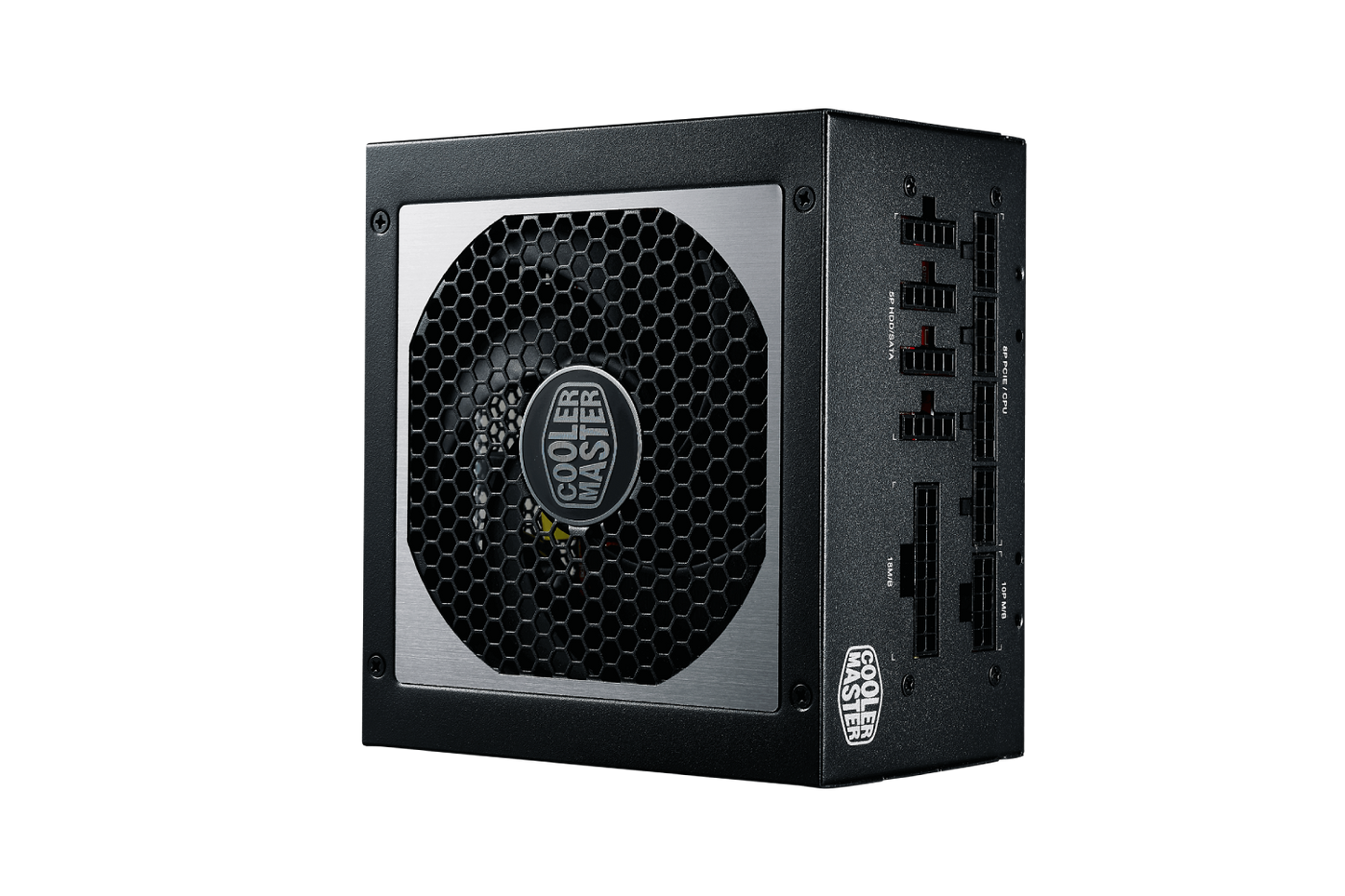

Cooler Master VANGUARD V750W Power Supply

Regular price ₹ 9,060.00
Regular price Sale price ₹ 9,060.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Unique 3D circuit design offers higher efficiency and improves the heat dissipation
  • Cooler Master's exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance
  • Fully modular, flat cable design for better cable management
  • 100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations
  • Compact design 6.8W/inch3 fits perfectly with small form factor systems
  • 80 PLUS Gold certified: up to 92% efficiency on typical load
Model RS750-AFBAG1-xx
ATX Version Intel Form Factor ATX 12V V2.31
Dimensions 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage 100-240Vac
Input Range Full range
Input Frequency Range 47 - 63Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 90% @ Typical Load
MTBF >100,000 Hours
Fan Type 120mm Silecnio FP
Quality Certificates CE/FCC/UL/TUV/RCM/BSMI/CCC/EAC
Protection OVP/UVP/OPP/OTP/OCP/SCP
Connectors 24 Pin MB x 1
4+4 Pin CPU +12V x 2
6+2 Pin PCI-e x 4
SATA x 8
4Pin Peripheral x 6
4Pin Floppy x 1
