About this product

80 PLUS GOLD CERTIFIED
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
![]()
SPECIFICATIONS
| Product Name | MWE Gold 850 Full Modular | |
| Product Number | MPE-8501-AFAAG | |
| ATX Version | ATX 12V V2.31 | |
| PFC | Active PFC (>0.95 typical) | |
| Input Voltage | 100-240V | |
| Input Current | 12-6A | |
| Input Frequency | 50/60Hz | |
| Dimensions (LxBxH) | 160 x 150 x 86mm | |
| Fan Size | 120mm | |
| Fan Bearing | LDB | |
| Power good Signal | 100-500ms | |
| Hold Up Time | >14 ms @ 100% load | |
| Efficiency | 90% Typically | |
| ErP 2013 Lot 6 | Yes | |
| MTBF | >100,000 Hours | |
| Operating Temperature | 0-45°C | |
| Protections | OVP / OPP / UVP / SCP / OTP | |
| Regulatory | CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB | |

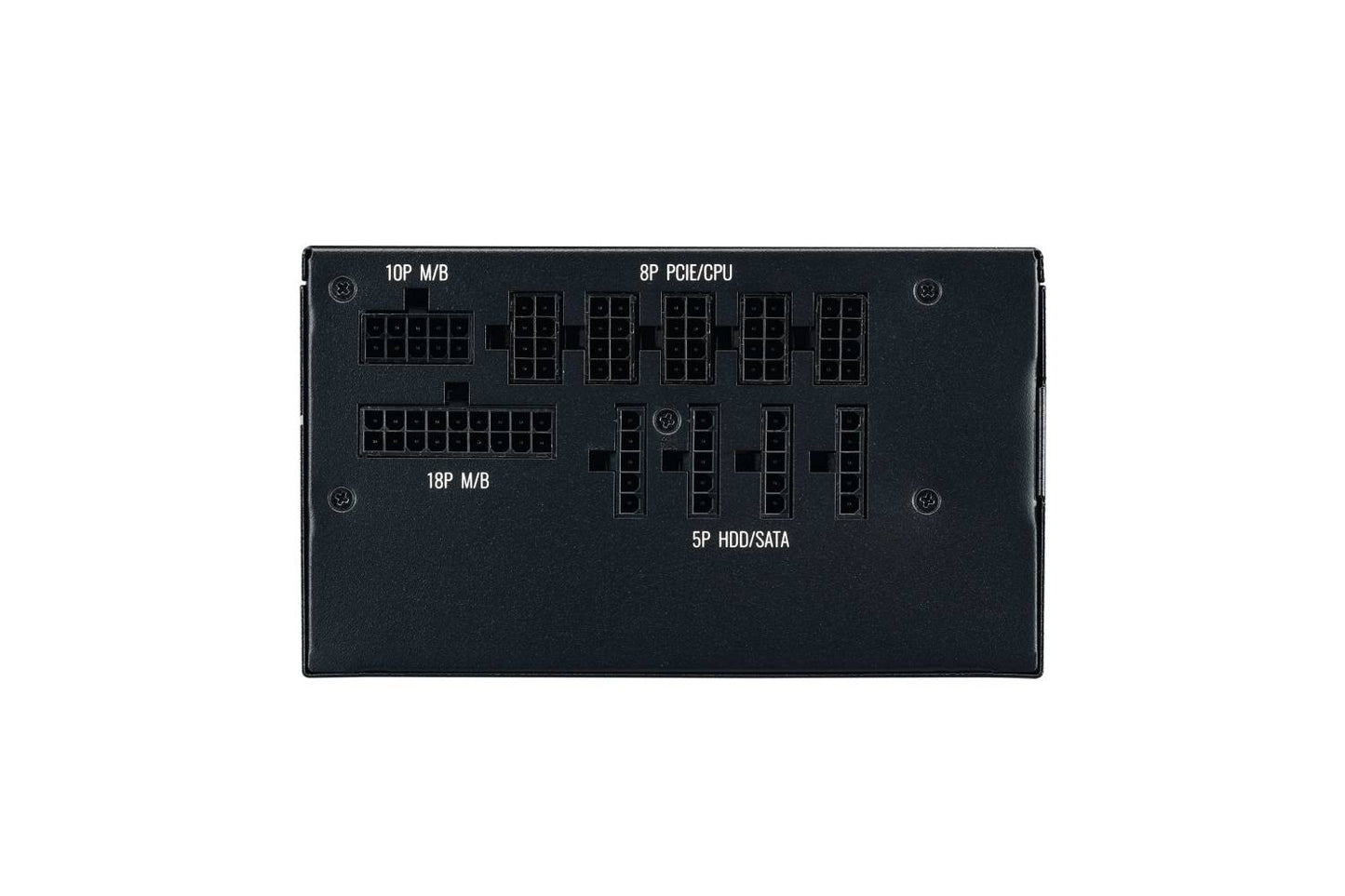

| Connectors | MB 24 Pin | 1 |
| CPU 12V 4+4 Pin | 1 | |
| SATA | 12 | |
| Peripheral 4 Pin | 4 | |
| FDD Cable 4 Pin | 1 | |
| PCI-E 6+2 PIN CONNECTORS | 4 | |
